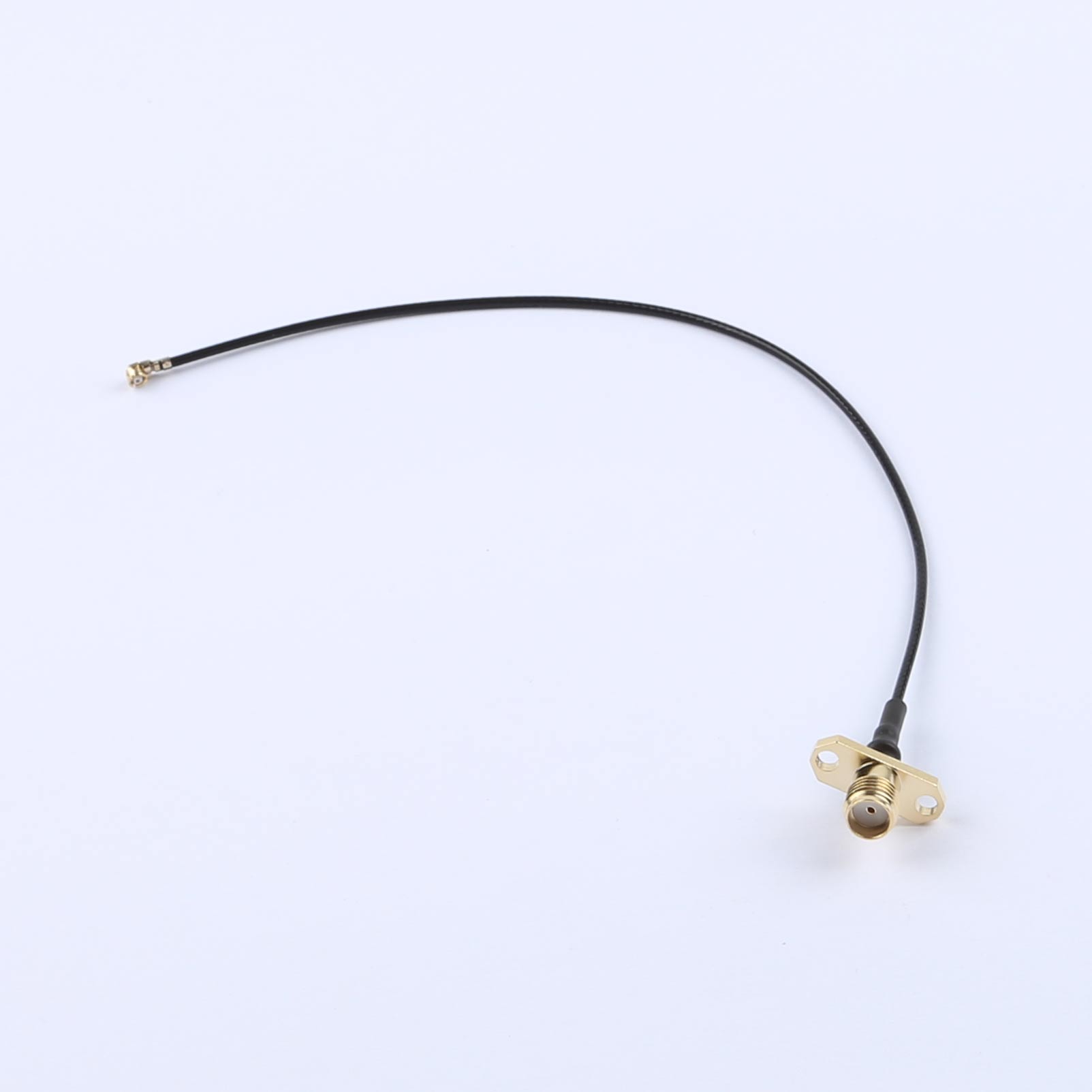

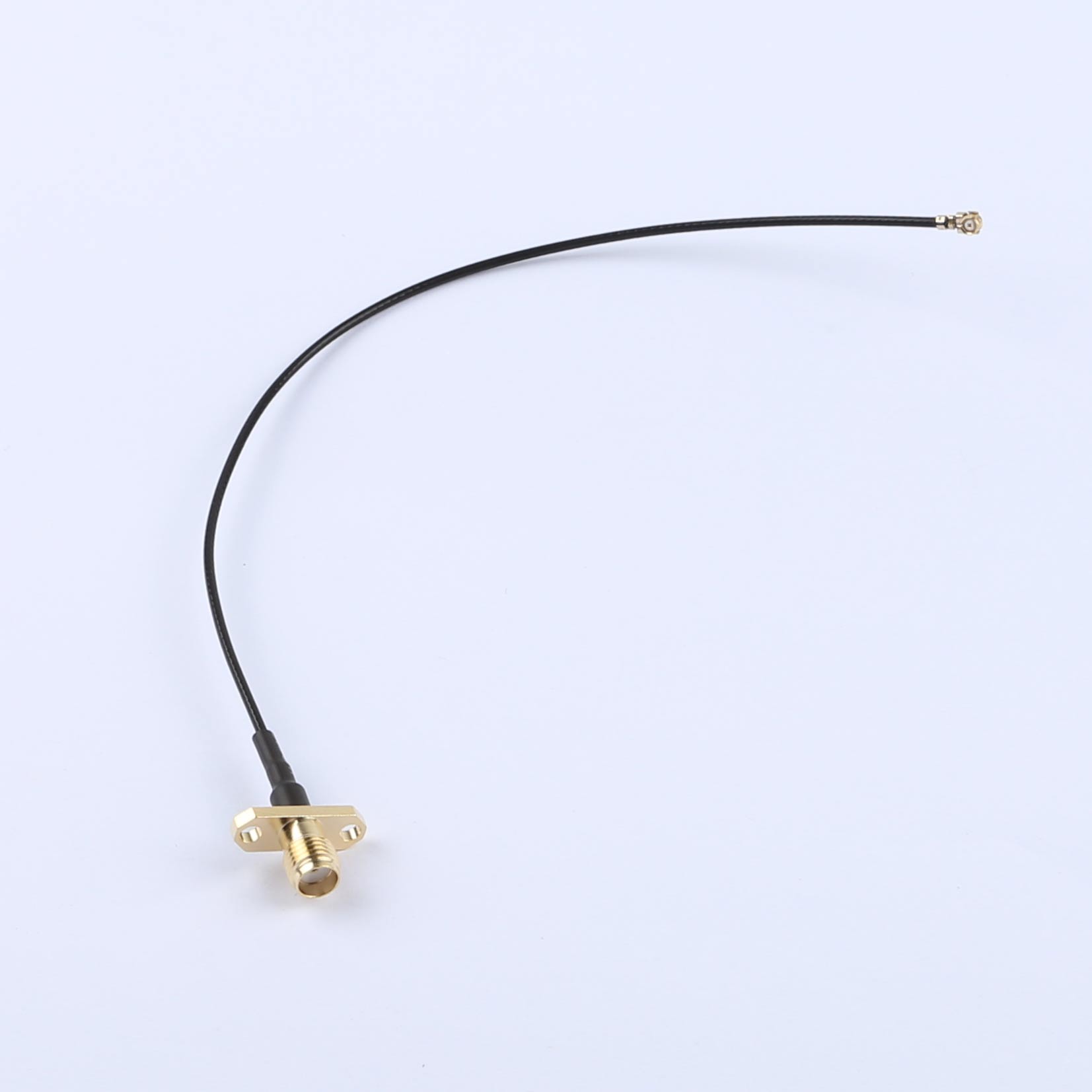

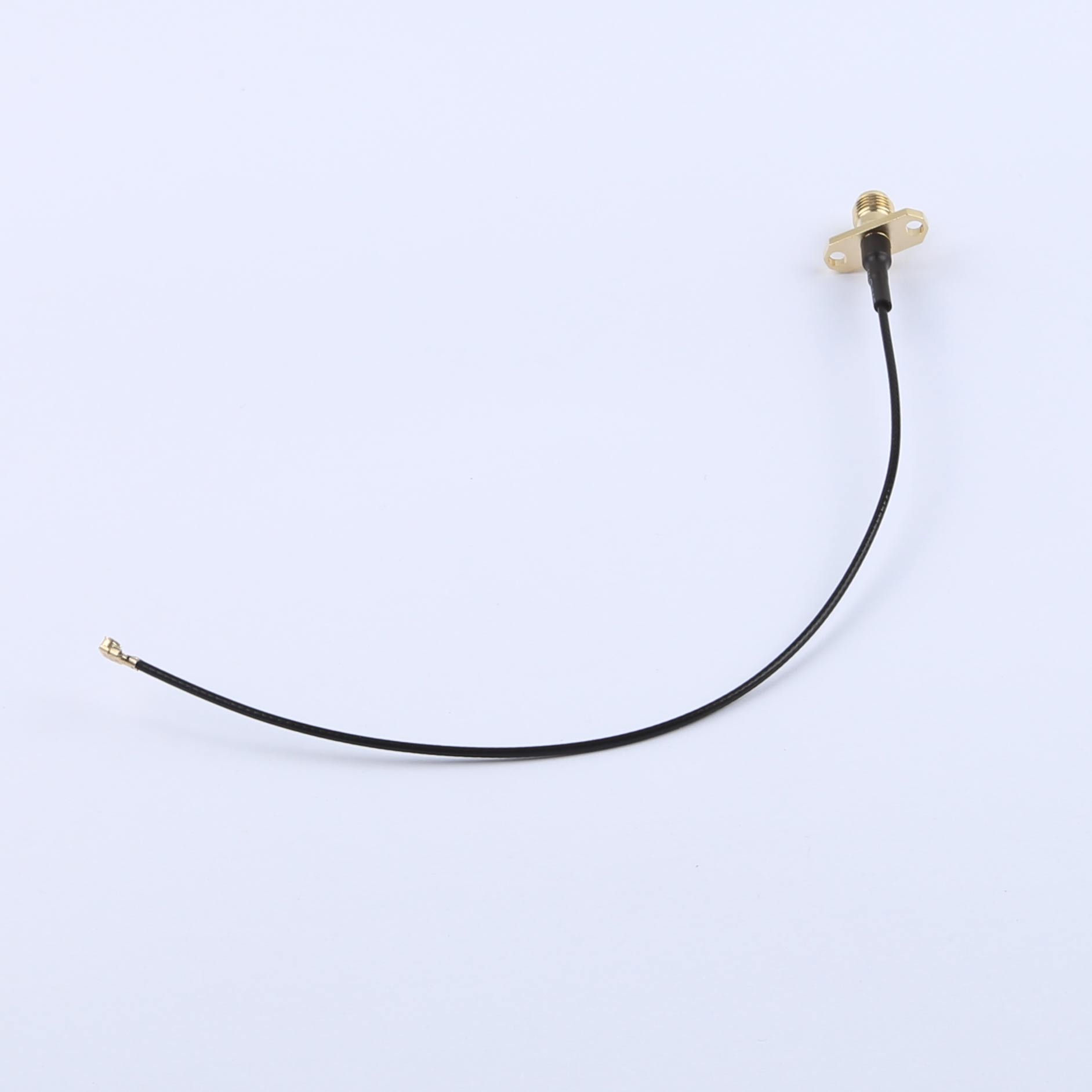

RF Cable Assembly, SMA Female to IPEX, RG1.37, 180mm, KH-FL2SMAK-IPEX-RG1.37-B180

RF Cable Assembly, SMA Female to IPEX, RG1.37, 180mm, KH-FL2SMAK-IPEX-RG1.37-B180

Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance:  5.0 MΩ (Min)
Coaxial Cable: RF 1.37, Black, OD: 1.37 mm
RoHS Compliance: All components compliant

Inquiry Datasheet

Product Details

Product Description:

Electrical Specifications:

●Voltage Rating: The cable is rated for a maximum DC voltage of 300V for 10ms, ensuring safe operation within the specified voltage limit.

● Conductance Resistance: The cable assembly has a maximum conductance resistance of 3.0 Ohms, facilitating efficient electrical conductivity for effective signal transmission.

●Insulation Resistance: With a minimum insulation resistance of 5.0 MOhm, the cable provides excellent insulation to prevent leakage and ensure electrical safety.

●Electrical Testing: Each cable undergoes rigorous 100% electrical testing to verify its performance and reliability under various conditions.

● Quality Assurance: The cable is checked to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing a reliable and uninterrupted electrical connection.

Material Composition:

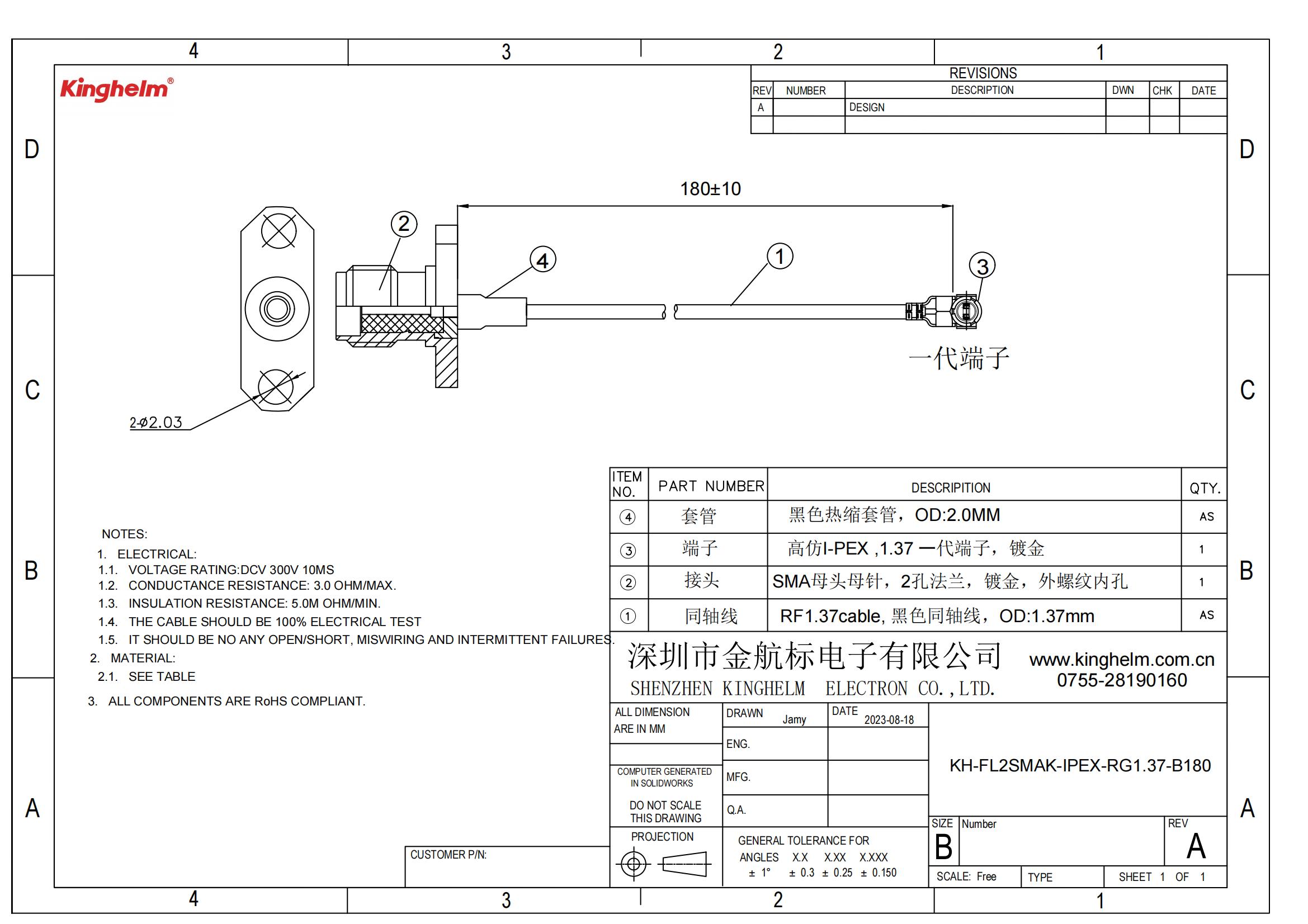

●The materials used in the cable assembly are as specified in the accompanying table, selected for their durability, conductivity, and suitability for the intended application.

Compliance and Standards:

●All components in the cable assembly comply with RoHS regulations, demonstrating environmental responsibility and adherence to safety standards.
