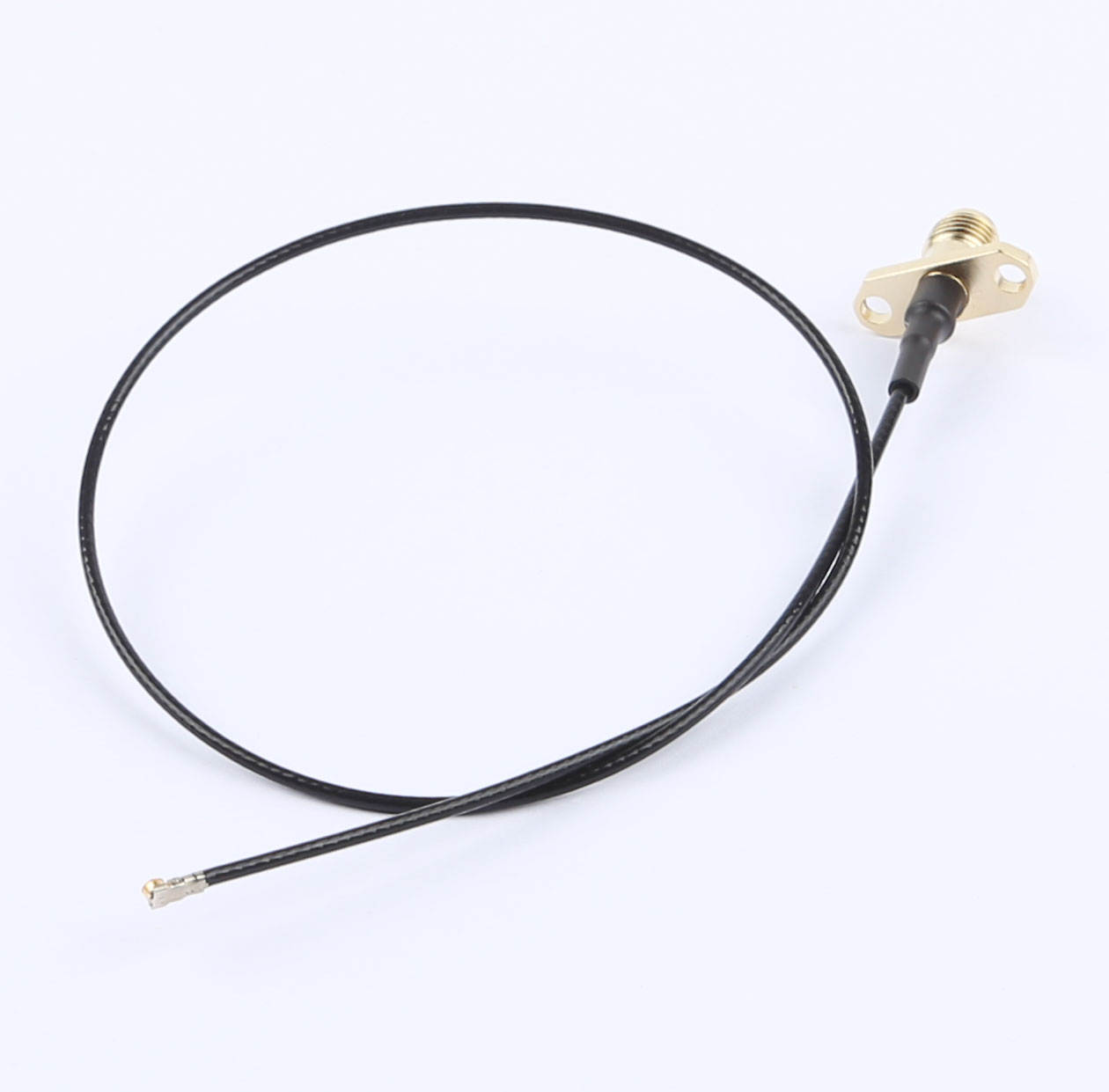

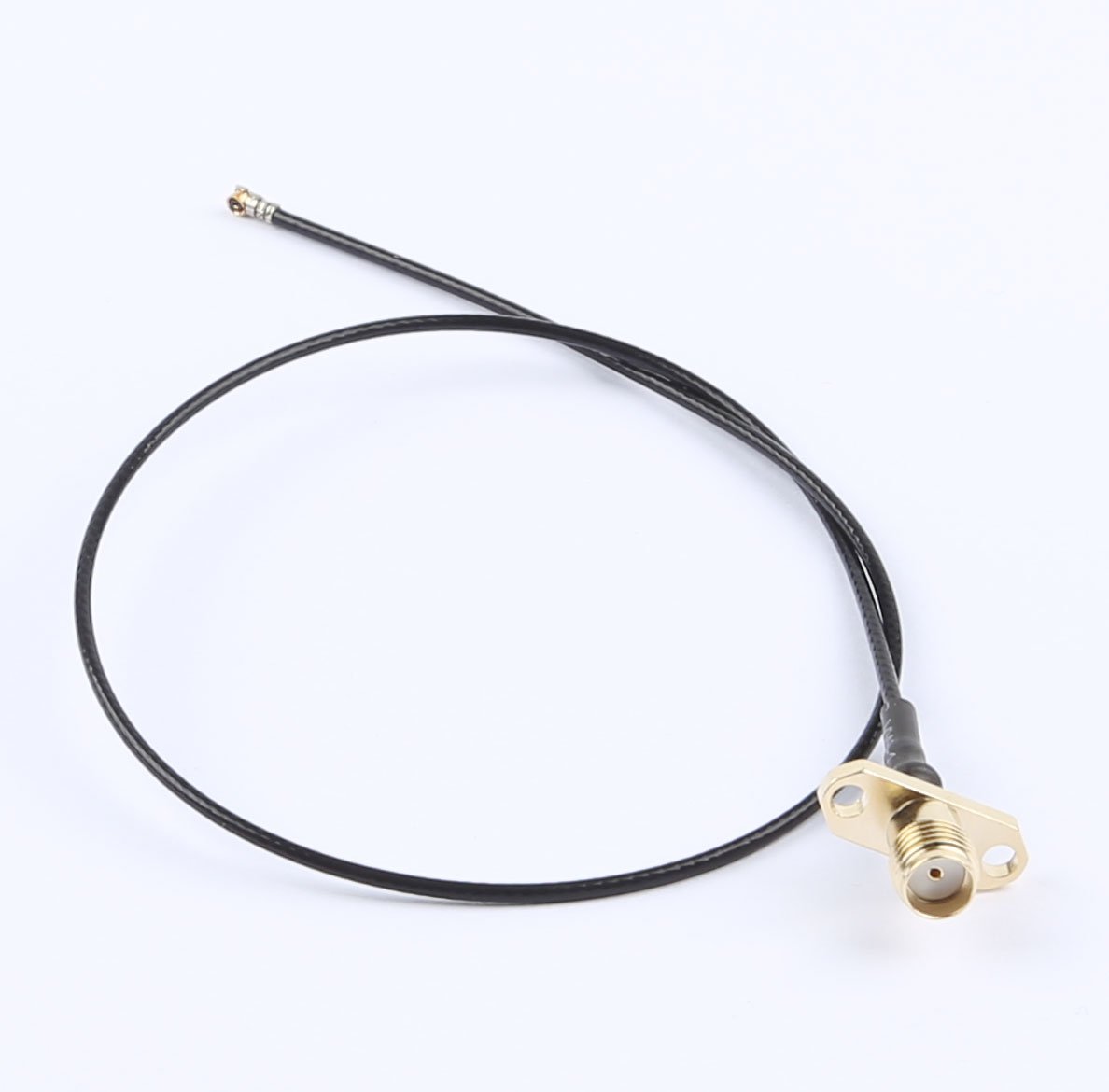

RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.37, 300mm, KH-FL2SMAK-IPEX4-RG1.37-B300

Voltage Rating: DC 300V (10ms)
Contact Resistance: 3.0 Ω Max
Insulation Resistance: 5.0 MΩ Min
Input/Output: SMA to IPEX
IPEX Algebra: 4Gen

Inquiry Datasheet

Product Details

Product Description:

Electrical Specifications:

1.1. Voltage Rating: The cable is rated for DC voltage up to 300V with a pulse duration of 10ms, ensuring safe operation within specified parameters.

1.2. Conductance Resistance: The cable assembly features a maximum conductance resistance of 3.0 Ohms, facilitating efficient electrical conductivity.

1.3. Insulation Resistance: The cable offers a minimum insulation resistance of 5.0 MOhms, maintaining excellent insulation properties and electrical safety.

1.4. Electrical Testing: Each cable undergoes rigorous 100% electrical testing to validate its functionality and reliability under various conditions.

1.5. Quality Assurance: The cable assembly is meticulously inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing a secure electrical connection.

Material Composition:

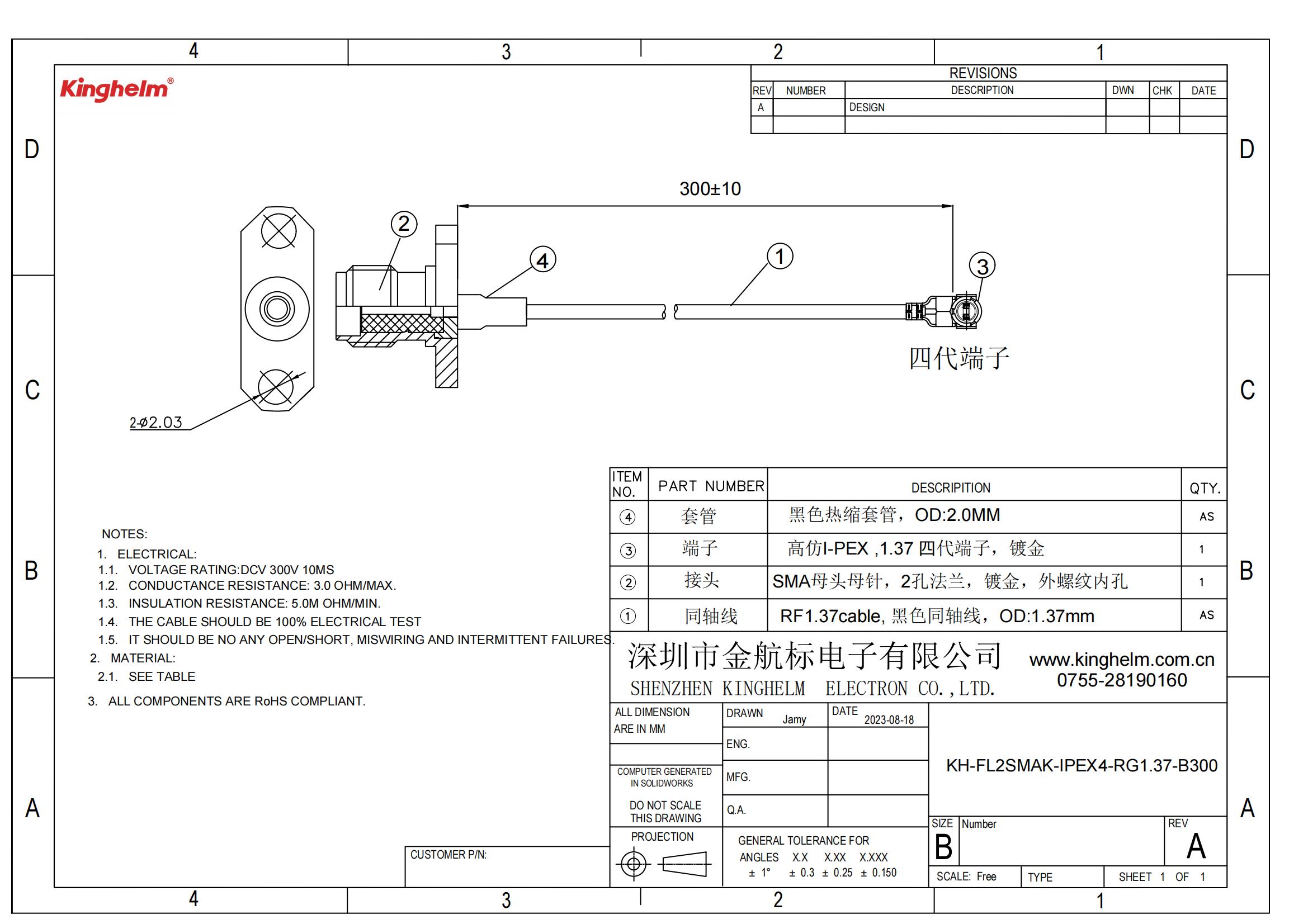

2.1. Please refer to the provided table for detailed information on the materials used in the cable assembly, selected for their durability, performance, and suitability for the intended application.

Compliance and Standards:

3. All components integrated into the cable assembly adhere to RoHS standards, demonstrating environmental consciousness and compliance with safety regulations.
