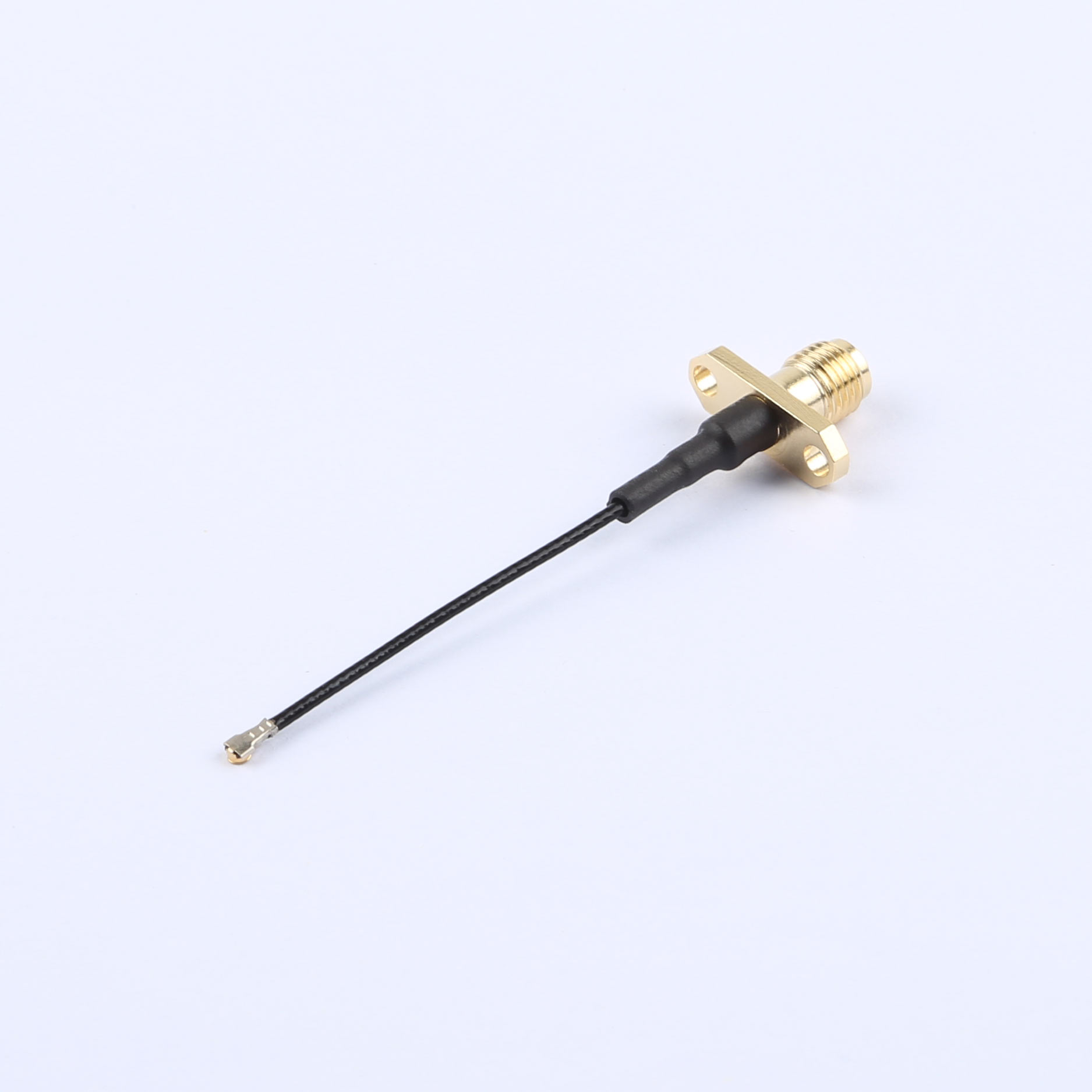

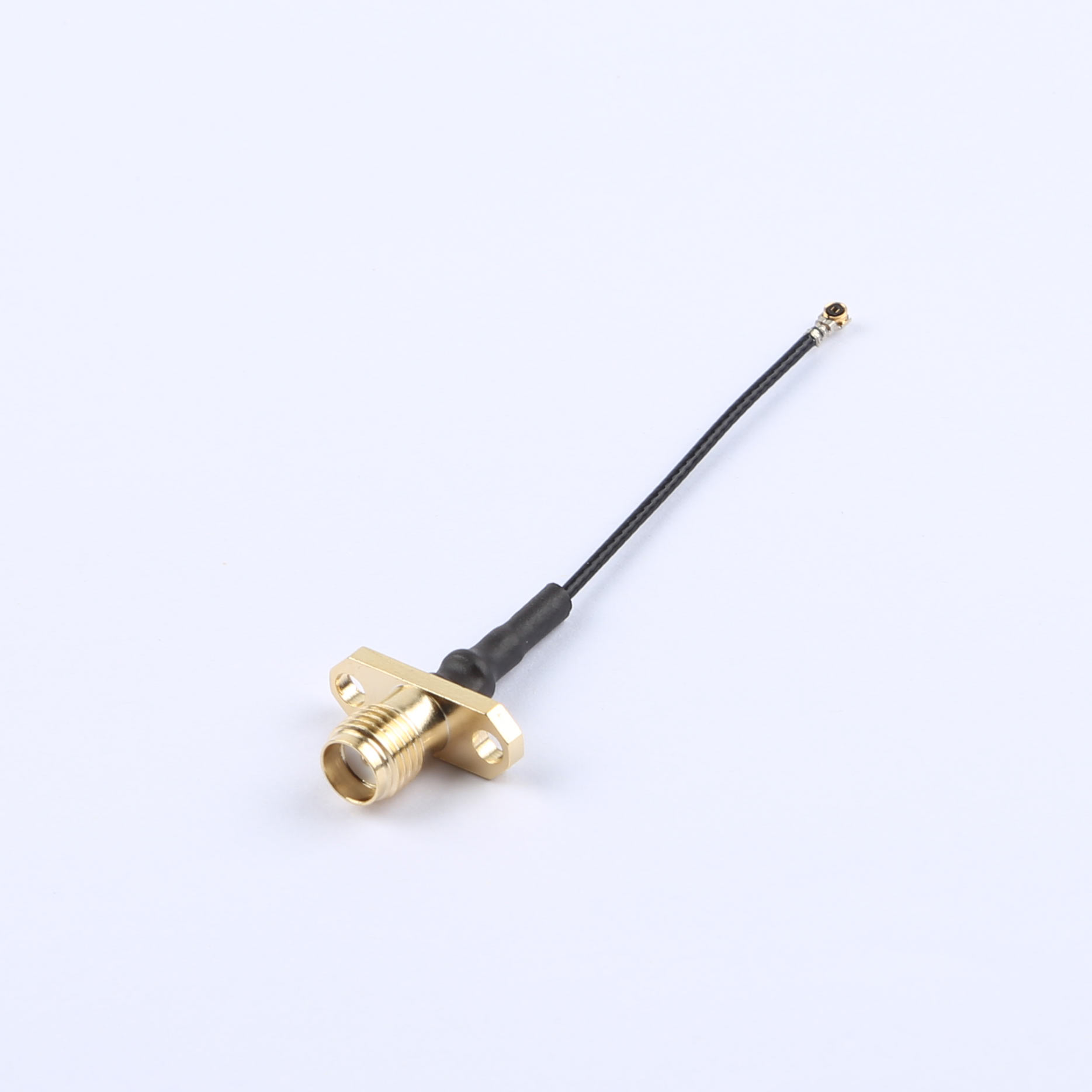

RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.13, 50mm, KH-FL2SMAK-IPEX4-RG1.13-B50

Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance:  5.0 MΩ (Min)
Coaxial Cable: RF 1.13, Black, OD: 1.13 mm
RoHS Compliance: All components compliant

Inquiry Datasheet

Product Details

Product Description:

1. Electrical Specifications:

1.1 Voltage Rating: The cable assembly is designed to handle DC voltage up to 300V with a pulse duration of 10 milliseconds, ensuring it can withstand transient voltage spikes.

1.2 Conductance Resistance: The cable assembly has a maximum conductance resistance of 3.0 ohms, facilitating efficient electrical conduction.

1.3 Insulation Resistance: The cable assembly offers a minimum insulation resistance of 5.0 megaohms, providing effective insulation and ensuring safety.

1.4 Testing: Each cable undergoes 100% electrical testing to verify its performance and compliance with standards.

1.5 Quality Assurance: The cable assembly is thoroughly inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing reliable operation.

2. Material Composition:

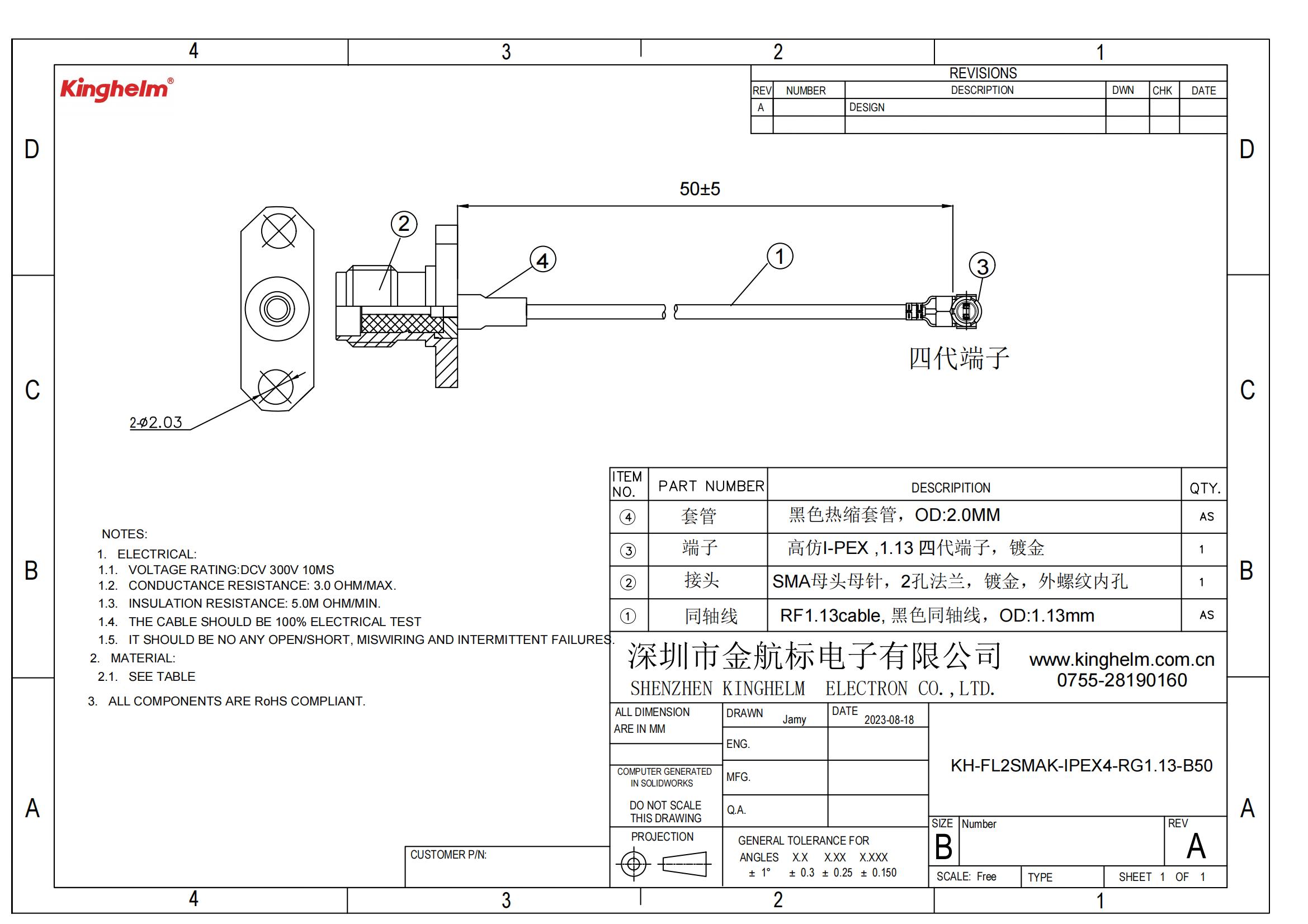

2.1 Detailed material information can be found in the provided table, which outlines the specific materials used in the cable assembly and their respective properties.

3. Compliance:

3.1 All components included in the cable assembly comply with the Restriction of Hazardous Substances (RoHS) directive, ensuring that the product is free from restricted substances and environmentally compliant.
