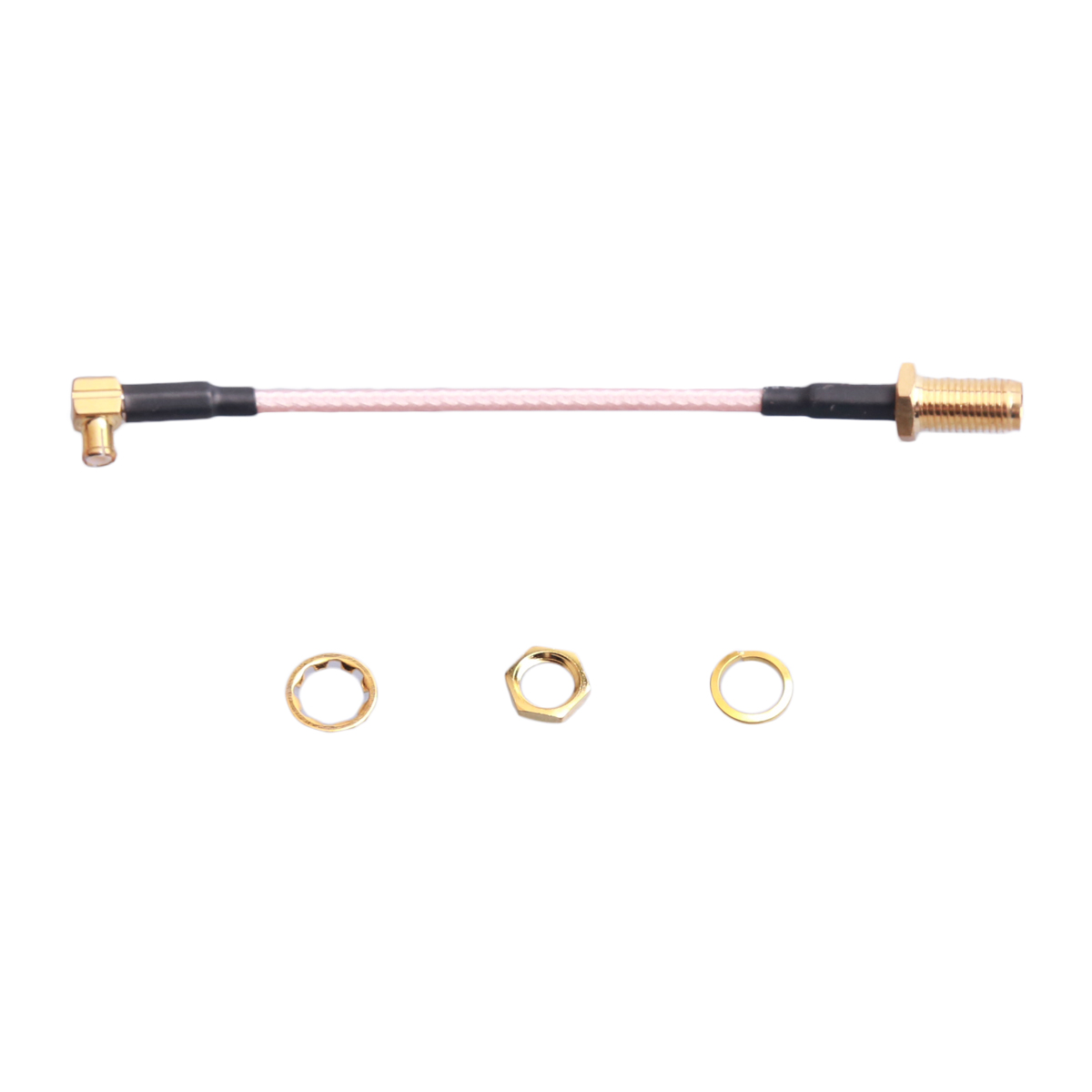

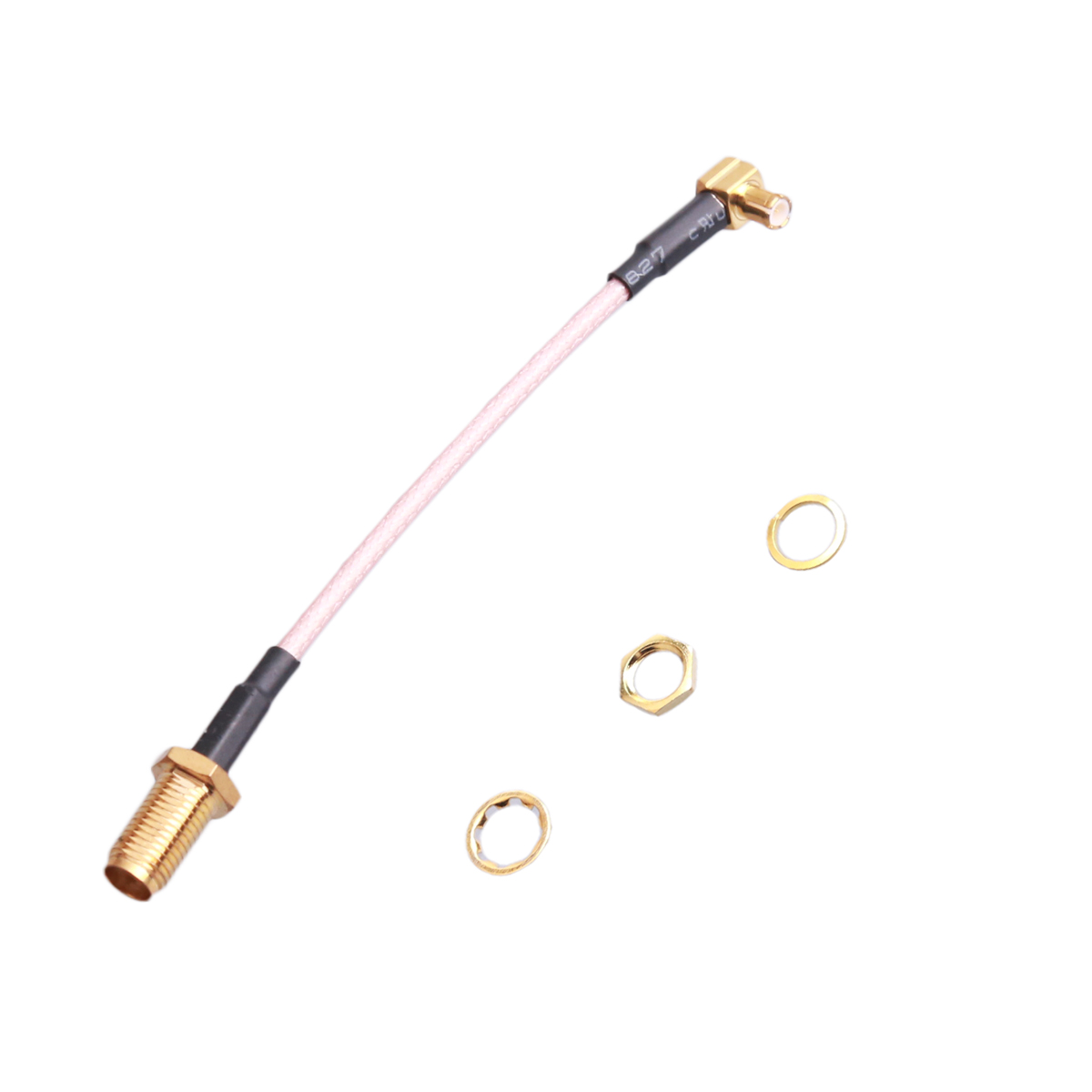

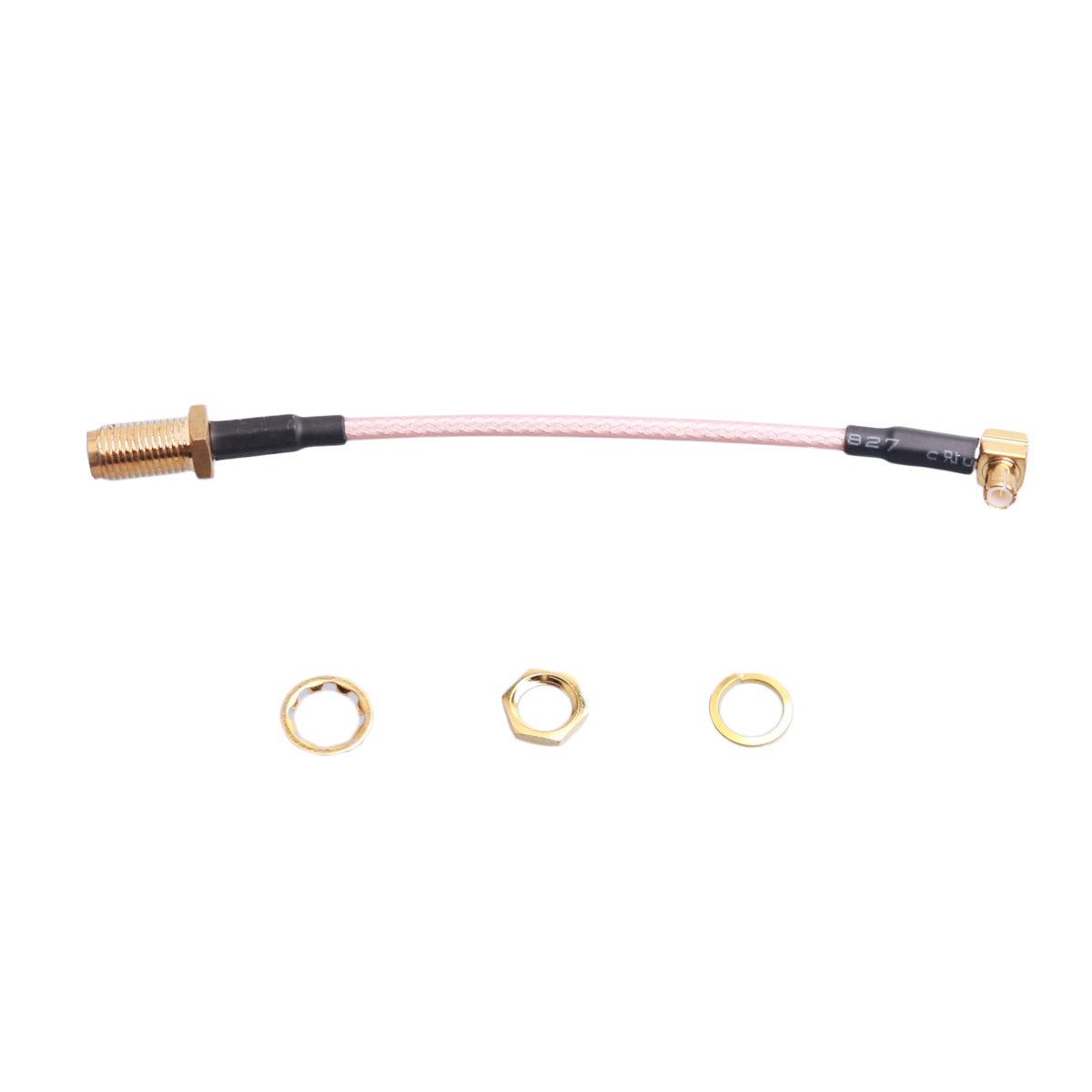

RF Cable Assembly, MCX to SMA, RG316, 80mm, KHB(RG316)-MCX-80-28

RF Cable Assembly, MCX to SMA, RG316, 80mm, KHB(RG316)-MCX-80-28

Input/Output：MCX to SMA
Connector: SMA 11-thread female jack with female pin, gold-plated
Sleeve: OD 2.0mm, Length 15mm, thin sleeve
Connector: MCX right-angle male plug, male pin, gold-plated
Coaxial Cable: RG-316 Brown Cable, OD: 2.5mm

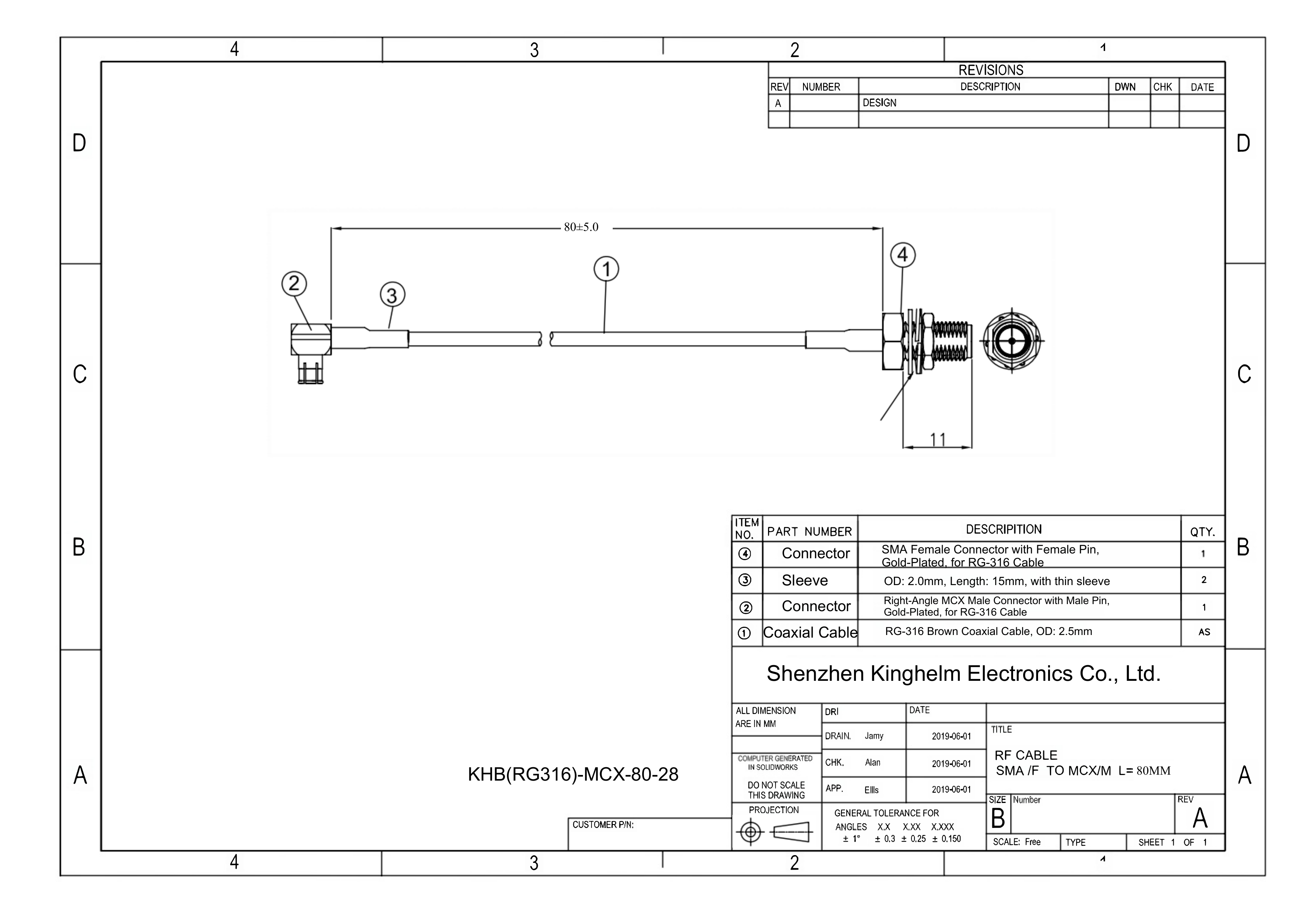

Inquiry Datasheet

Product Details

Product Benefits
● High-quality RG-316 cable for stable, low-loss signal transmission
● Gold-plated SMA and MCX connectors for enhanced conductivity and corrosion resistance
● Right-angle MCX plug saves space in tight installations
● Slim SMA sleeve (OD 2.0mm, L=15mm) for easy fit in compact assemblies
● 80mm cable length ideal for ultra-short, precise connections

Product Applications
● RF modules and embedded wireless systems
● IoT devices with limited space
● GPS, Wi-Fi, and antenna connections
● Compact RF testing and instrumentation
● Surveillance, navigation, and tracking equipment
