As electronic devices continue to pursue compact designs and stable power supply, choosing the right power jack becomes critical to ensuring product reliability. Kinghelm introduces the KH-DC-012-2.5L DC power jack, a high-cost-performance through-hole connector designed to meet the power interface requirements of small electronic devices, industrial equipment, and smart terminals. It not only features standardized interface dimensions but also excels in structural strength, electrical performance, and compatibility.

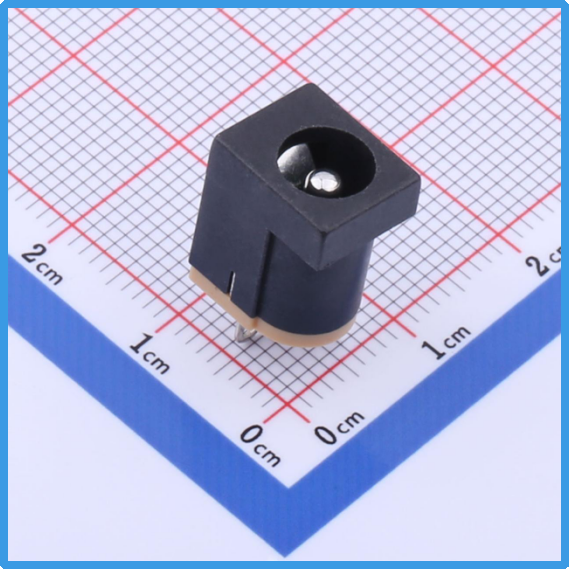

Kinghelm KH-DC-012-2.5L Product Image

The KH-DC-012-2.5L DC power jack adopts a through-hole mounting design, making it easy to solder onto PCB boards, suitable for both automated assembly and manual assembly processes, which greatly enhances assembly efficiency. Its compact design and small size, with a product weight of only 1.594 grams, make it ideal for electronic systems with limited space. The bagged packaging is also convenient for manufacturers to manage and distribute in bulk, reducing packaging space.

One notable advantage of this model is its 2.5mm inner diameter and 6.3mm outer diameter contact structure. Compared to conventional 2.0mm connectors, the 2.5mm interface provides a larger contact area, increasing the connection strength and resistance to loosening from frequent insertions and removals. It is compatible with most standard DC plugs on the market, effectively solving contact issues caused by incompatible specifications. For applications that require frequent plugging and unplugging, such as security monitoring devices, portable speakers, and handheld terminals, this jack provides stable performance.

In terms of conductivity, the KH-DC-012-2.5L DC power jack maintains Kinghelm's consistent high-quality craftsmanship, utilizing premium metal contact materials to ensure low resistance and high-conductivity current transmission. While the electrical parameters for rated current and voltage are not explicitly stated, the design and materials are compatible with mainstream DC connectors that operate within 30V and below 1A, making it suitable for the daily power supply needs of low-power devices.

Moreover, the KH-DC-012-2.5L DC power jack features a housing made from high-strength insulating materials, offering excellent flame resistance, impact resistance, and high-temperature performance, making it suitable for long-term stable operation in various environmental conditions. It is not only suitable for industrial-grade equipment but also widely used in consumer electronics, becoming an indispensable connector component for R&D engineers and manufacturers during product design and upgrades.

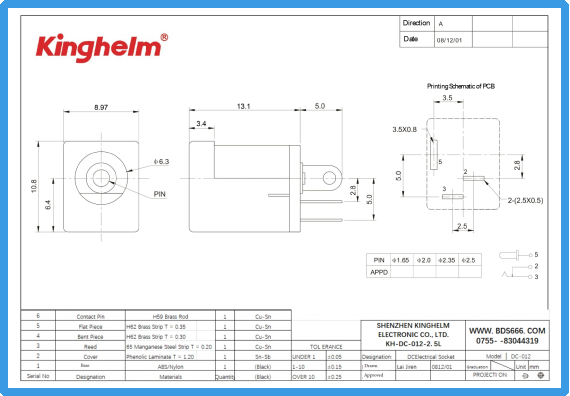

Kinghelm KH-DC-012-2.5L Specification

In summary, the Kinghelm KH-DC-012-2.5L DC power jack offers a larger contact area and more stable connection while maintaining a lightweight structure, making it an ideal interface solution for applications requiring a 2.5mm DC plug. Whether for new device design or old device maintenance and replacement, this jack provides reliable, convenient, and efficient power support.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.

KH-DC-012-2.5LTo Product Page
