In modern electronic design, requirements for connection systems have evolved beyond basic power conduction to multi-dimensional challenges involving stability, compactness, convenience, and high performance. FPC (Flexible Printed Circuit) connectors have become essential components widely used in this context. Their primary function is to enable efficient connections between flexible cables and PCB boards, suitable for electronic products with limited space, strict weight requirements, and frequent plugging and unplugging operations. With their precise structure and lightweight characteristics, FPC connectors play vital roles in smart terminals, medical devices, automotive electronics, wearable products, and industrial automation equipment, driving the miniaturization and high-speed development of electronic products.

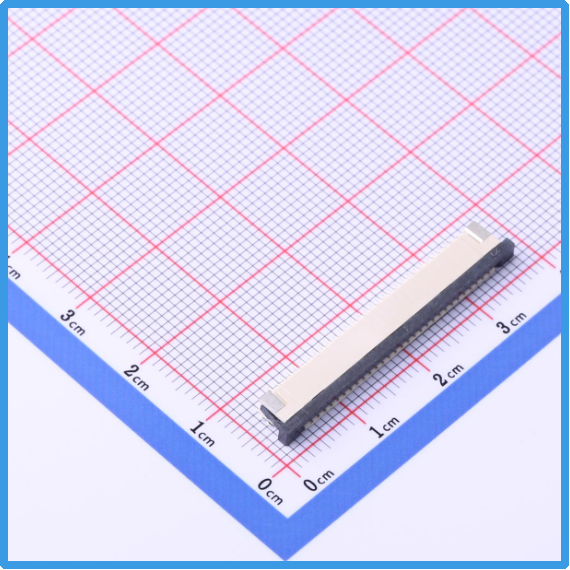

Kinghelm KH-CL1.0-H2.5-29PIN Product Image

The Kinghelm KH-CL1.0-H2.5-29PIN, launched by Kinghelm, is a highly reliable FPC connector featuring a standard 1.0mm pitch and 29 contacts. It adopts a drawer-type locking mechanism with a bottom contact interface and supports a low-profile SMD (Surface-Mount Device) mounting method. This design makes it particularly suitable for compact electronic systems that demand high signal integrity and enjoys wide adaptability in advanced manufacturing sectors.

The product design fully considers the practical needs of high-density connections. The drawer-type structure provides strong mechanical locking force, while the sliding fit during insertion effectively resists contact failures caused by vibration and shocks, ensuring stable electrical performance over long-term use. The bottom-contact design makes it more suitable for wiring on the PCB’s underside or downward space expansion applications, further enhancing installation flexibility and layout freedom.

In terms of functionality, each contact of the Kinghelm KH-CL1.0-H2.5-29PIN FPC connector is precisely machined and tested to ensure excellent conductivity and oxidation resistance. The connector is compatible with flexible cables up to 0.3mm thick, with a mounted board height of only 2.5mm, greatly reducing overall thickness and naturally advantageous for ultra-thin devices. Weighing just 1.382 grams, it is also well-suited for terminal products with stringent weight control requirements.

The operating temperature range covers -25℃ to +85℃, suitable for most industrial and consumer environments. Whether low-temperature outdoor terminals or high-temperature automotive systems, it maintains stable performance. This full-temperature range capability reflects Kinghelm’s relentless pursuit of quality and reliability.

The KH-CL1.0-H2.5-29PIN demonstrates outstanding performance across multiple key application areas, especially in smart wearable devices, medical imaging systems, automotive central control modules, industrial control boards, and portable communication devices. Its compact structure not only enhances spatial utilization in end products but also improves system maintainability and connection efficiency.

As one of Kinghelm’s precision connector series, the KH-CL1.0-H2.5-29PIN FPC connector achieves a breakthrough in high-end connection performance through process optimization and material upgrades while keeping costs manageable. This product fully embodies Kinghelm’s R&D strength and quality commitment in the domestic high-end connector market and has become a preferred choice for many engineers and OEM manufacturers.

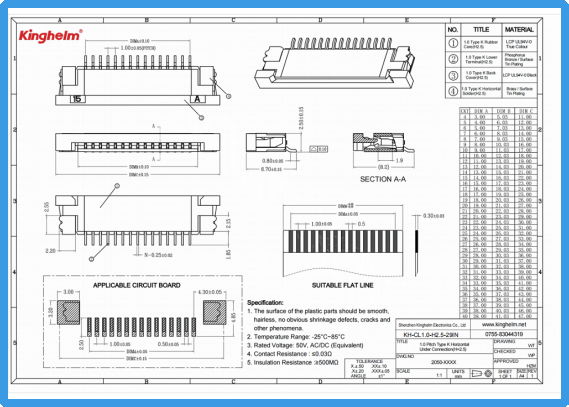

Kinghelm KH-CL1.0-H2.5-29PIN Specification

With the growing market demand for modularity and precision in electronic device design, choosing a high-quality, highly compatible, and scientifically structured FPC connector like the Kinghelm KH-CL1.0-H2.5-29PIN not only helps improve product stability but also significantly optimizes production and assembly efficiency, making it an ideal choice for advancing modern electronic products.
