In today's trend of electronic device design, the miniaturization and high-performance of devices have become the mainstream development direction. This has led to increasing demands for connectors, which are not only required to be smaller in size but also to possess high reliability and the ability for quick connections. The Kinghelm KH-FG0.5-H2.0-17P-SMT FPC Connector is developed to meet these demands. It features an ultra-fine pitch of 0.5mm and a 17PIN configuration, combined with a flip-cover bottom contact H2.0 surface-mount installation method. By utilizing SMT (Surface-Mount Technology) for efficient and precise assembly, it provides stable and reliable electrical connections for miniaturized and high-density electronic devices.

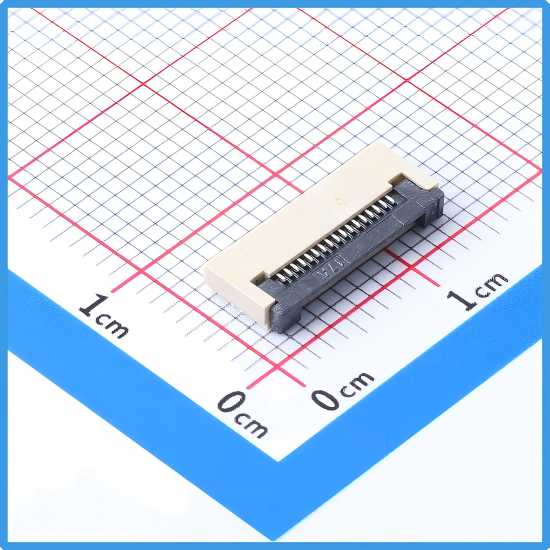

Kinghelm KH-FG0.5-H2.0-17P-SMT Product Image

Ultra-Fine Pitch Design for Miniaturization

One of the major highlights of the Kinghelm KH-FG0.5-H2.0-17P-SMT FPC Connector is its ultra-fine pitch design. With a pin pitch of 0.5mm and 17 pins, it can achieve efficient connections in extremely limited space, meeting the demand for high-density connections in complex electronic devices. This design makes the KH-FG0.5-H2.0-17P-SMT an ideal choice for manufacturers designing compact electronic devices.

Flip-Cover Design for Convenience and Reliability

The connector adopts a flip-cover bottom contact H2.0 surface-mount installation method. This design not only facilitates quick and reliable connection and disconnection of circuits but also enhances the stability and reliability of the connection. The flip-cover structure makes the connector easier to use, maintaining good contact performance even under frequent plug-and-unplug operations, ensuring stable signal transmission. This design not only improves production efficiency but also reduces maintenance costs, making it particularly suitable for electronic devices that require frequent disassembly and maintenance.

High-Quality Materials and Fine Manufacturing Processes for Long-Term Stable Use

The Kinghelm KH-FG0.5-H2.0-17P-SMT FPC Connector compromises nothing in terms of material selection and manufacturing processes. Its main body is made of high-quality plastic material, which has good insulation and high-temperature resistance properties, ensuring stability under various working conditions. Meanwhile, the contact points of the connector are specially treated to ensure low contact resistance and high conductivity, guaranteeing stable and reliable signal transmission even under frequent plug-and-unplug operations. These high-quality materials and fine manufacturing processes make the KH-FG0.5-H2.0-17P-SMT a trusted choice for many electronic device manufacturers.

SMD Packaging for Optimized Space Layout

The connector uses SMD (Surface-Mount Technology) packaging, which further optimizes the space layout. Inside compact electronic devices, SMD packaging effectively reduces the height of the connector, minimizing space occupation while maintaining good electrical performance. This packaging method is not only suitable for ultra-thin devices but also enhances the overall design's aesthetics and reliability.

Wide Applications for Device Upgrades

 Thanks to its ultra-fine pitch design, flip-cover structure, high-quality materials, and fine manufacturing processes, the Kinghelm KH-FG0.5-H2.0-17P-SMT FPC Connector has been widely applied in various fields. In the consumer electronics field, such as smartphones, tablets, and smart wearable devices, it meets the dual demands of miniaturization and high performance, bringing users a smoother experience. In the industrial automation field, complex control systems require a large number of reliable connections, and this connector, with its stability and durability, becomes an essential part of ensuring the normal operation of equipment. In the automotive electronics field, where the reliability and high-temperature resistance of components are extremely important, the connector can work stably in the harsh environment inside a car, providing support for the normal operation of the automotive electronic system.

Kinghelm KH-FG0.5-H2.0-17P-SMT Specification

The Kinghelm KH-FG0.5-H2.0-17P-SMT FPC Connector, with its ultra-fine pitch design, flip-cover structure, high-quality materials, and fine manufacturing processes, has become a trusted choice for many electronic device manufacturers. In today's ever-evolving and innovating electronic device industry, it will continue to play an important role in enhancing the performance and ensuring the stable operation of various electronic products. Whether it is for electronic engineers designing new products or for technicians maintaining old devices, the Kinghelm KH-FG0.5-H2.0-17P-SMT FPC Connector is a reliable option. It not only meets the current demands of electronic devices for connectors but also provides strong support for the future development of electronic technology, setting a new benchmark in the connector field.
