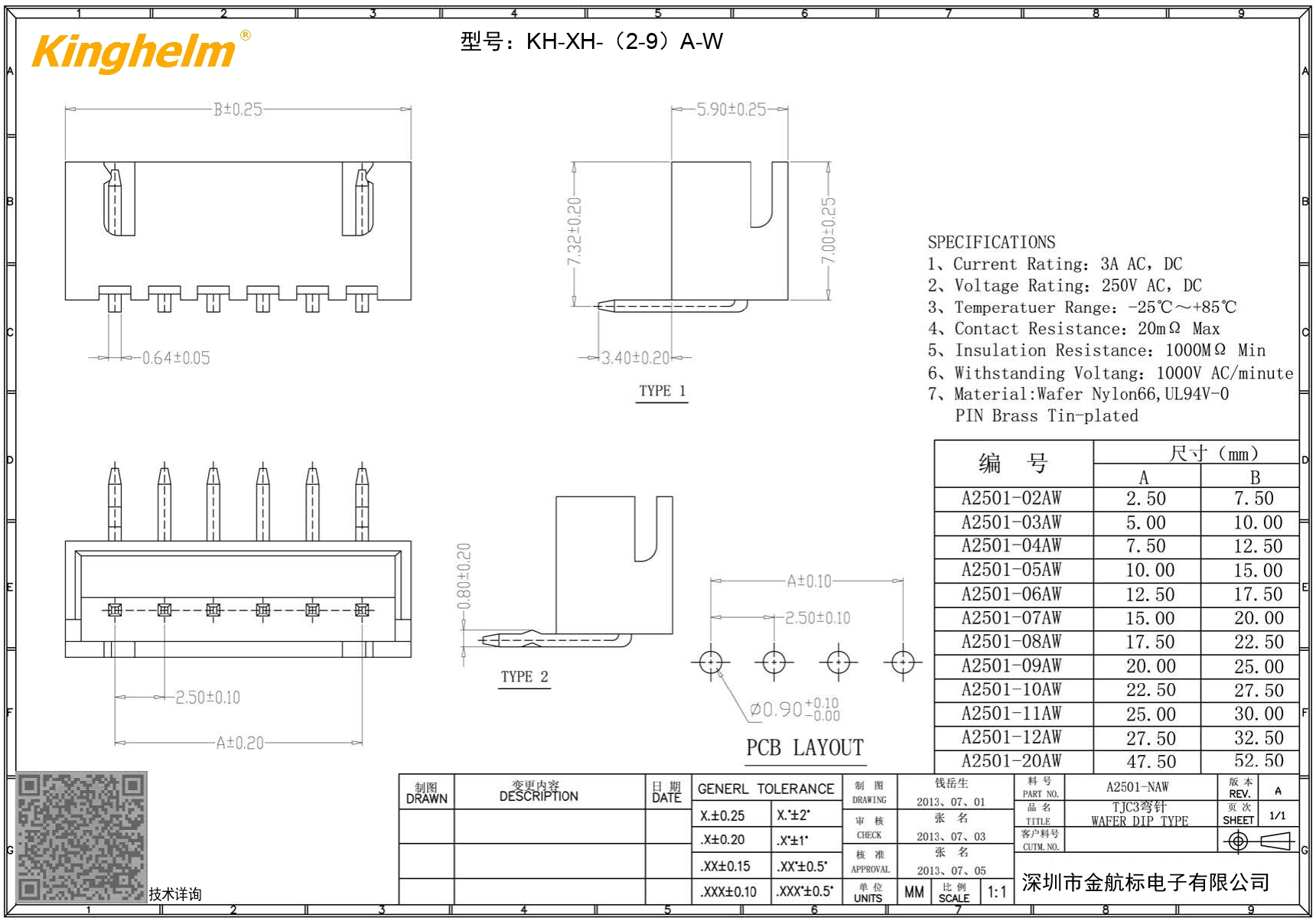

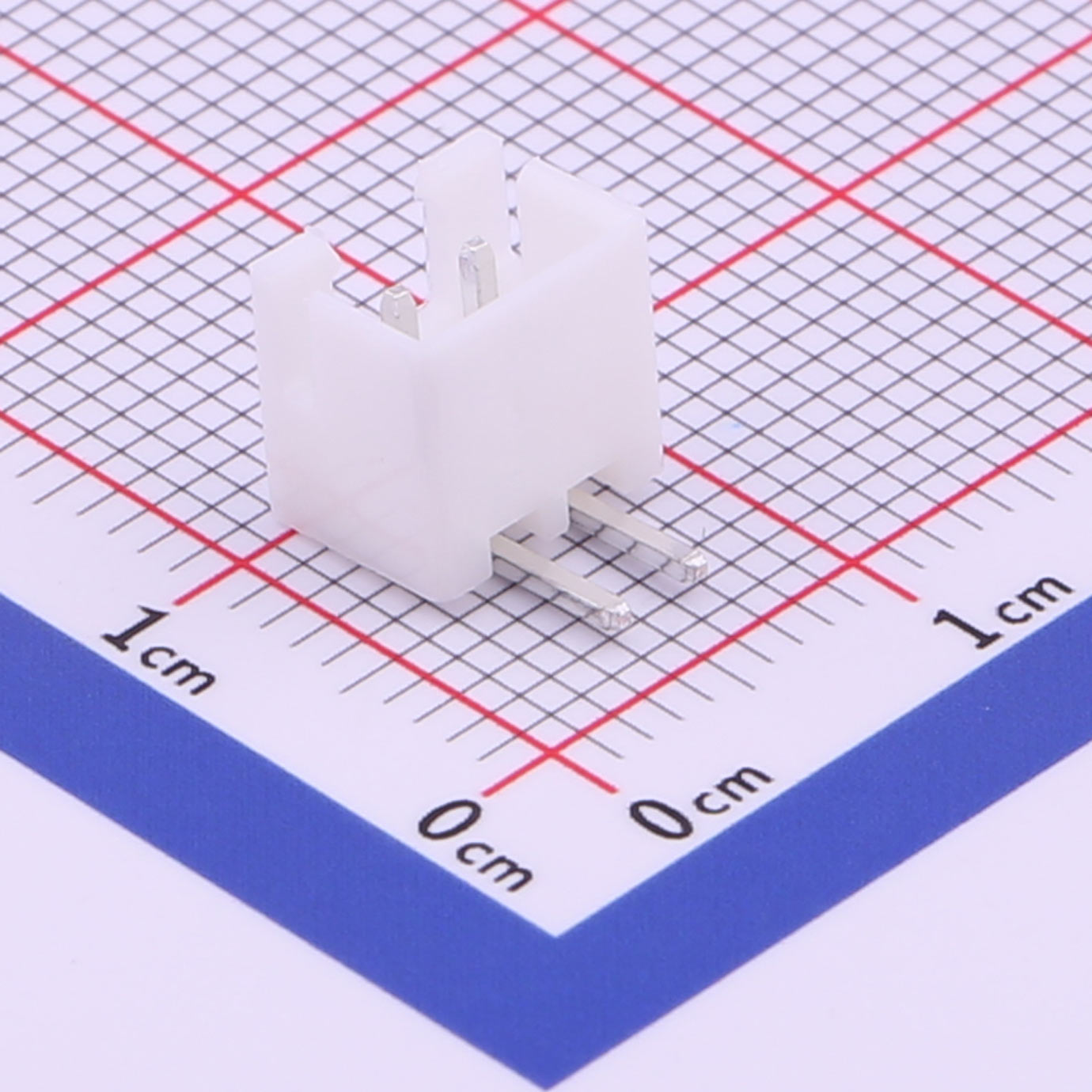

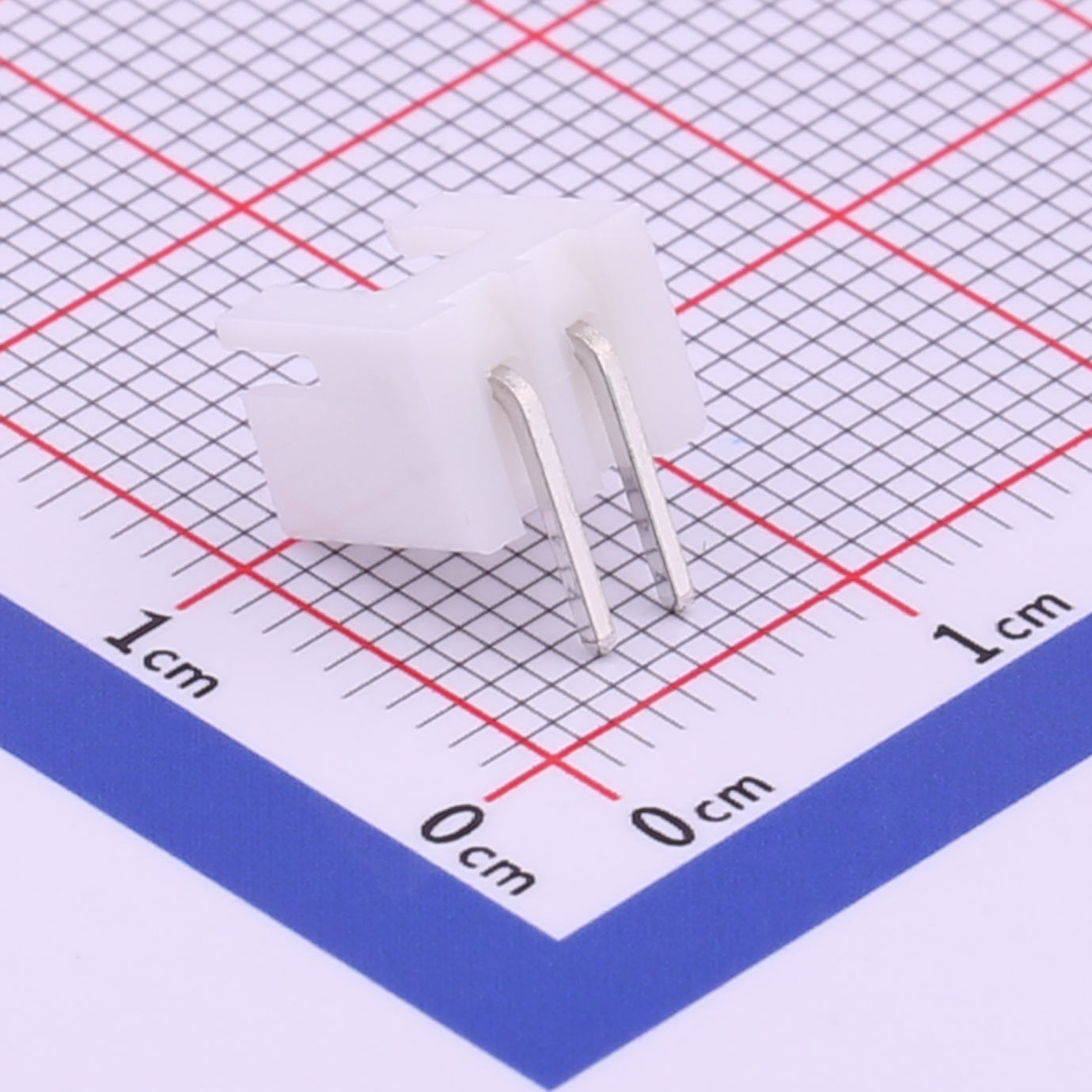

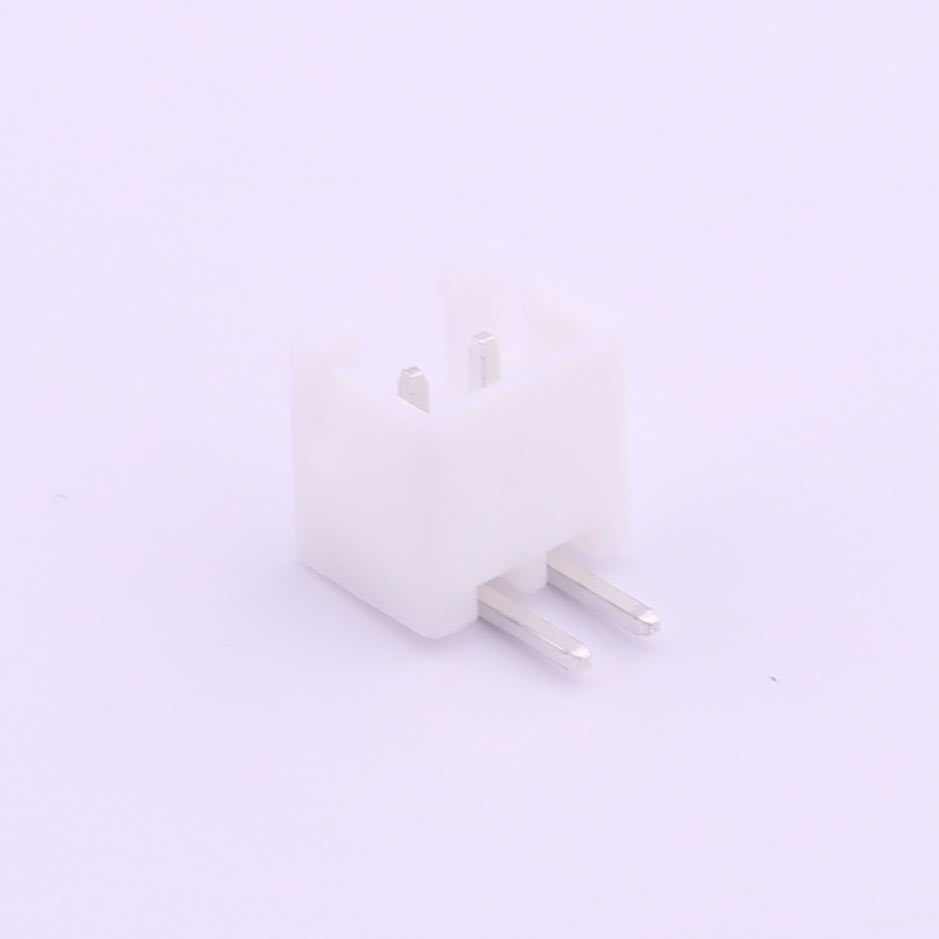

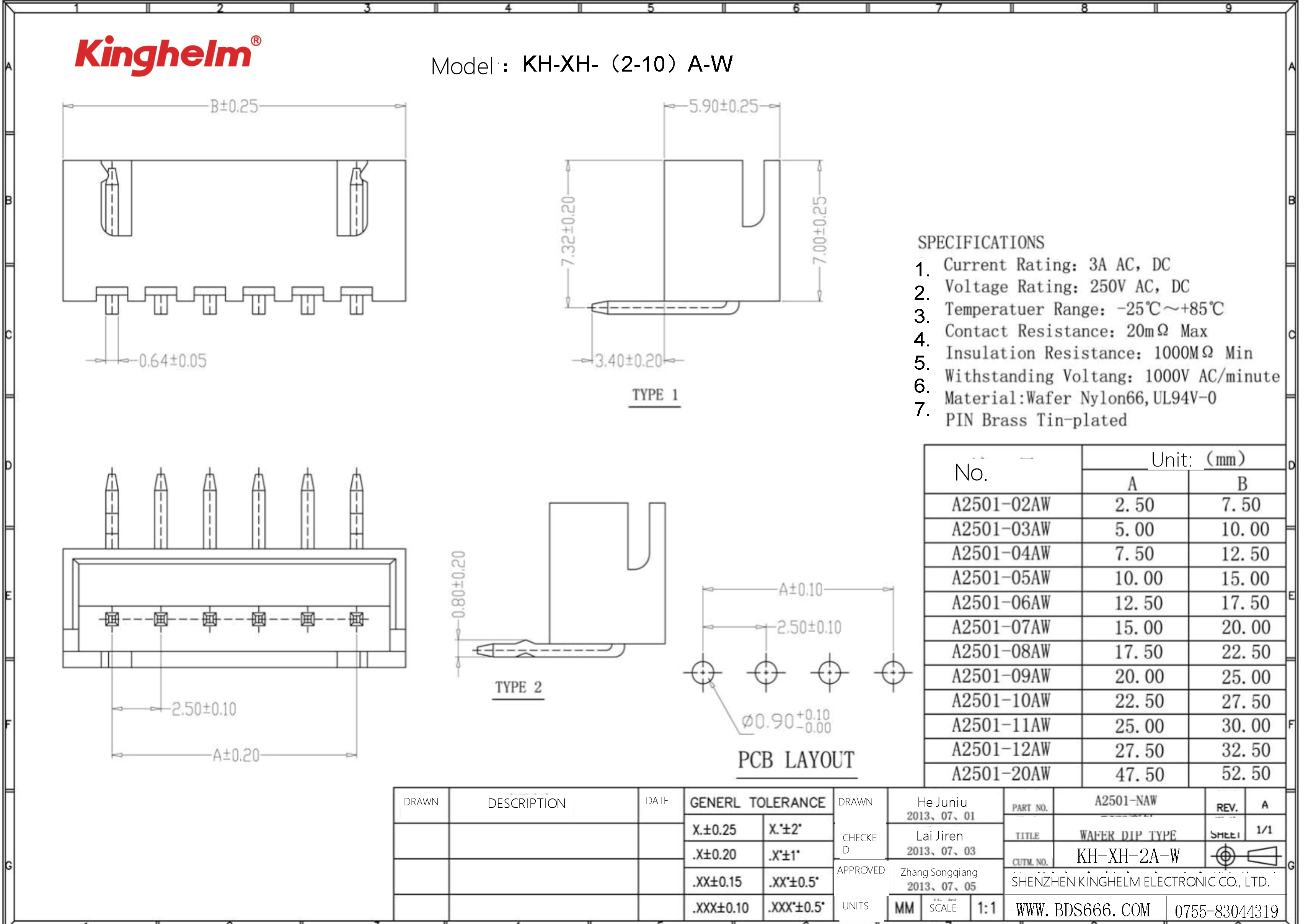

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x2P, KH-XH-2A-W
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch
● 1x2P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull mechanism
Product Benefits
● Simple and stable 2-pin connection
● Ultra-compact design
● Quick installation and removal
● Heat- and vibration-resistant
● Ideal for space-limited PCBs
Product Applications
● Battery connectors
● LED indicators
● Micro sensors
● Earbuds and audio jacks
● Timer modules in appliances
