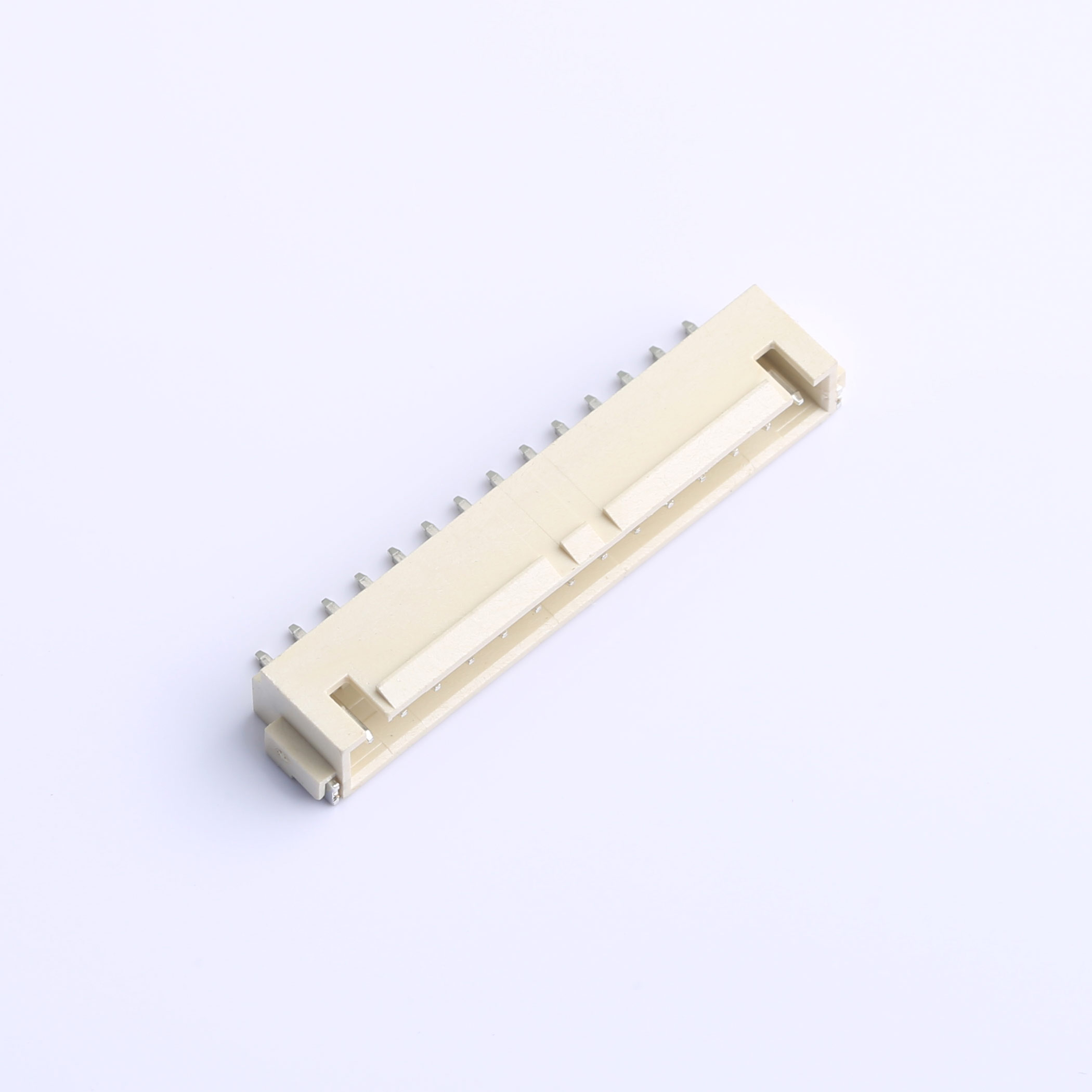

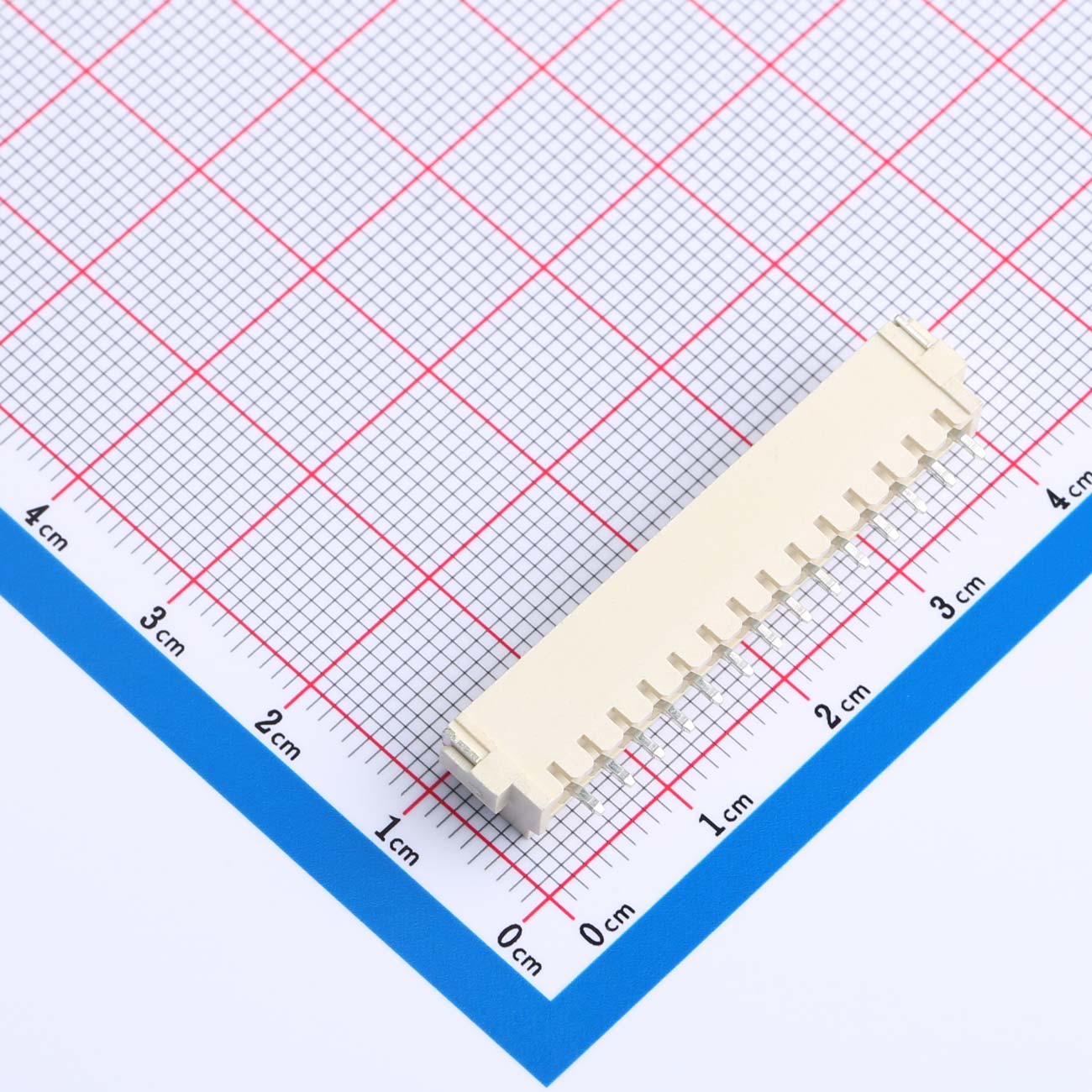

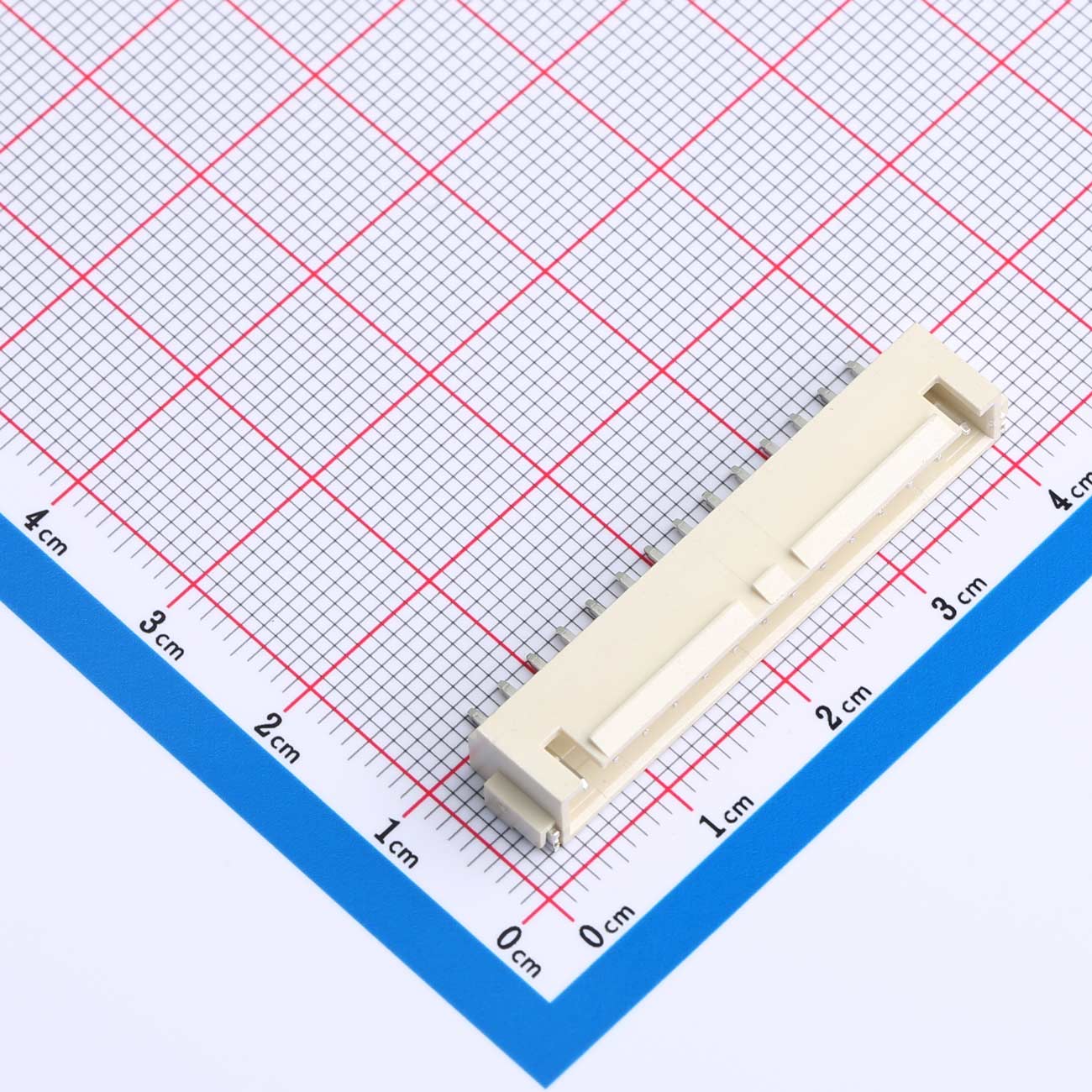

2.54mm Pitch Wire-to-Board Connector, 1x14P, SMD, KH-A2504-14AWB

2.54mm Pitch Wire-to-Board Connector, 1x14P, SMD, KH-A2504-14AWB

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm standard pitch spacing
● 14-pin single-row layout
● Horizontal SMT (lying flat on PCB)
● 3A current, 250V voltage rating
● Operating temperature: -25℃ to +85℃

Product Benefits
● Low-profile horizontal design saves vertical space
● Ideal for slim enclosures or side-mounting
● Reliable signal and power transmission
● Compatible with automated SMT assembly
● High insulation and low contact resistance

Product Application
● Flat-panel electronics
● Embedded systems
● Consumer device PCBs
● Industrial sensor modules
● Compact communication boards
