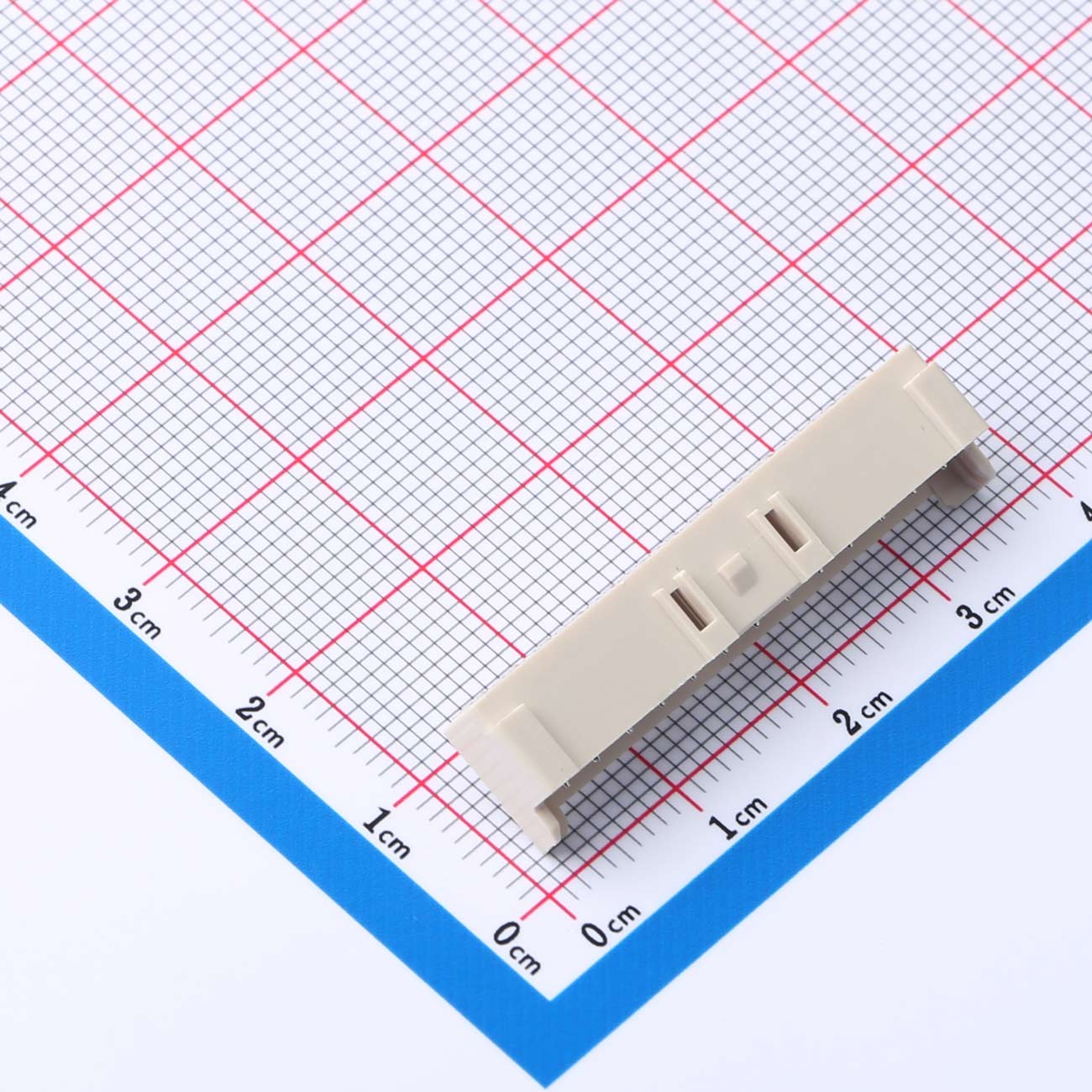

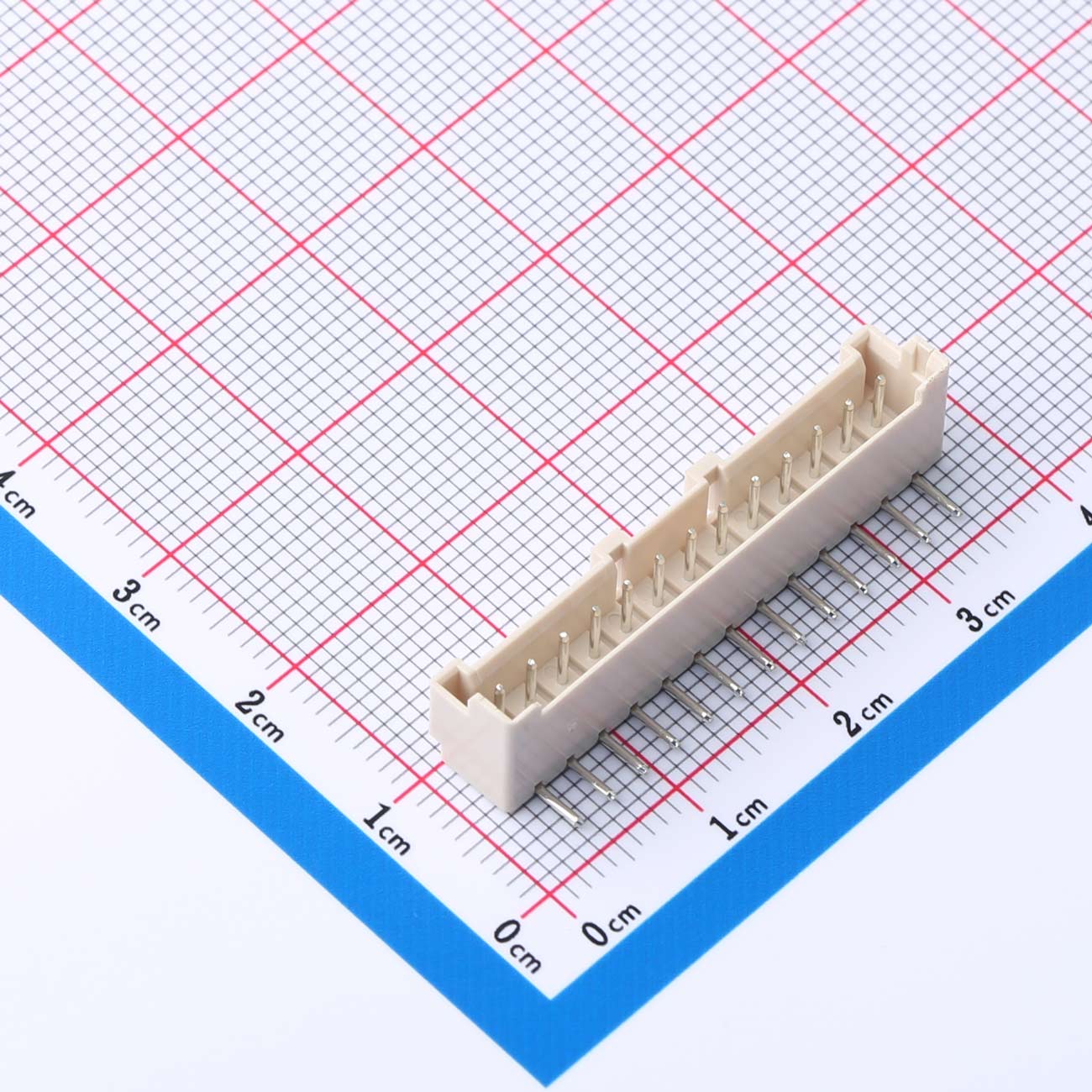

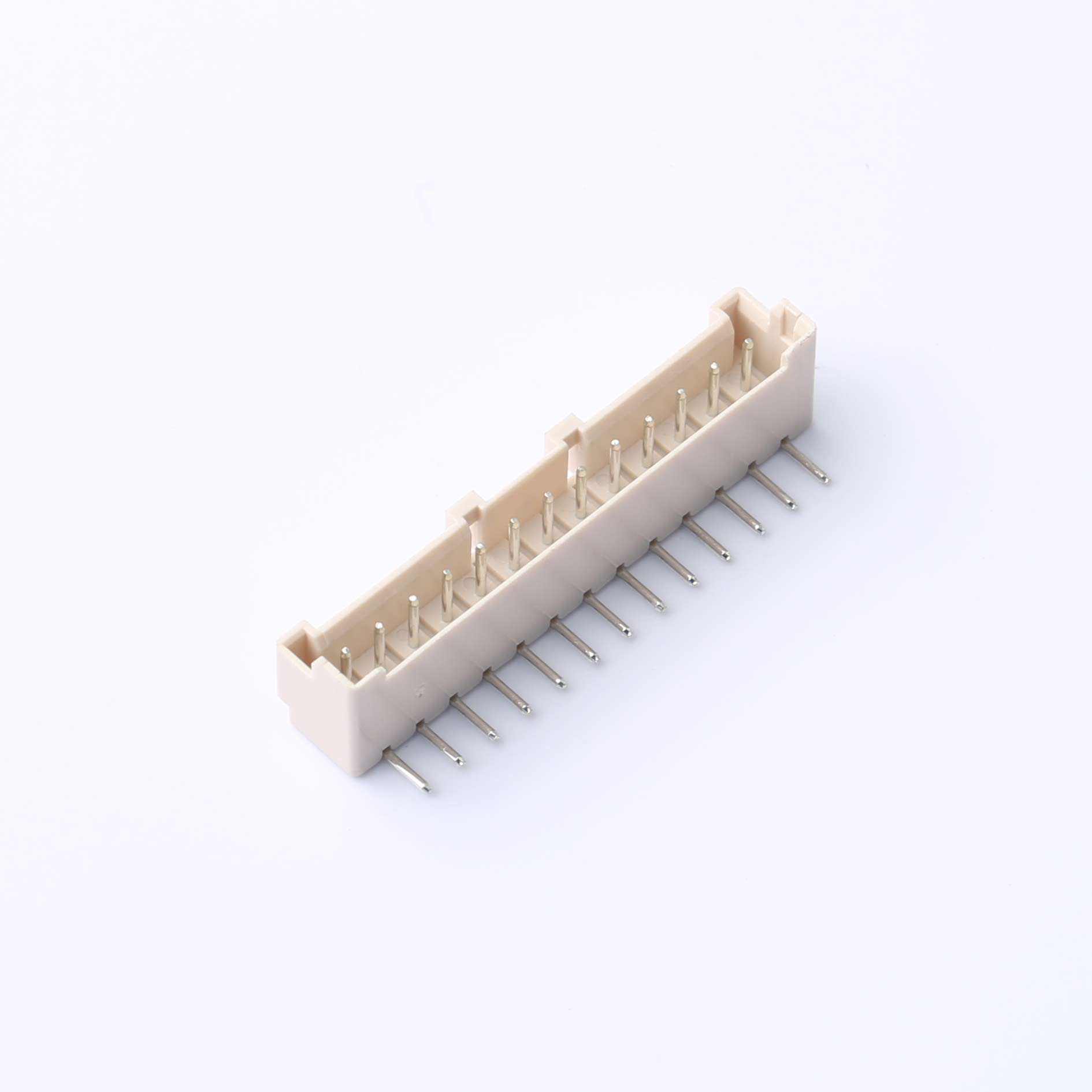

2.5mm Pitch Wire-to-Board Connector, 1x13P, Angled Pin, KH-A2508-13AW

2.5mm Pitch Wire-to-Board Connector, 1x13P, Angled Pin, KH-A2508-13AW

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.5mm pitch wire-to-board connector
● 1x13P angled pin configuration
● Rated current: 3A AC/DC
● Voltage rating: 250V AC/DC
● Operating temperature: -25℃ to +85℃
● Contact resistance: 20mΩ Max
● Insulation resistance: 1000MΩ Min

Product Benefits
● Angled pin design for space efficiency
● High current and voltage capacity
● Reliable connection with low contact resistance
● Suitable for harsh operating environments
● Easy and secure PCB mounting

Product Applications
● Industrial control systems
● Consumer electronics
● Power distribution modules
● LED lighting systems
● Communication equipment
● IoT and smart home devices
