2.54mm Pitch Wire-to-Board Connector 1x12P--KH-A2504-12AW

2.54mm Pitch Wire-to-Board Connector 1x12P--KH-A2504-12AW

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

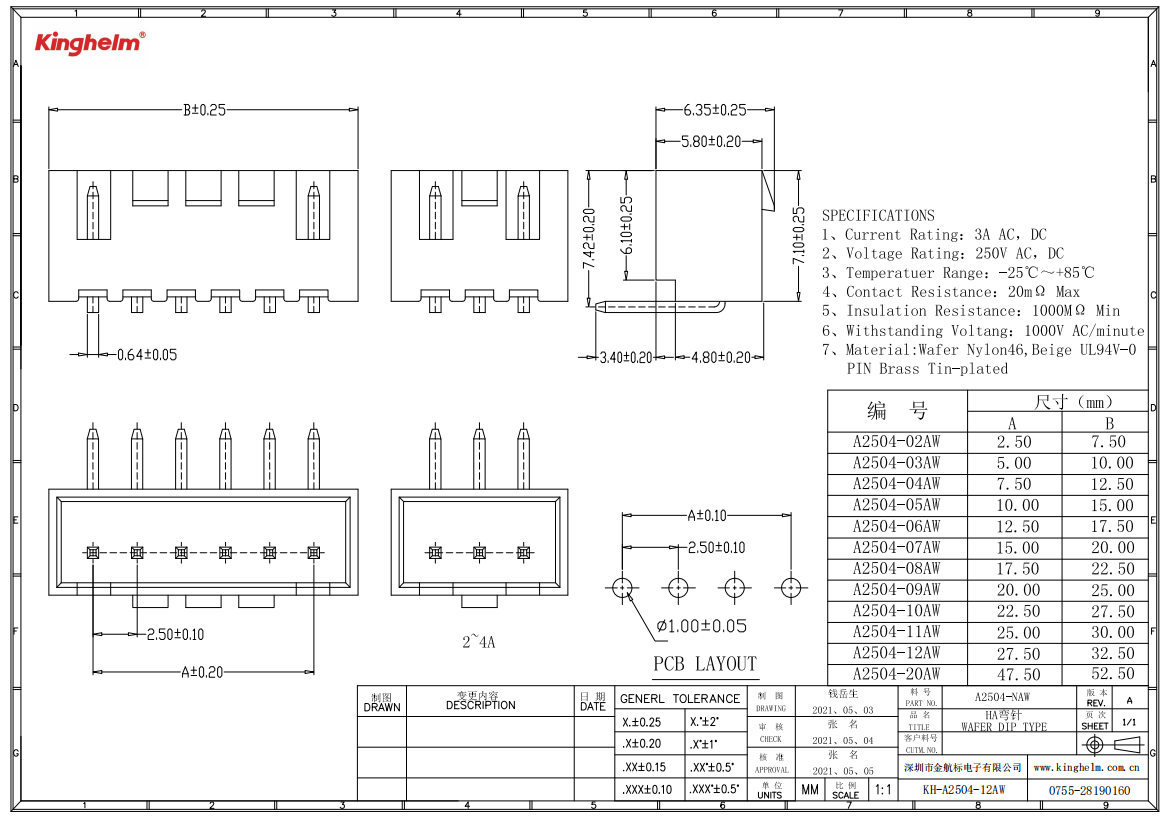

Inquiry Datasheet

Product Details

Product Features

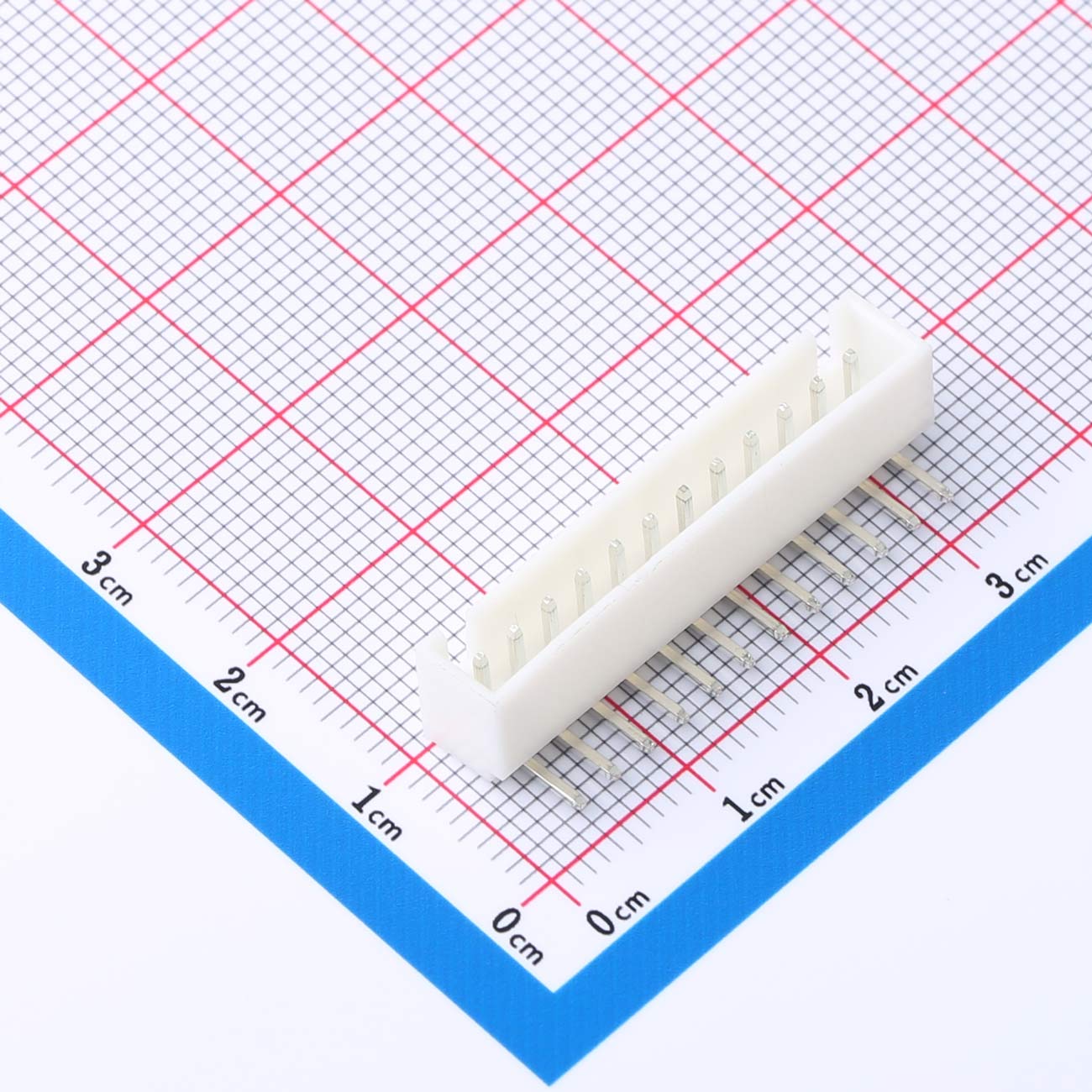

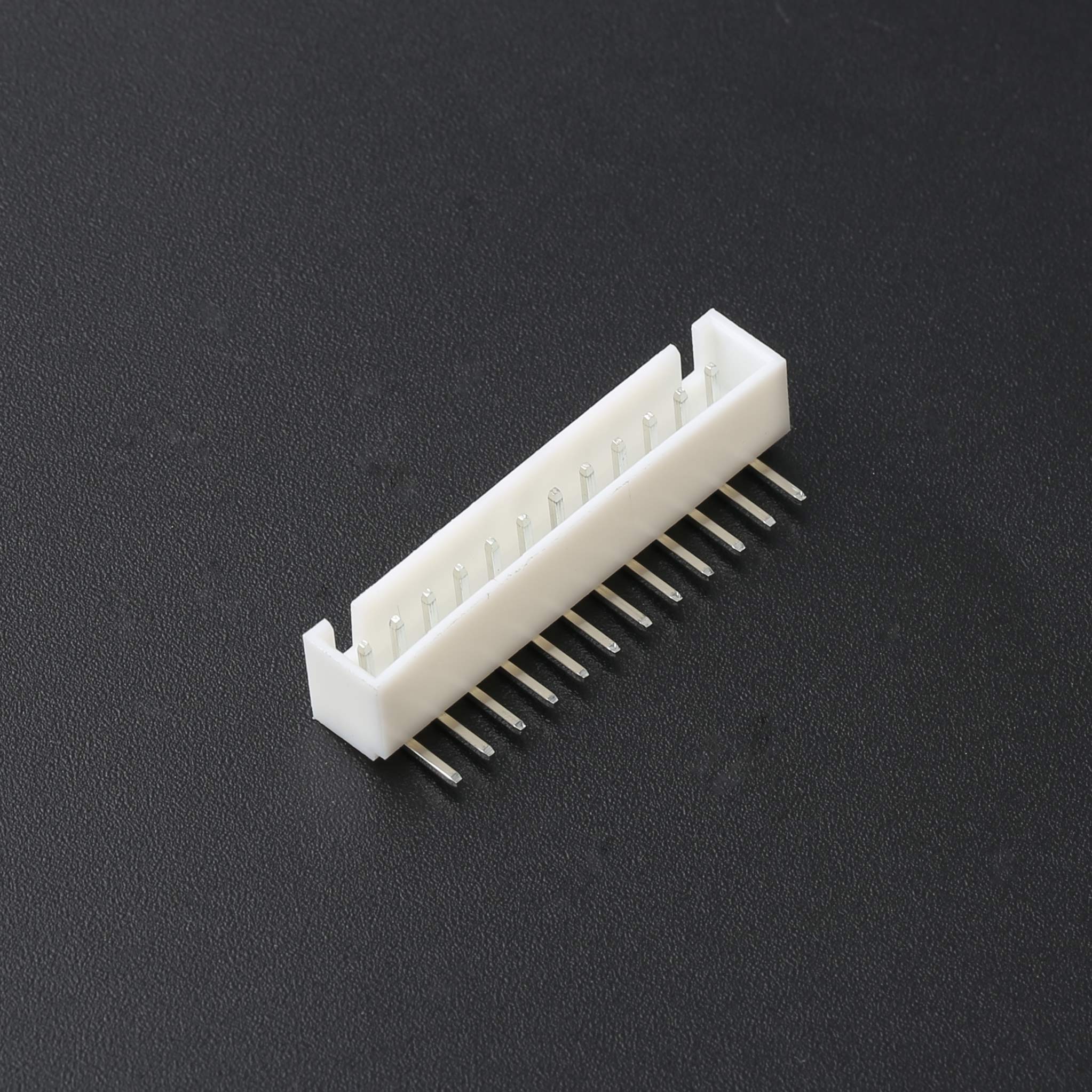

● 2.54mm wire-to-board connector, 1x12P
● Right-angle male pins (HA type), with latch
● White housing, through-hole pins (P=2.5mm)
● Tin-plated brass contacts
● Packaged in bags for safe shipping

Product Benefits
● Optimized for balanced signal and power lines
● Compact structure for space-constrained PCBs
● Latch ensures durable cable retention
● Stable electrical performance in varied conditions
● RoHS compliant, lead-free manufacturing

Product Applications
● Consumer electronics signal interfaces
● LED control and lighting boards
● Industrial signal collection modules
● Small automation controllers
