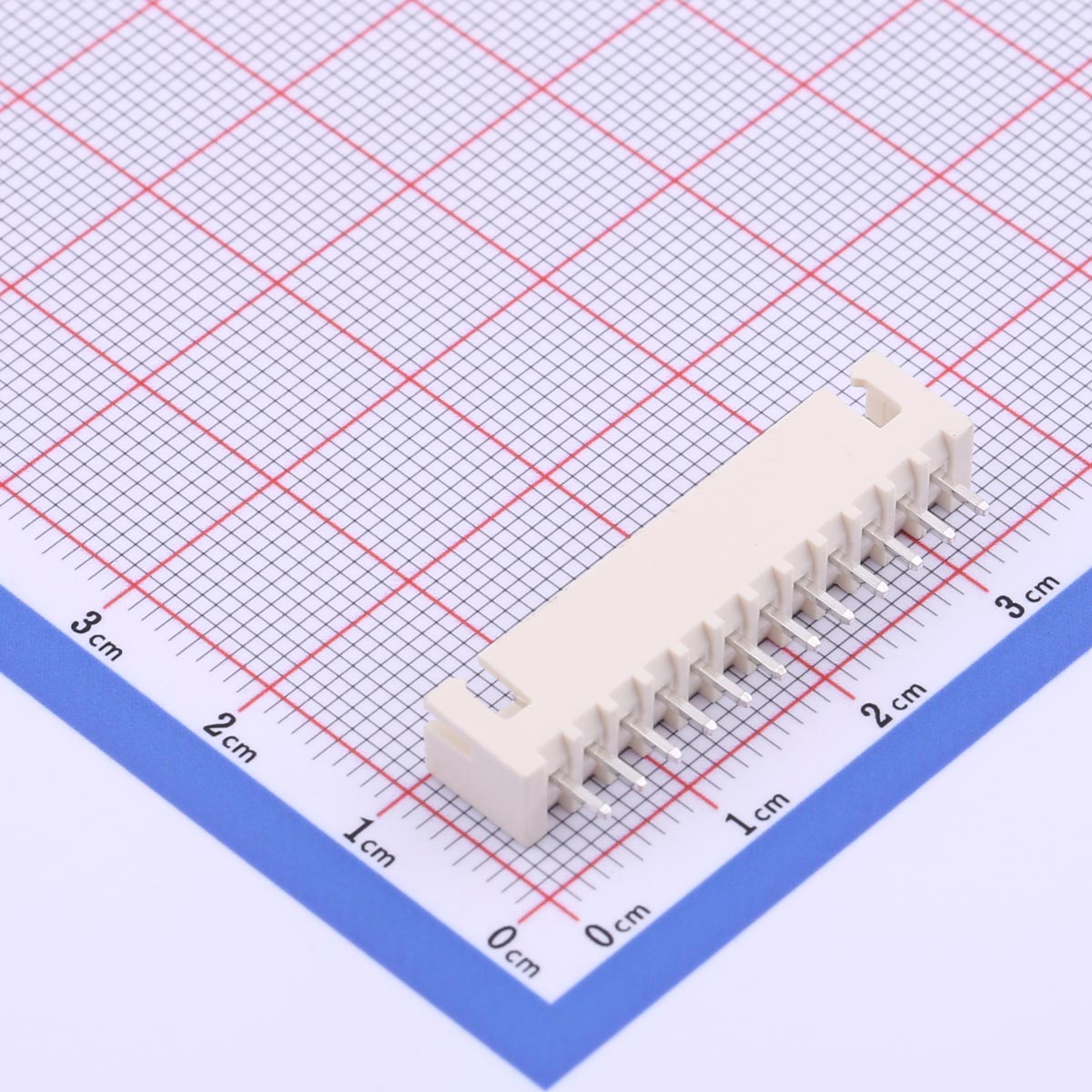

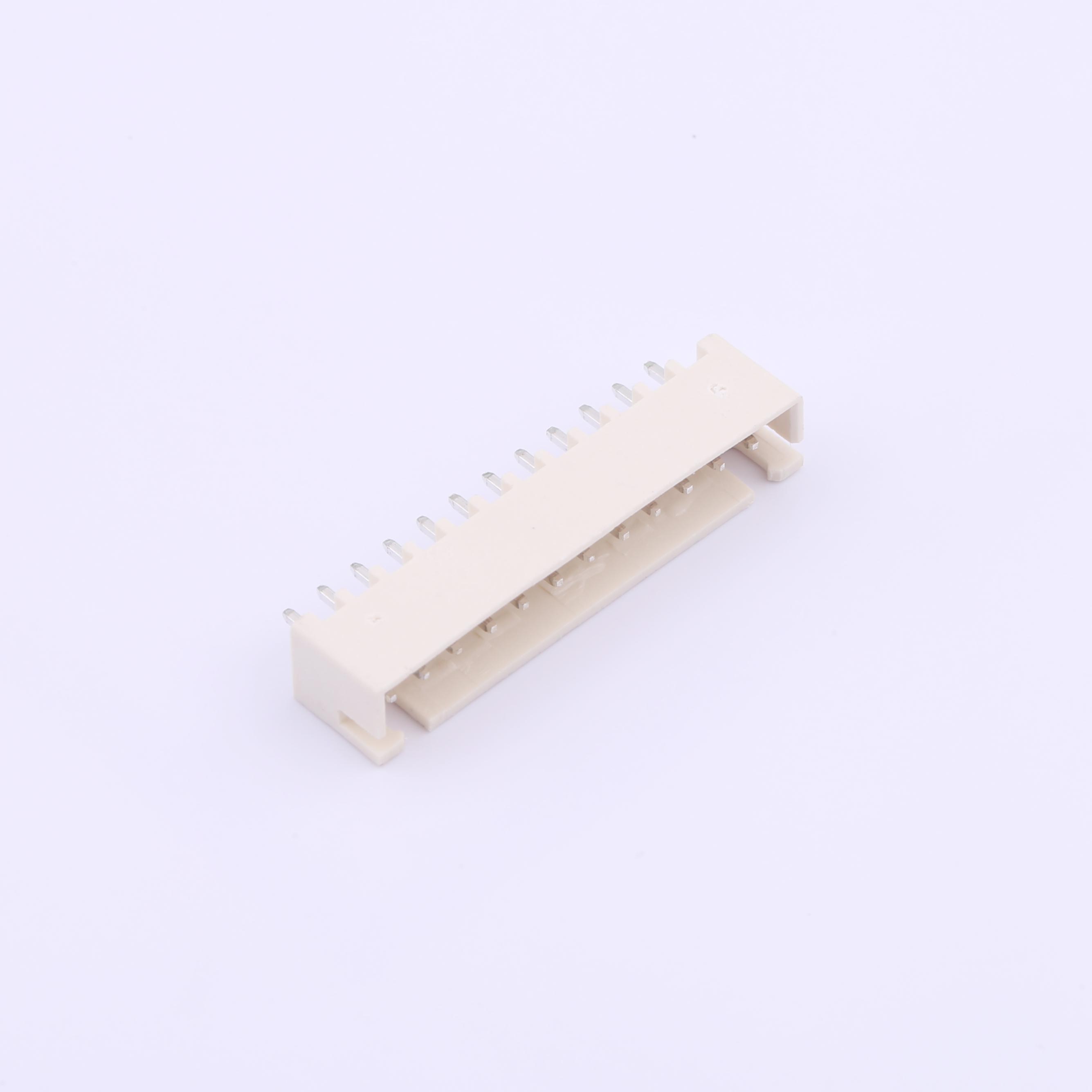

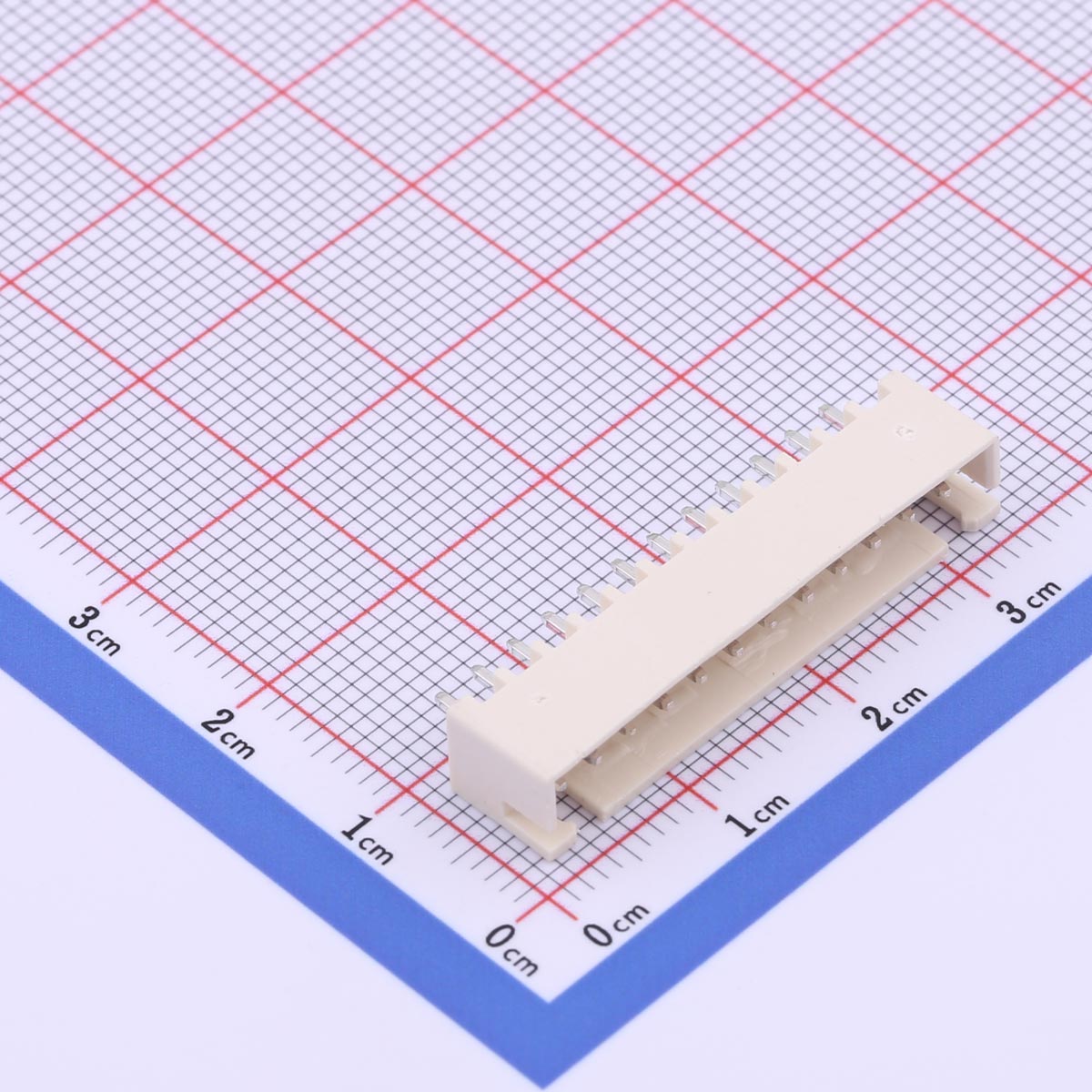

Wire-to-Board Connector, 2.5mm Pitch, 12P, KH-2501GW-12A-Z

Wire-to-Board Connector, 2.5mm Pitch, 12P, KH-2501GW-12A-Z

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

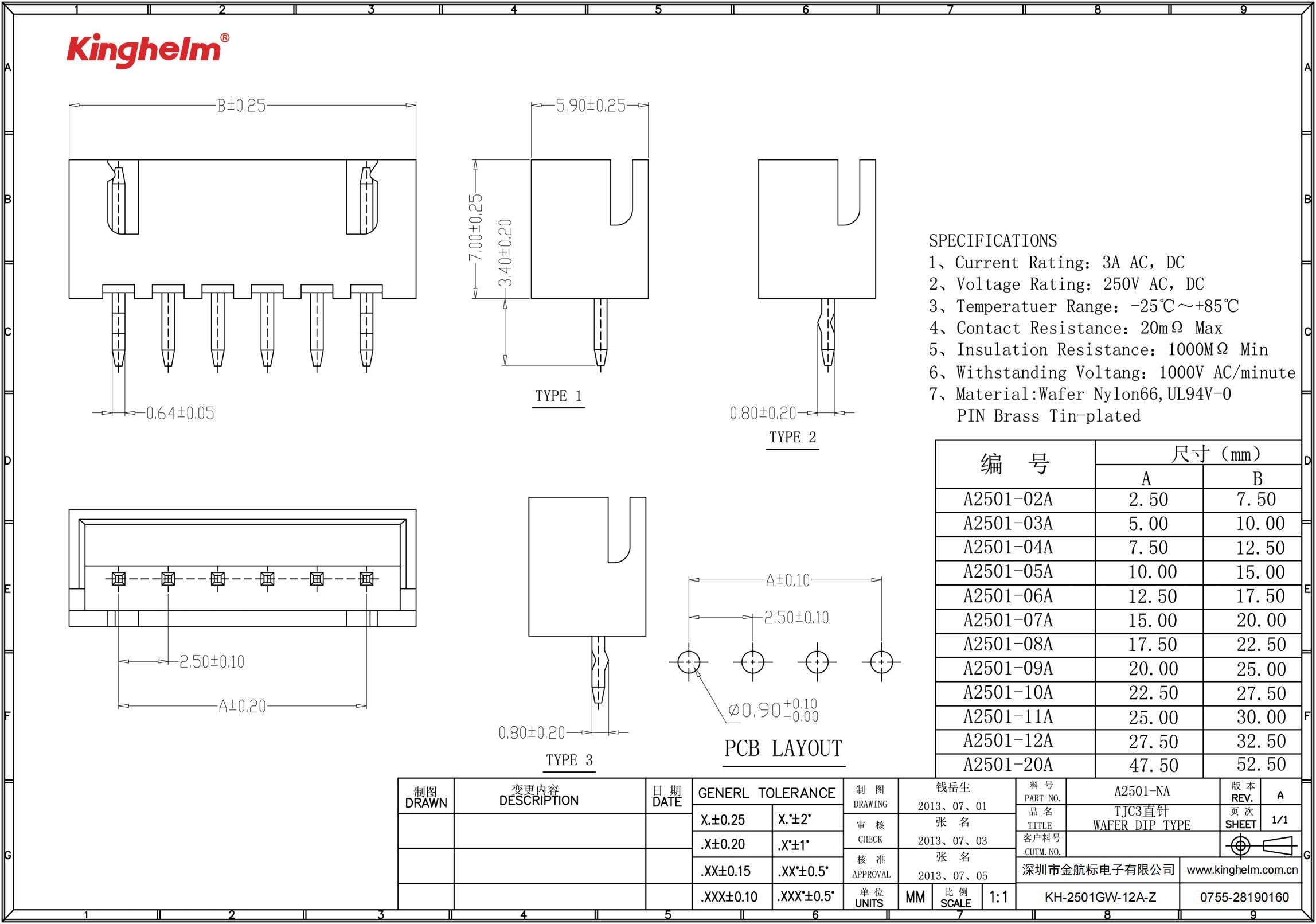

Inquiry Datasheet

Product Details

Product Features

● 2.5mm pitch wire-to-board connector
● 12 positions single row configuration
● Compatible with XH reference series
● Straight mounting type
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● Operating temperature from -25°C to +85°C
● Contact resistance 20mΩ max
● Insulation resistance 1000MΩ min
● Secure and reliable connection

Product Benefits
● Compact size for space saving
● Stable electrical performance
● Easy mating and unmating
● Suitable for high-density PCB layout
● Strong insulation properties
● Enhanced temperature endurance
● Smooth current transmission
● Time-saving assembly process

Product Applications
● Consumer electronics
● LED lighting systems
● Office automation equipment
● Battery powered devices
● Home appliances
● Communication equipment
● Industrial control units
● Automotive electronic modules
