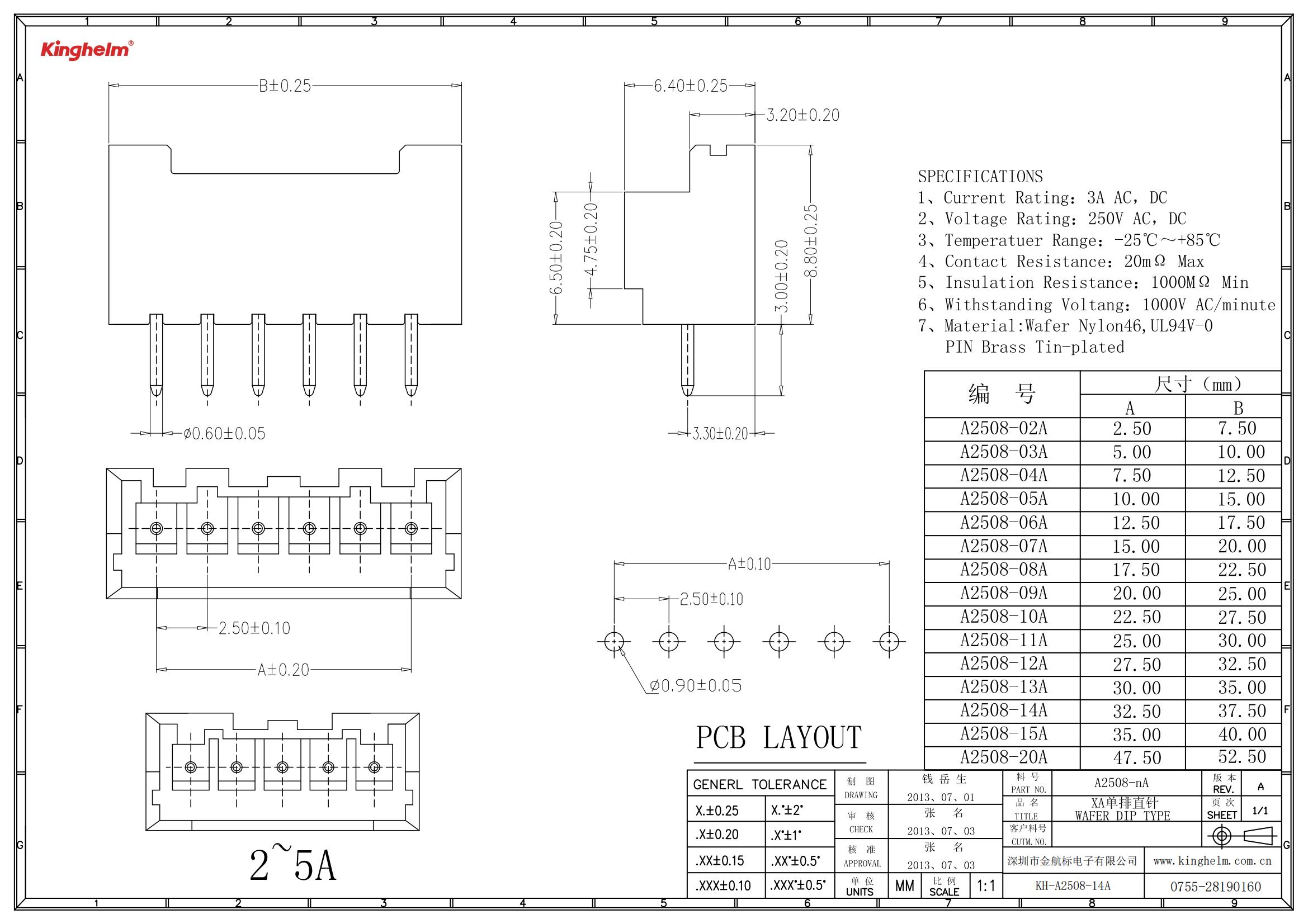

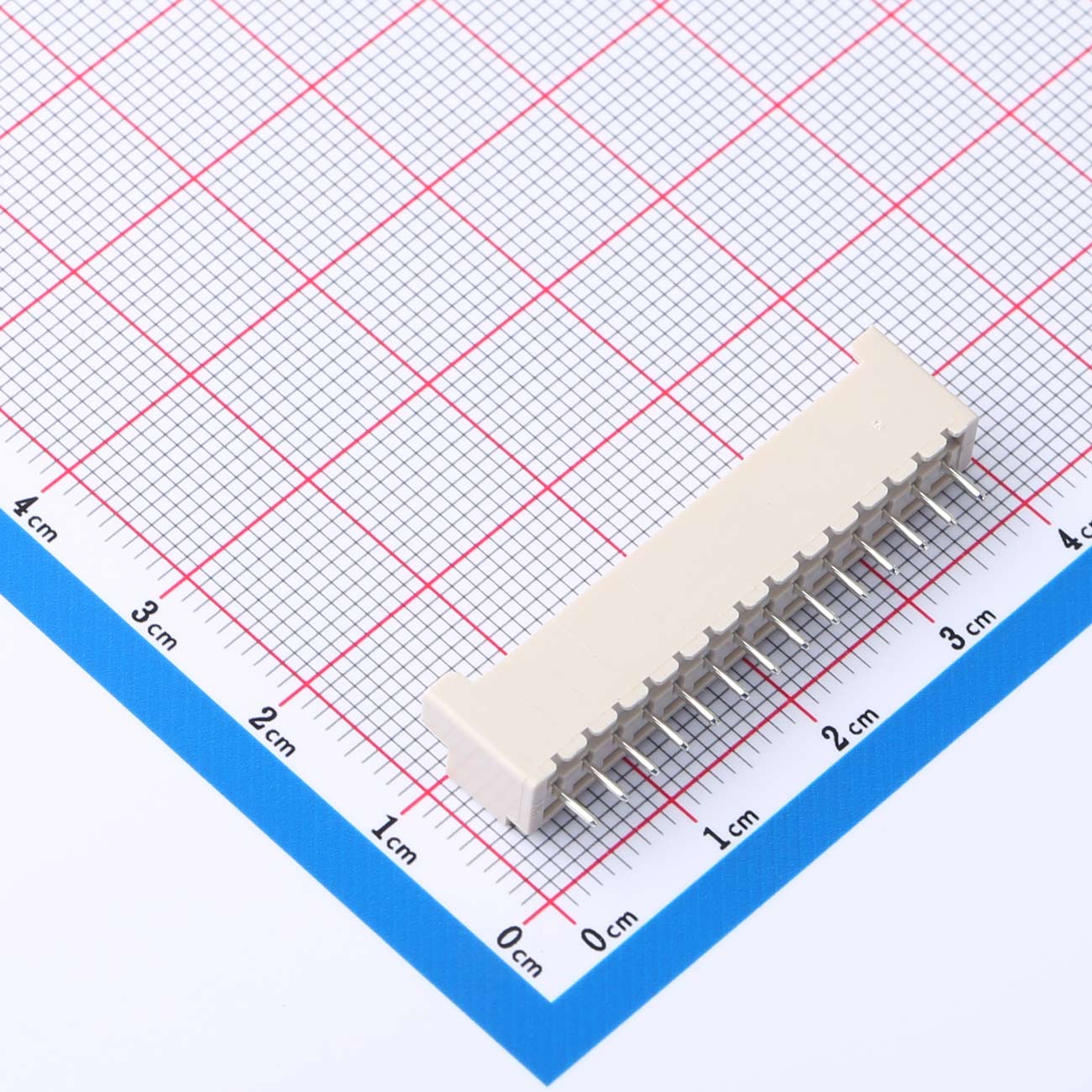

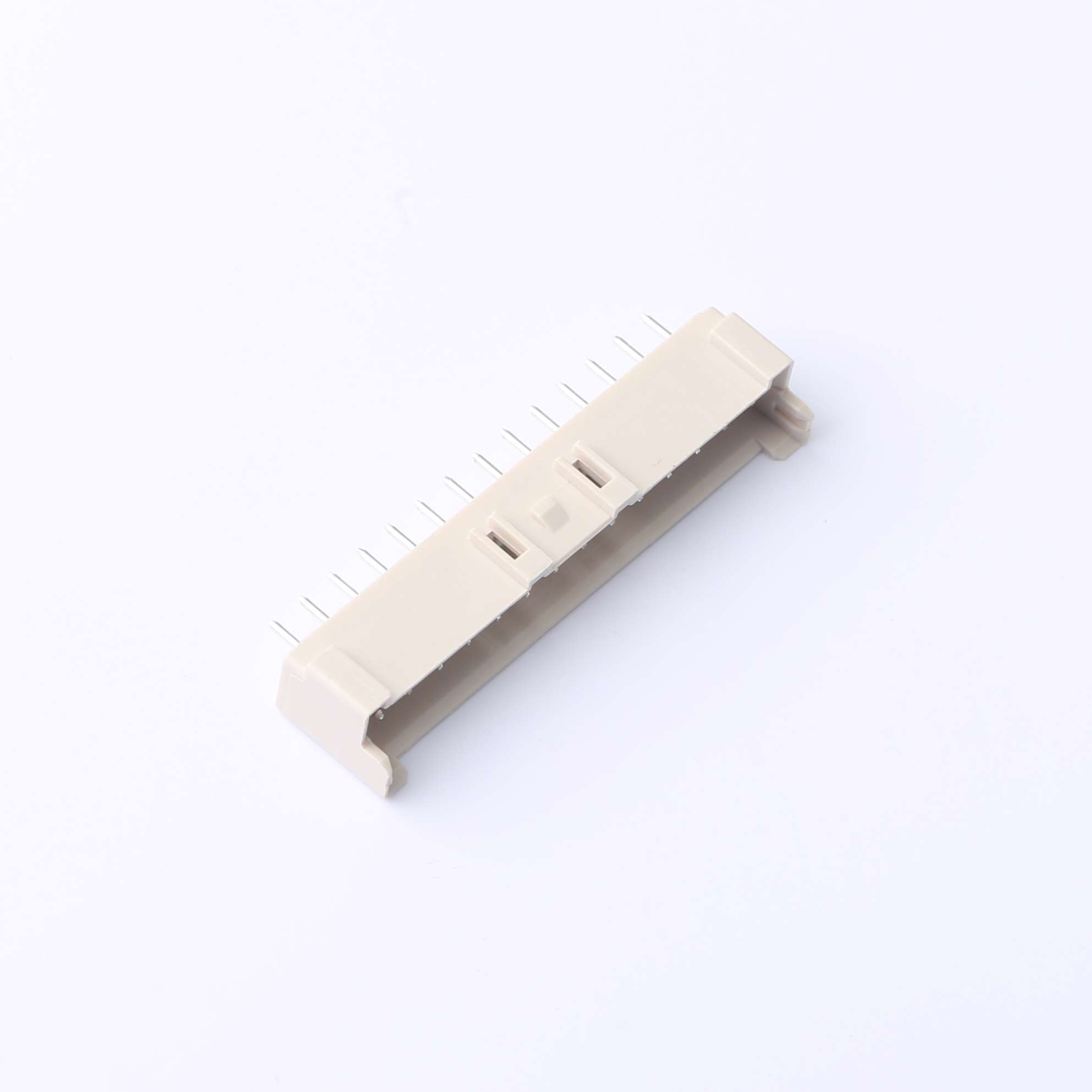

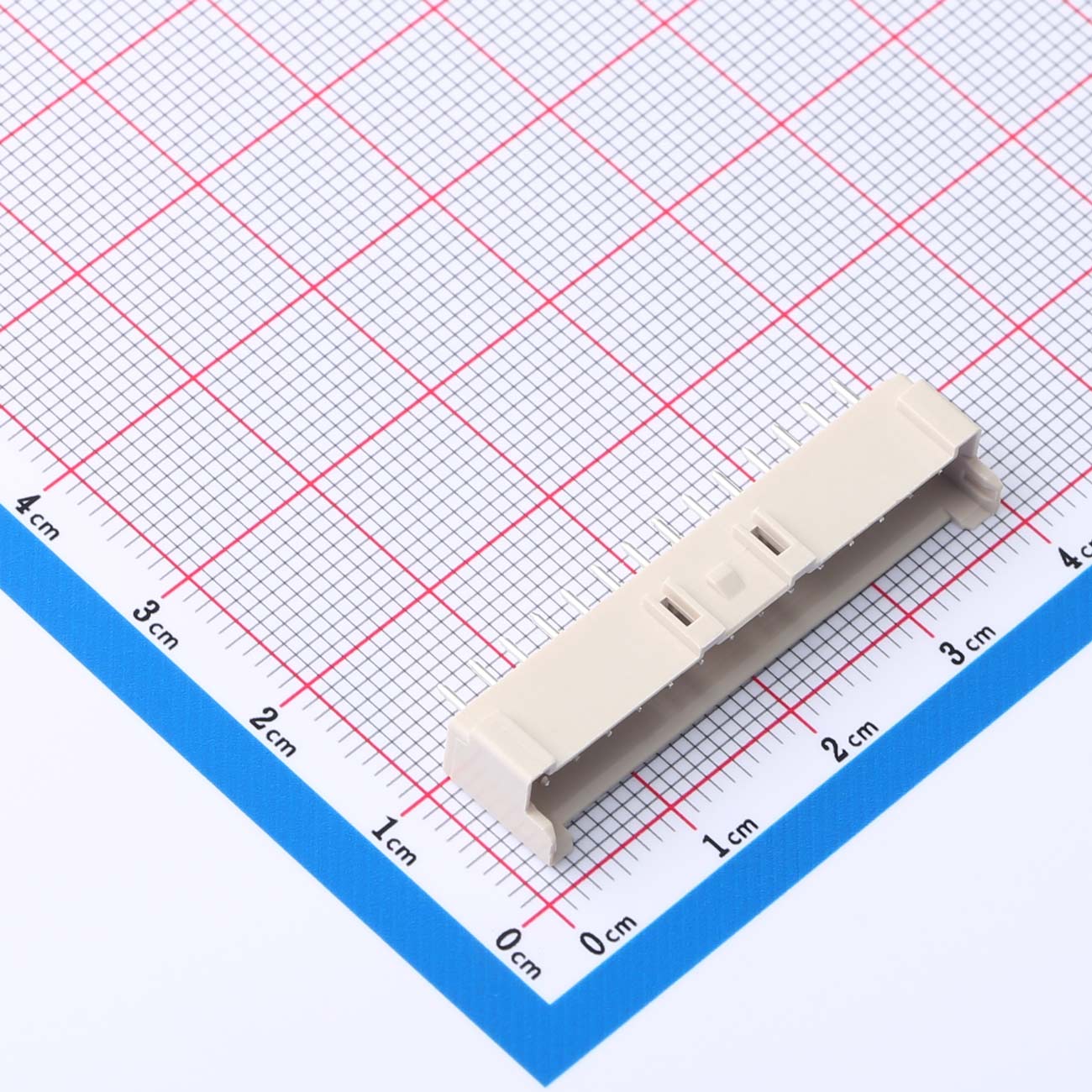

2.5mm Pitch Wire-to-Board Connector, 1x14P, Straight Pin, KH-A2508-14A

2.5mm Pitch Wire-to-Board Connector, 1x14P, Straight Pin, KH-A2508-14A

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.5mm pitch wire-to-board connector
● 1x14P straight pin design
● Maximum current: 3A (AC/DC)
● Rated voltage: 250V (AC/DC)
● Temperature range: -25℃ to +85℃
● Contact resistance: 20mΩ Max
● Insulation resistance: 1000MΩ Min

Product Benefits
● Efficient 14-pin configuration for high-density applications
● Reliable connection for both AC and DC circuits
● Stable electrical performance with low contact resistance
● Operates effectively across a broad temperature range
● Easy integration into automated assembly processes

Product Applications
● Industrial control panels
● Power distribution boards
● Consumer electronics
● LED lighting systems
● Telecommunication equipment
● Prototyping and custom electronic solutions
