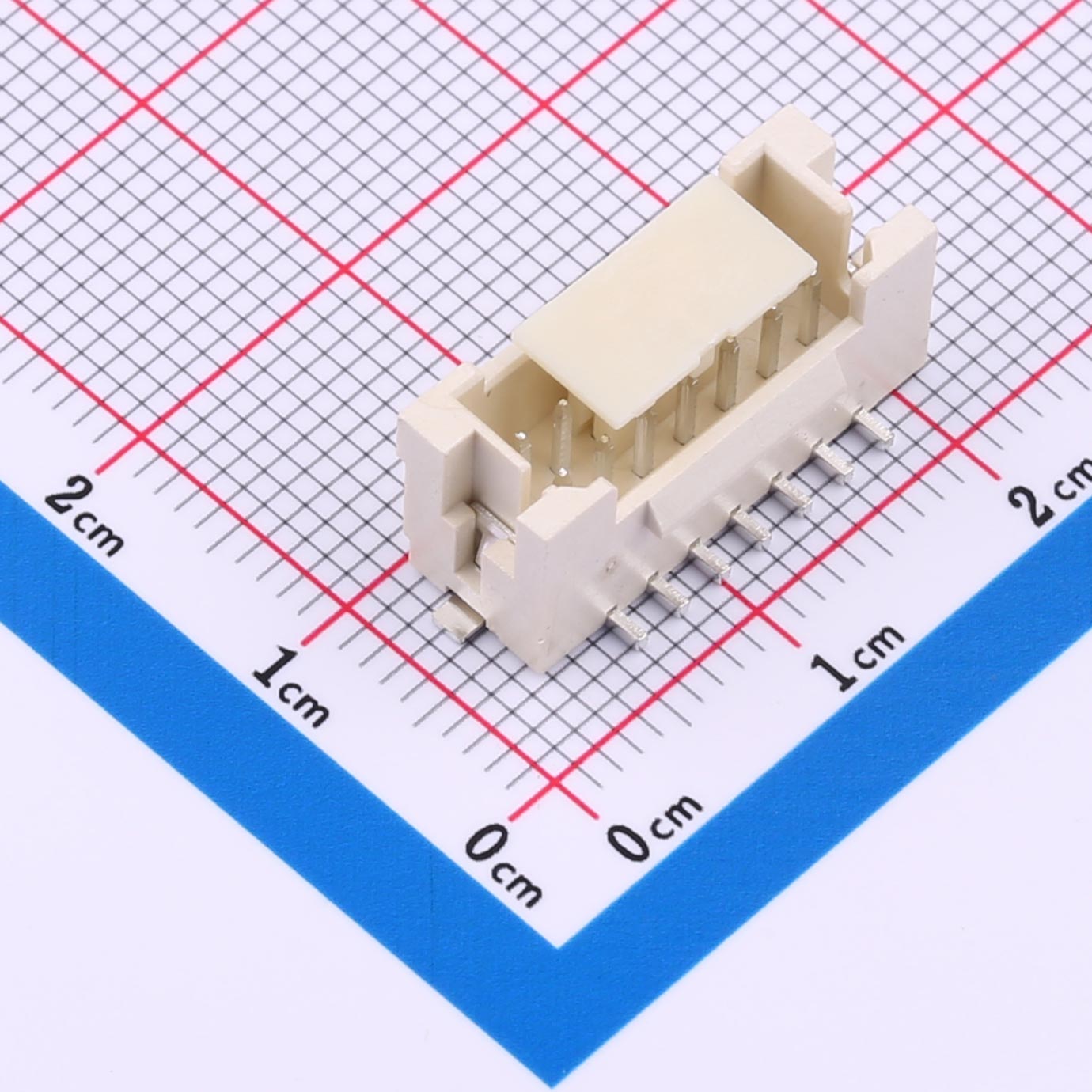

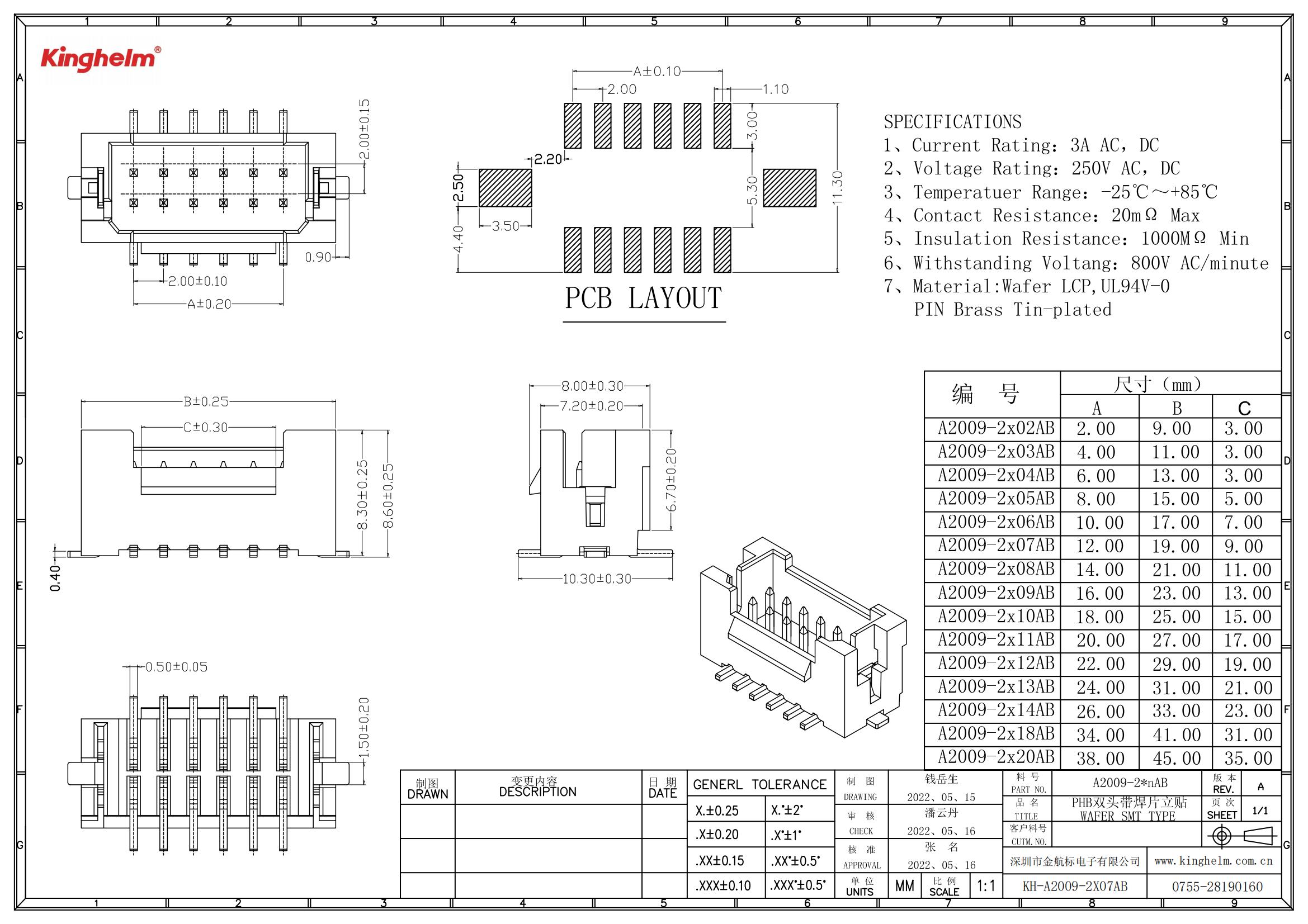

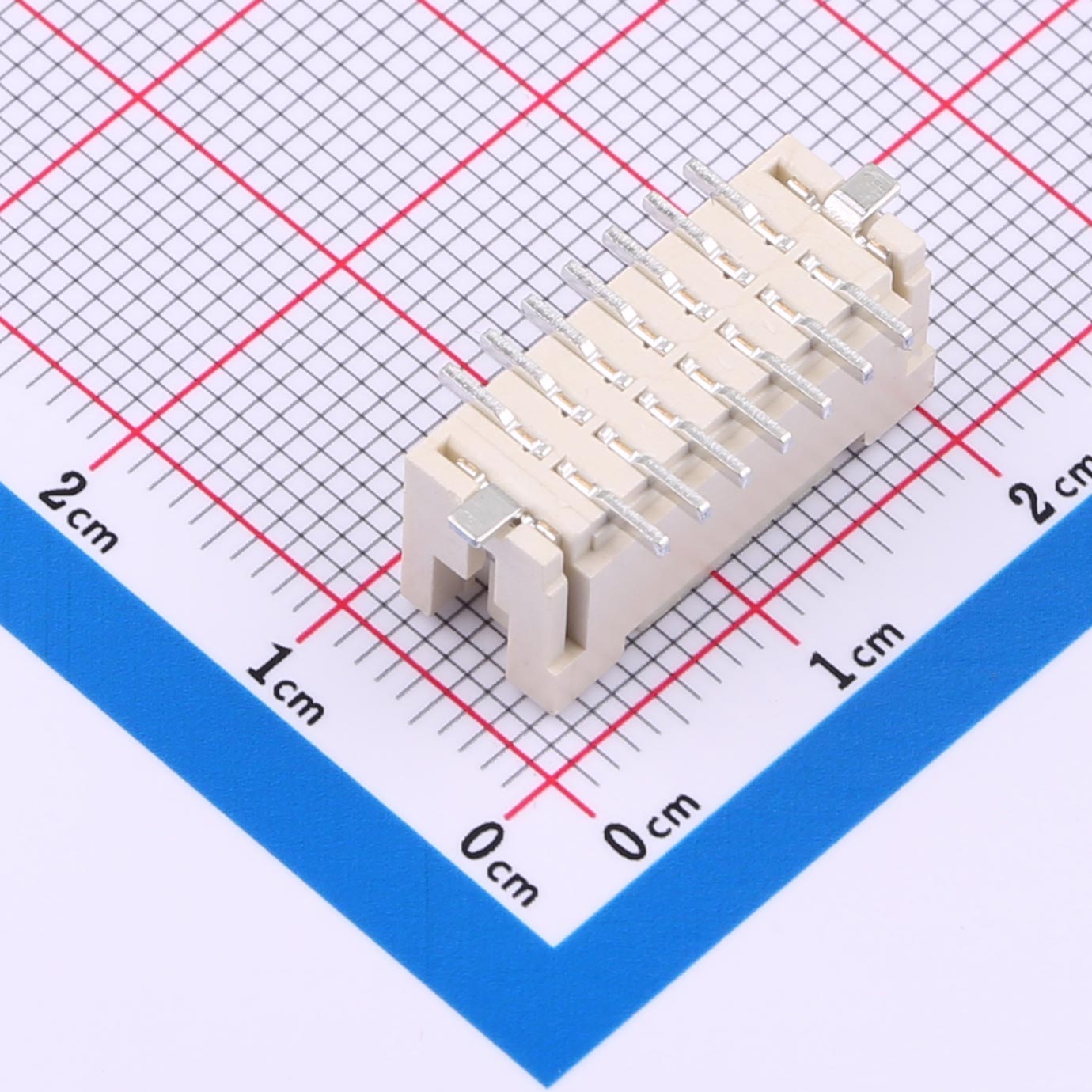

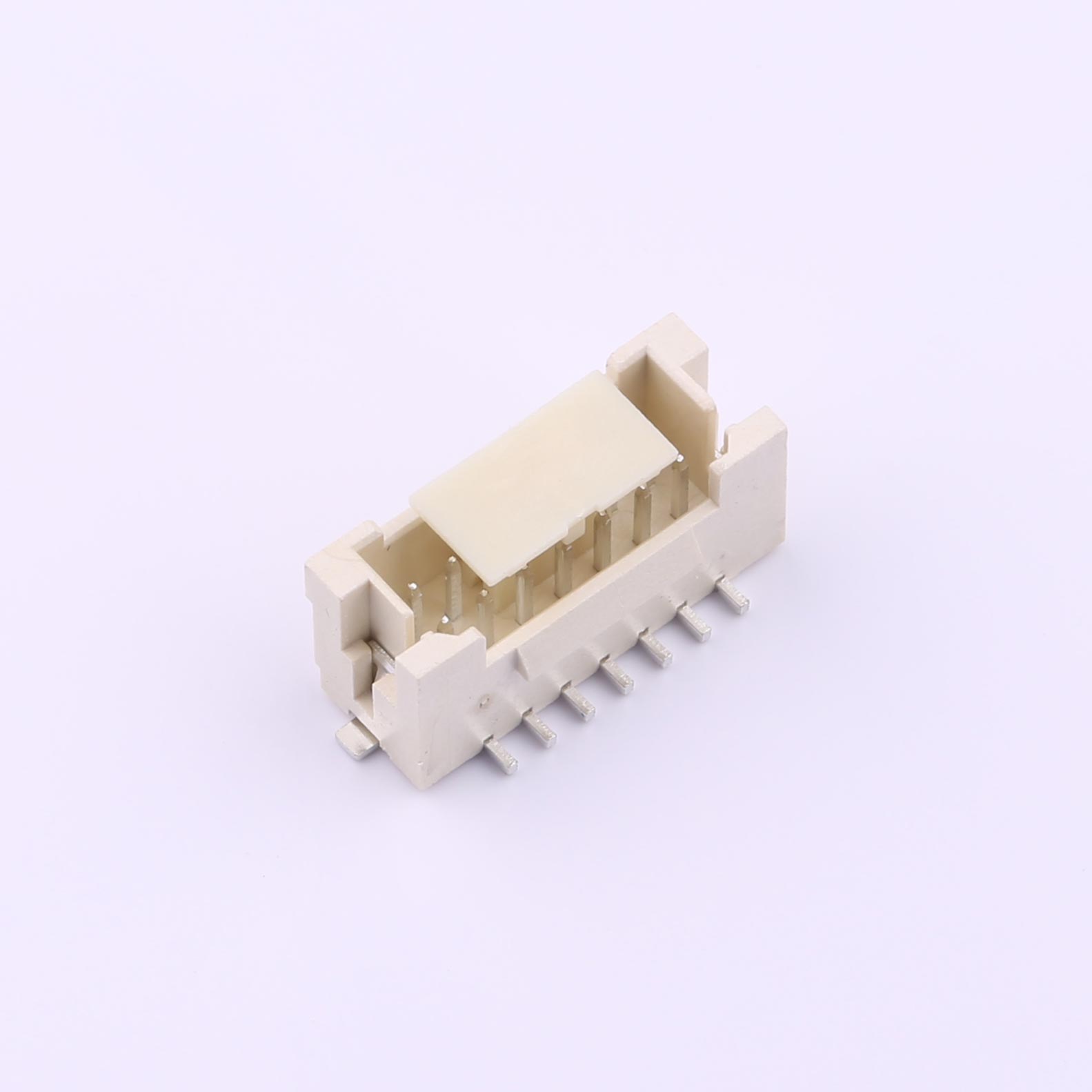

Wire-to-Board Connector, 2mm Pitch, 2x7P, Vertical SMT, KH-A2009-2X07AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x7 pin configuration
● 14 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Low pin count supports simple circuit links
● Easy integration into space-limited boards
● Dual-row format ensures good contact pressure
● SMT for efficient production flow
Product Applications
● Basic communication circuits
● Mini control boards
● Low-speed signal routing
