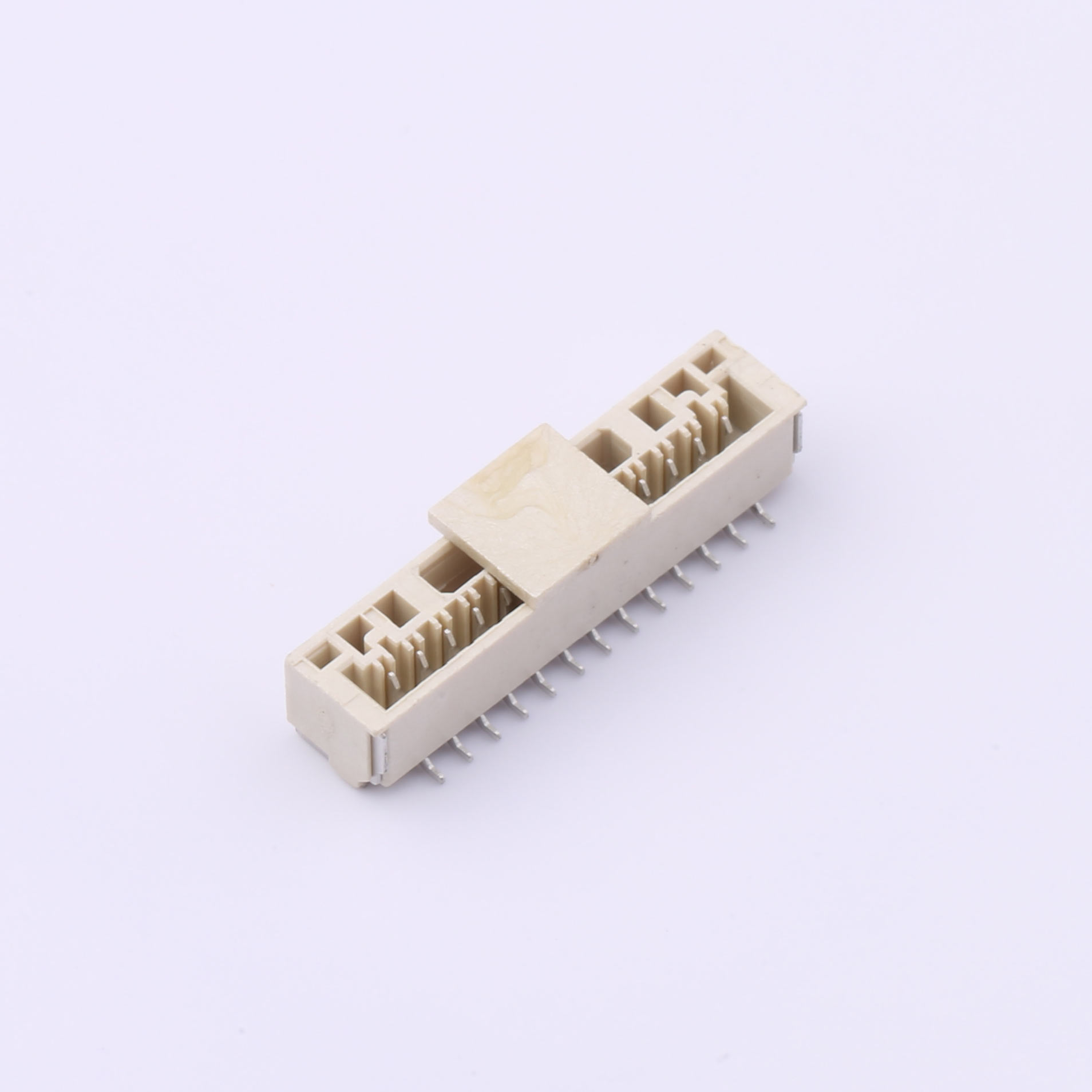

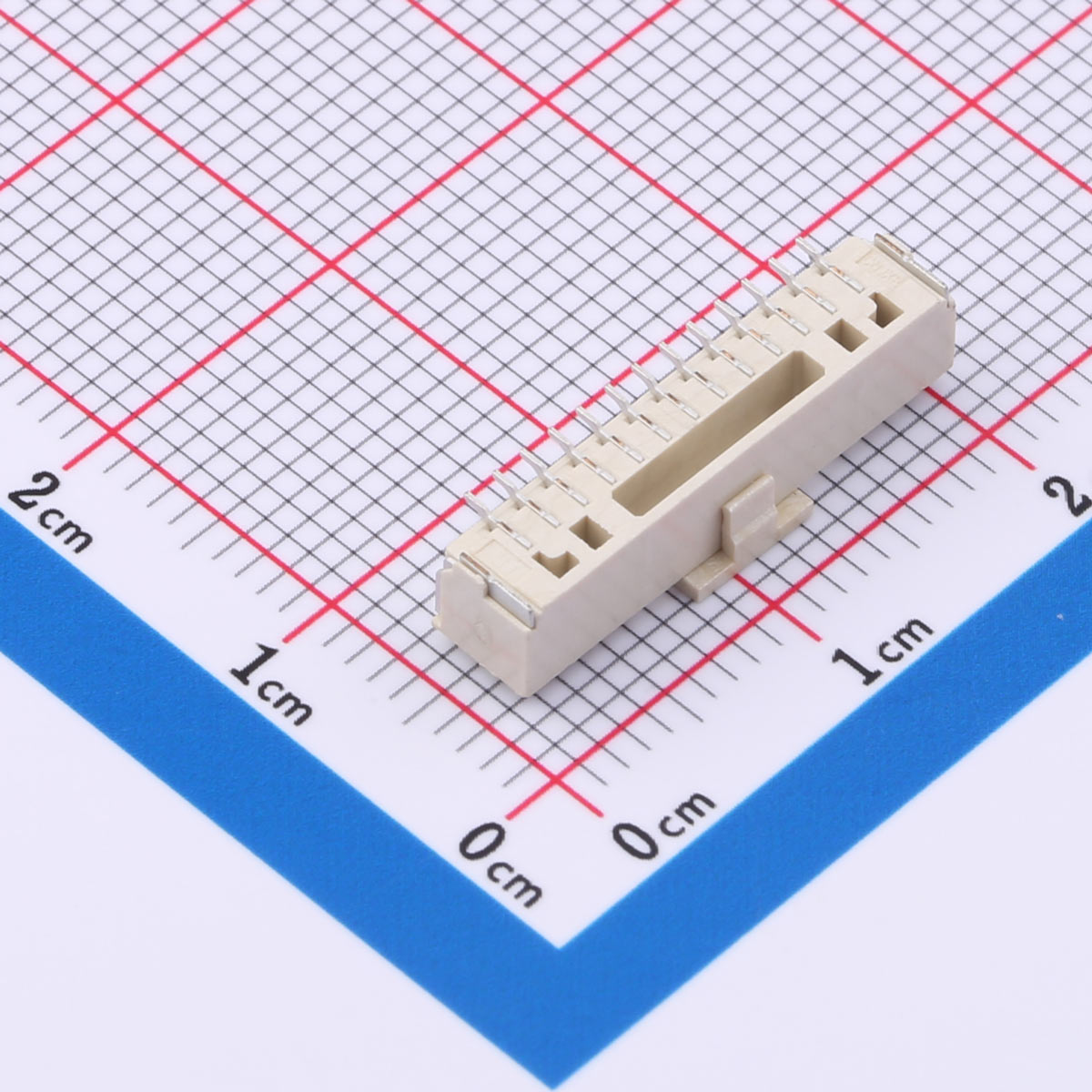

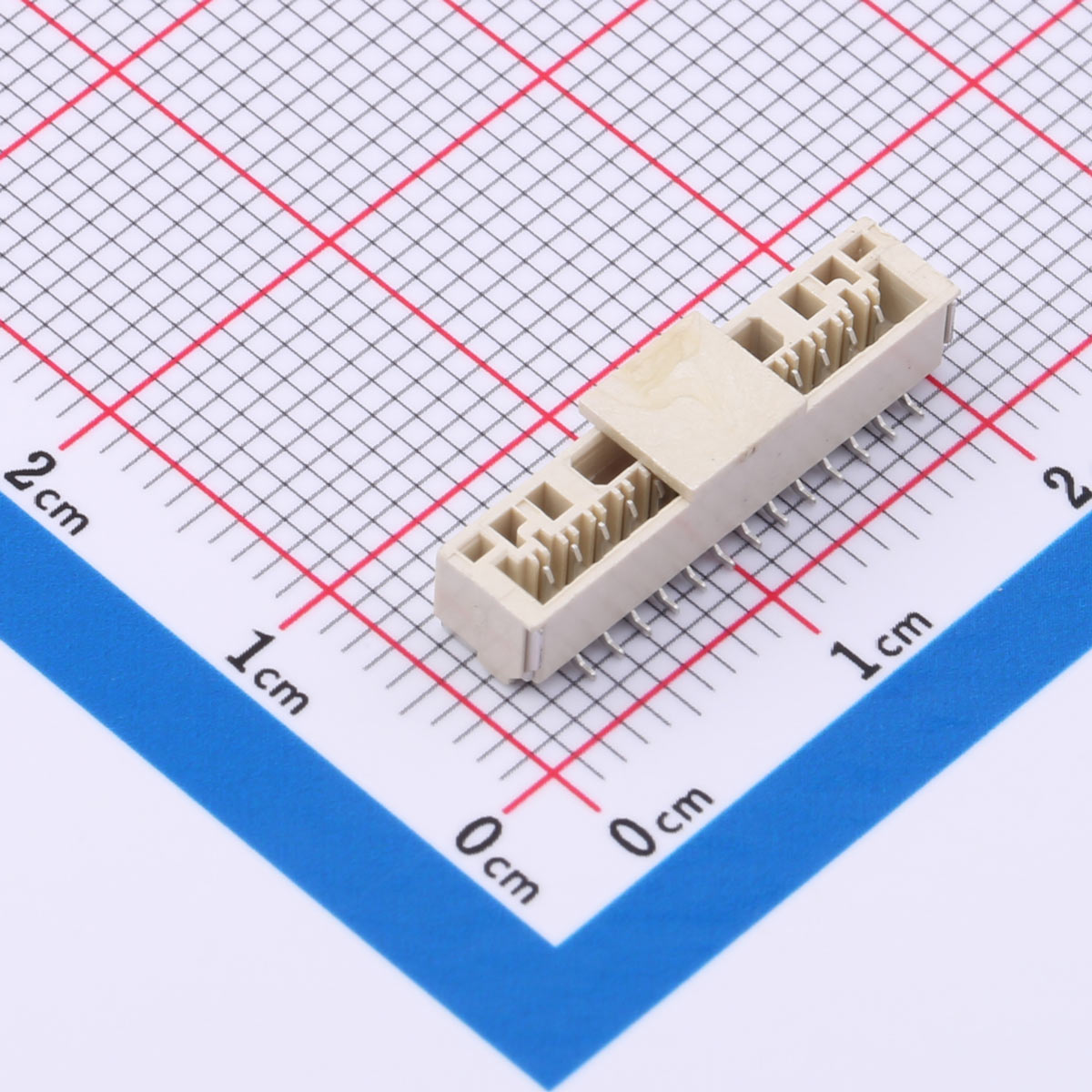

Wire-to-Board Connector, 1.25mm Pitch, 1x13P, Vertical SMT, KH-A1252VS-13P-CAP

Wire-to-Board Connector, 1.25mm Pitch, 1x13P, Vertical SMT, KH-A1252VS-13P-CAP

Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch, high-density layout
● 1x13P single-row configuration
● Vertical SMT (surface-mount technology) design
● Current rating: 1A AC/DC
● Voltage rating: 100V AC/DC
● Operating range: -25°C to +85°C
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ

Product Benefits
● Supports miniaturized device assembly
● Efficient SMT mounting for streamlined production
● Maintains stable signal and power connections
● Durable under normal industrial environments
● Optimized for board space efficiency

Product Applications
● IoT devices
● Miniature control units
● Audio/visual electronics
● Networking equipment
● Diagnostic instruments
