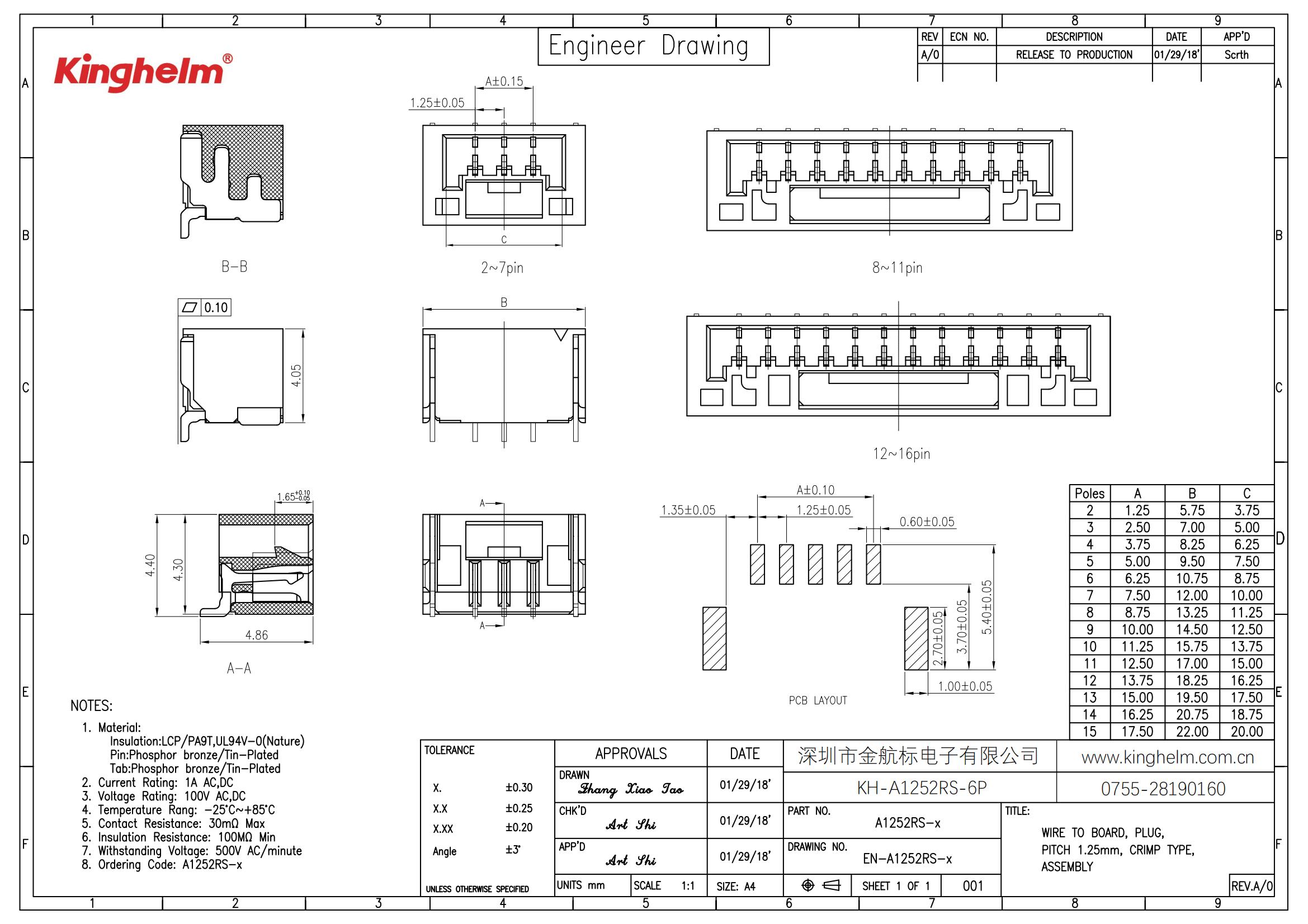

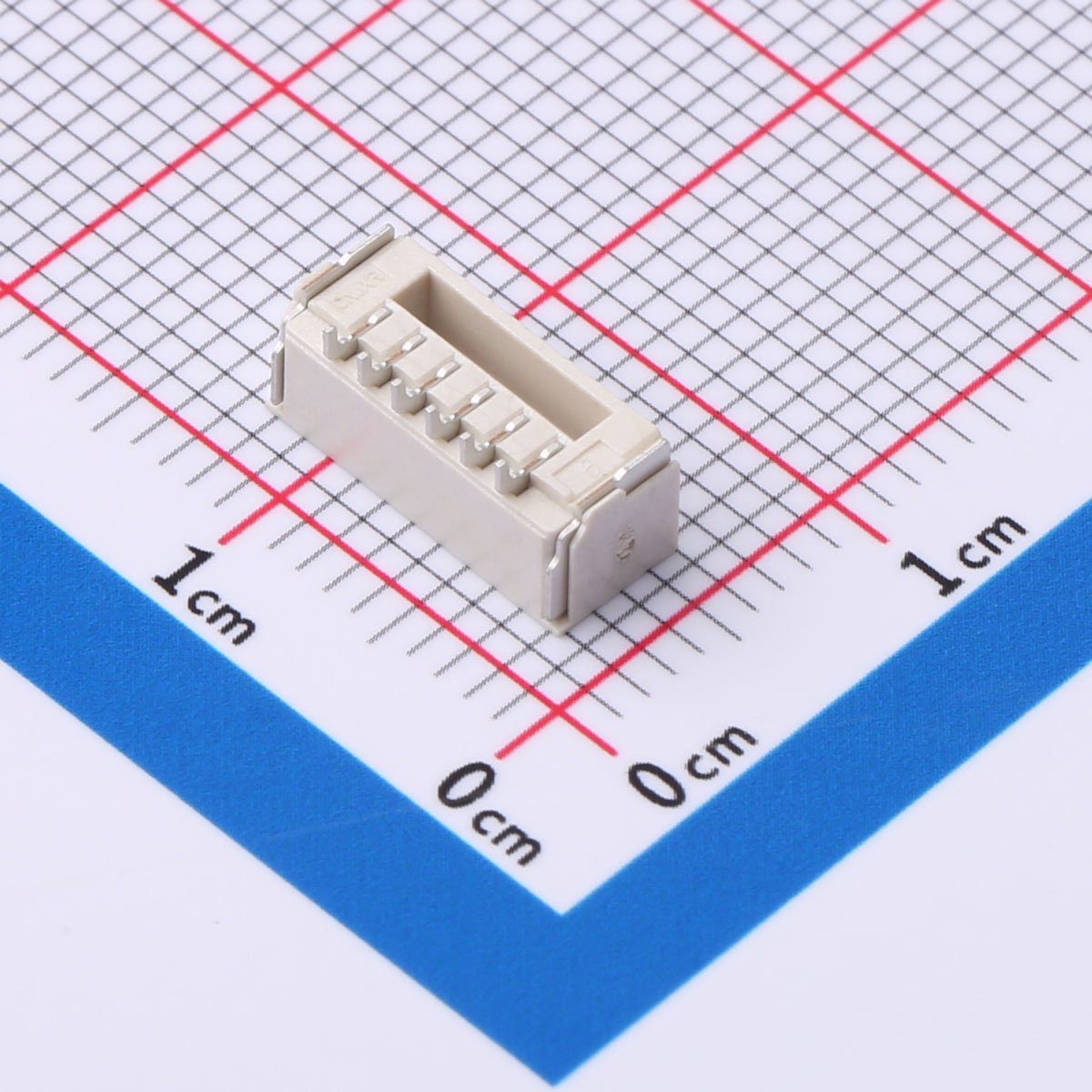

Wire-to-Board Connector, 1.25mm Pitch, 1x6P, SMD, KH-A1252RS-6P

Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min

Product Details

Product Features
● 1.25mm pitch, single row, 6 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ

Product Benefits
● Optimized for smaller, lower-pin applications
● Durable with low contact resistance
● Easy placement in automated systems
● Horizontal mount configuration for efficient board use
● Works well in a wide range of operating environments

Product Applications
● LED drivers
● Small-scale power electronics
● Home appliances
● Audio modules
● Wearables
