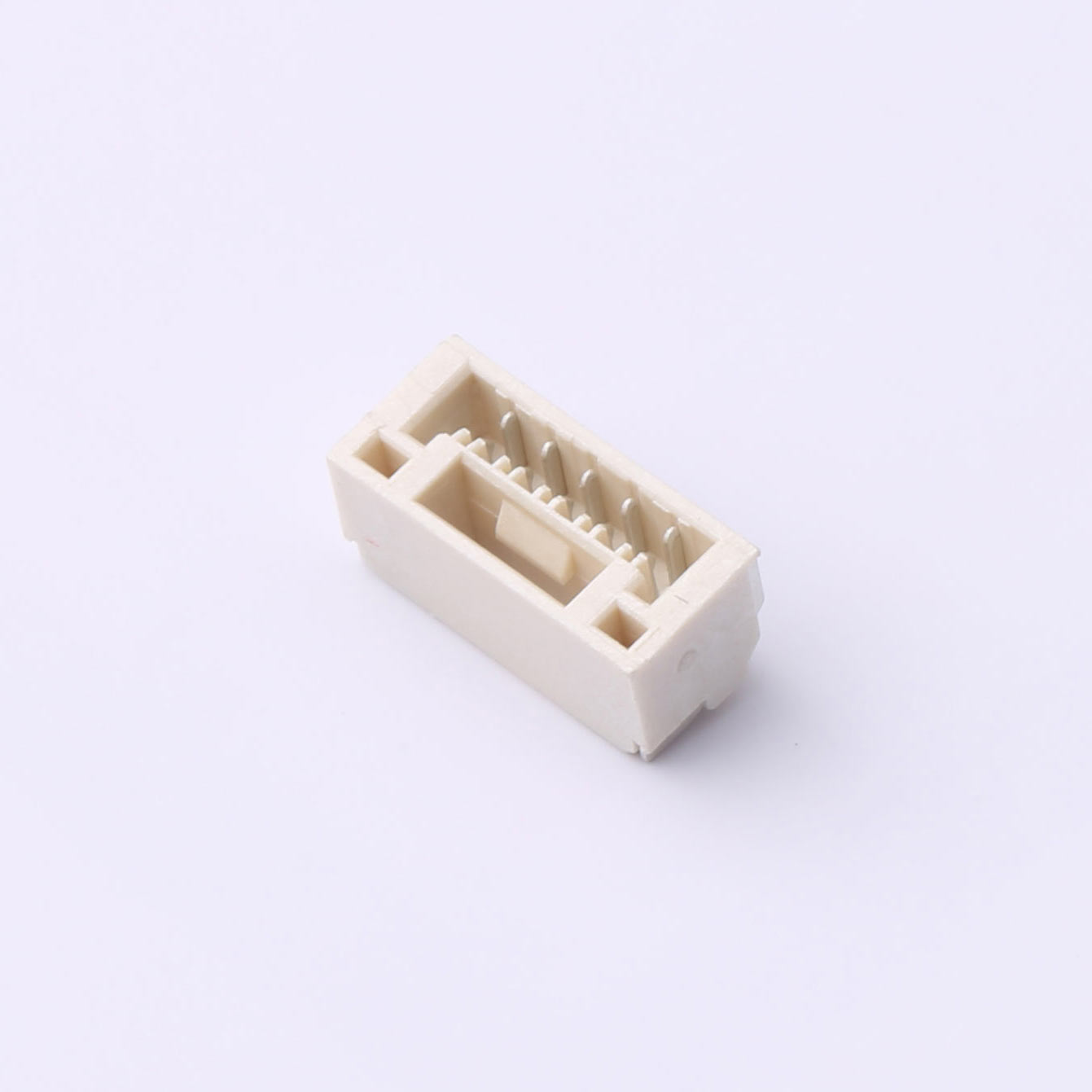

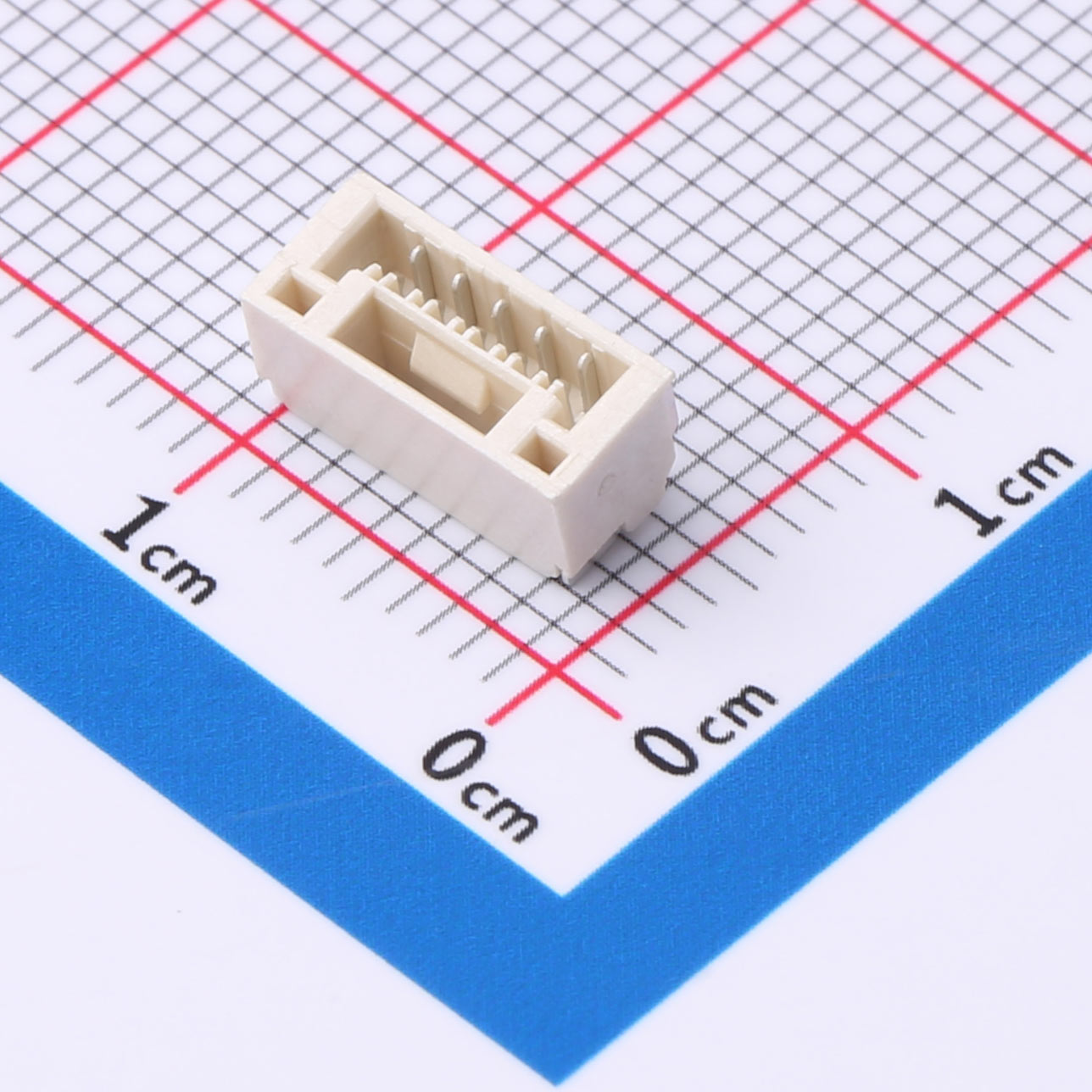

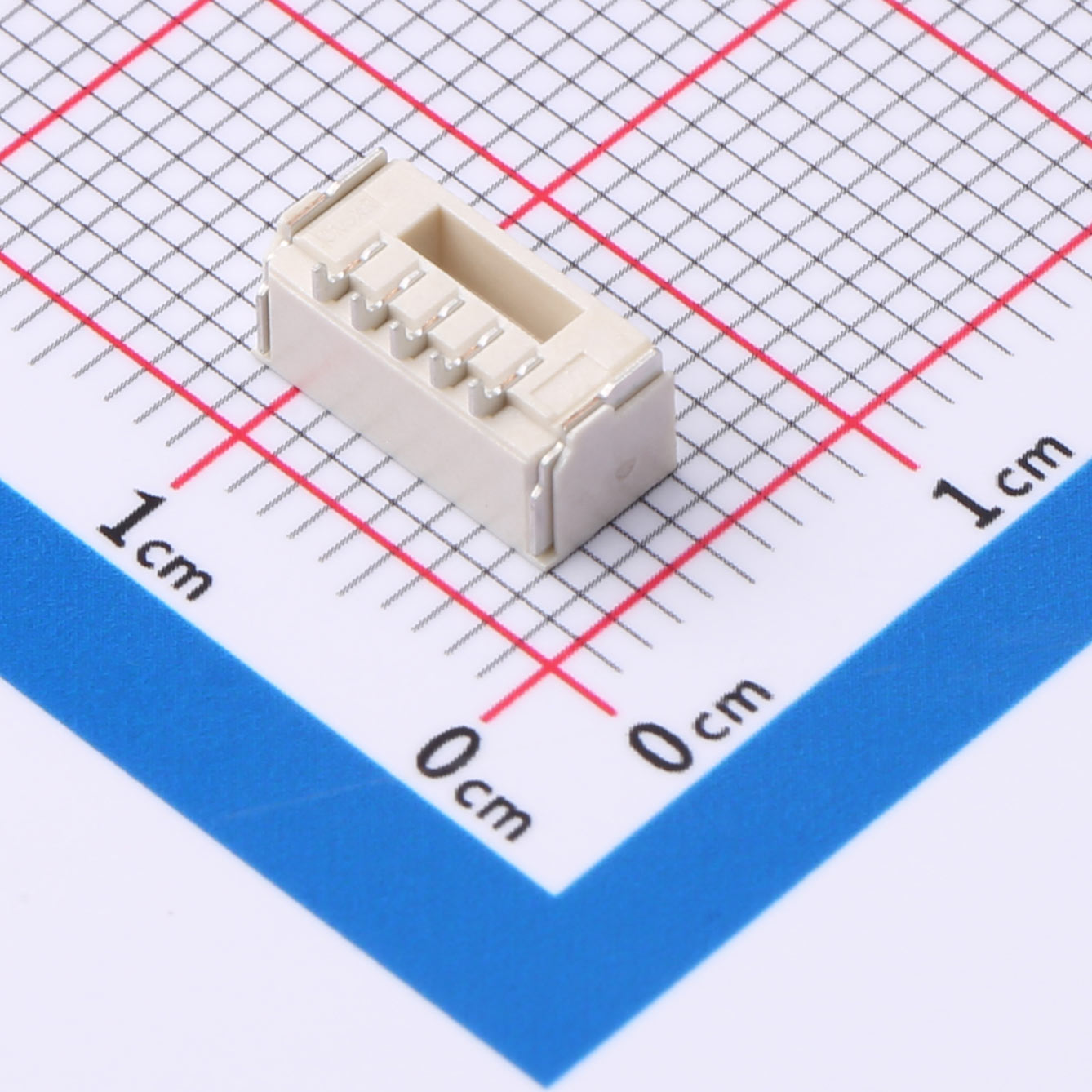

Wire-to-Board Connector, 1.25mm Pitch, 1x5P, SMD, KH-A1252RS-5P

Wire-to-Board Connector, 1.25mm Pitch, 1x5P, SMD, KH-A1252RS-5P

Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch, single row, 5 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ

Product Benefits
● Perfect for ultra-compact designs
● Provides stable electrical connections with minimal loss
● Fully compatible with automated assembly systems
● Horizontal mounting optimizes space usage
● Reliable performance in various temperatures

Product Applications
● Small LED lights
● Portable electronics
● Power supplies
● Wearable technology
● Medical devices
