2mm Pitch Wire-to-Board Connector, 1x9P, Locating Angled Pin, KH-A2026-09AWD

2mm Pitch Wire-to-Board Connector, 1x9P, Locating Angled Pin, KH-A2026-09AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

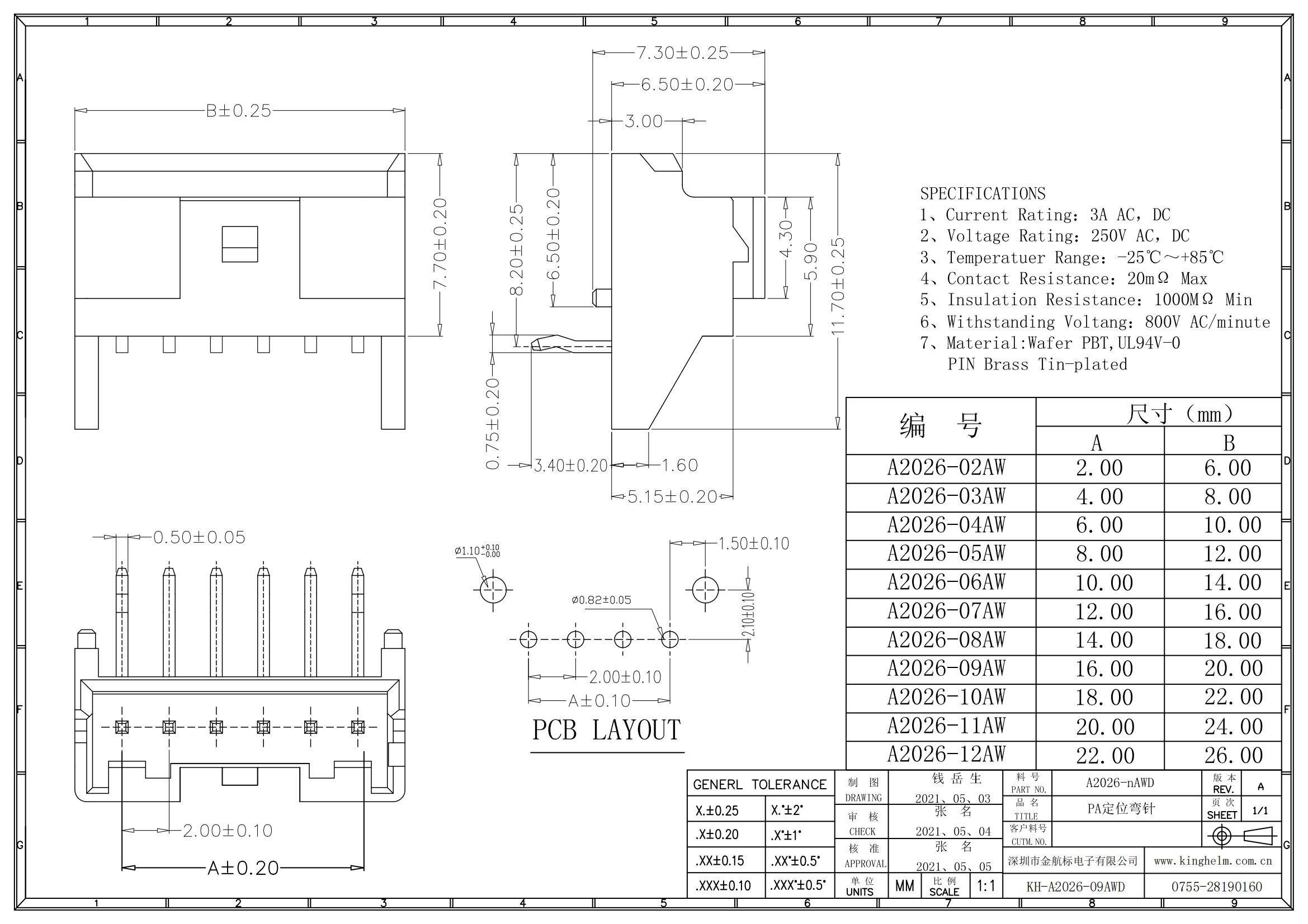

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch, 1x9P single-row format
● Bent pin design for edge-facing layouts
● Through-hole soldering for secure fixation
● Tin-plated brass contacts
● Compatible with PA connector series

Product Benefits
● Saves vertical space in compact PCB assemblies
● Easy integration into horizontal wiring systems
● Durable under repeated mating cycles
● Stable signal flow in dynamic conditions
● Lightweight and reliable

Product Applications
● Small control interface boards
● Horizontal display modules
● Wearable tech charging docks
● Audio signal routing boards
● Consumer-grade circuit interfaces
