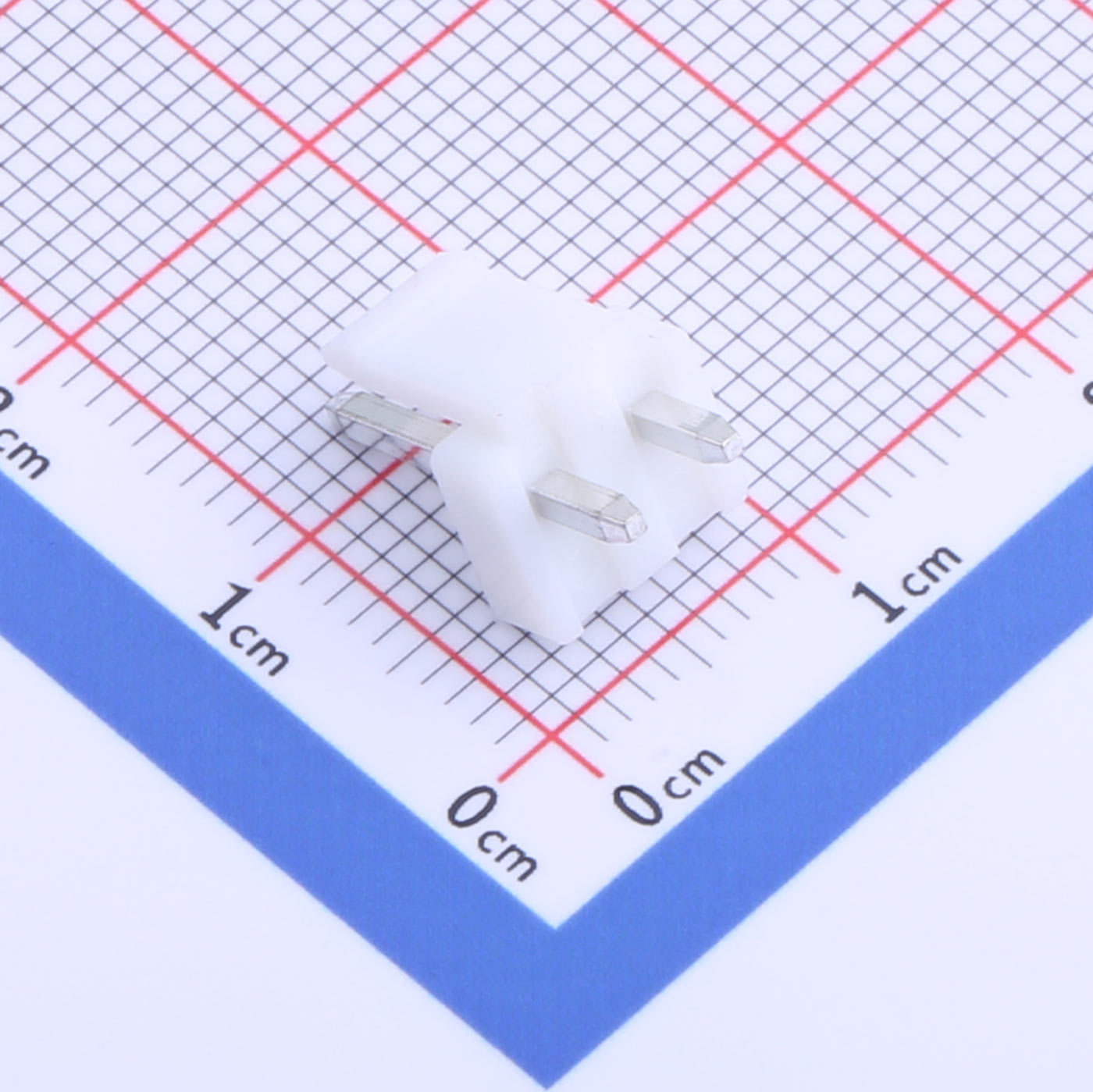

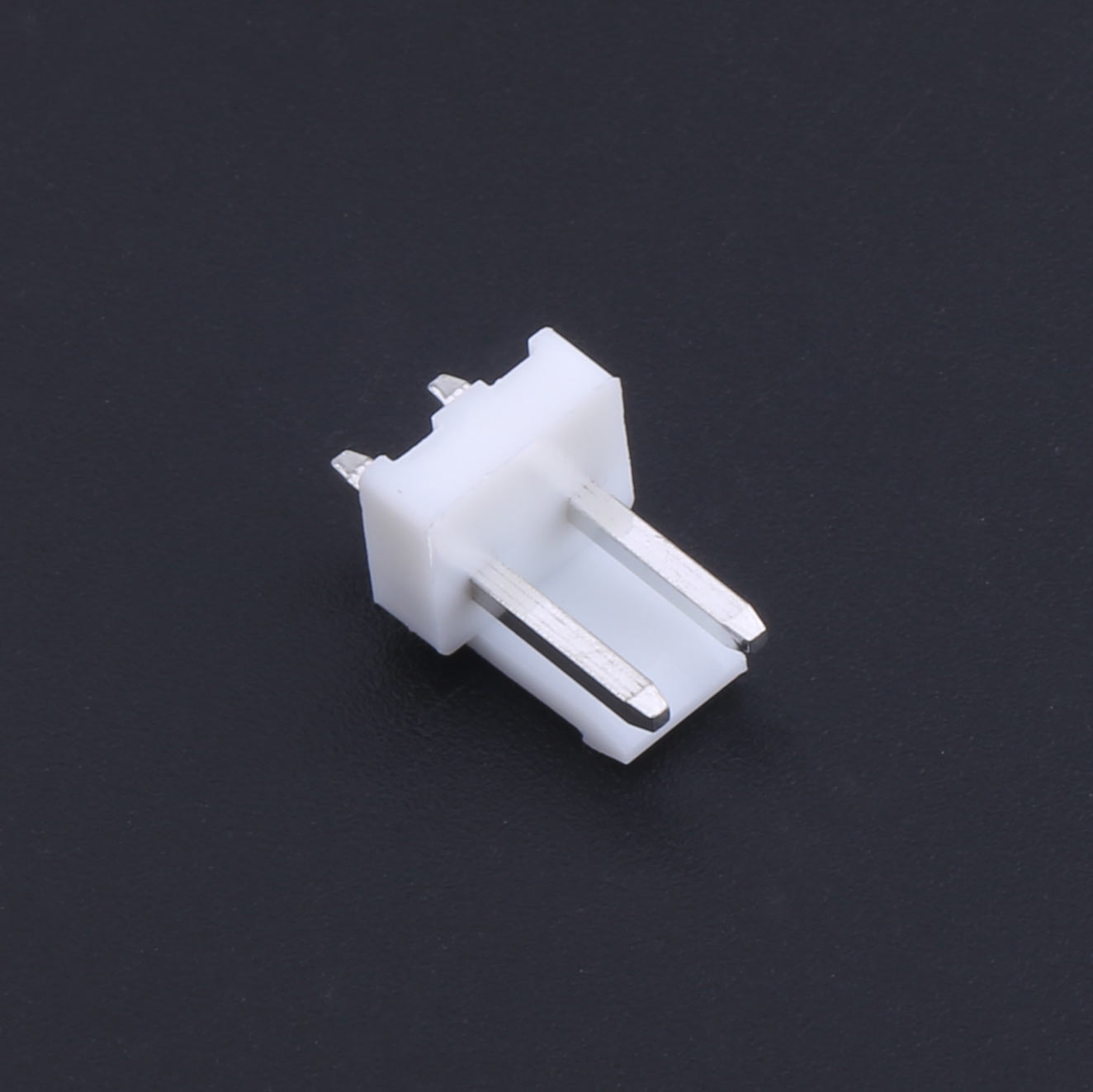

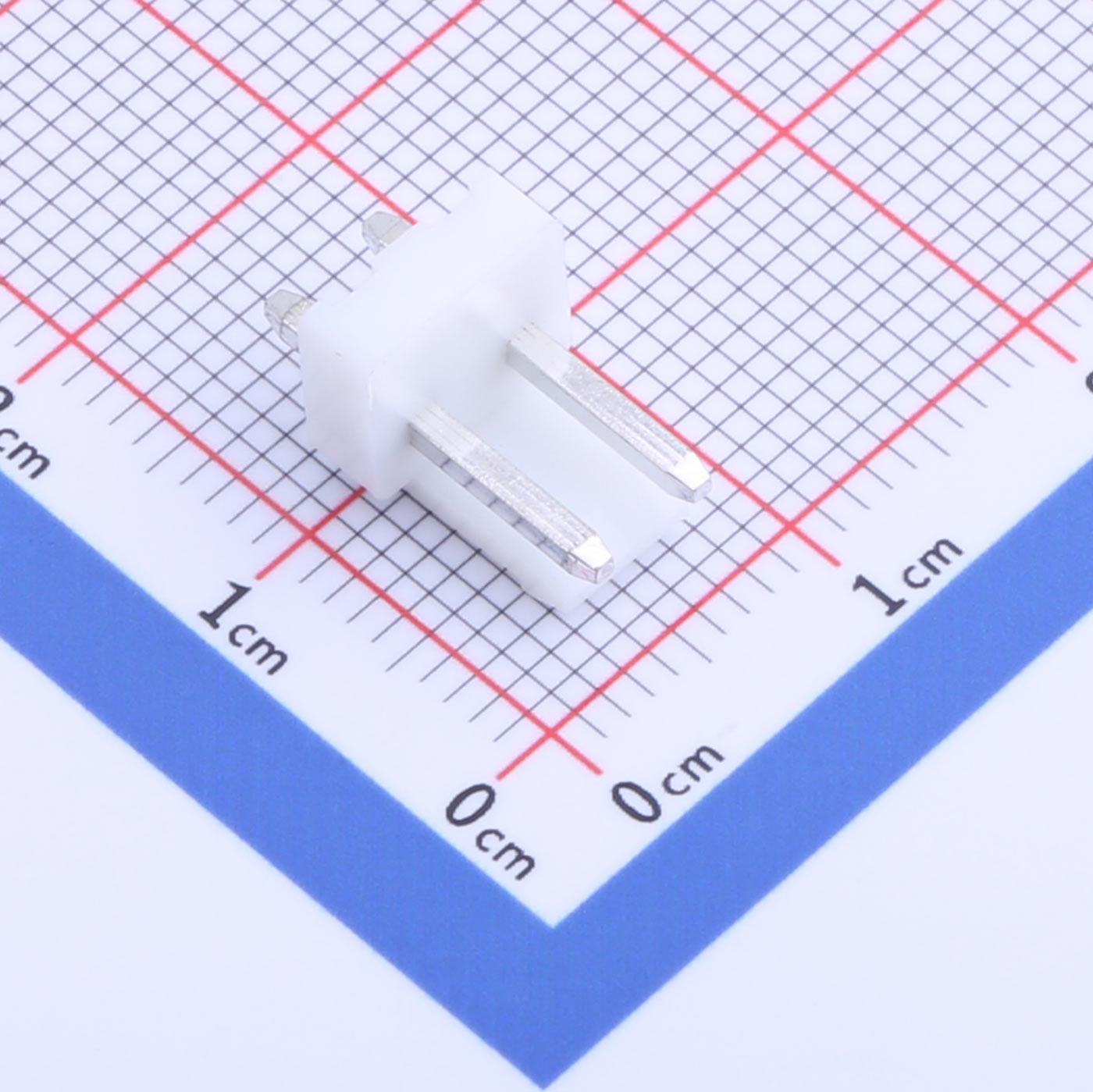

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x2P, KH-VH-2P-Z

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x2P, KH-VH-2P-Z

Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 3.96mm pitch, VH series
● 1x2P, single row
● Straight mount type
● Plugin style connector
● 7A current rating
● -25℃ to +85℃ operating range

Product Benefits
● Stable current transmission
● Easy to install on PCB
● Compact 2-pin layout
● Reliable and secure contact
● Cost-effective connector

Product Applications
● Power connection in small fans
● Signal wiring in air conditioners
● Control boards in smart home devices
● LED lighting connections
● Internal wiring in household appliances
