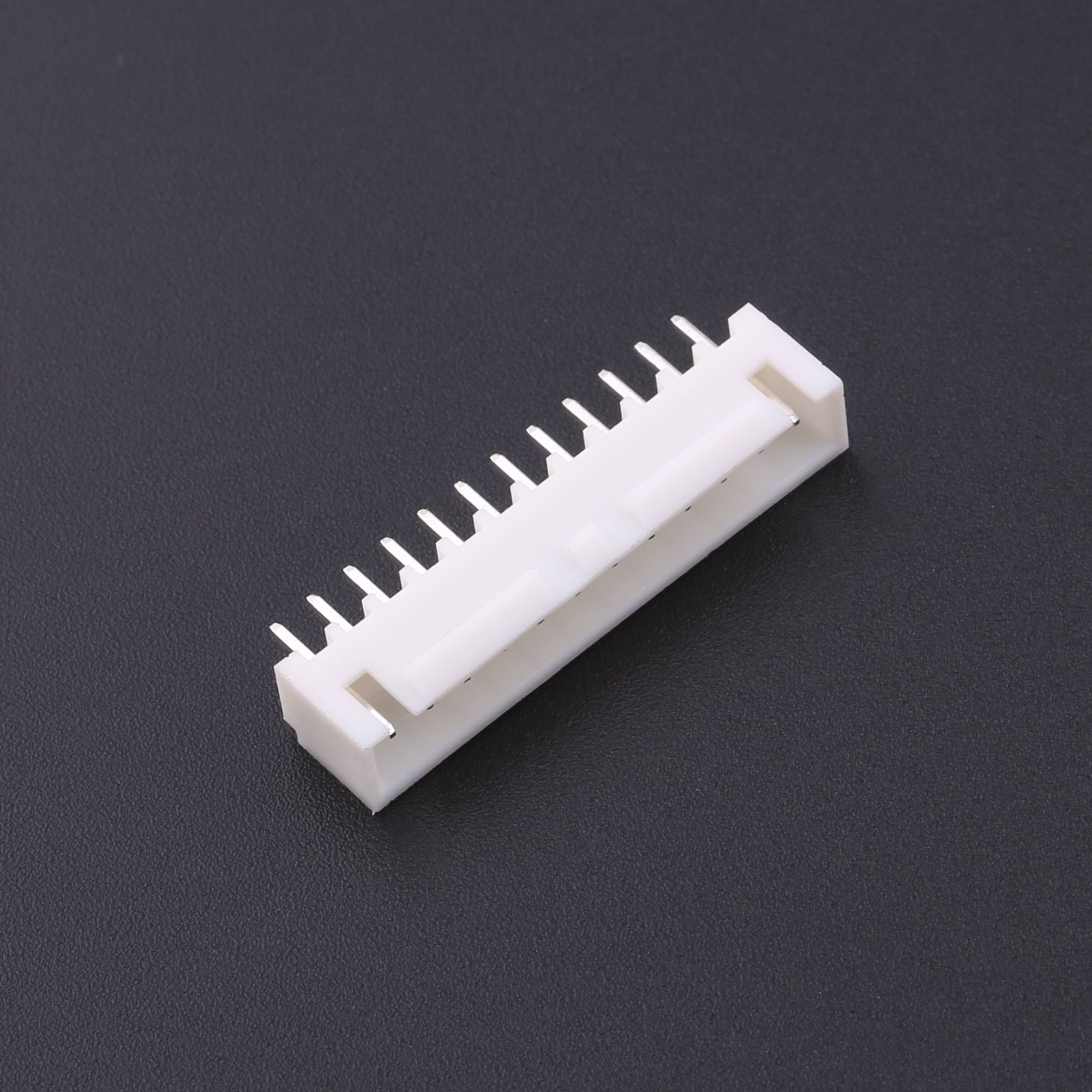

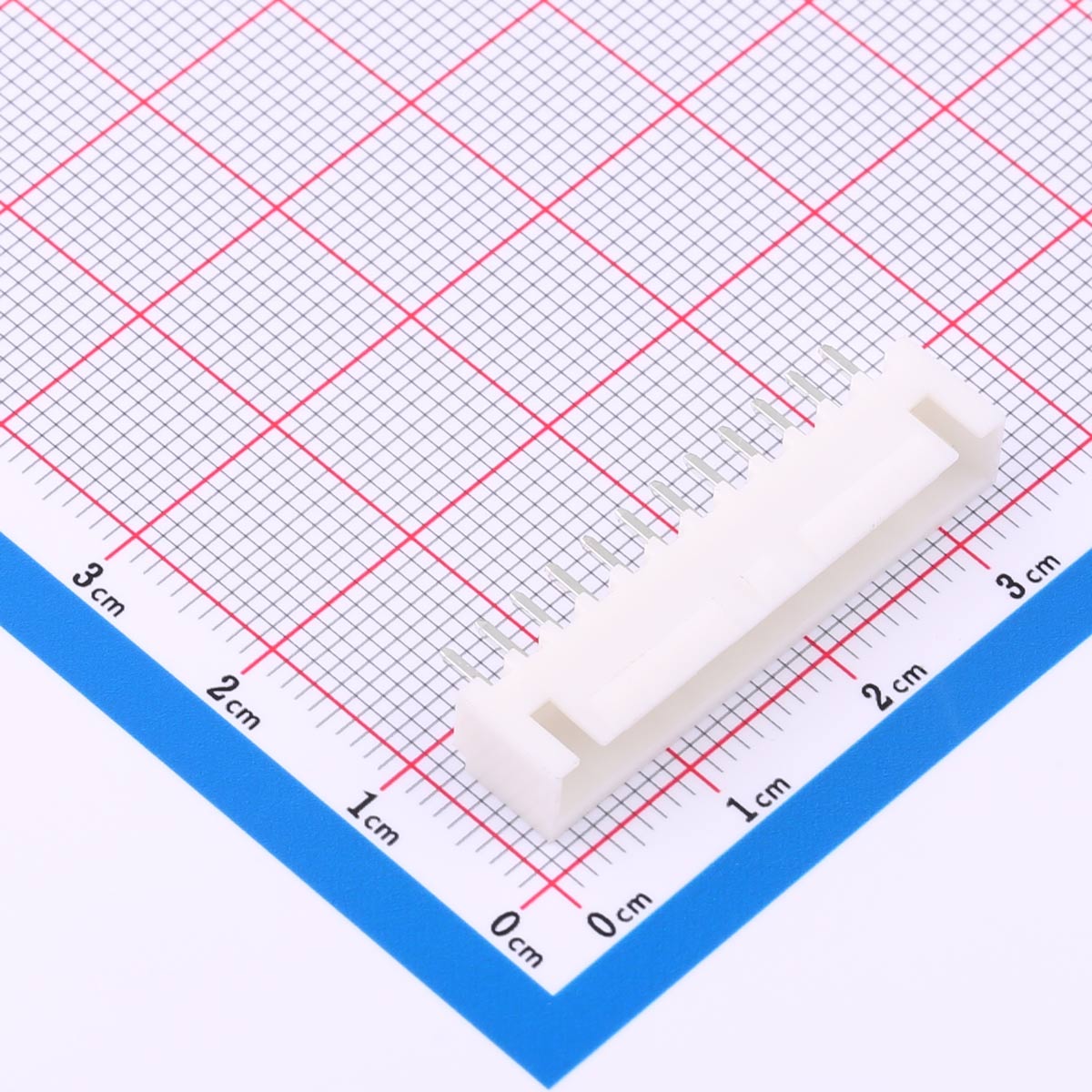

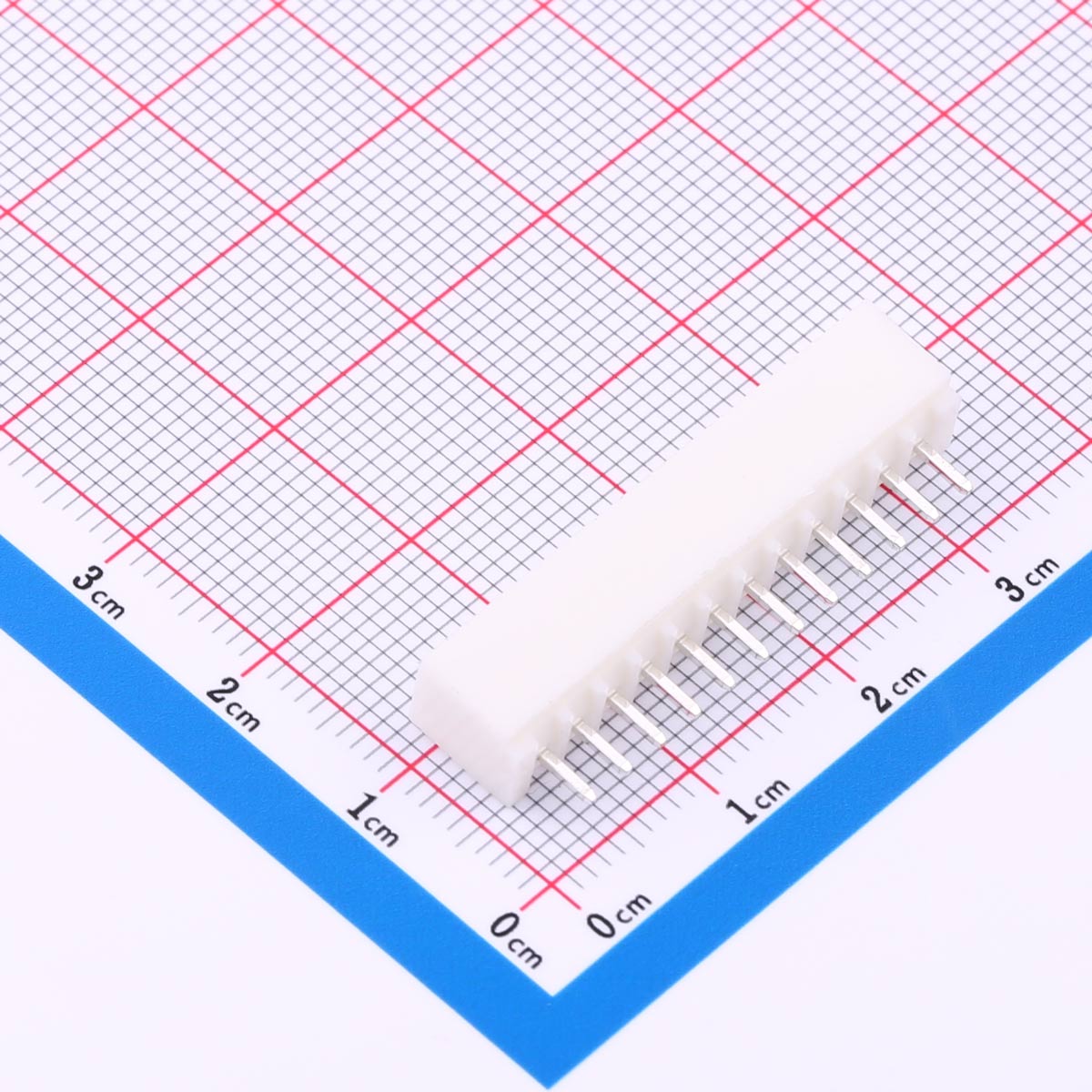

2.54mm Pitch Wire-to-Board Connector, 1x12P, KH-A2504-12A

2.54mm Pitch Wire-to-Board Connector, 1x12P, KH-A2504-12A

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

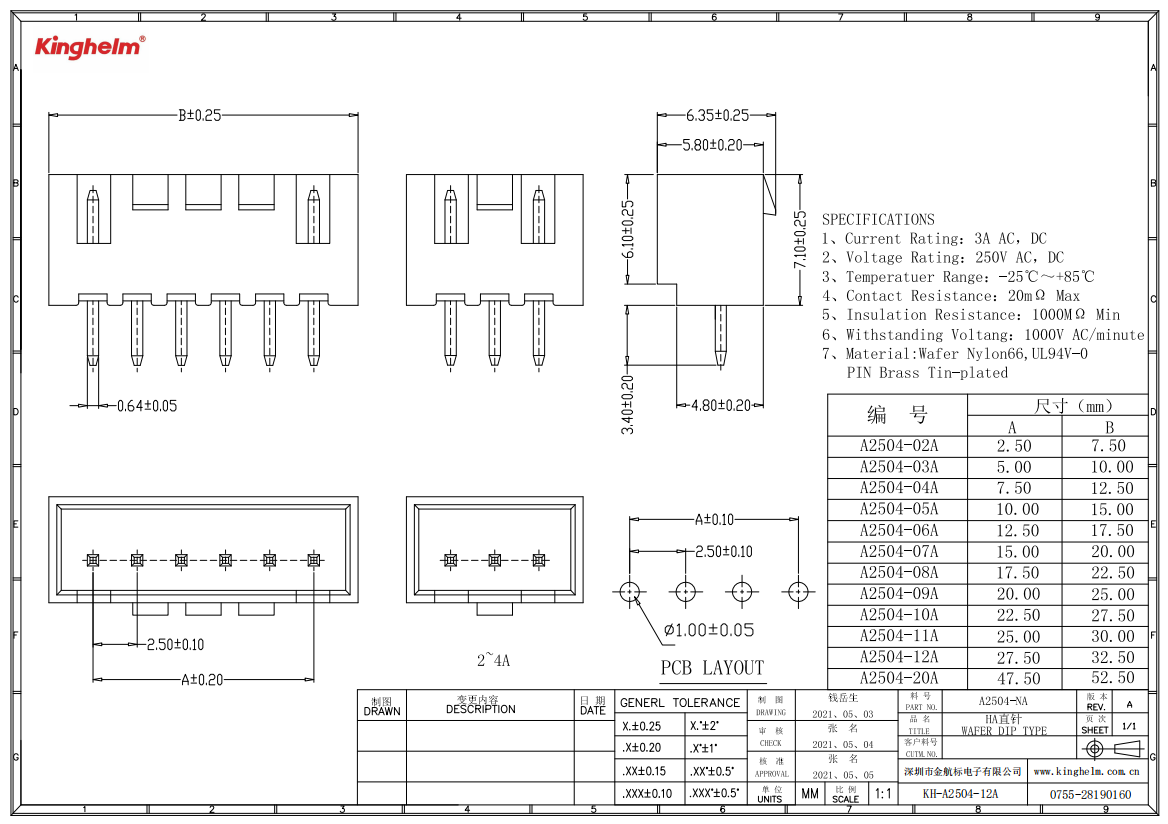

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch single-row board-to-board connector
● 12 pins configuration for efficient space utilization
● White plastic housing
● HA straight pins with locking mechanism for secure connections

Product Benefits
● Provides reliable and stable connections
● Saves space in compact circuit designs
● Locking mechanism ensures secure and strong fit
● Ideal for low-power and high-frequency signal applications

Product Applications
● Communication devices
● Consumer electronics
● Industrial automation systems
● Automotive modules
