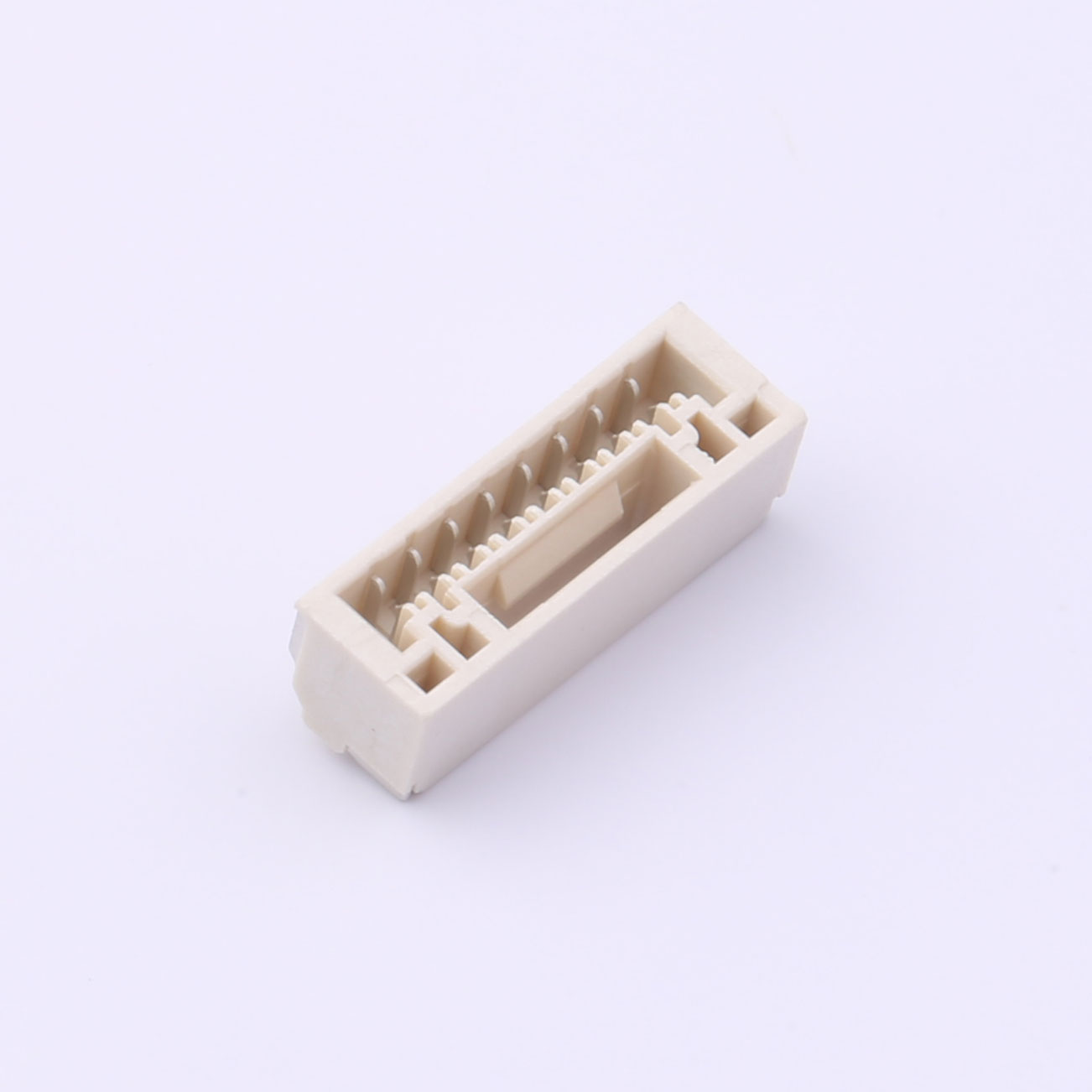

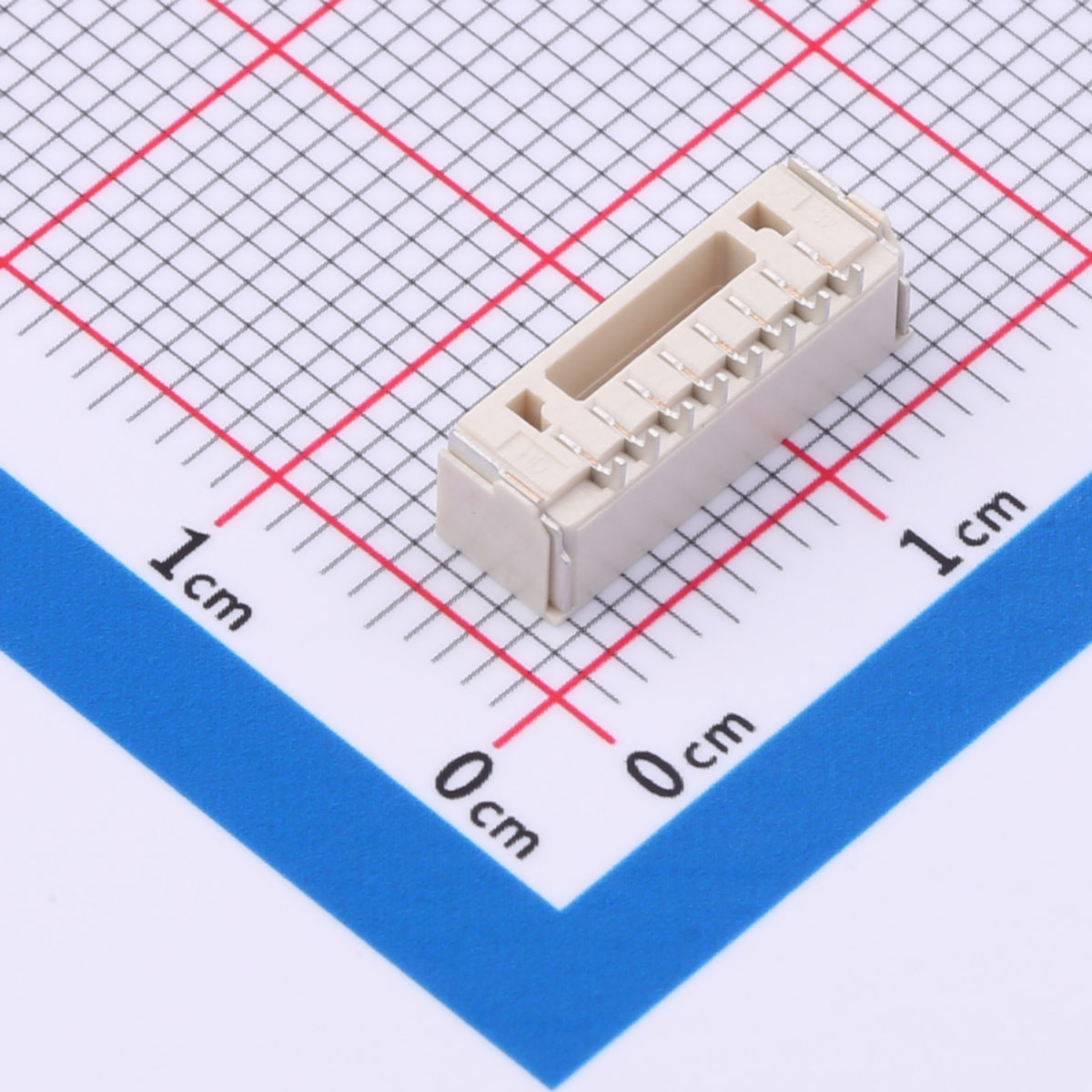

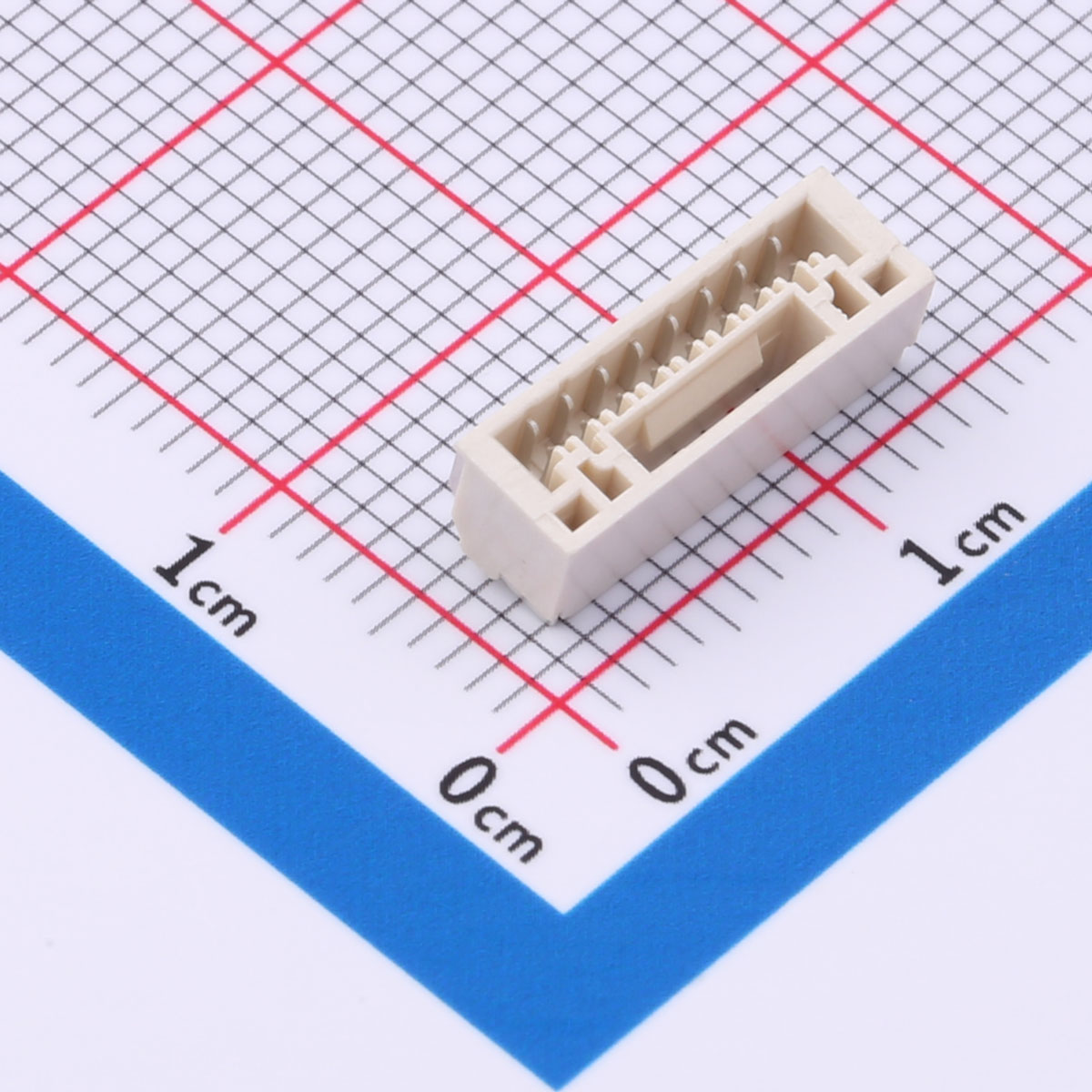

Wire-to-Board Connector, 1.25mm Pitch, 1x8P, SMD, KH-A1252RS-8P

Wire-to-Board Connector, 1.25mm Pitch, 1x8P, SMD, KH-A1252RS-8P

Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min

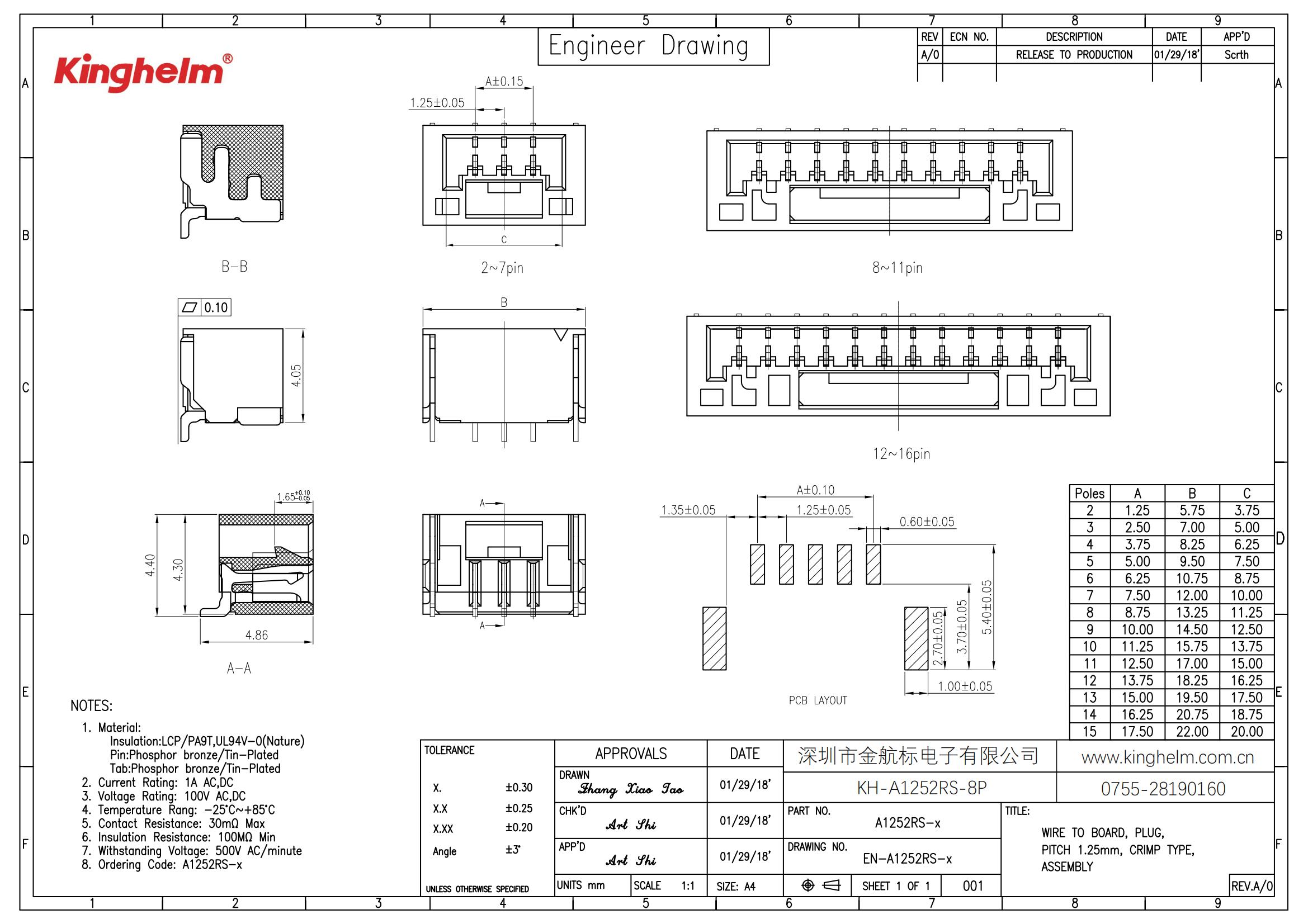

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch, single row, 8 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ

Product Benefits
● Ideal for applications with tight space constraints
● Low-resistance contact ensures long-lasting reliability
● Compatible with high-speed automated processes
● Horizontal mounting reduces PCB space usage
● Temperature-resistant for harsh environments

Product Applications
● Wearable devices
● Automotive electronics
● Communication equipment
● Small appliances
● Medical sensors
