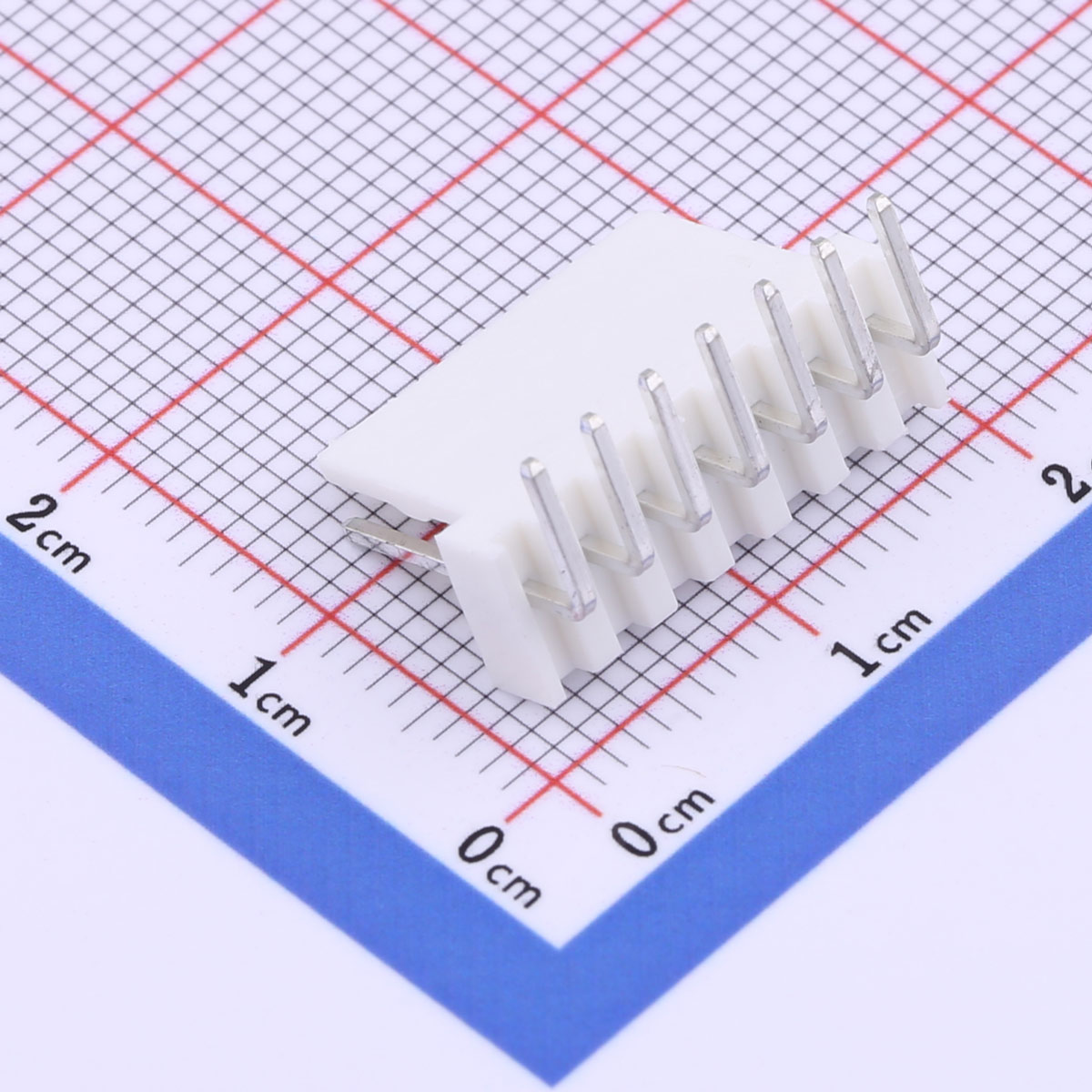

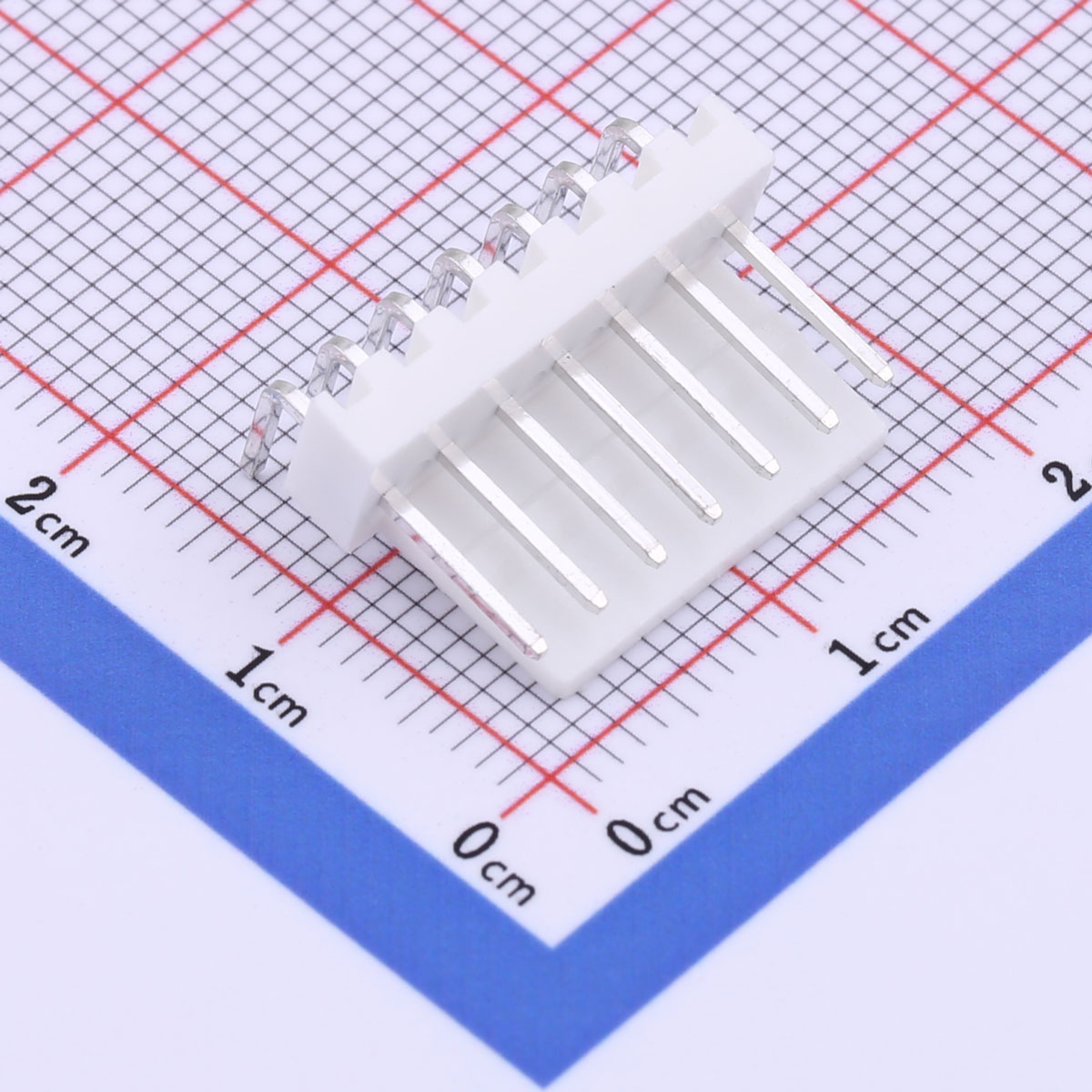

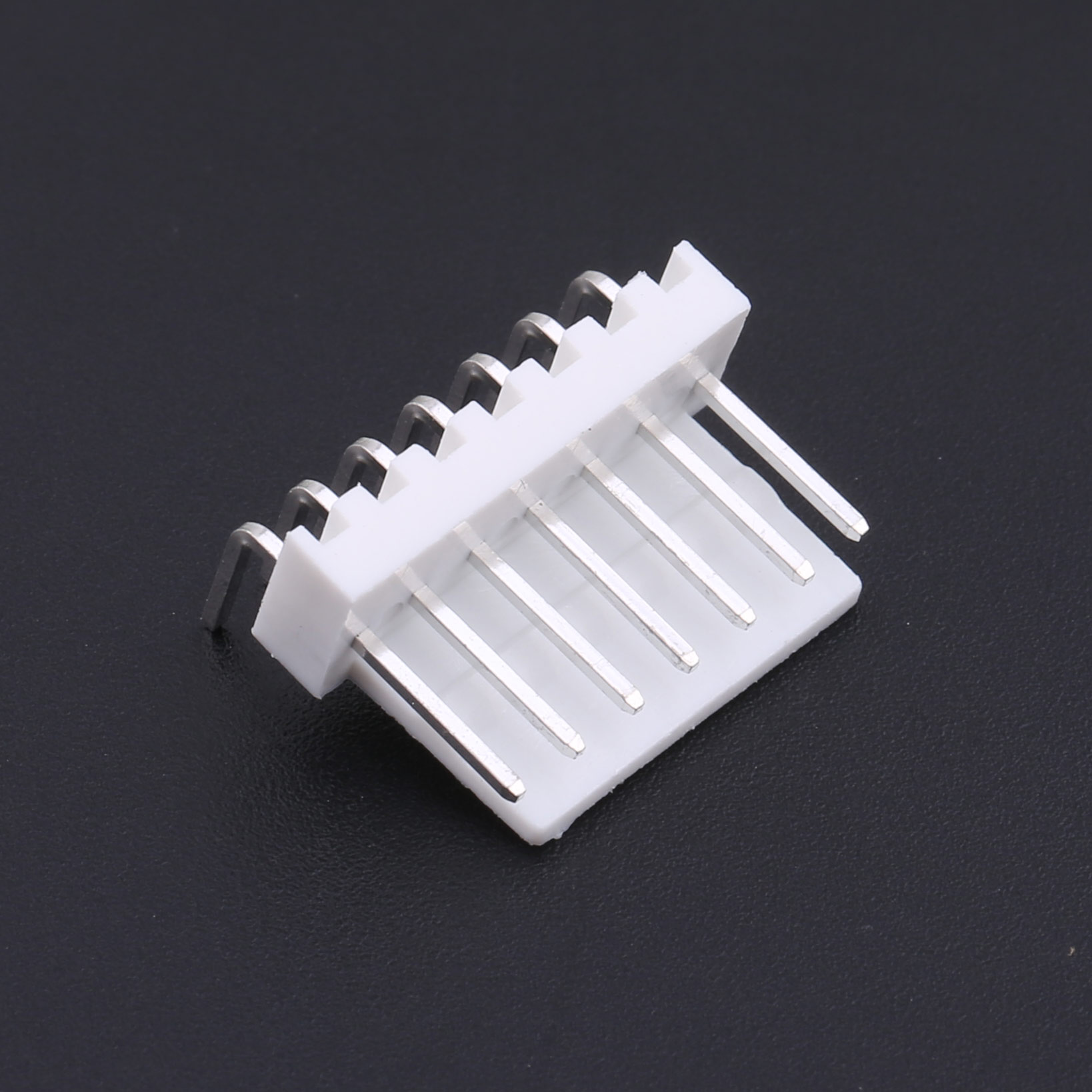

Wire-to-Board Connector, 2.54mm Pitch, 1x7P, KH-HX2.54-07GW
Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 7-pin, single-row layout
● 2.54mm standard pitch
● Right-angle PCB mounting
● Rated at 4A, 250V AC/DC
● Tin-plated contacts, RoHS compliant
Product Benefits
● Saves PCB space with angled design
● Reliable signal and power transmission
● Easy to mount and connect
● Supports stable AC/DC operation
● Durable and corrosion-resistant
Product Applications
● Smart control devices
● LED driver boards
● Industrial electronics
● Communication modules
● Embedded systems
