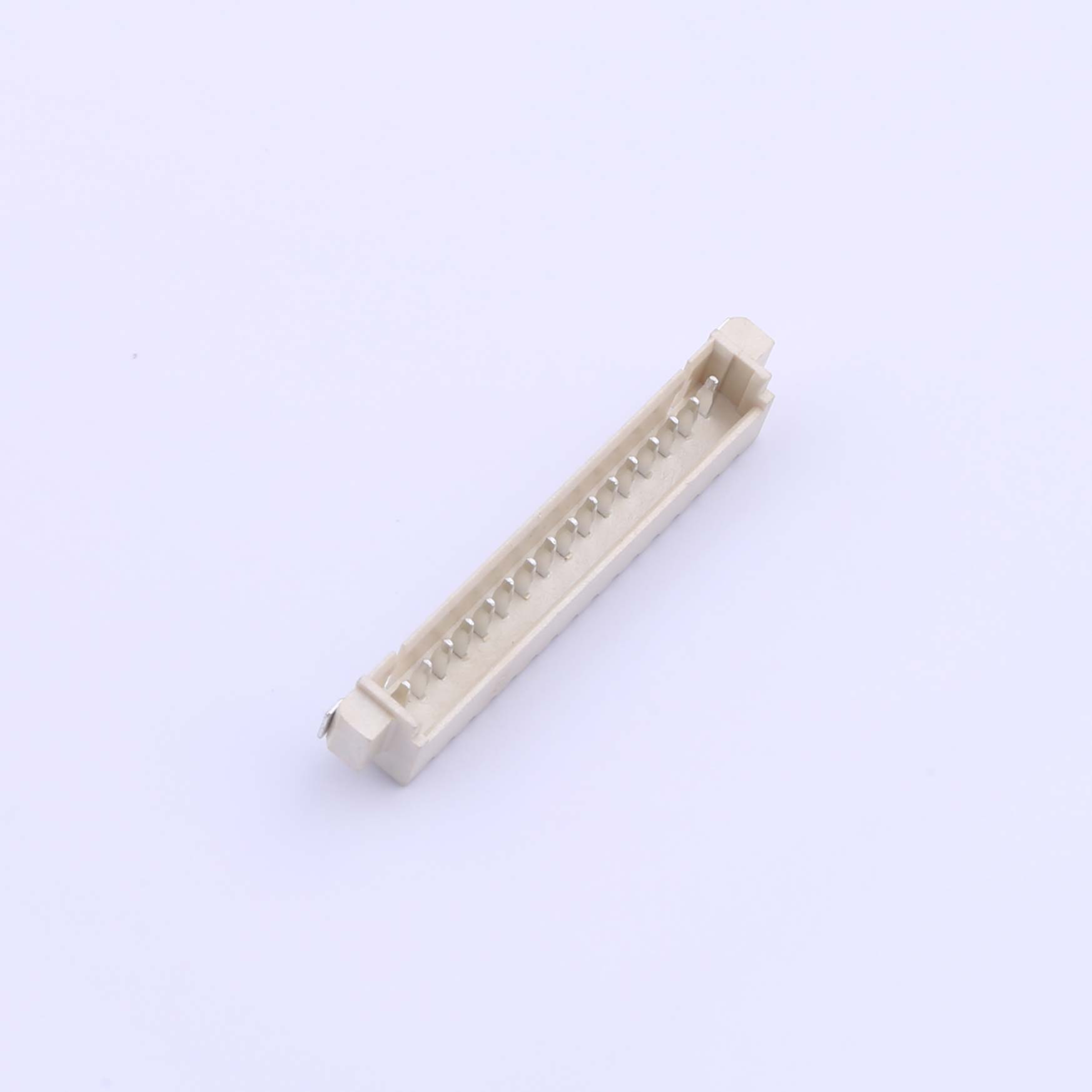

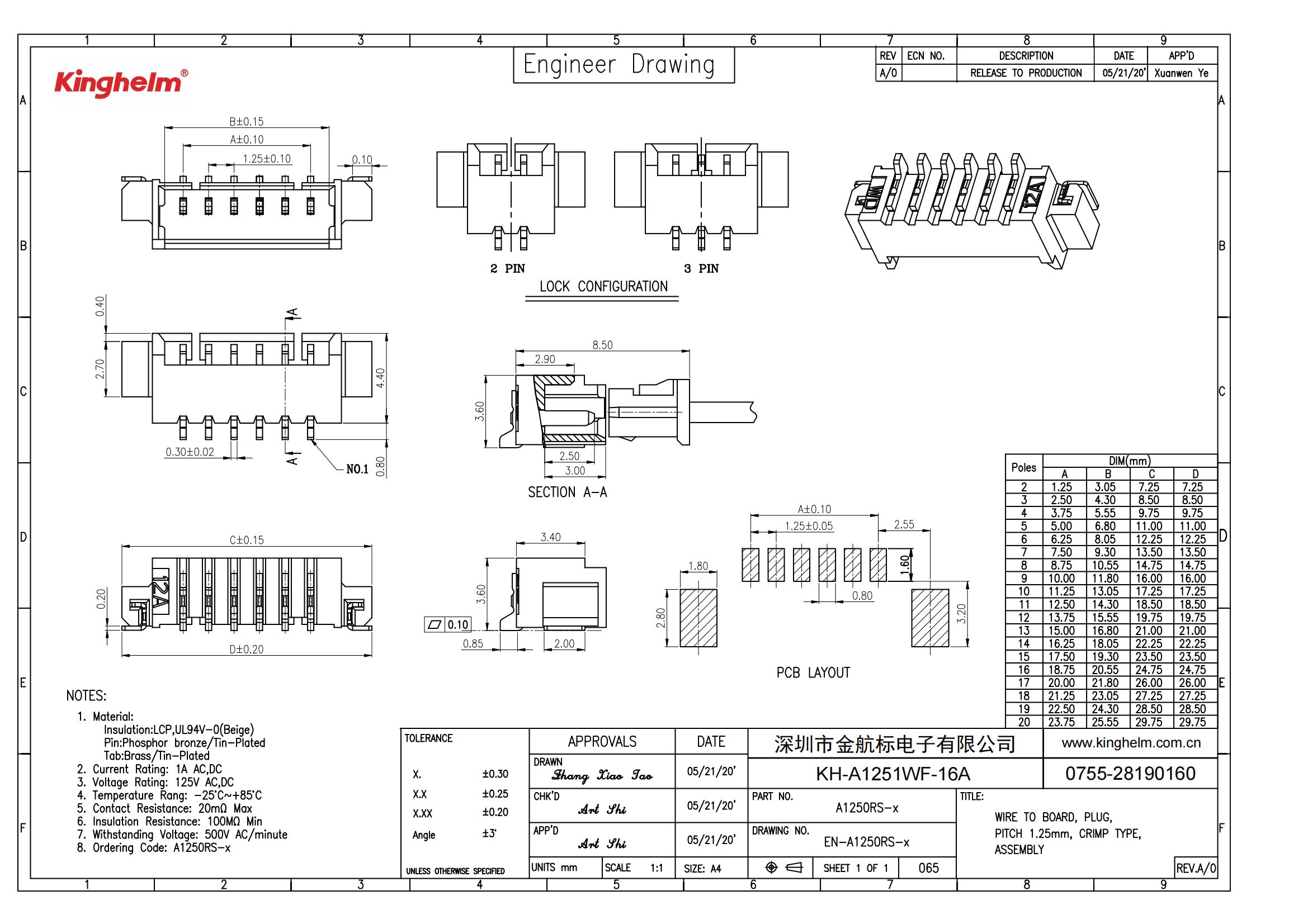

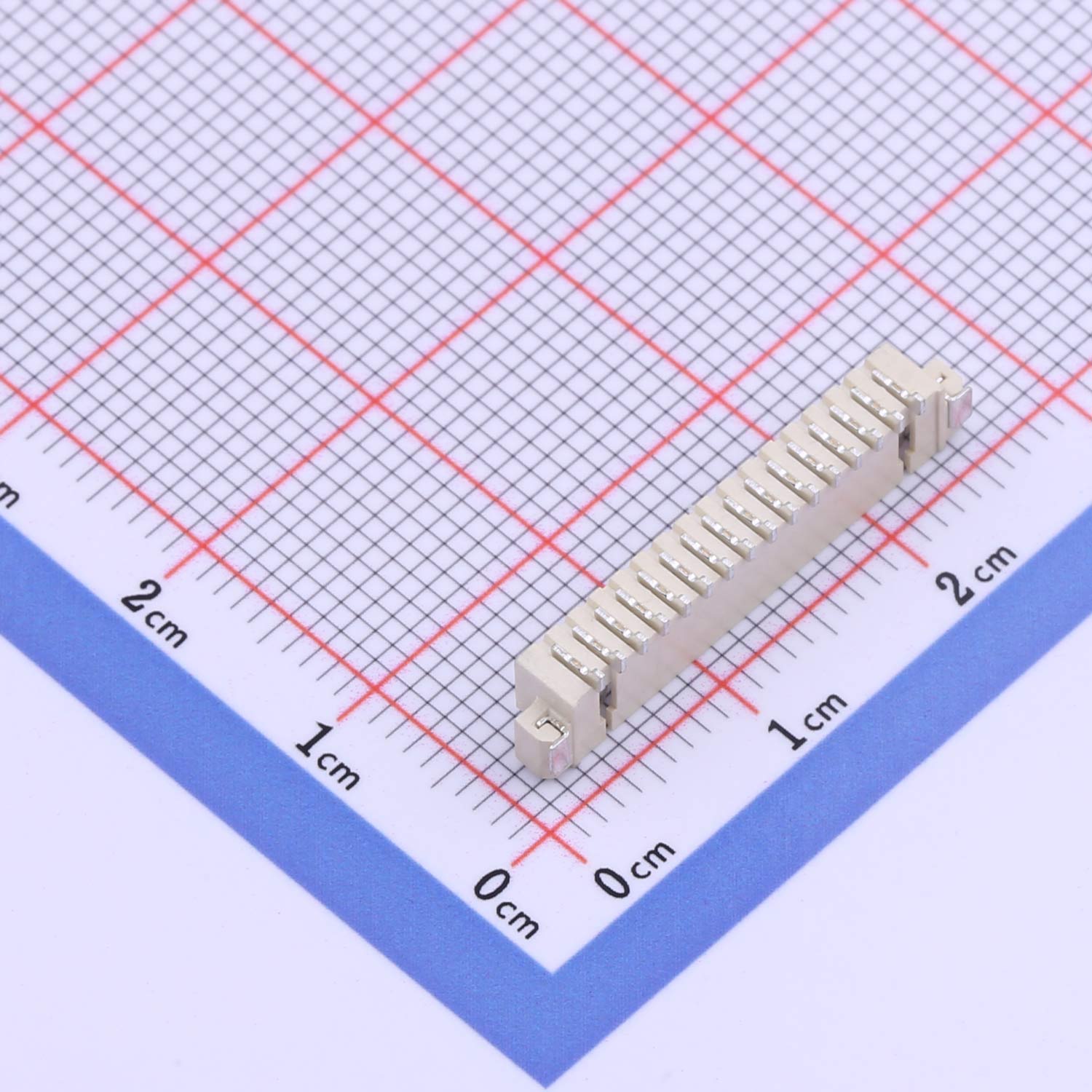

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, SMD, KH-A1251WF-16A
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch compact design
● SMD surface mount type
● Phosphor bronze tin plated pins
● Rated current 1A AC DC
● Operating temperature range −25°C to +85°C
Product Benefits
● Saves PCB space
● Ensures stable connection
● Resists corrosion
● Supports automated assembly
● Suitable for low power use
Product Applications
● Consumer electronics
● LED lighting modules
● Computer peripherals
● Industrial controllers
● Communication devices
