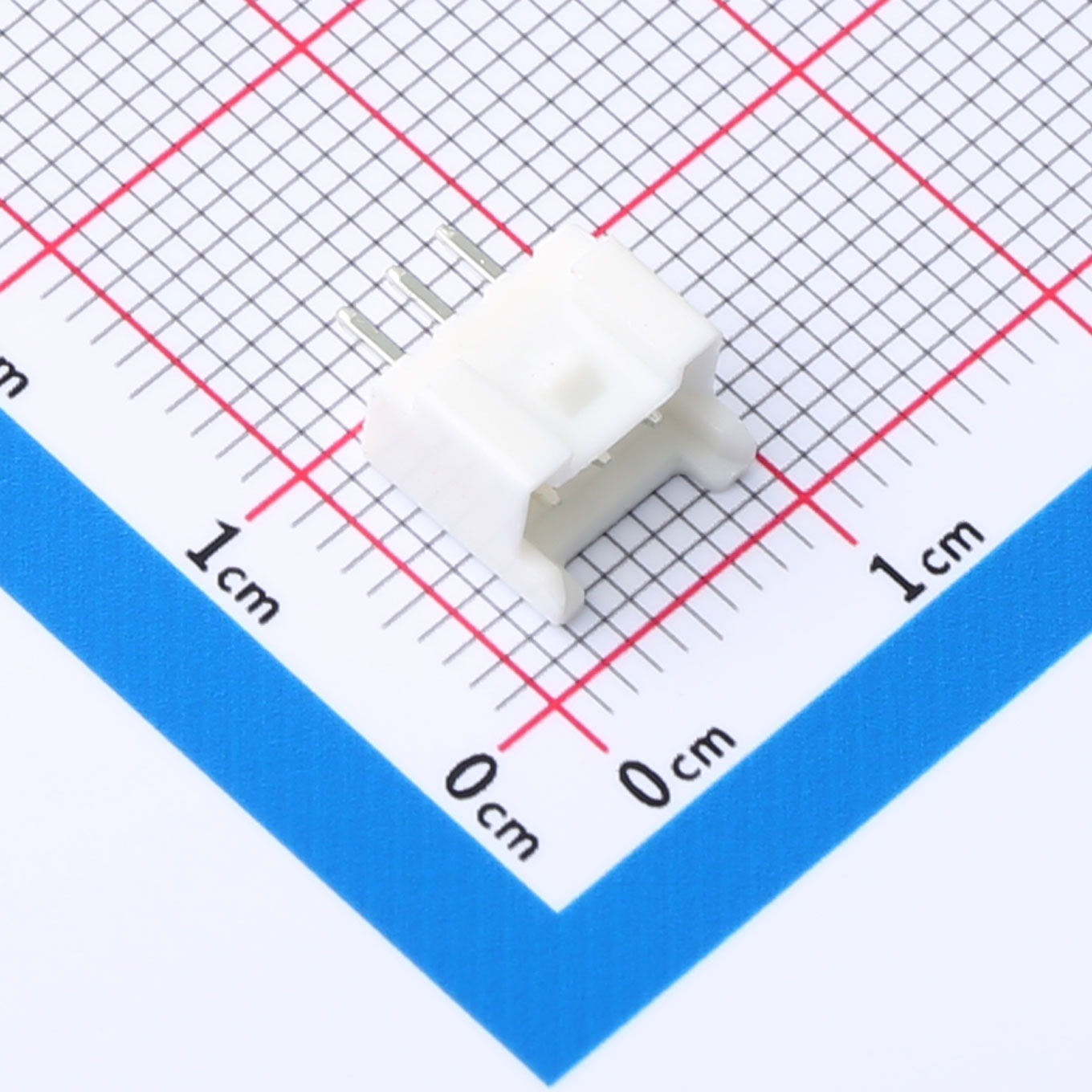

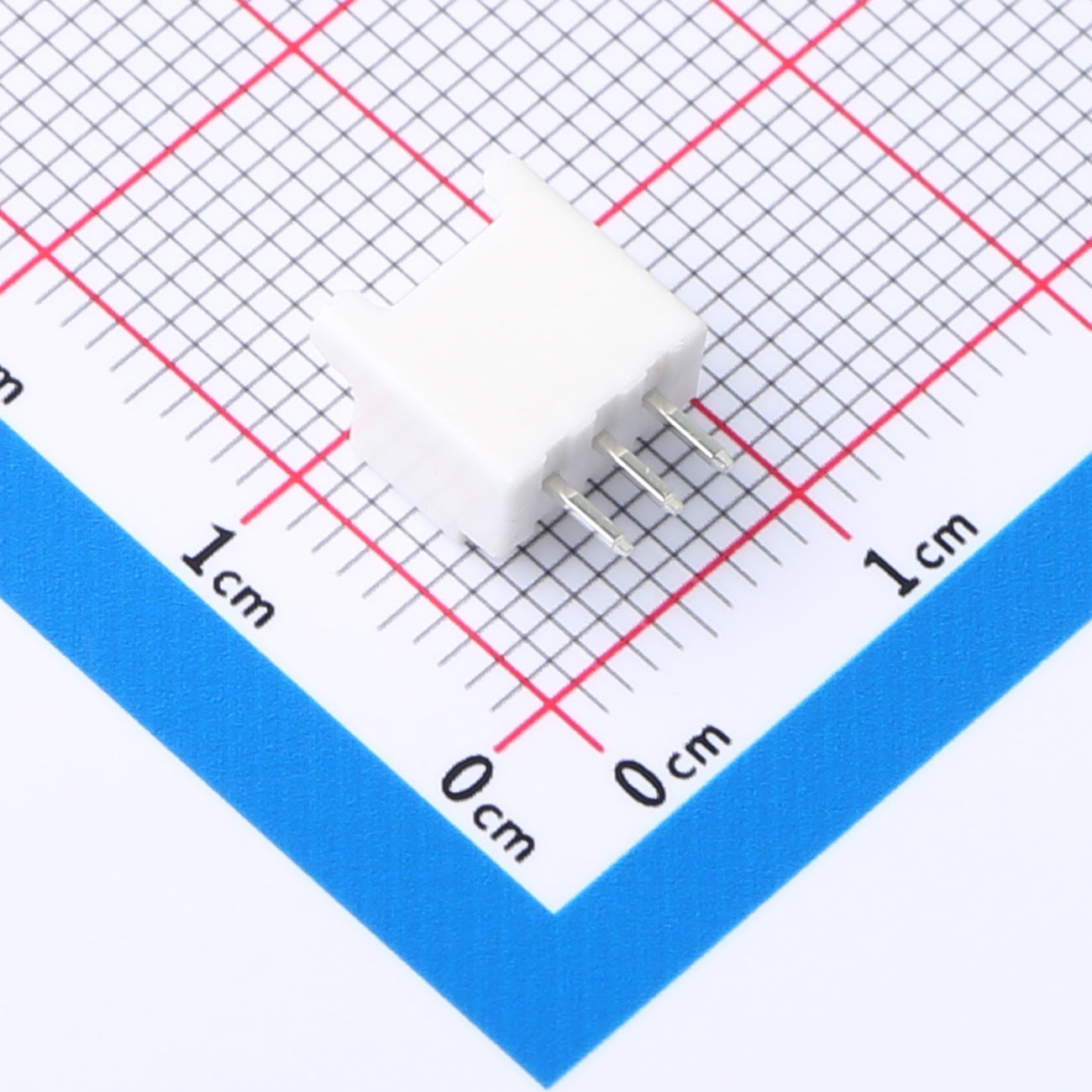

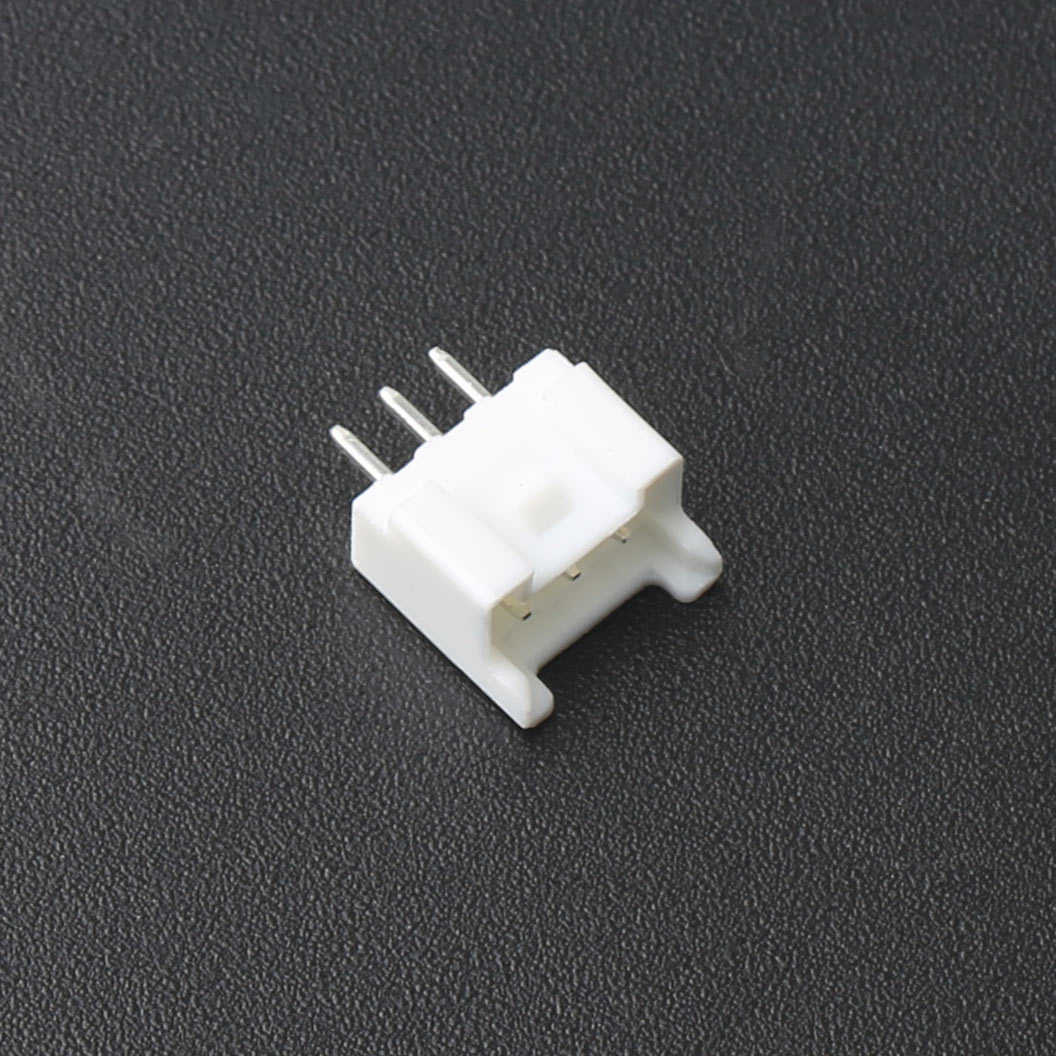

2mm Pitch Wire-to-Board Connector, 1x3P, Straight Pin, KH-A2026-03A
Current Rating: 3A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch, 1x3P straight pins
● Rated 3A, 100V AC/DC
● Temp range: -25℃ to +85℃
● Compact and lightweight
● High insulation resistance
Product Benefits
● Ideal for simple 3-wire connections
● Reliable in compact assemblies
● Easy to solder and install
● Durable under regular use
● Good signal integrity
Product Applications
● Sensor modules
● Signal transmission
● Battery-powered circuits
● Compact controllers
● Robotics and makers
