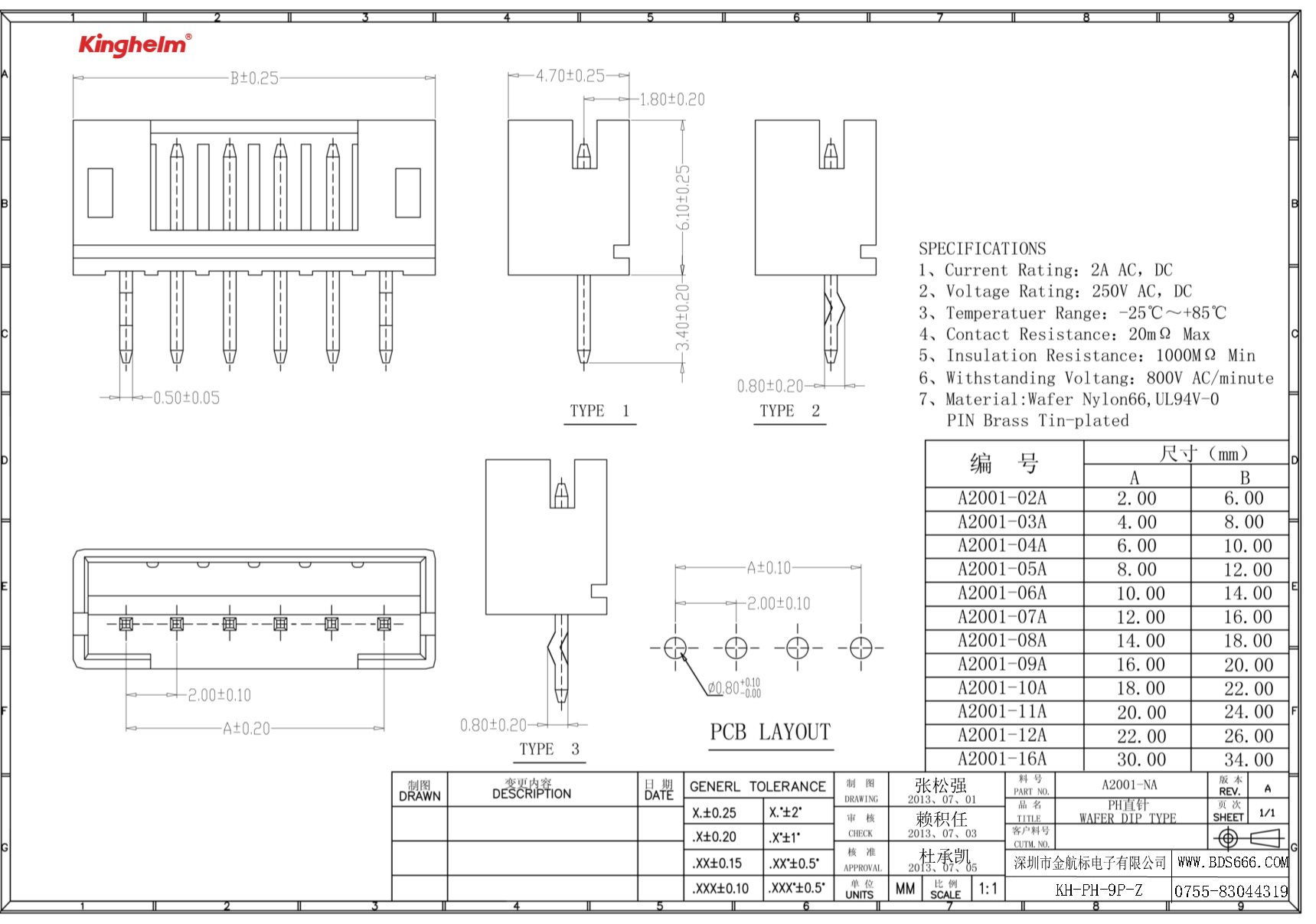

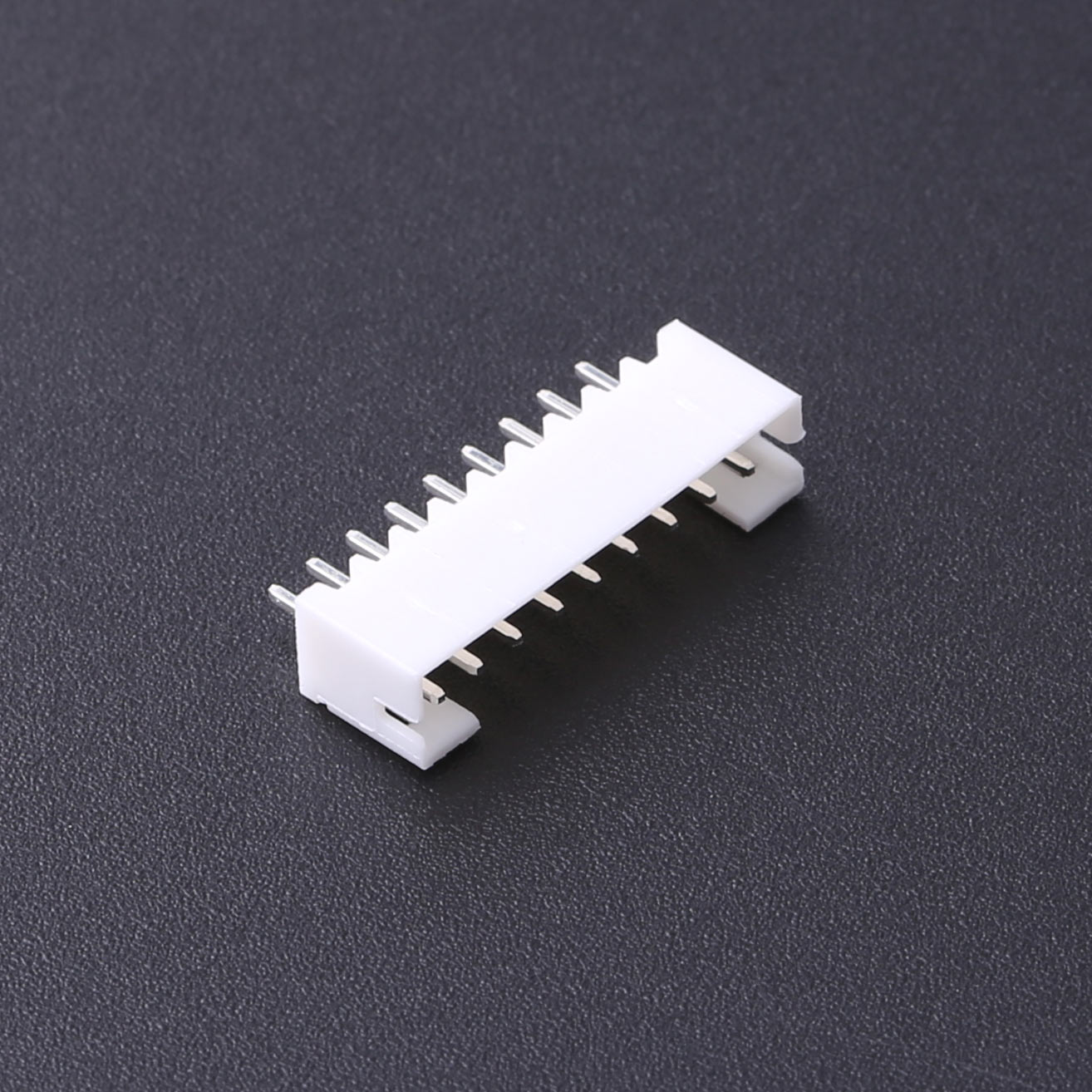

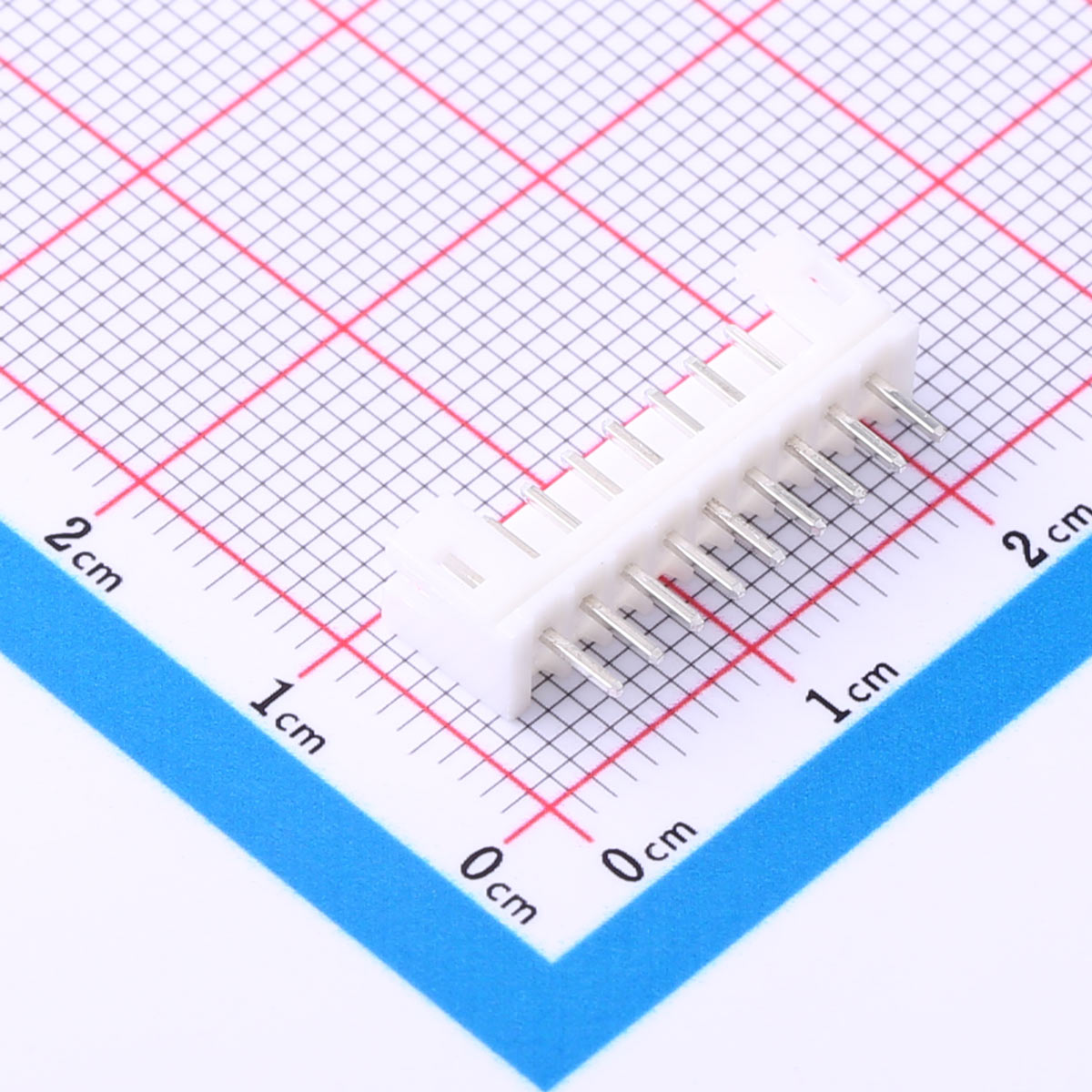

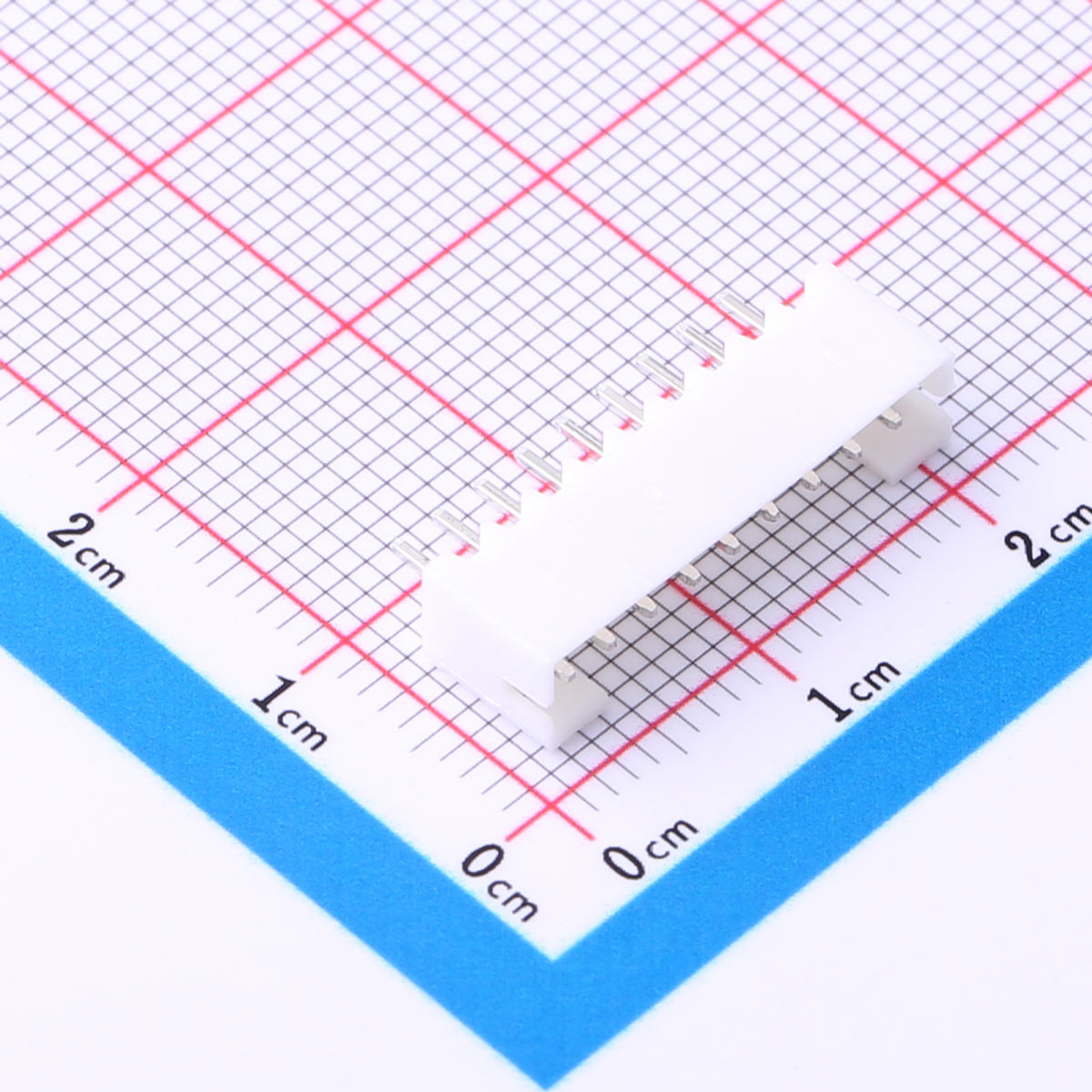

Wire-to-Board Connector, 2mm Pitch, 1x9P, KH-PH-9P-Z

Wire-to-Board Connector, 2mm Pitch, 1x9P, KH-PH-9P-Z

Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.0mm pitch, single-row 9-pin structure
● Rated current: 2A AC/DC
● Voltage rating up to 250V AC/DC
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 1000MΩ
● Operating temperature: -25℃ to +85℃
● Reliable plug-in type design
● Compact and space-saving layout

Product Benefits
● Stable electrical connection
● High insulation for safety
● Low contact resistance reduces energy loss
● Performs well in varied temperatures
● Easy PCB integration
● Saves space in compact devices

Product Applications
● Consumer electronics
● LED lighting
● Office automation
● Small household appliances
● Communication devices
● Industrial control systems
