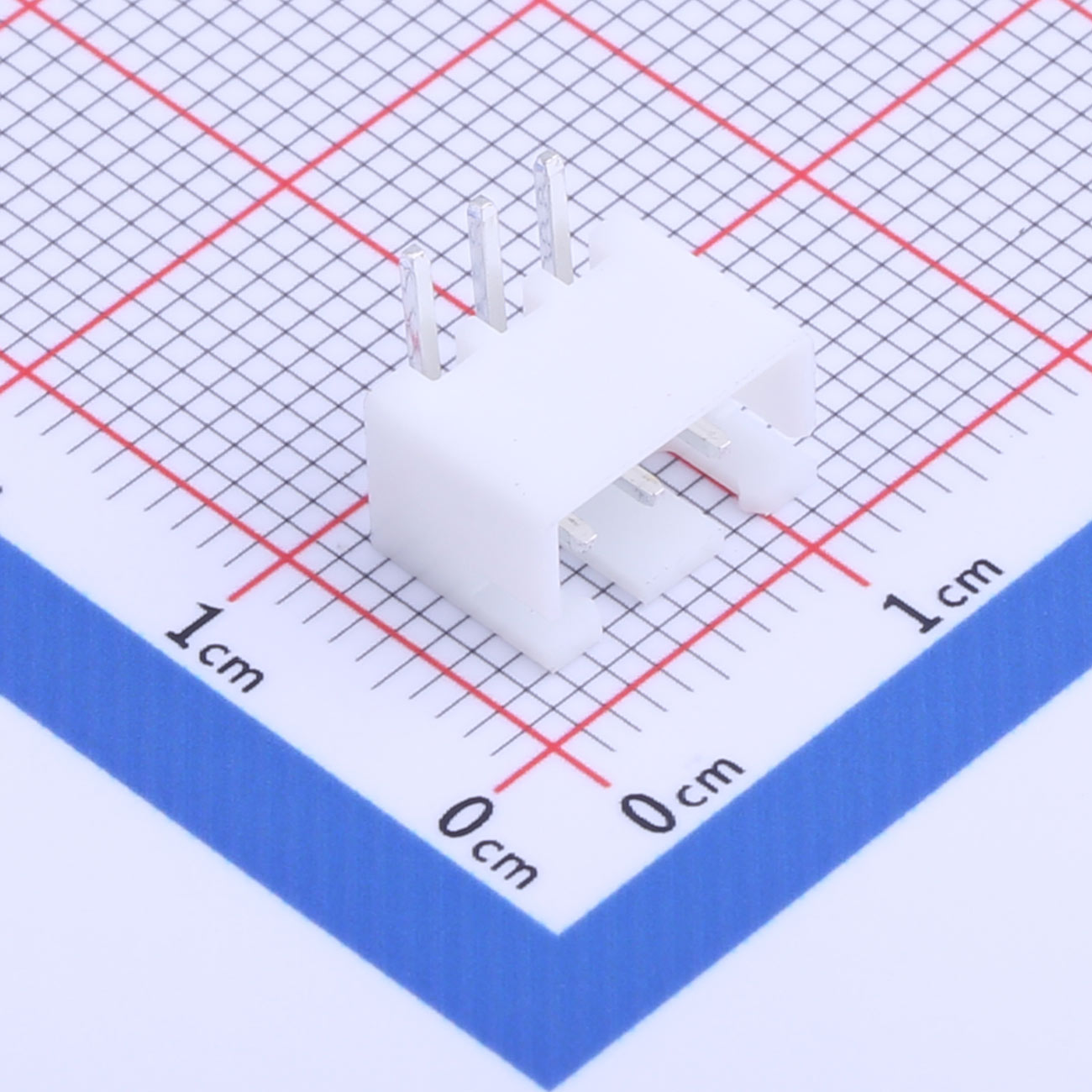

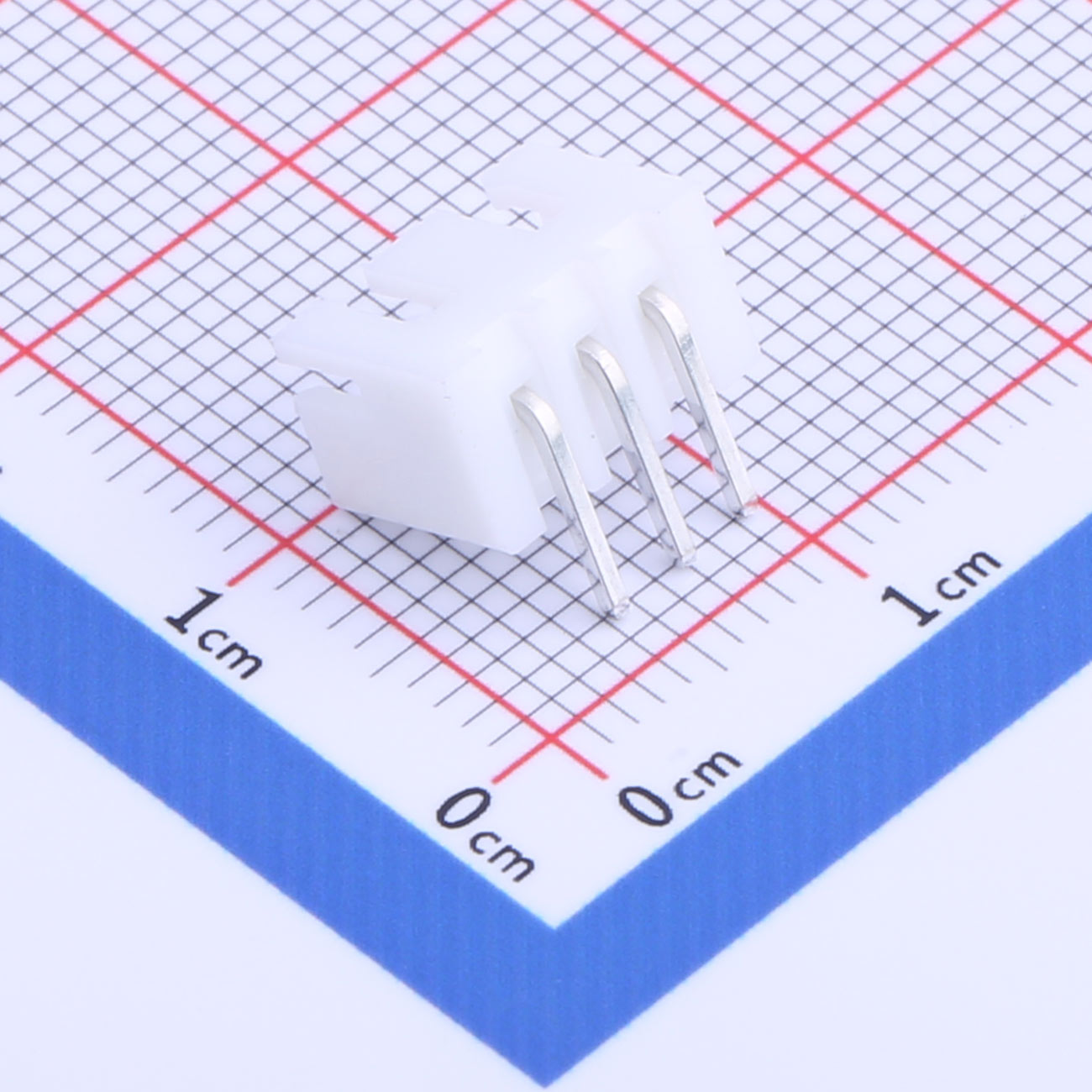

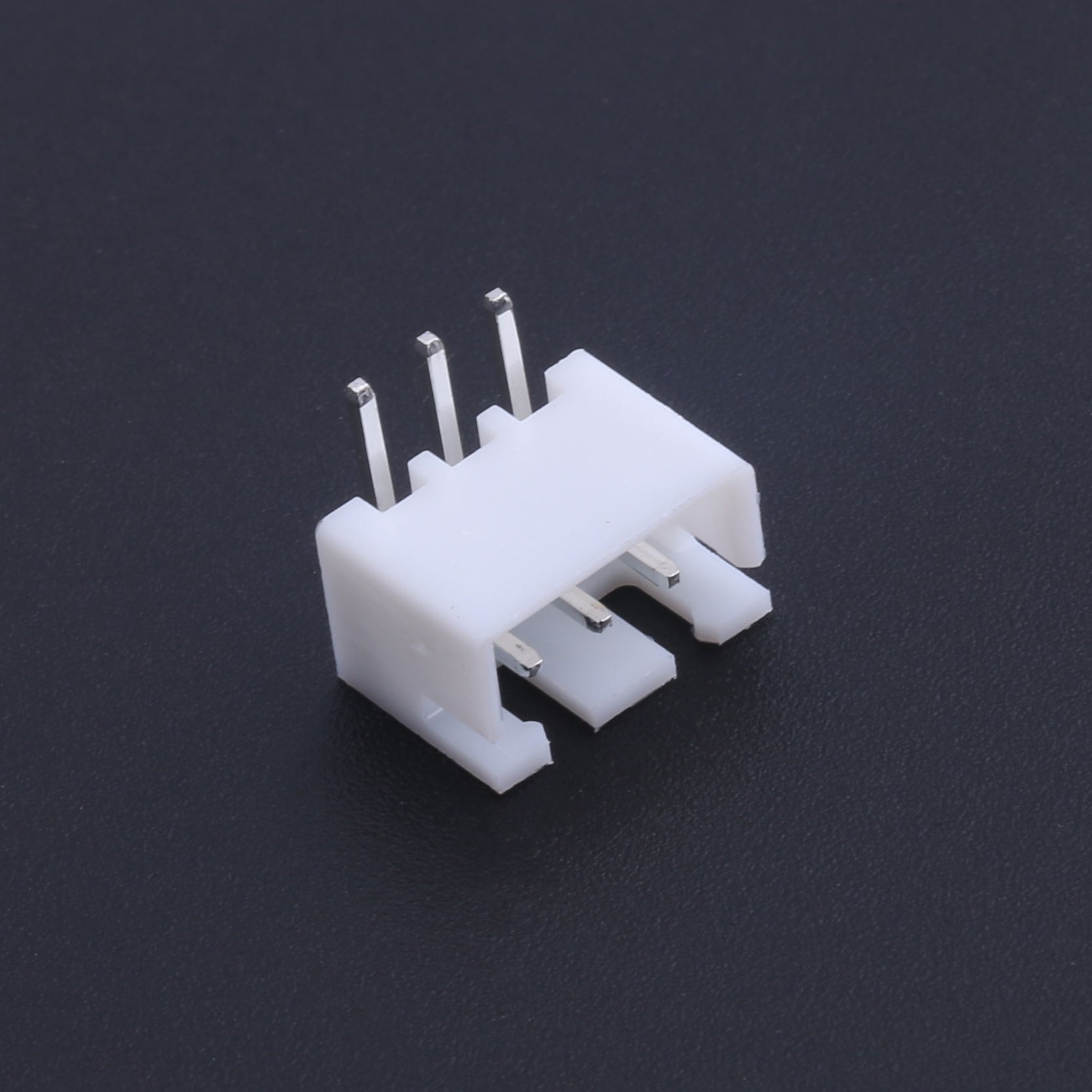

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x3P, KH-XH-3A-W
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch
● 1x3P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull locking feature
Product Benefits
● Reliable 3-pin signal or power link
● Compact and efficient layout
● Easy plug-in/out operation
● Good resistance to environmental stress
● Supports quick maintenance
Product Applications
● Wearables
● Automotive sensors
● Miniature industrial sensors
● Audio signal modules
● Smart door locks
