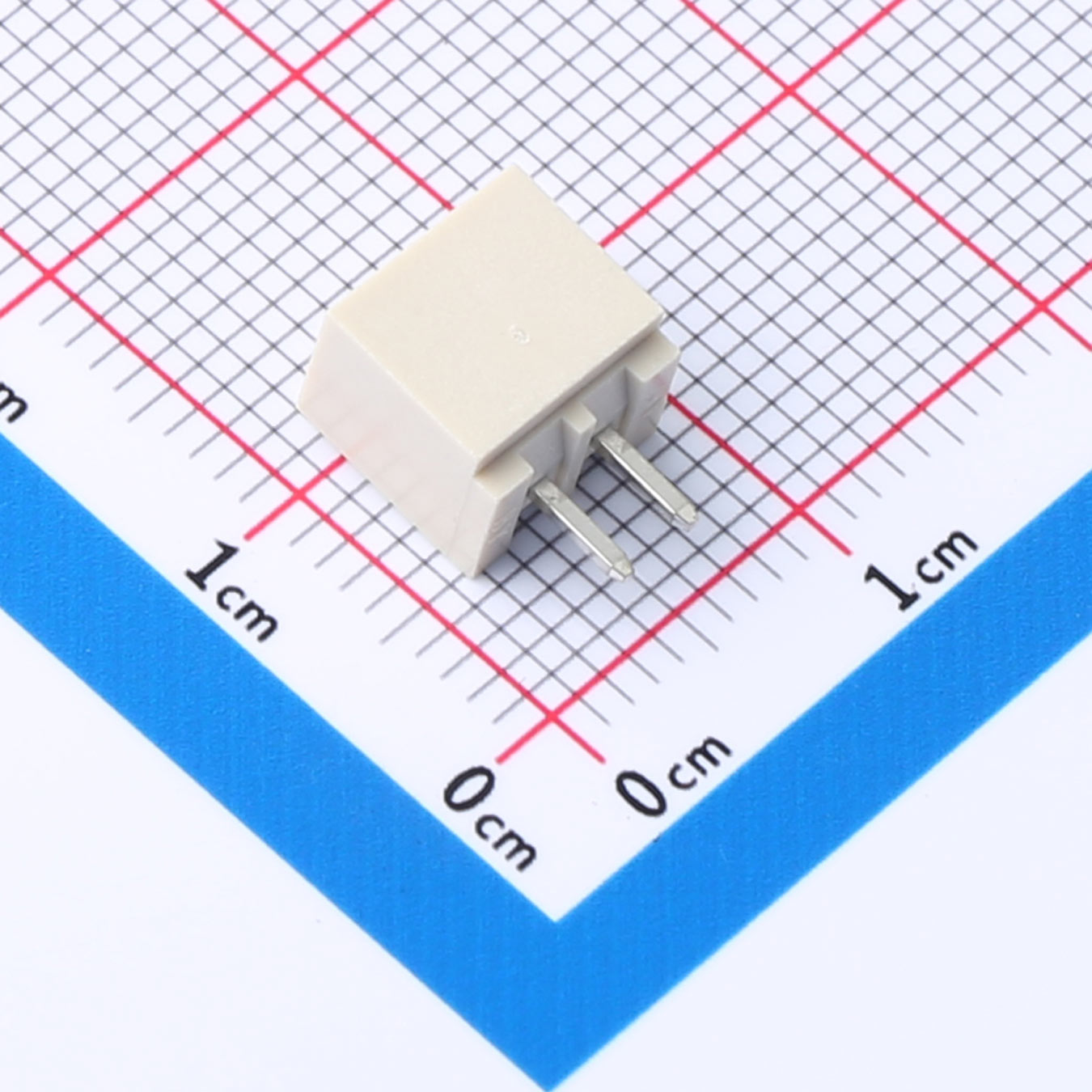

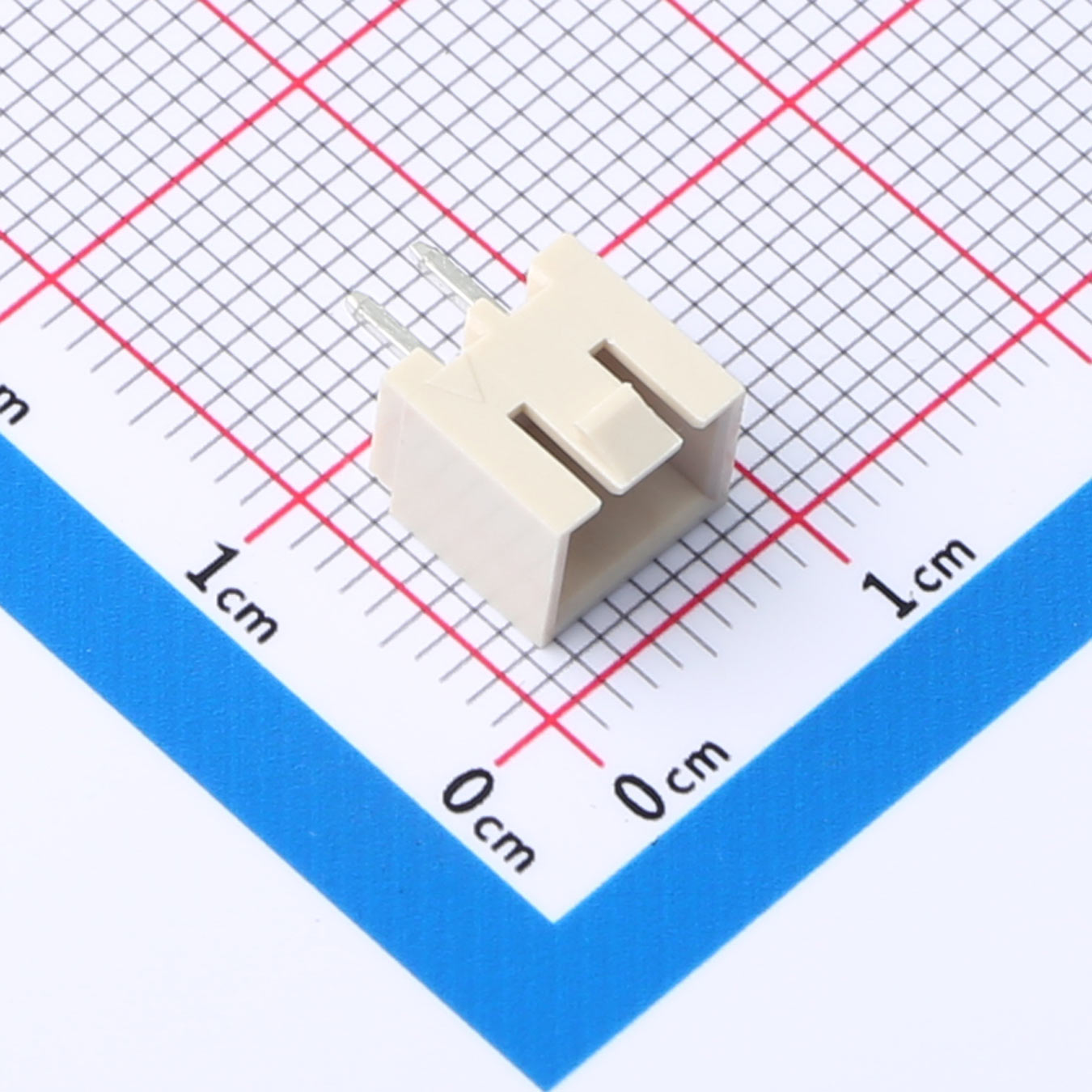

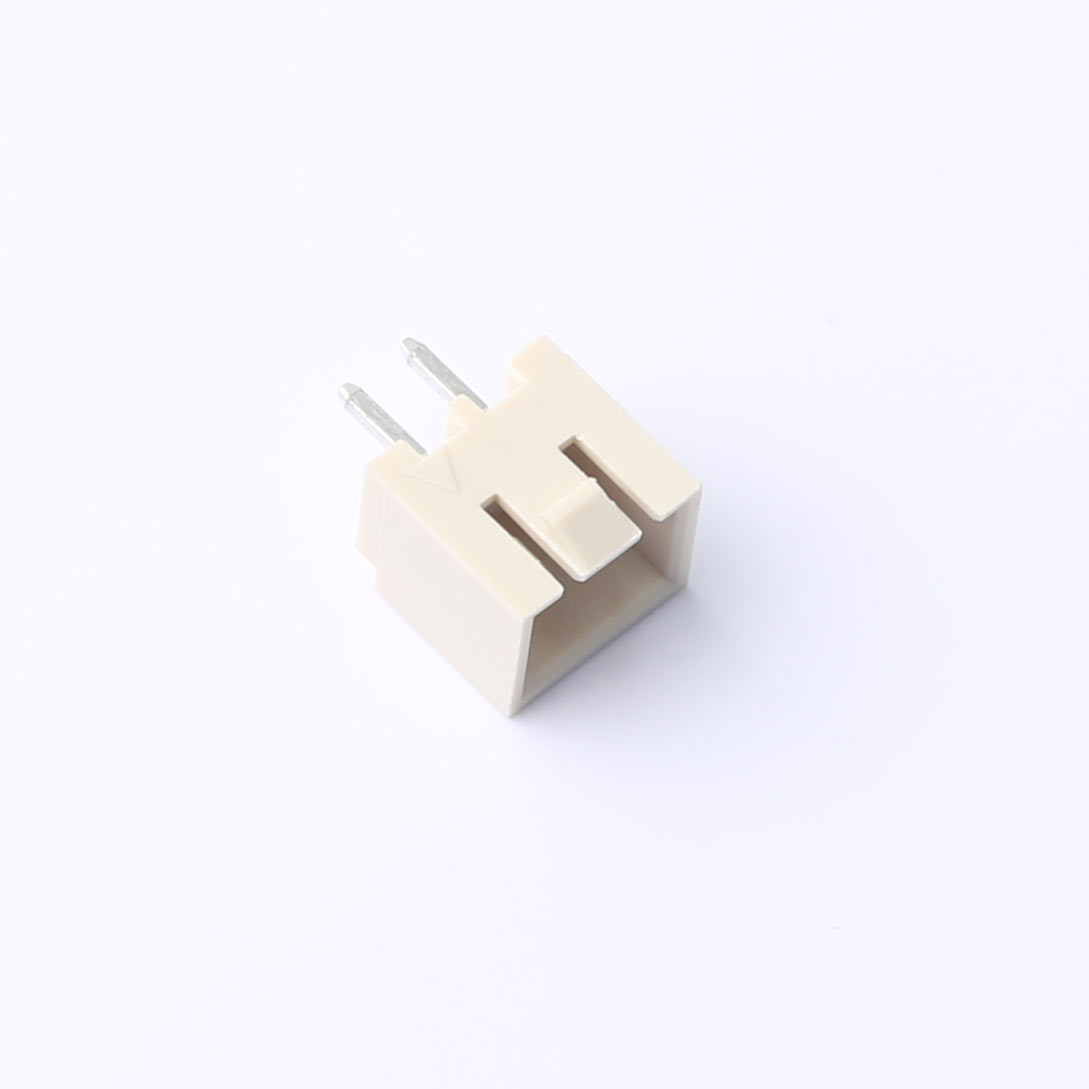

2.54mm Pitch Wire-to-Board Connector, 1x2P, KH-A2504-02A-M

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Product Details

Product Features
● Brand: Kinghelm
● Model: KH-A2504-02A-M
● Wire-to-board connector, 1×2 pins
● Pitch: 2.54 mm
● Straight through-hole (HA straight pins with latch)
● Housing color: beige
● Material: Wafer Nylon66, UL94V-0; PIN: Brass, Tin-plated
● Package: bag

Product Benefits
● Reliable 2-pin connection for compact, low-pin count applications
● UL94V-0 rated flame-retardant housing for safety
● Tin-plated brass pins for excellent conductivity
● Quick and easy through-hole soldering process
● Latch mechanism ensures stable and secure connection
● Lightweight (0.32895 g), perfect for minimal designs

Product Applications
● Small embedded circuits
● Consumer electronics
● Power and signal routing in compact systems
● Prototyping and DIY electronics
● Robotics and sensor projects
● Test equipment and educational kits
