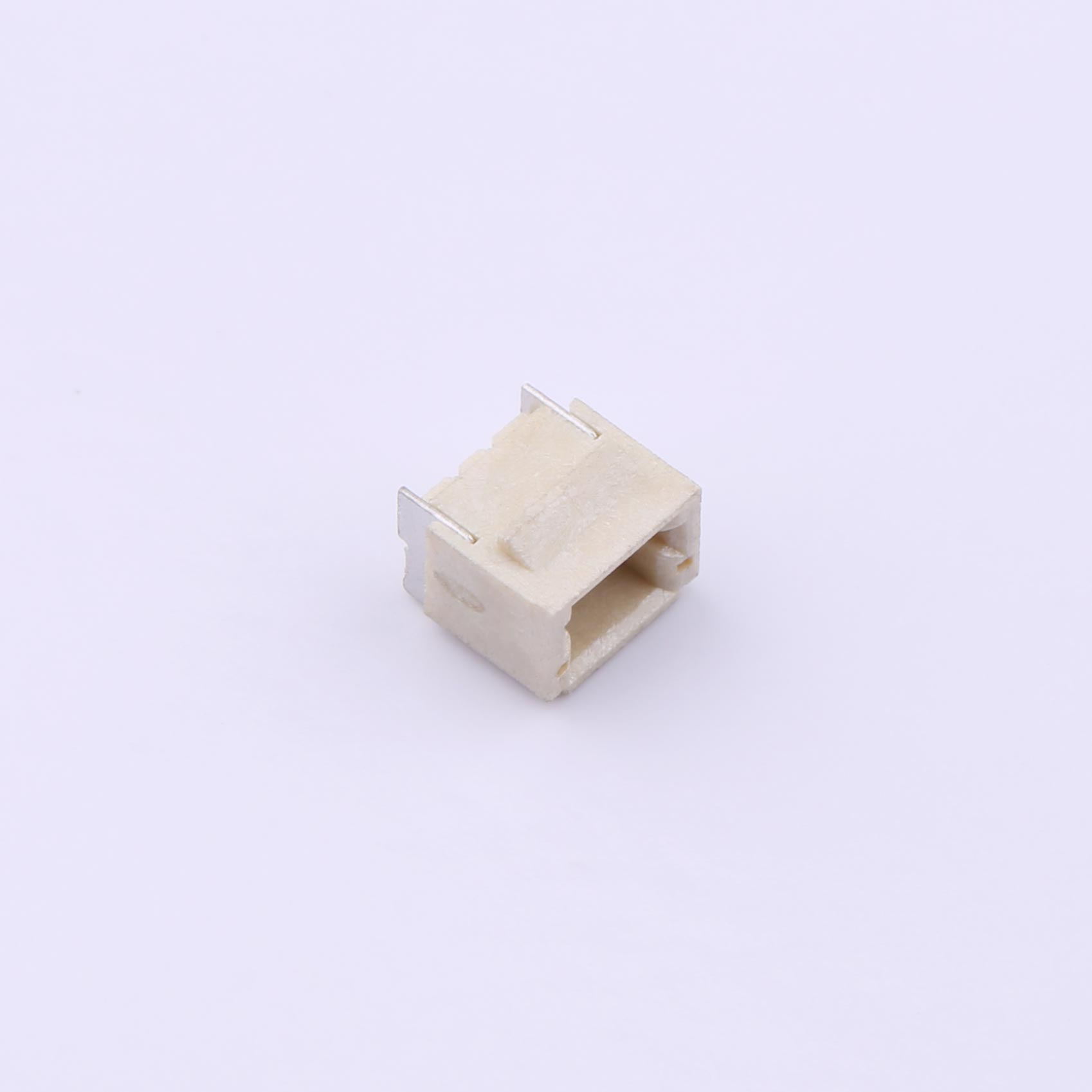

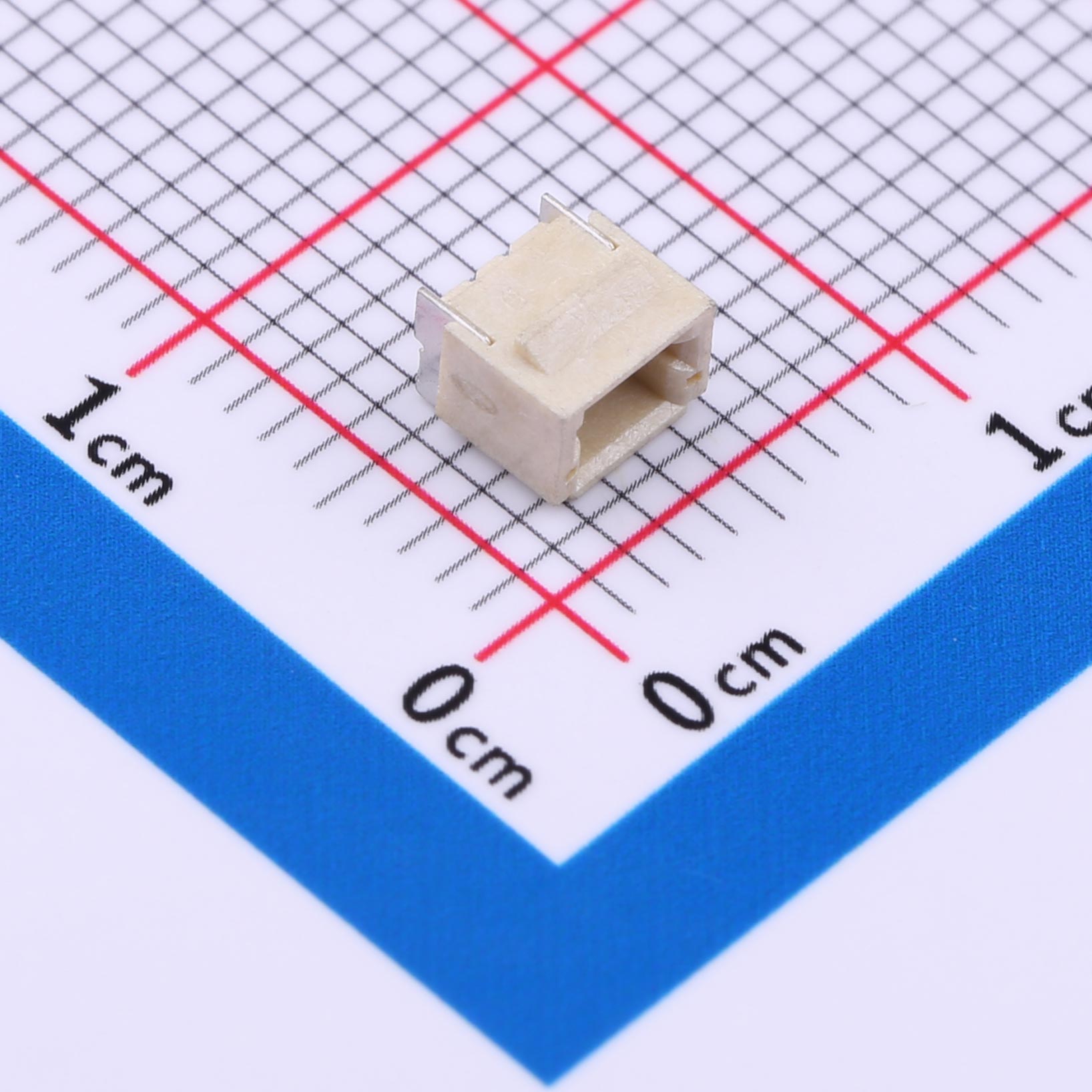

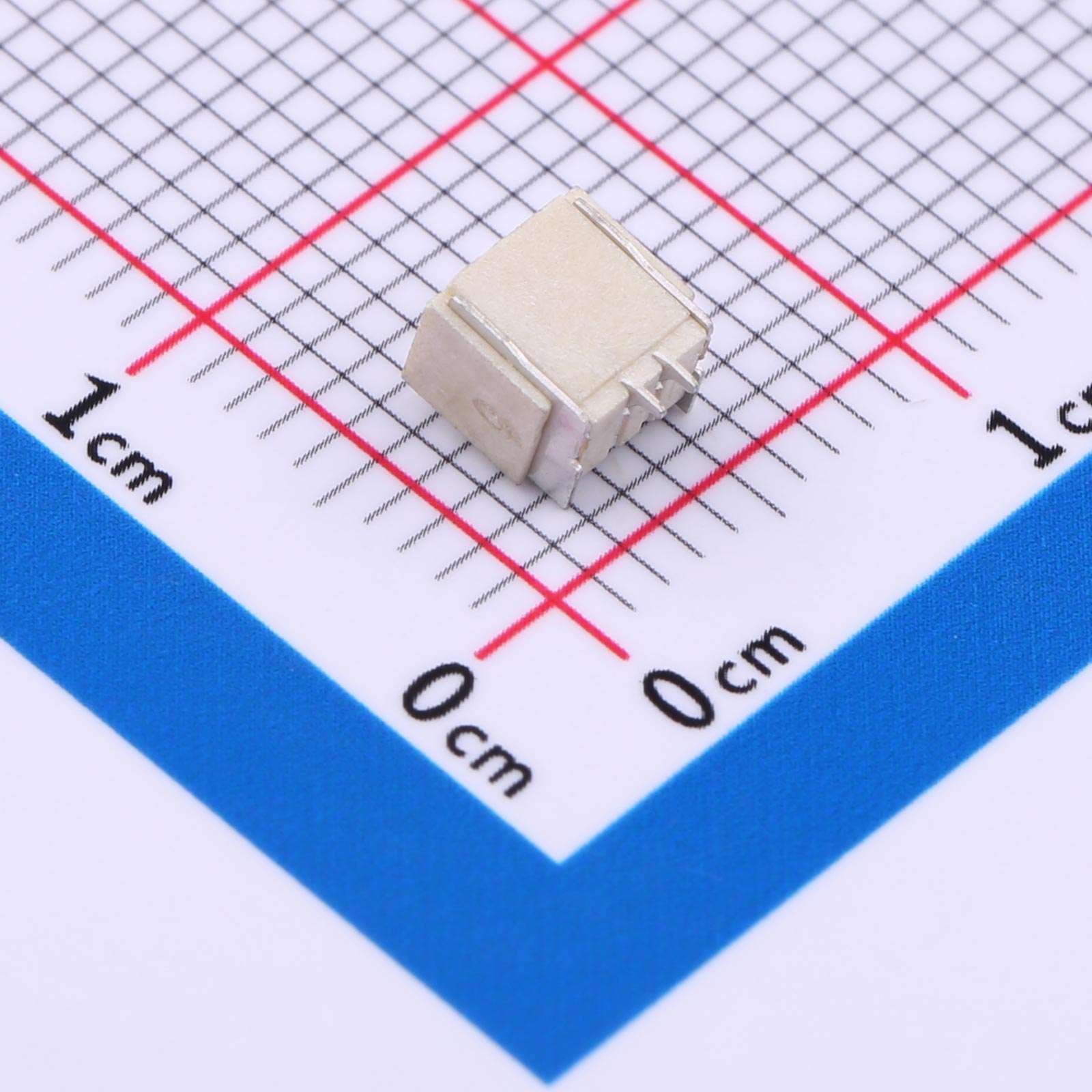

Wire-to-Board Connector, 1mm Pitch, 1x2P, SMD, KH-A1000RSL-2P

Wire-to-Board Connector, 1mm Pitch, 1x2P, SMD, KH-A1000RSL-2P

Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ

Inquiry Datasheet

Product Details

Product Features
● 1.00mm pitch, 1x2 positions
● Horizontal mount (right-angle) SMD design
● Compact, ultra-low-profile construction
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant

Product Benefits
● Ideal for minimal PCB space requirements
● Suitable for ultra-compact designs
● Reliable and stable electrical contact
● Compatible with automated surface-mount technology (SMT)
● Efficient signal and power transmission
● Low-profile design for height-sensitive applications
● Cost-effective solution for two-pin interconnect needs

Product Applications
● Consumer electronics
● Wearable devices
● IoT modules
● Mobile communication devices
● Smart home gadgets
● Embedded systems
● Low-power applications
