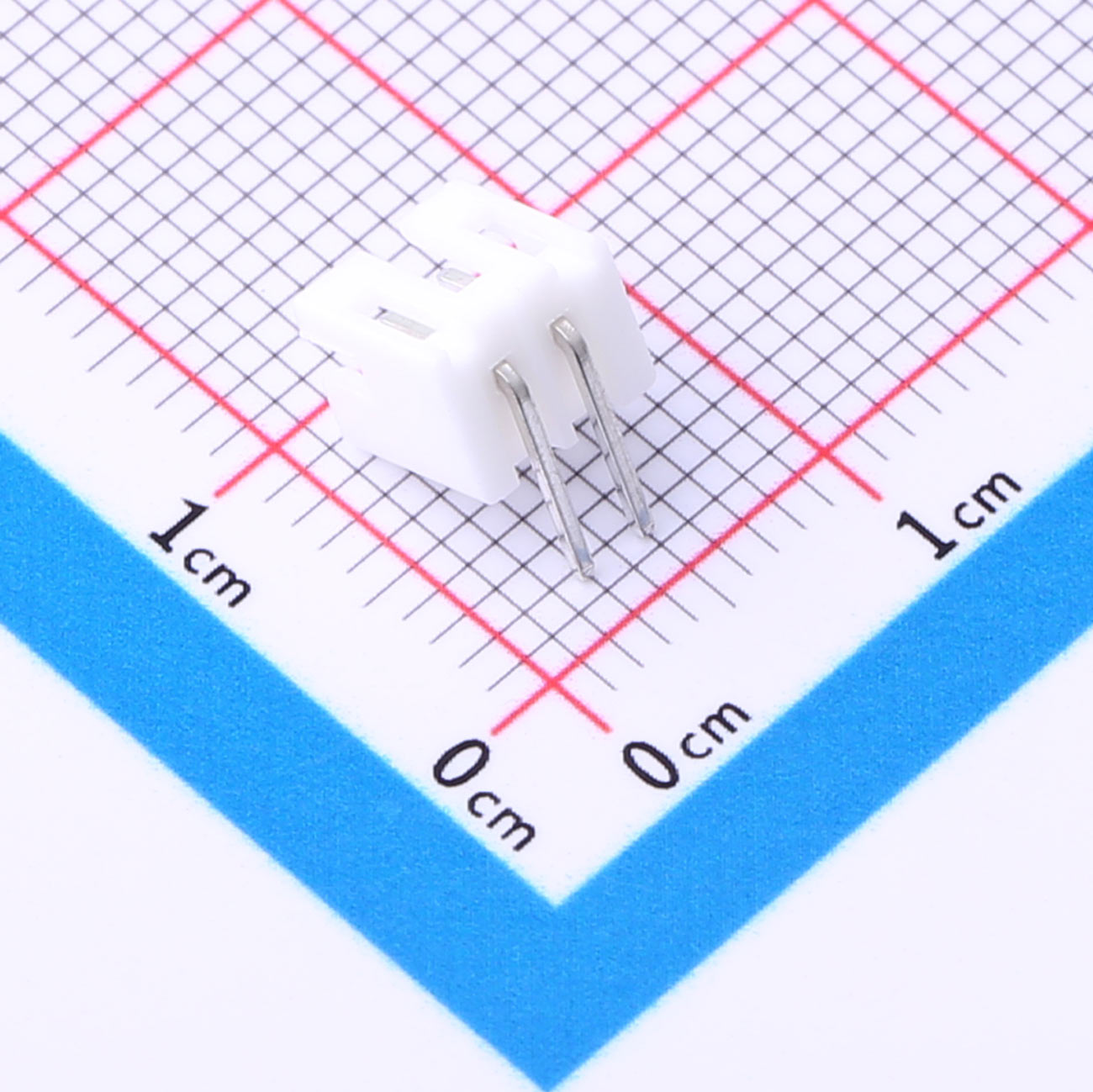

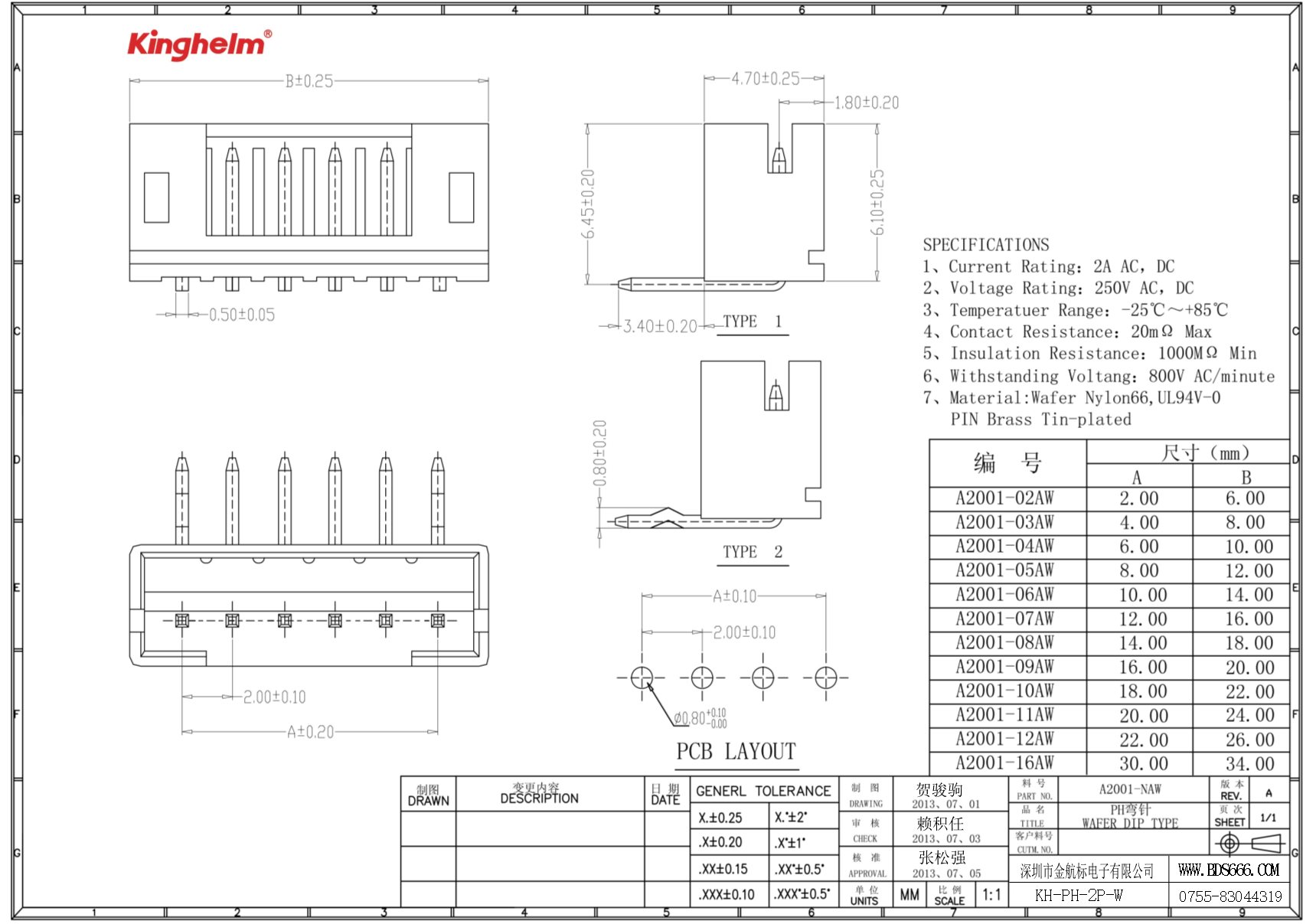

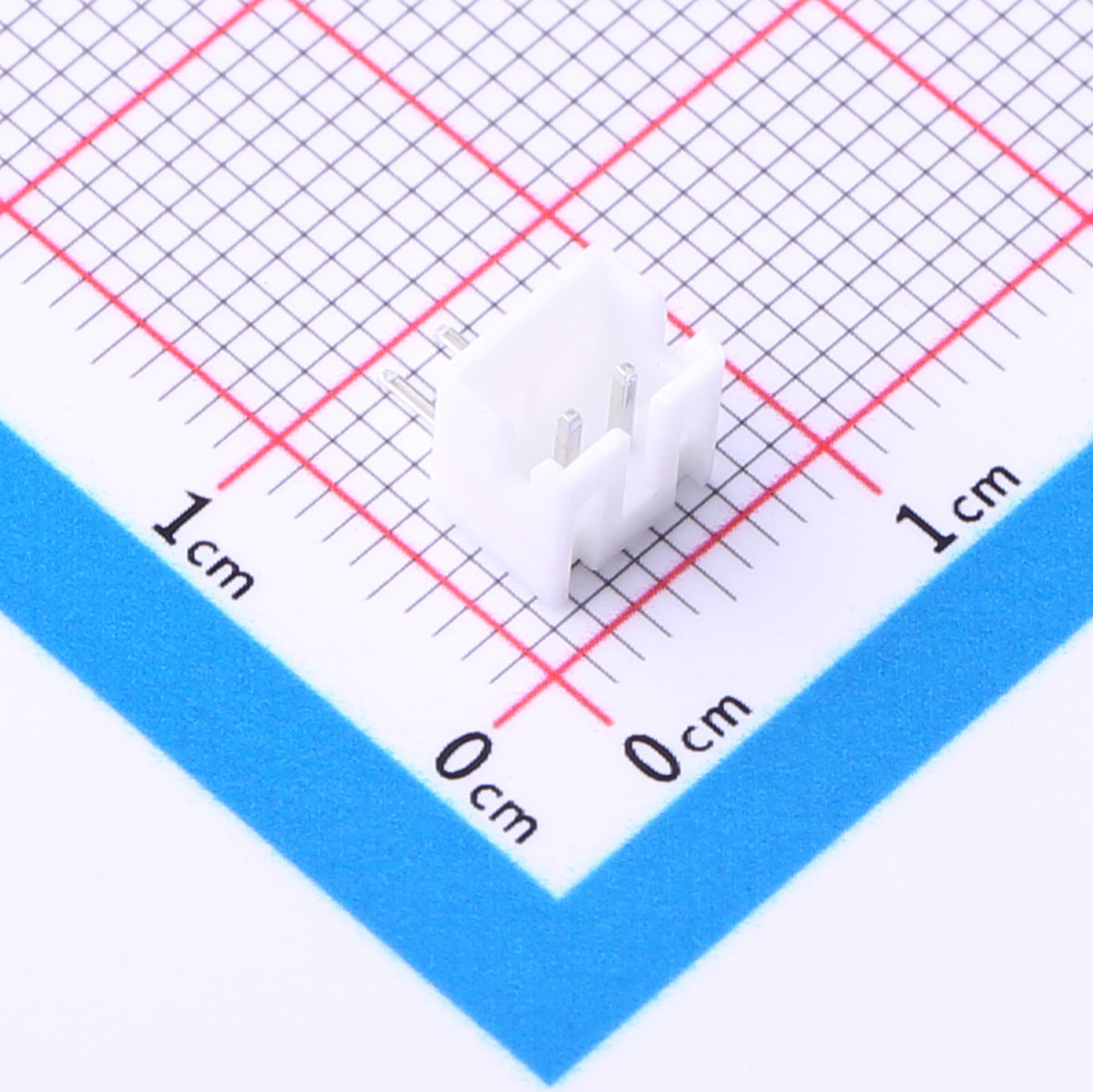

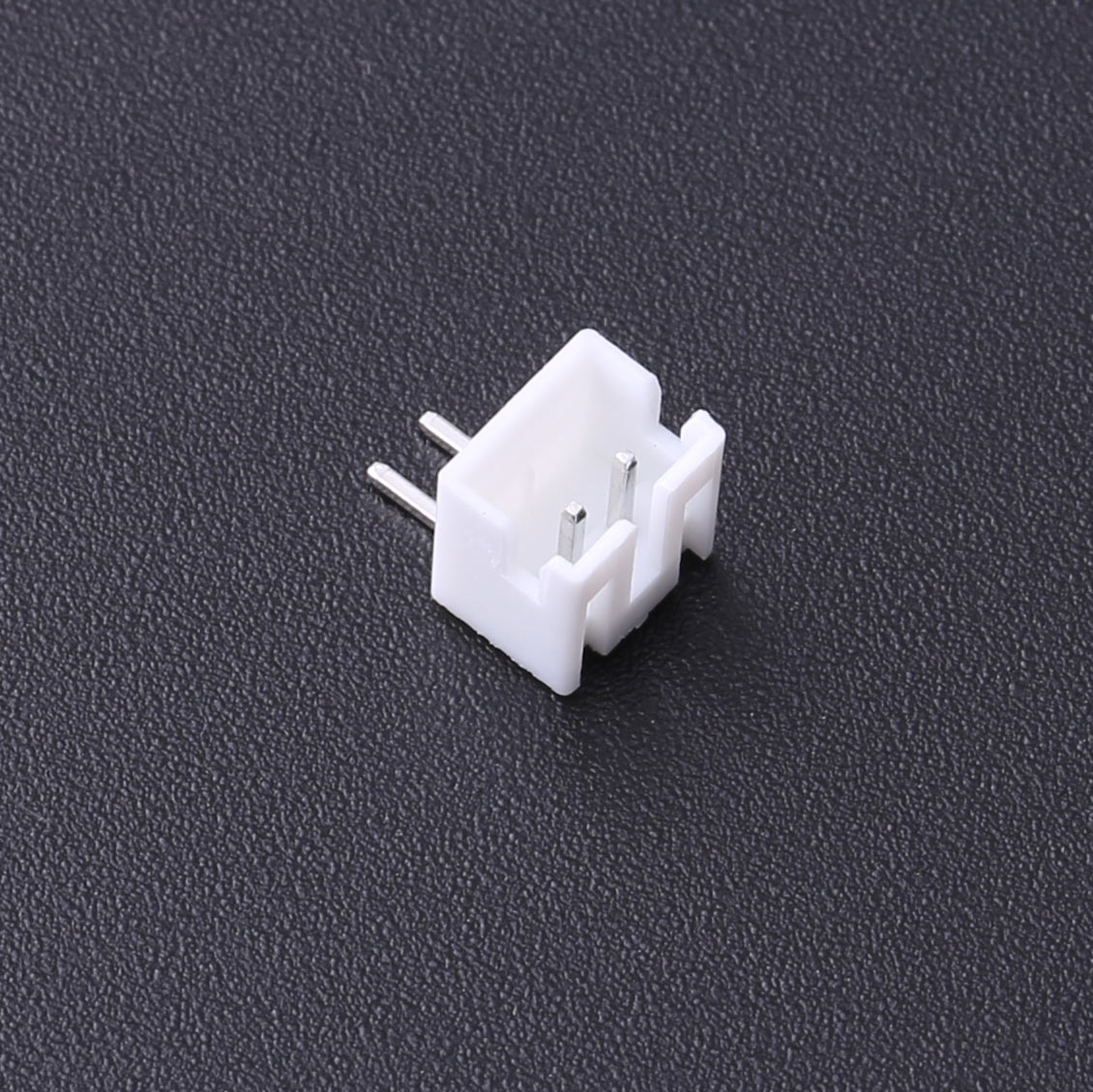

Wire-to-Board Connector, 2mm Pitch, 1x2P, KH-PH-2P-W
Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2 pins, single row, 2mm pitch
● Right-angle mount
● Current rating: 2A, voltage: 250V
● Low contact resistance
● High insulation resistance
● Works from -25℃ to +85℃
Product Benefits
● Reliable and consistent contact
● Space-efficient design
● Easy and fast mounting
● Protects signal clarity
Product Applications
● Compact consumer devices
● Industrial controls
● Automotive systems
● Network hardware
