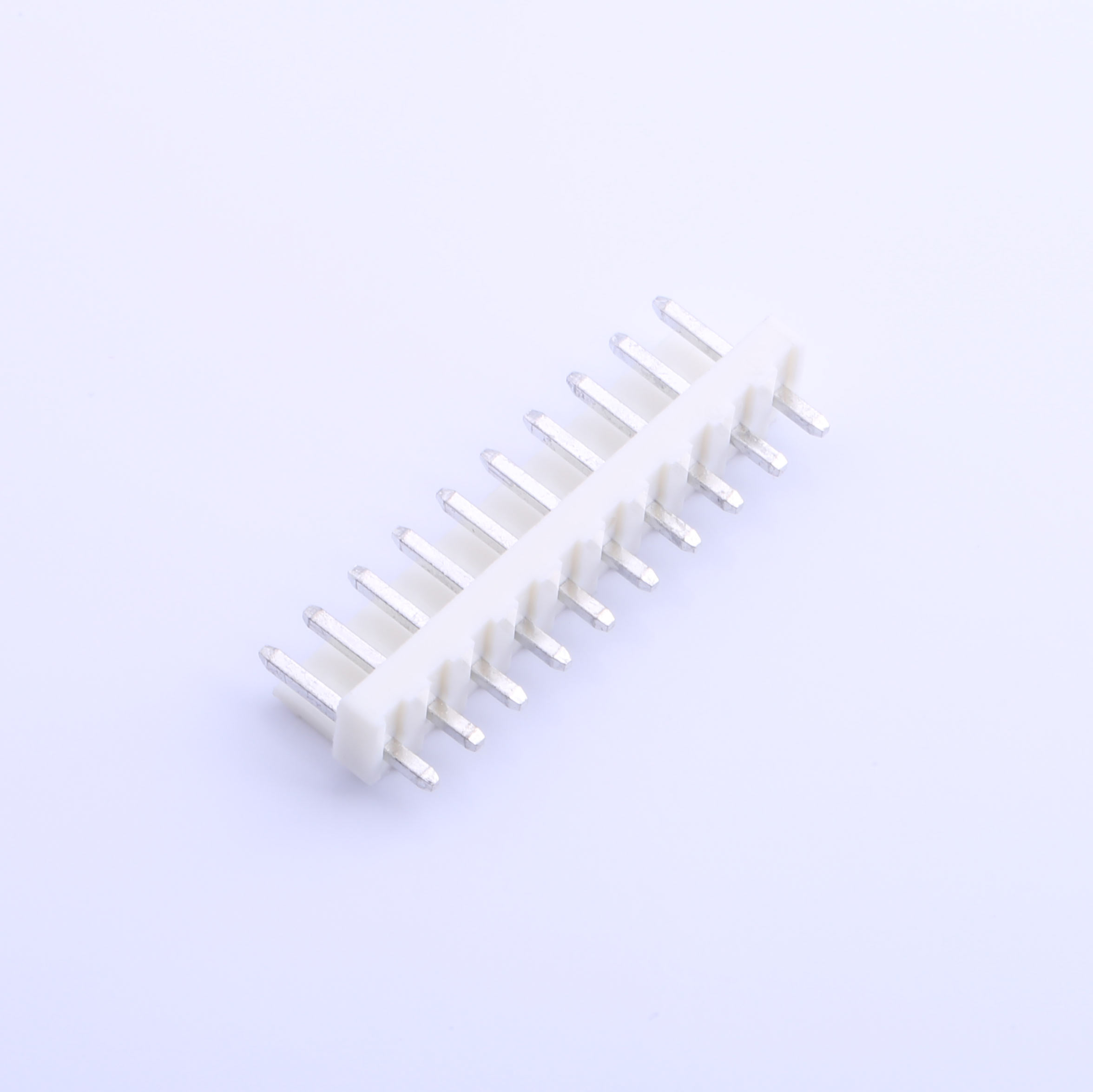

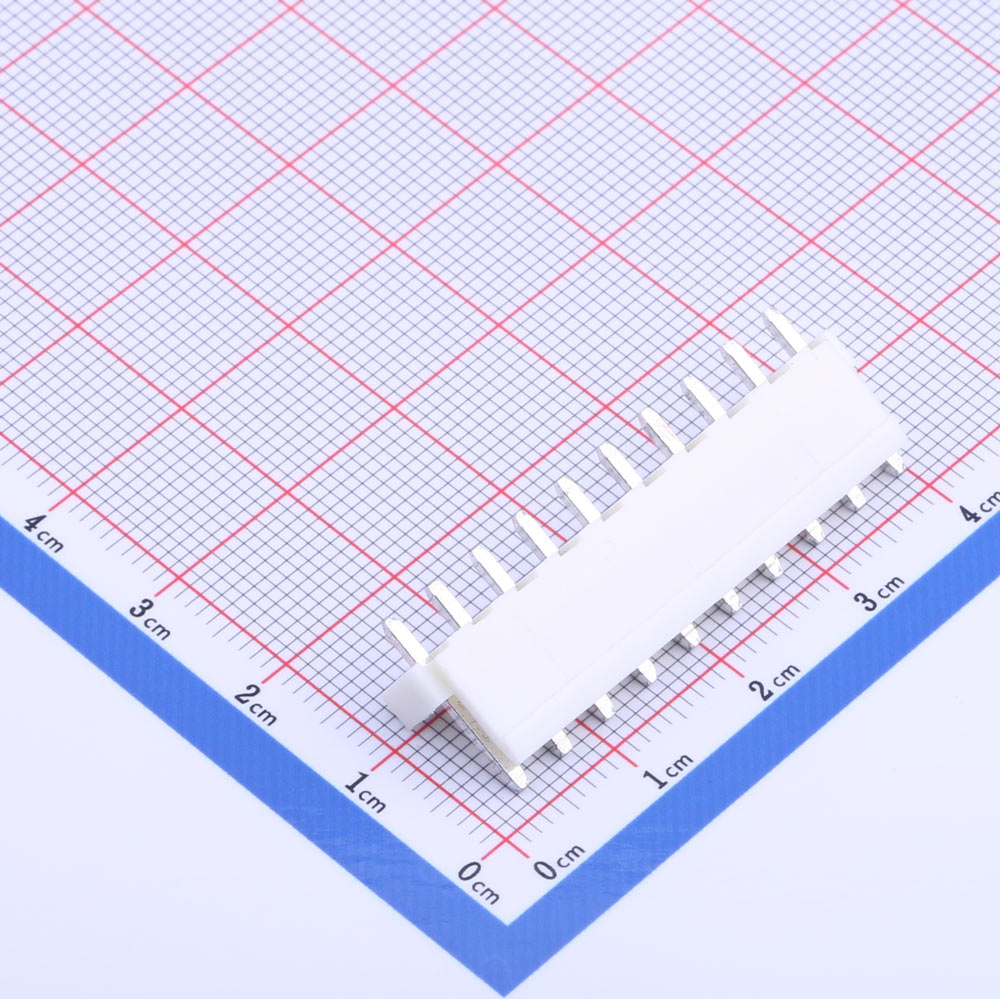

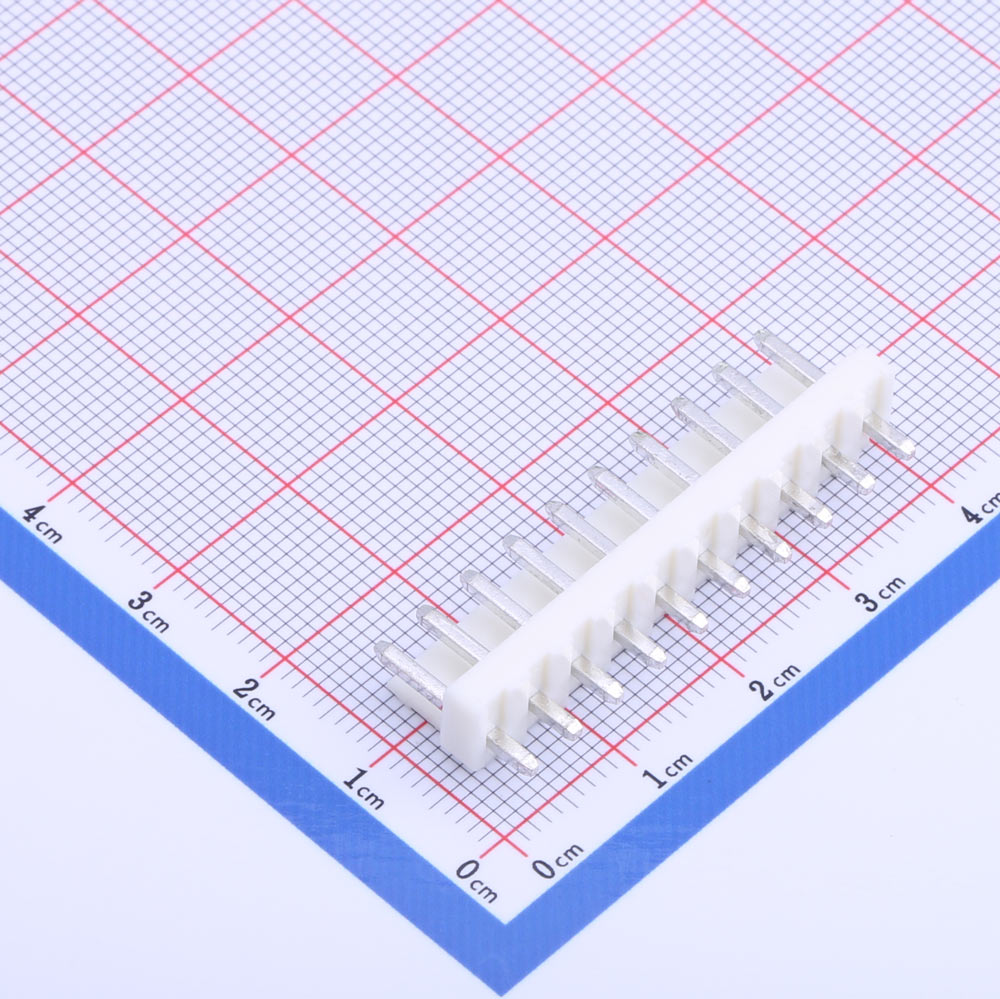

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x10P, KH-VH-10P-Z

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x10P, KH-VH-10P-Z

Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

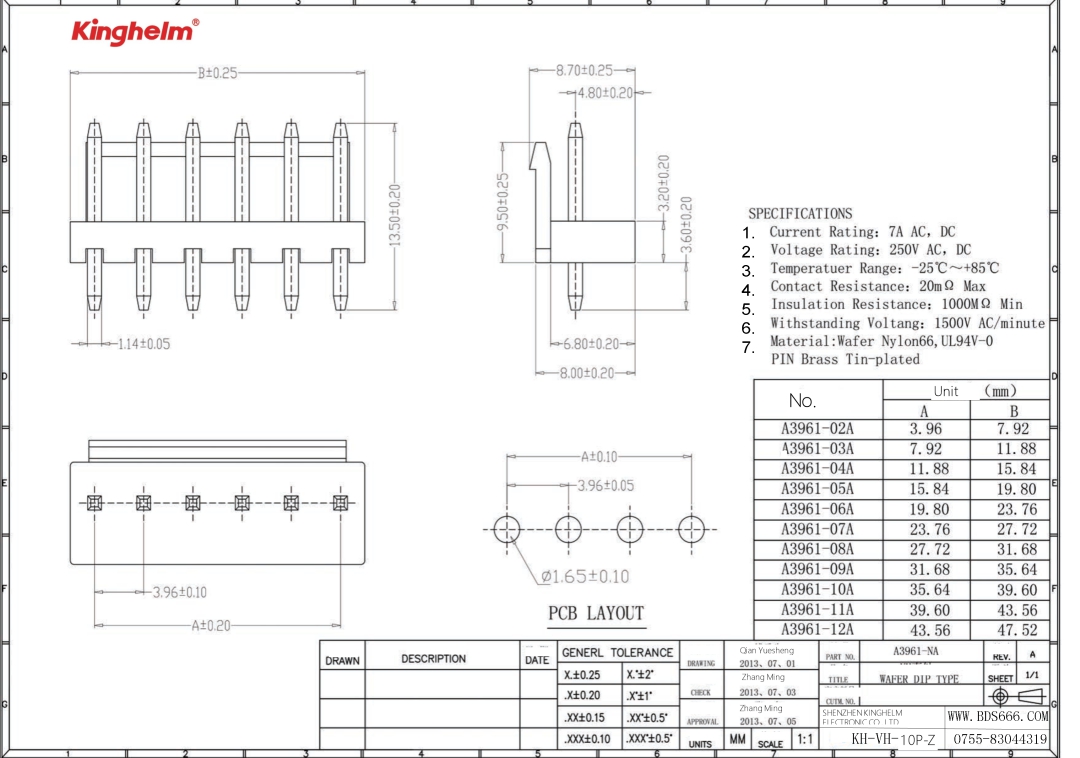

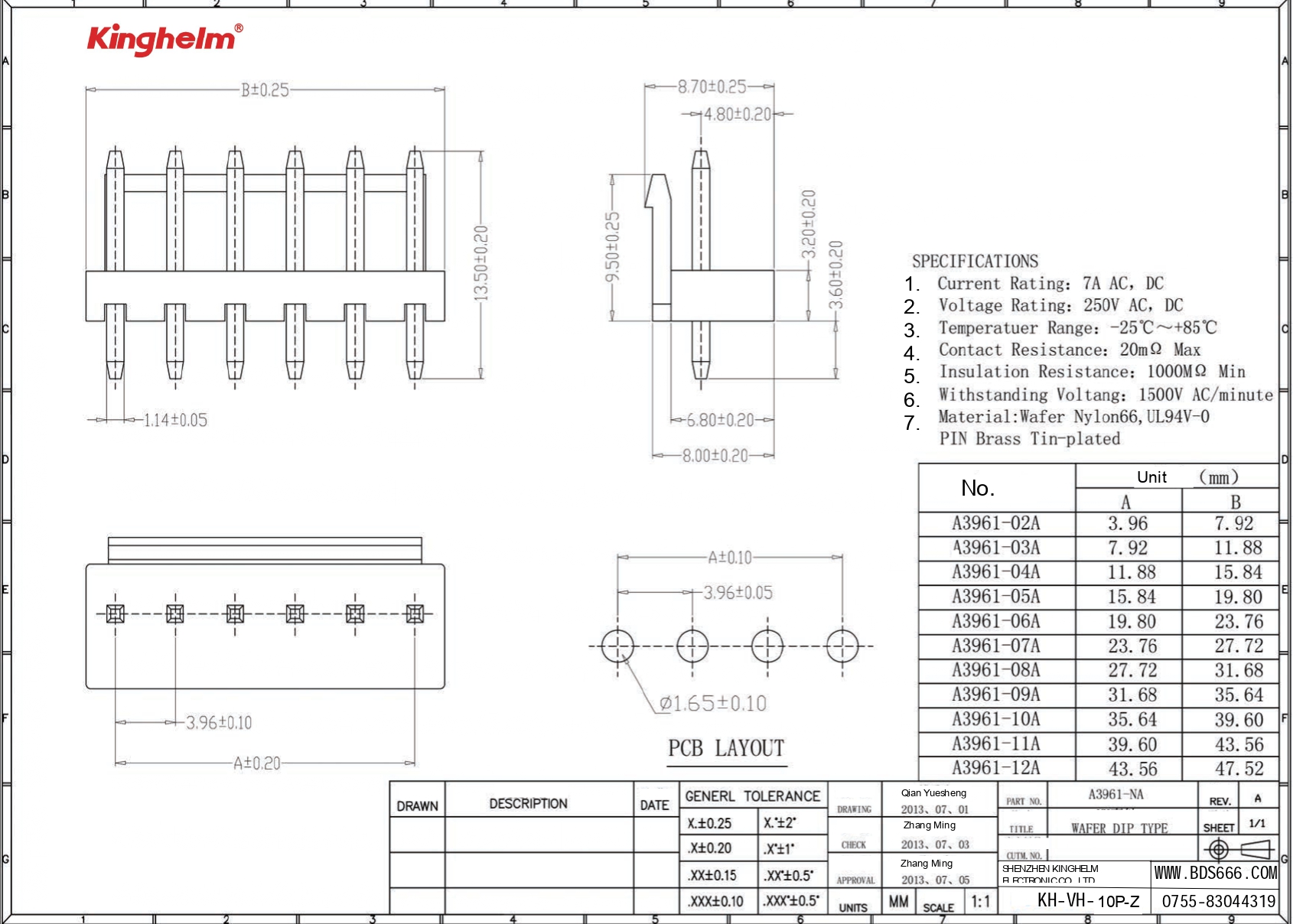

Inquiry Datasheet

Product Details

Product Features
● 3.96mm pitch, VH series
● 1x10P, single row
● Straight mounting type
● Plugin connector, easy to use
● 7A current rating
● -25℃ to +85℃ operating range

Product Benefits
● Stable high-current transmission
● Quick and simple installation
● Compact layout saves space
● Secure and reliable contact
● Cost-effective for mass use

Product Applications
● Power wiring in air purifiers
● Motor boards in 3D printers
● Control panels in vending machines
● LED driver connections
● Internal wiring in washing machines
