2.54mm Pitch Wire-to-Board Connector 1x14P--KH-A2504-14AW

2.54mm Pitch Wire-to-Board Connector 1x14P--KH-A2504-14AW

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features

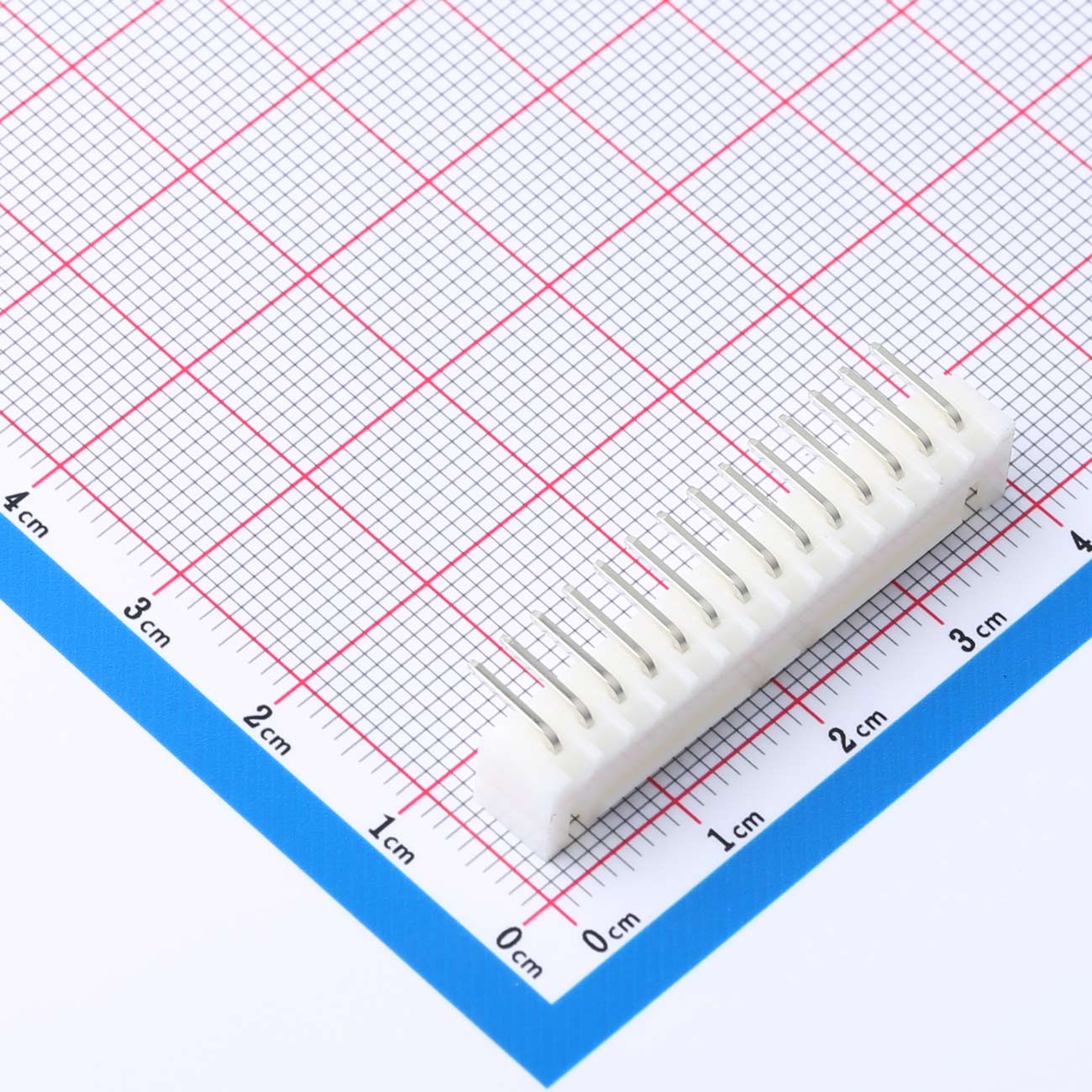

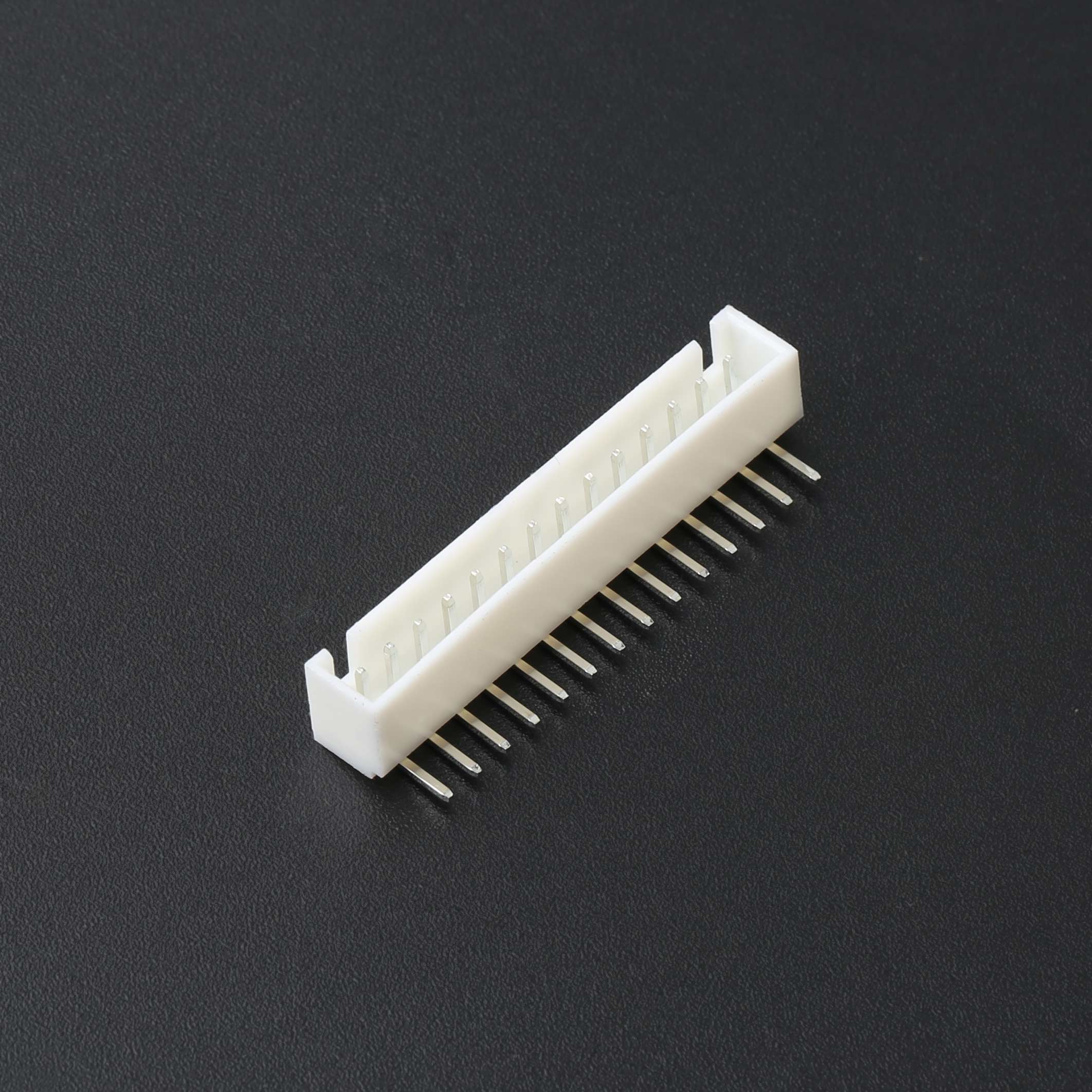

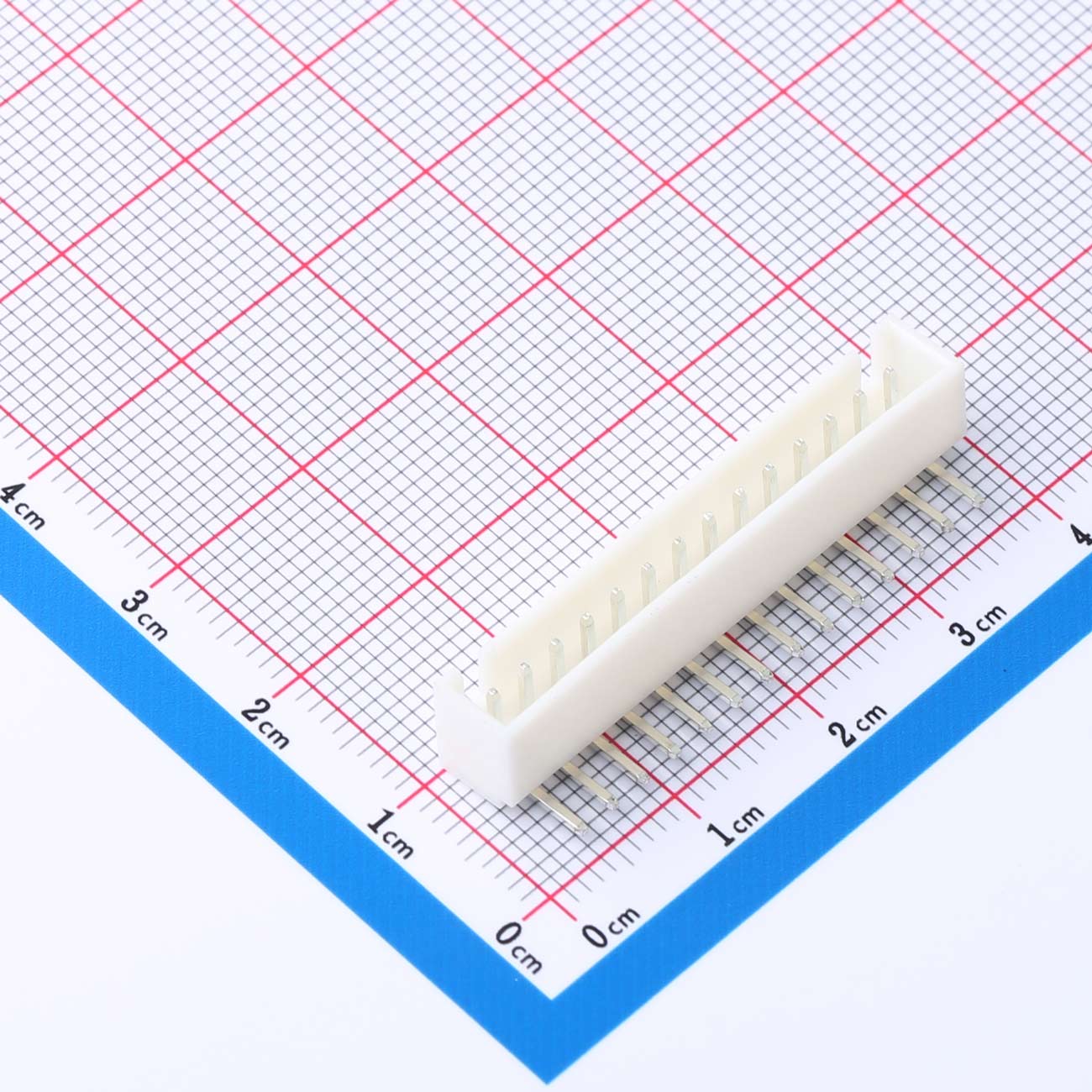

● 2.54mm pitch, 1x14P right-angle male header with latch
● Through-hole mounting (P=2.5mm)
● HA type bent pins, white housing
● High-strength tin-plated contacts
● Locking latch design for mating security
● Bag packaging for handling convenience

Product Benefits
● Suitable for medium-pin-count signal transmission
● Right-angle layout simplifies wire routing
● Mechanical latch prevents accidental unplugging
● Durable pin design ensures solder reliability
● Ideal for mid-size PCB applications
● Supports both manual and automated assembly

Product Applications
● Smart home hubs and control boards
● Gateway devices and IoT platforms
● Data communication converters
● Compact relay or power interface modules
