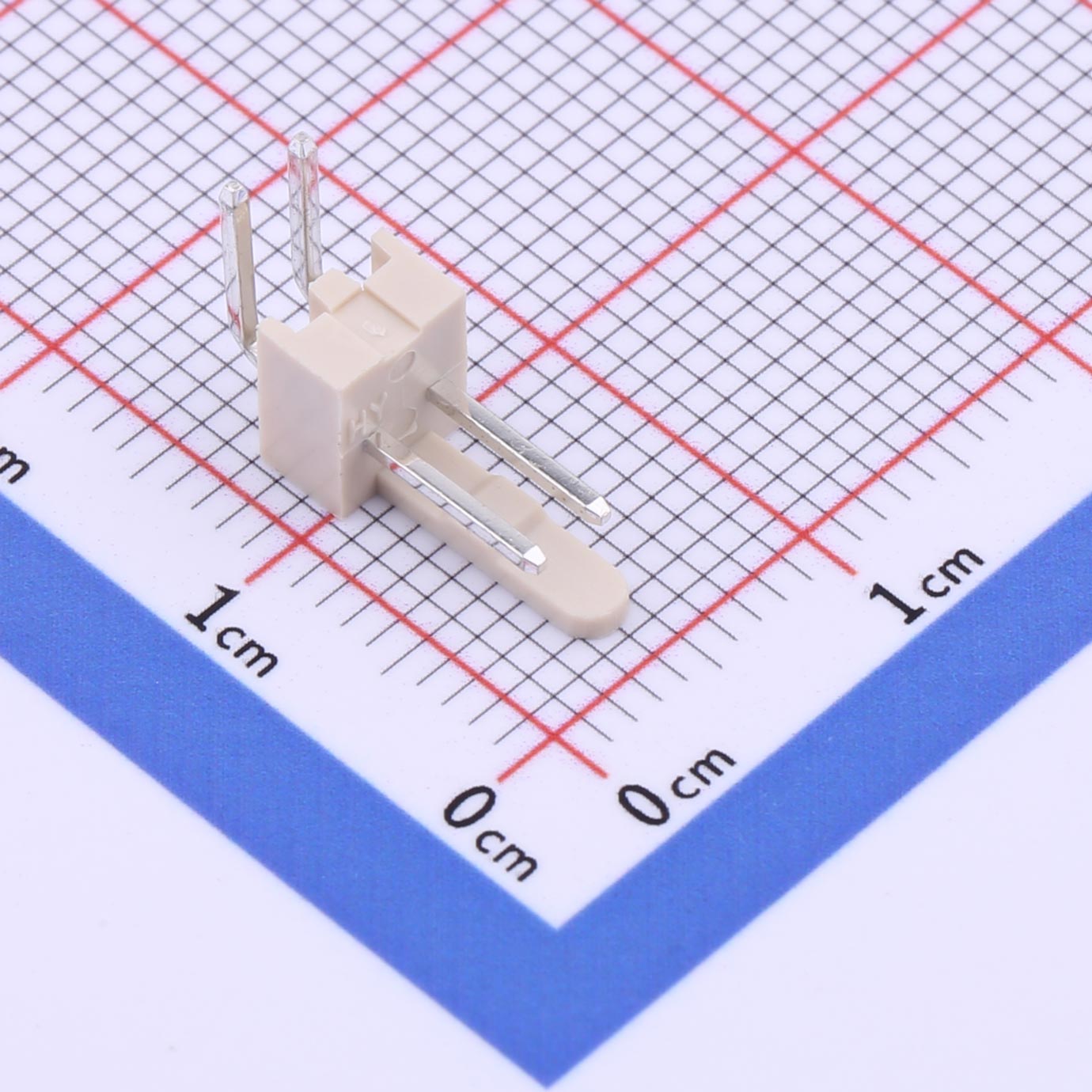

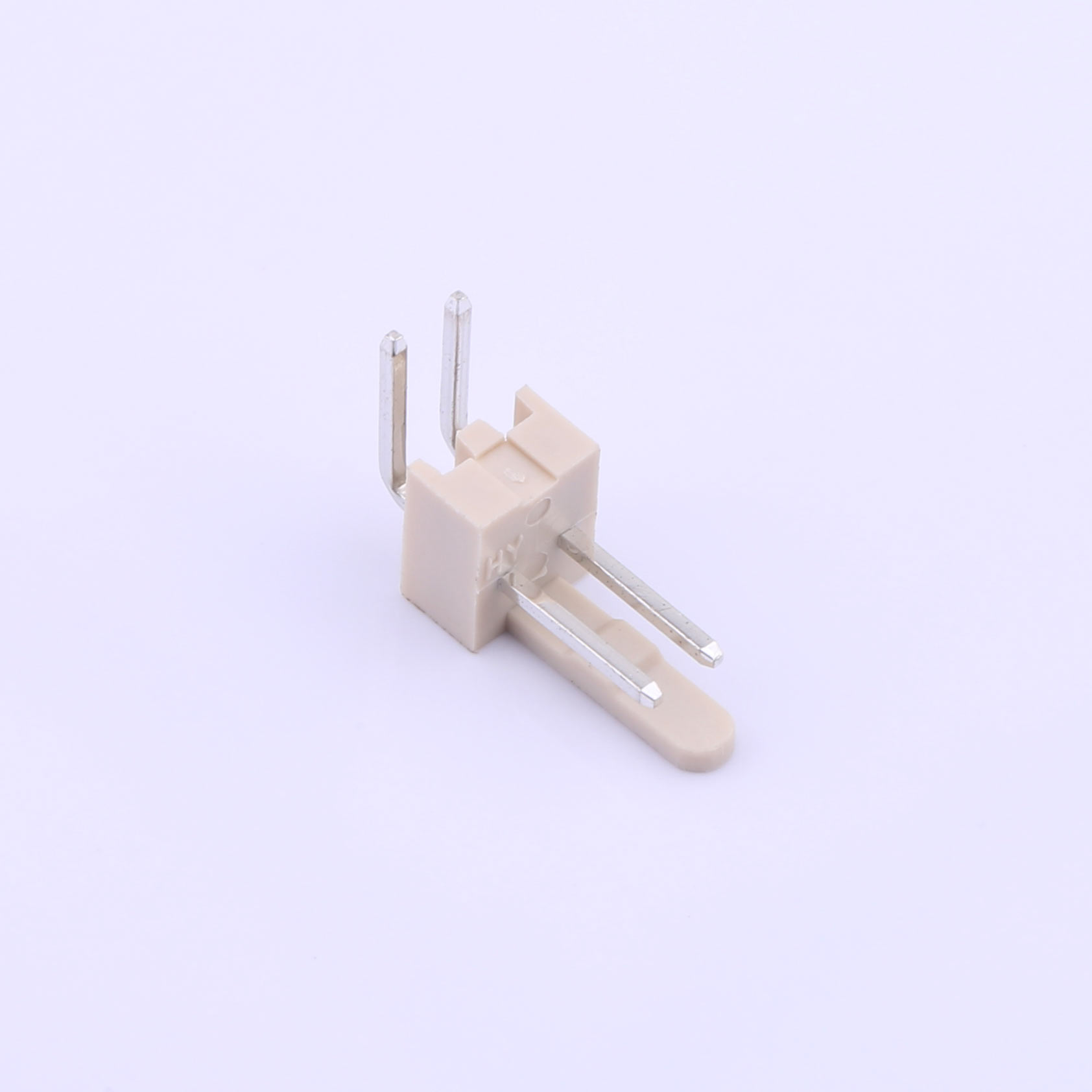

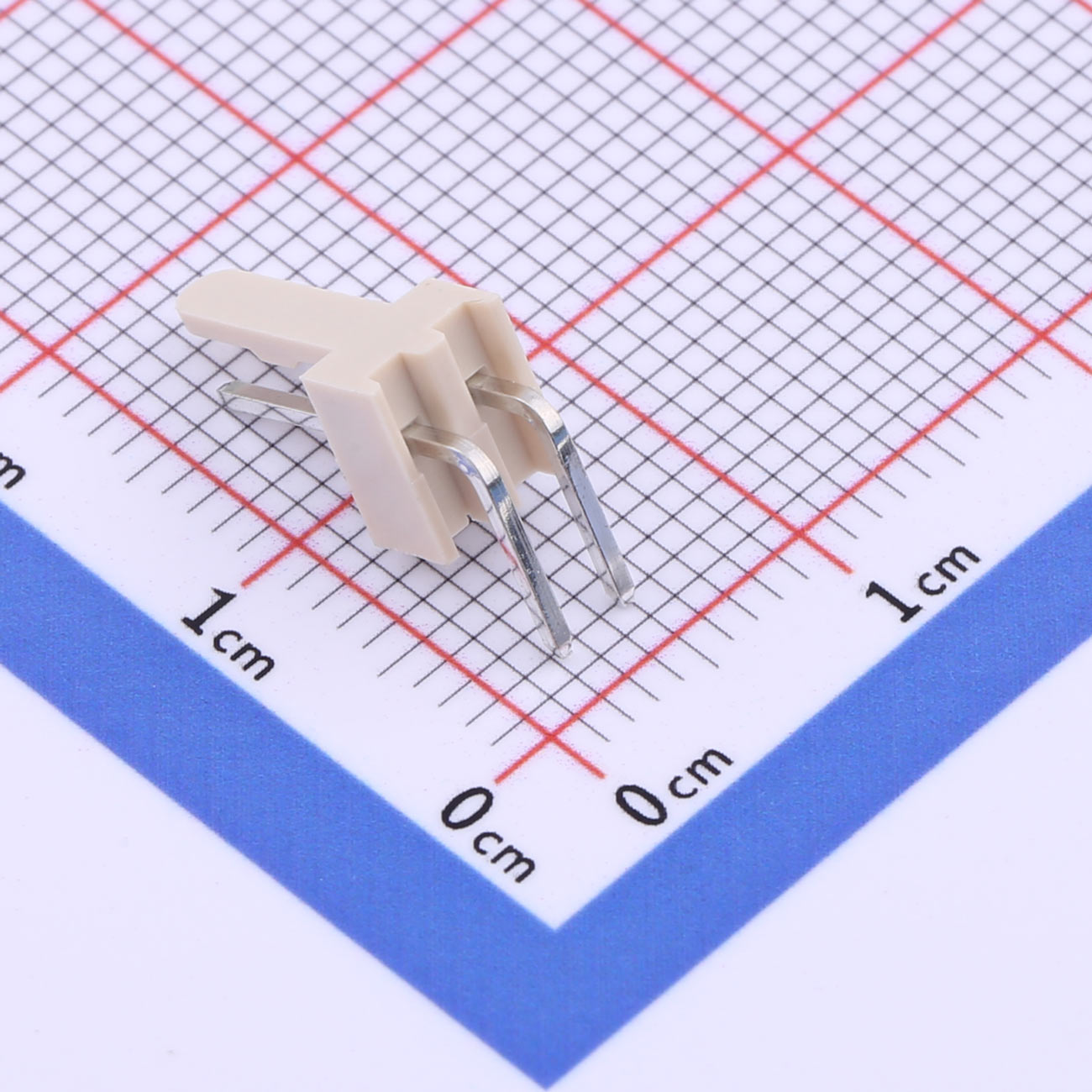

Wire-to-Board Connector, 2.54mm Pitch, 1x2P, KH-HX2.54-02FGW

Wire-to-Board Connector, 2.54mm Pitch, 1x2P, KH-HX2.54-02FGW

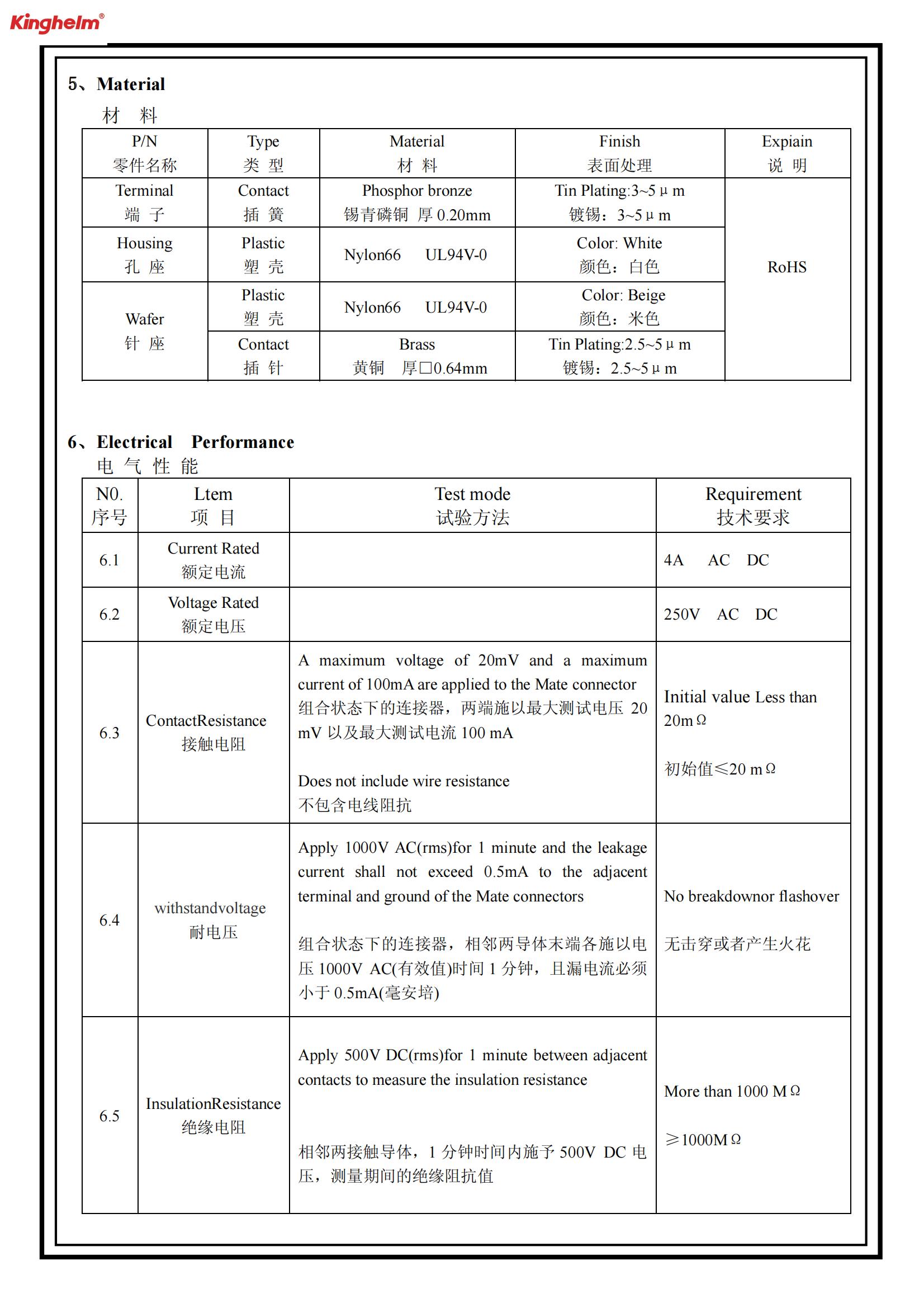

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: −25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch
● 1x2P pin structure
● Right-angle mounting
● 2 pins per row
● Current rating: 4A

Product Benefits
● Ultra-compact design for tight spaces
● Reliable and consistent connection
● Suitable for low-pin count needs
● Low resistance for optimized signal flow
● High insulation resistance for protection

Product Applications
● Consumer electronics
● Small modules
● Test equipment
● Power connectors

KH-HX2.54-02FGW_00.jpg KH-HX2.54-02FGW_01.jpg KH-HX2.54-02FGW_02.jpg KH-HX2.54-02FGW_03.jpg KH-HX2.54-02FGW_04.jpg KH-HX2.54-02FGW_05.jpg KH-HX2.54-02FGW_06.jpg KH-HX2.54-02FGW_07.jpg KH-HX2.54-02FGW_08.jpg KH-HX2.54-02FGW_09.jpg
