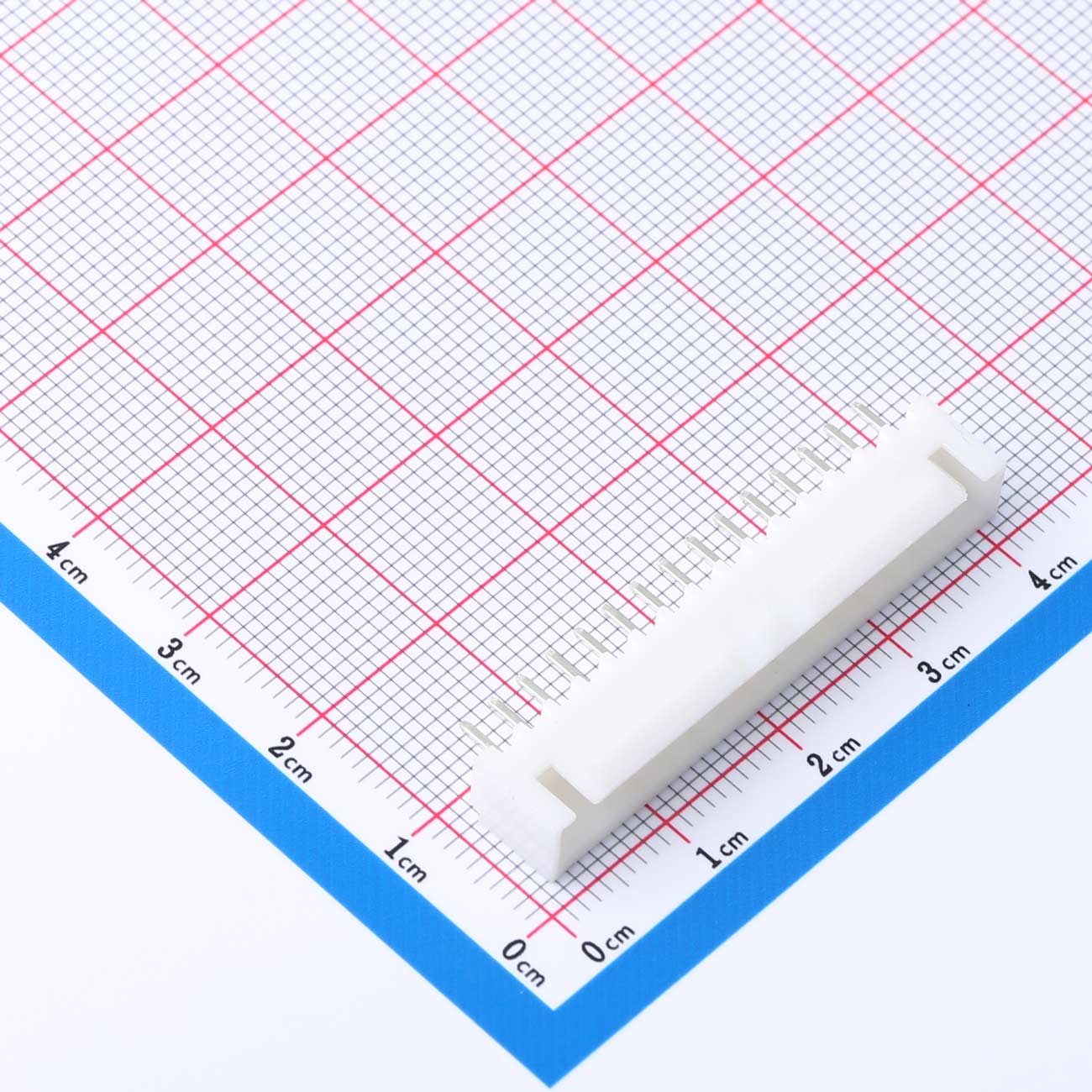

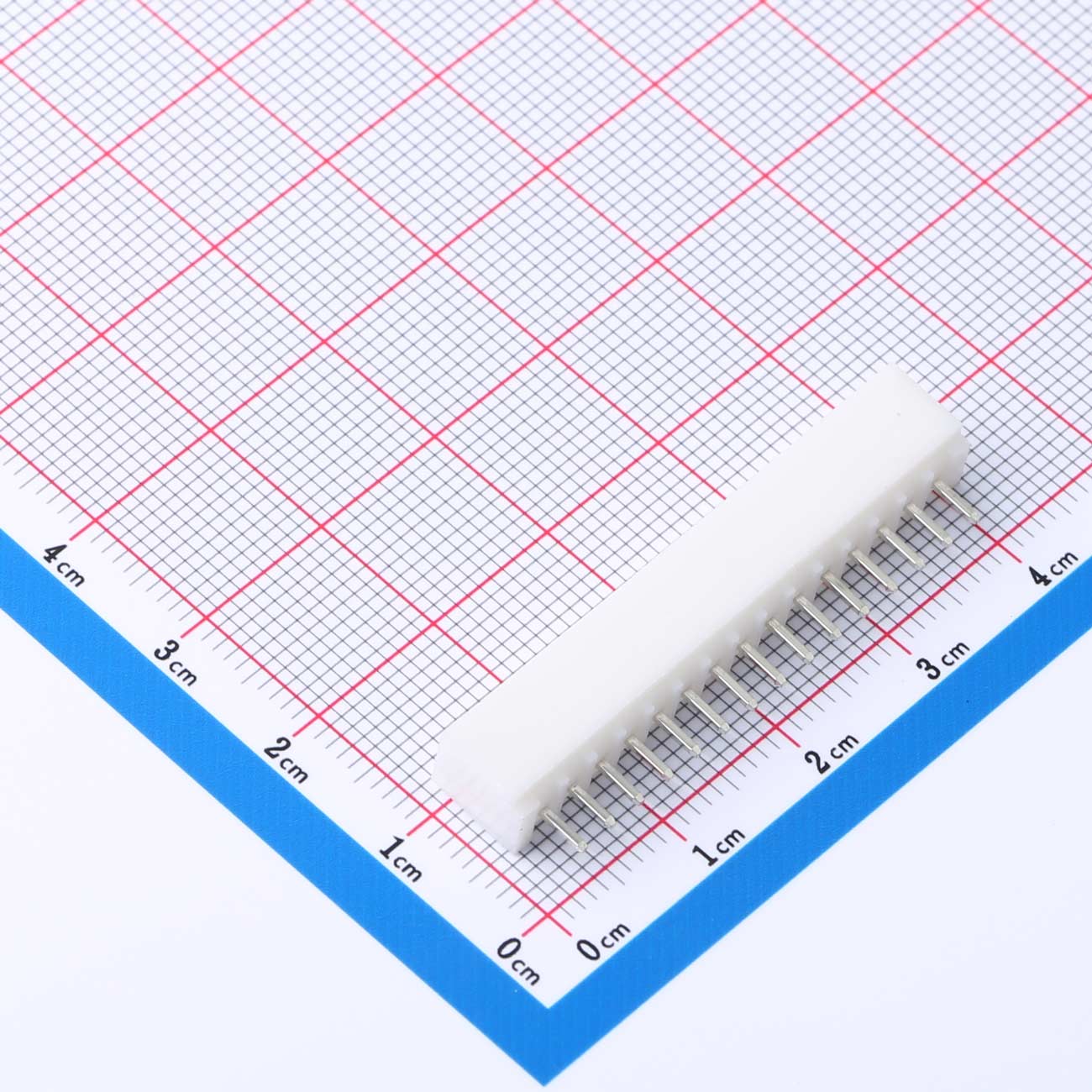

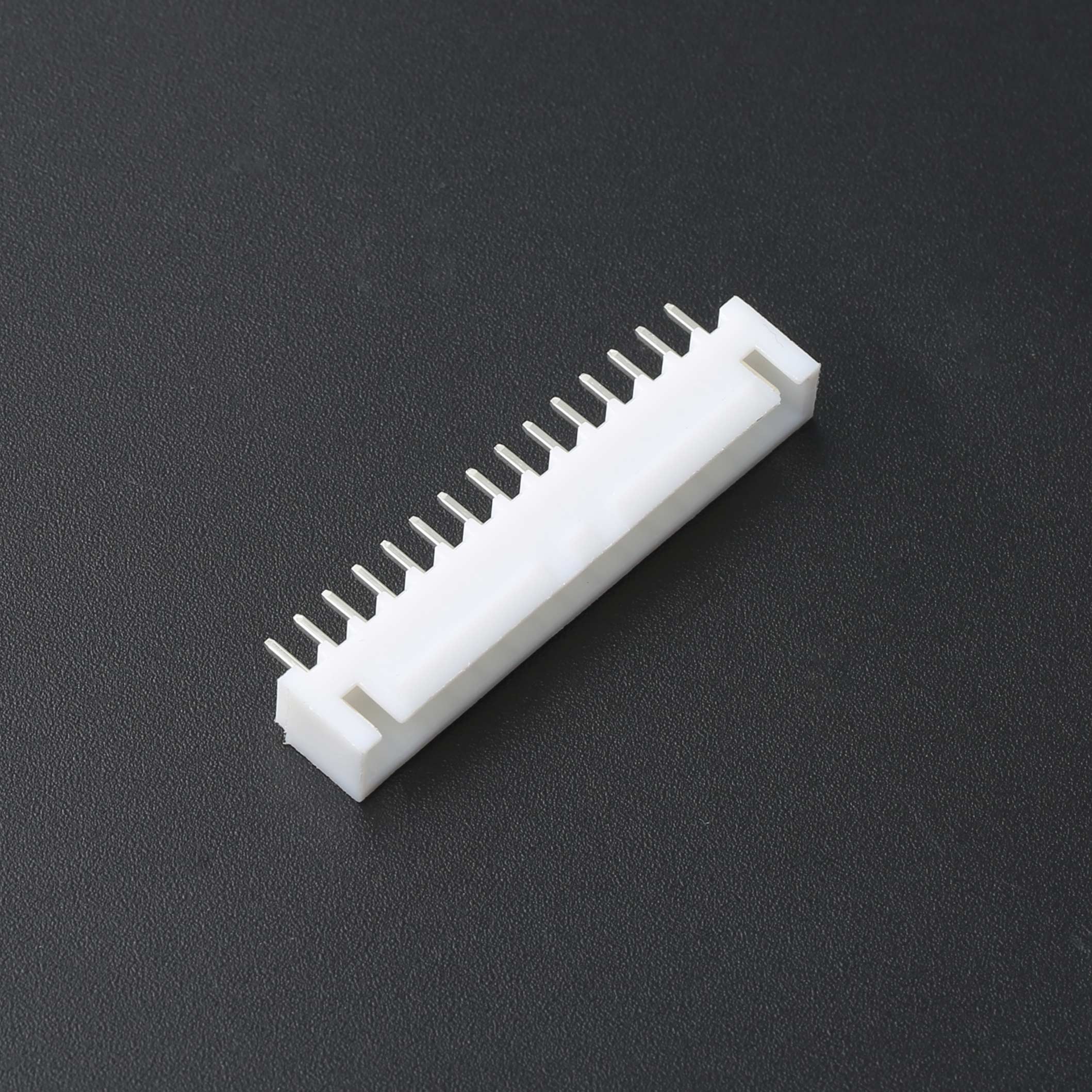

2.54mm Pitch Wire-to-Board Connector, 1x15P, KH-A2504-15A
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch single-row board-to-board connector
● 15 pins configuration
● White housing
● HA straight pins with locking mechanism
Product Benefits
● Stable, reliable connections for high-frequency signals
● Compact design saves space and reduces costs
● Locking mechanism ensures secure connections
Product Applications
● Communication devices
● Consumer electronics
● Industrial control systems
● Automotive electronics
● Modular systems
