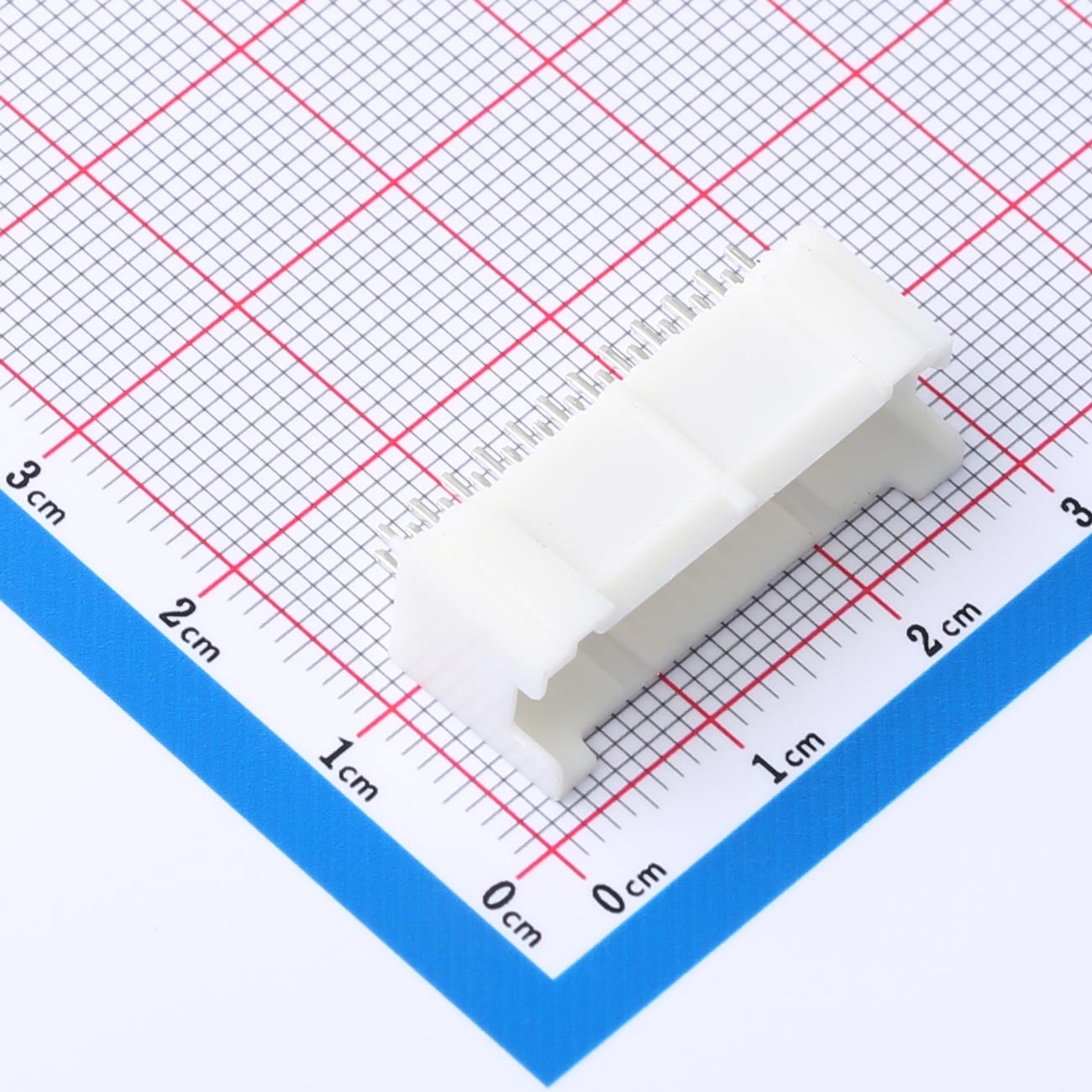

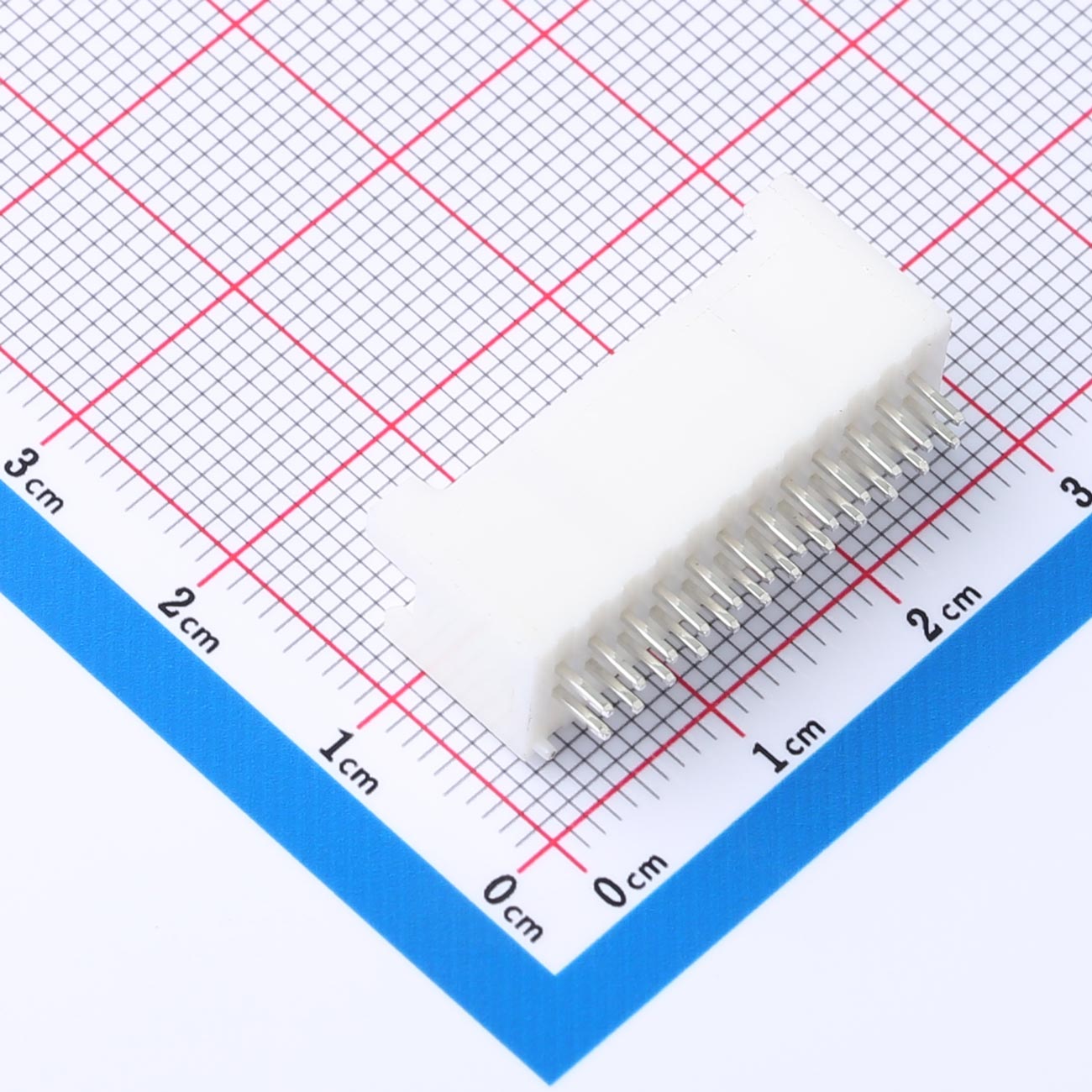

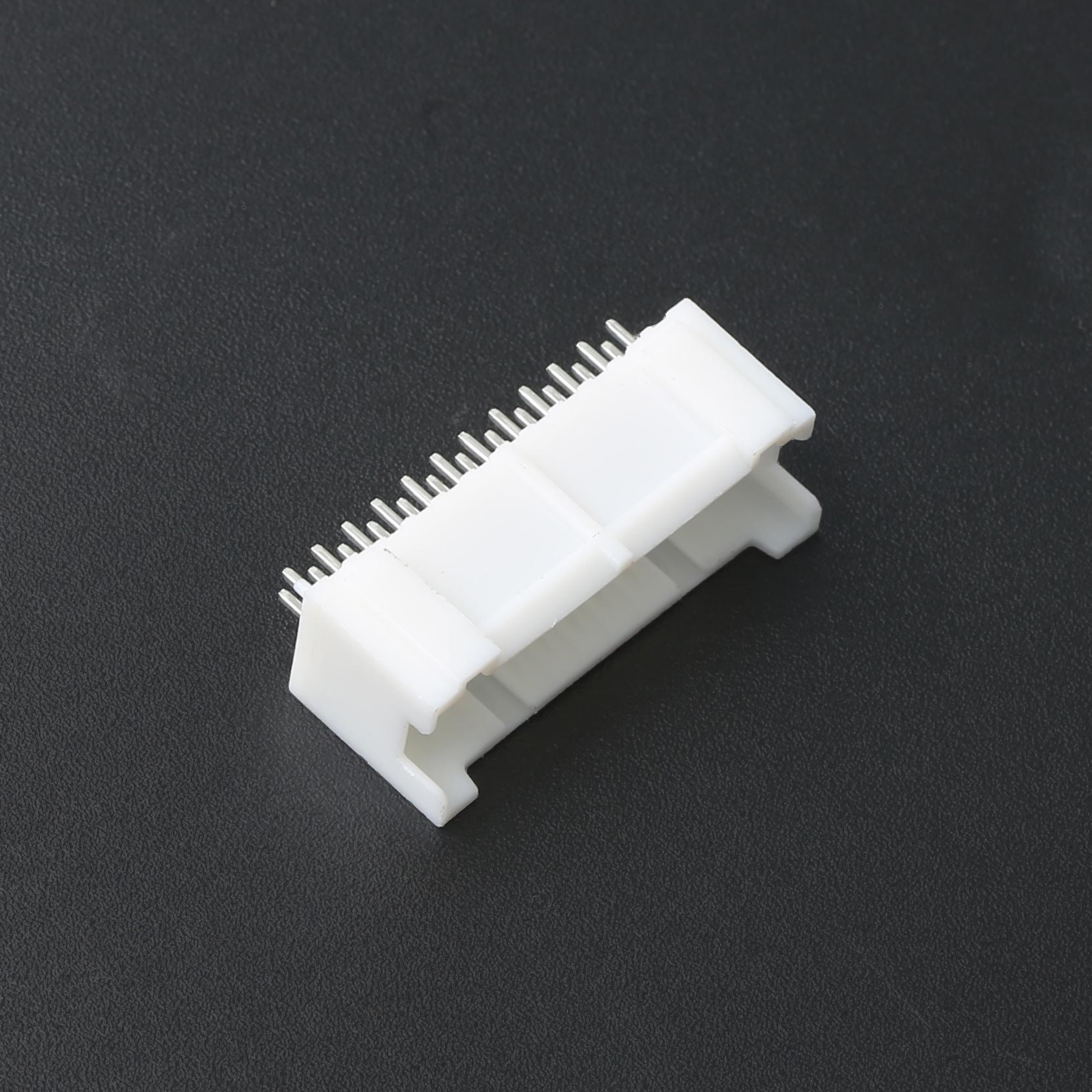

2mm Pitch Wire-to-Board Connector, 12-Pin 2-Row Straight Pin, KH-A2015-2X12A

2mm Pitch Wire-to-Board Connector, 12-Pin 2-Row Straight Pin, KH-A2015-2X12A

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch, 2x12P (24 pins) straight header
● Dual-row, right spacing for high-density design
● Through-hole for robust mechanical support
● Tin-plated contacts minimize oxidation
● Thermally stable Nylon 46 housing

Product Benefits
● Well-suited for compact module interfaces
● Cost-effective and reliable connections
● Long service life under industrial usage
● Smooth insertion and withdrawal
● Fire-resistant material for added safety

Product Applications
● Smart meter PCBs
● Sensor modules
● Medical diagnostic devices
● Wearable tech charging circuits
● Control signal boards
