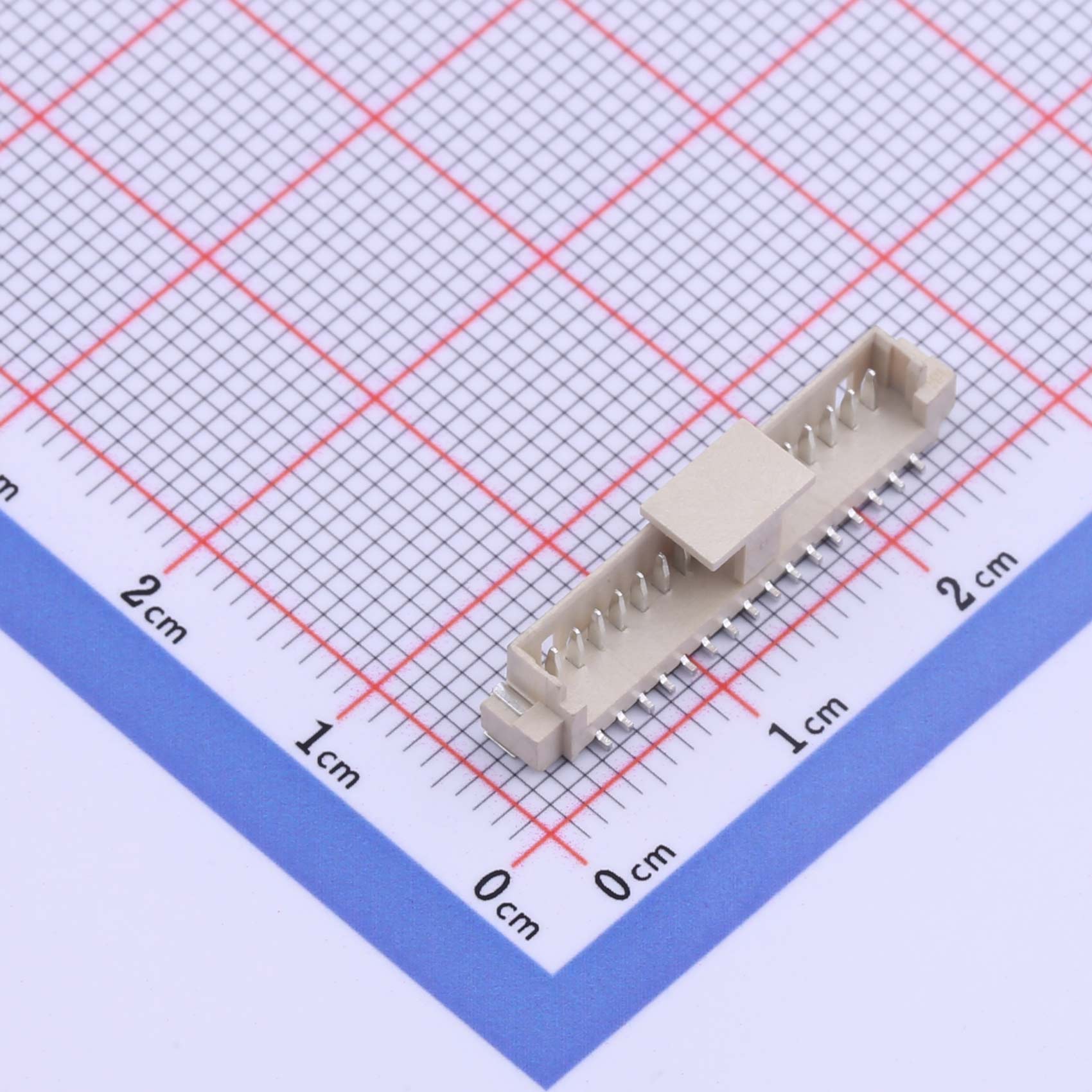

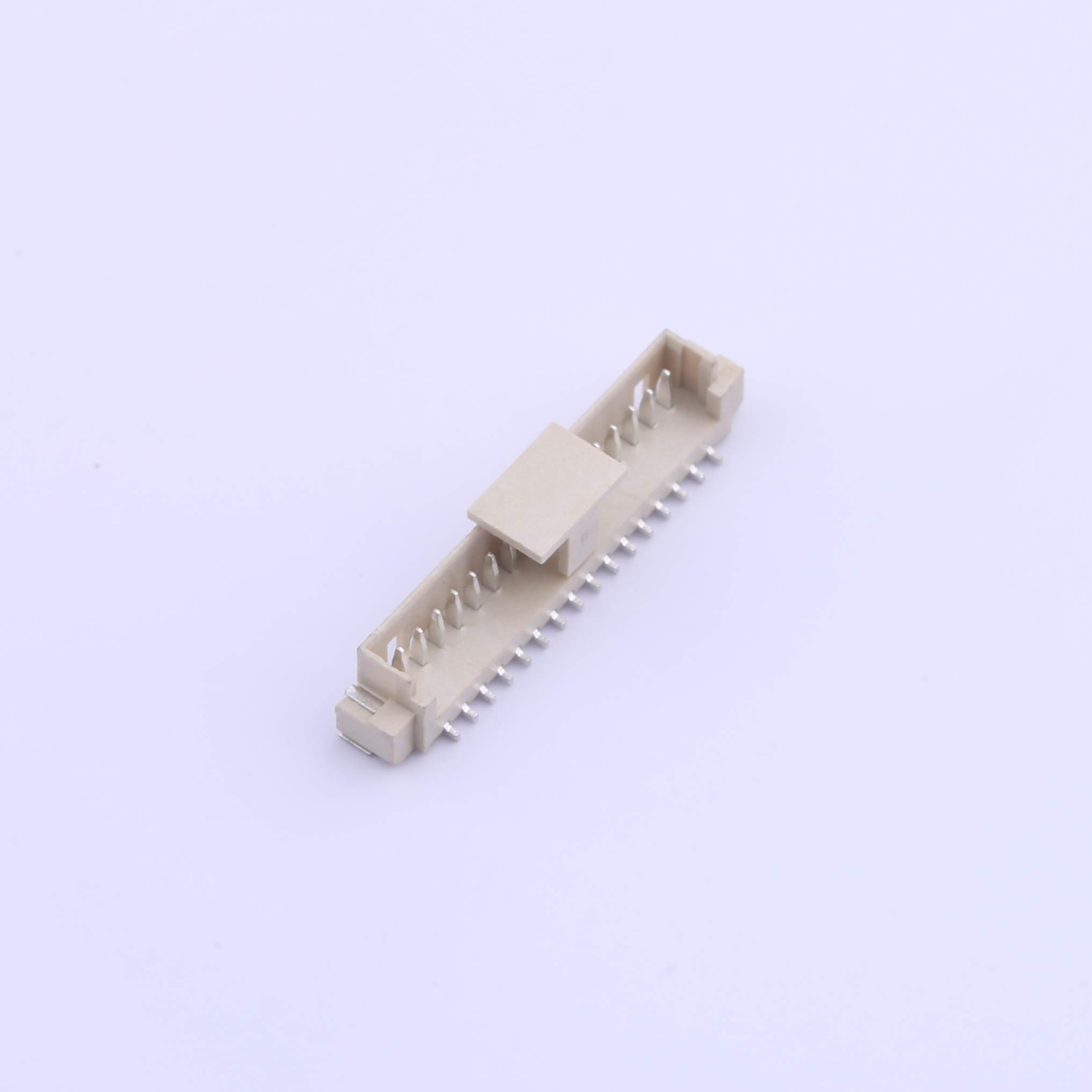

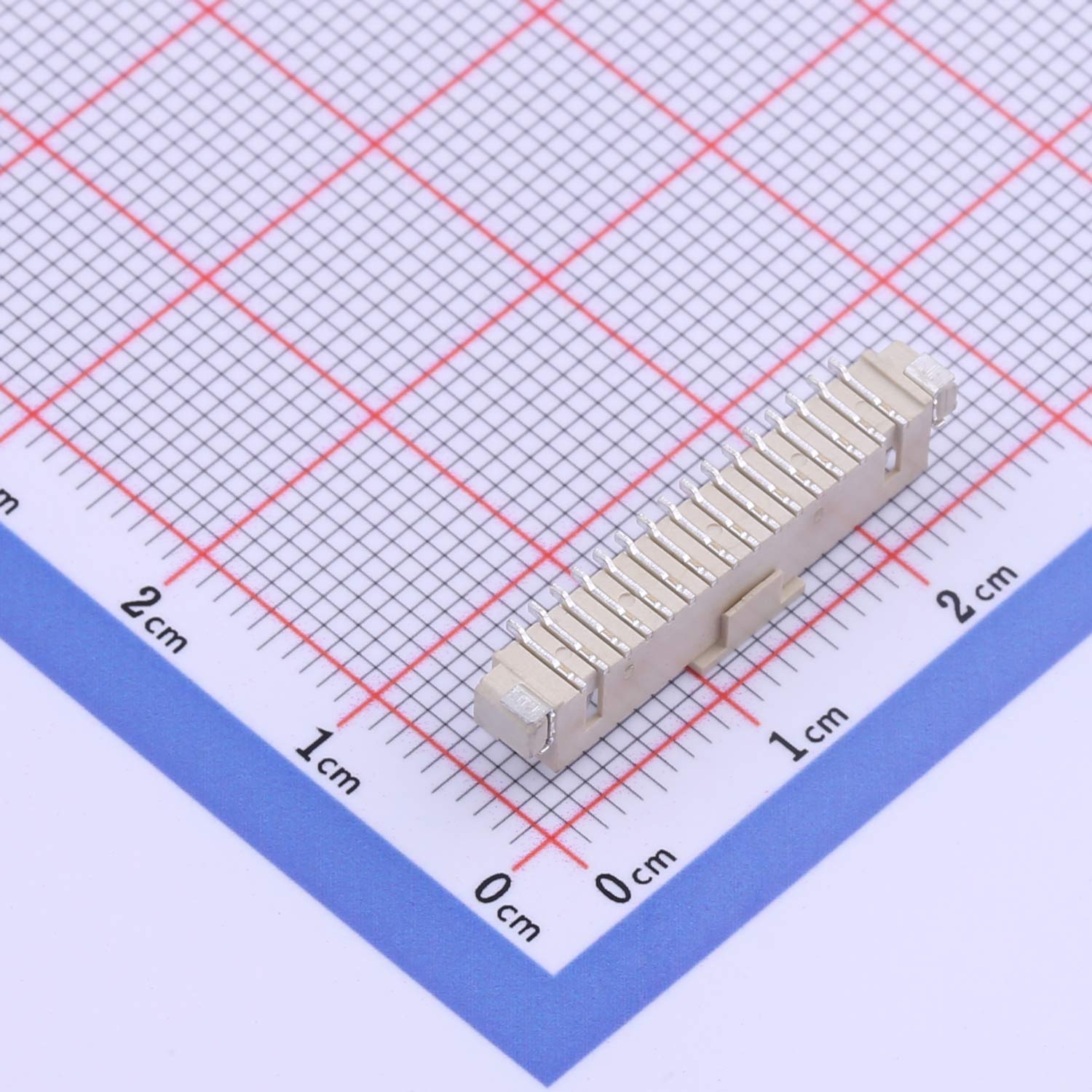

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, Vertical SMT, KH-A1251LF-16A
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch spacing
● 16-pin vertical SMT
● Compact low profile design
● Tin plated contact surface
● High temperature plastic
Product Benefits
● Saves PCB space
● Stable secure connection
● Low contact resistance
● Easy SMT assembly
● Durable in harsh use
Product Applications
● Consumer electronic devices
● Smart home systems
● LED control boards
● Industrial control modules
● Portable handheld units
