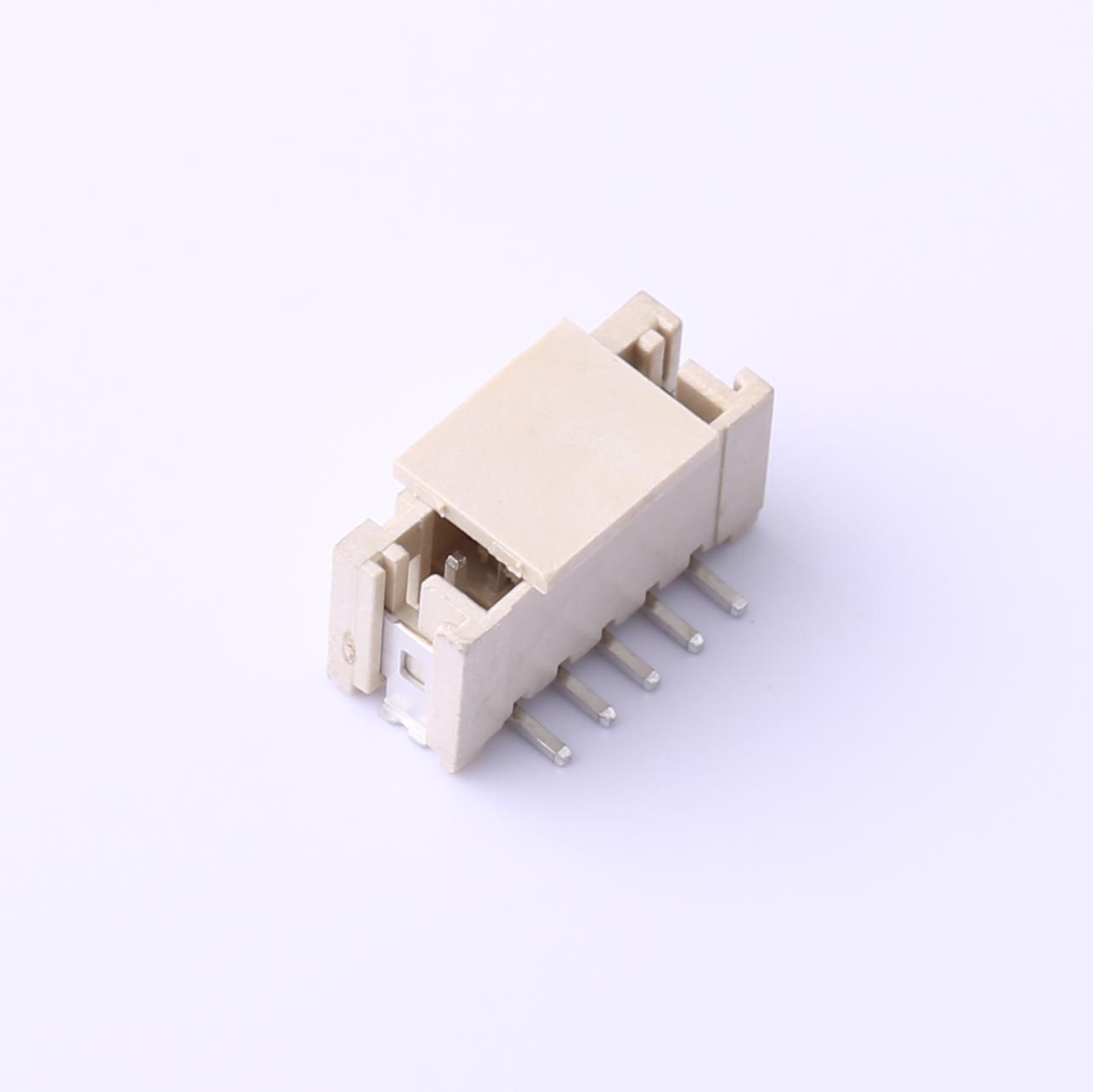

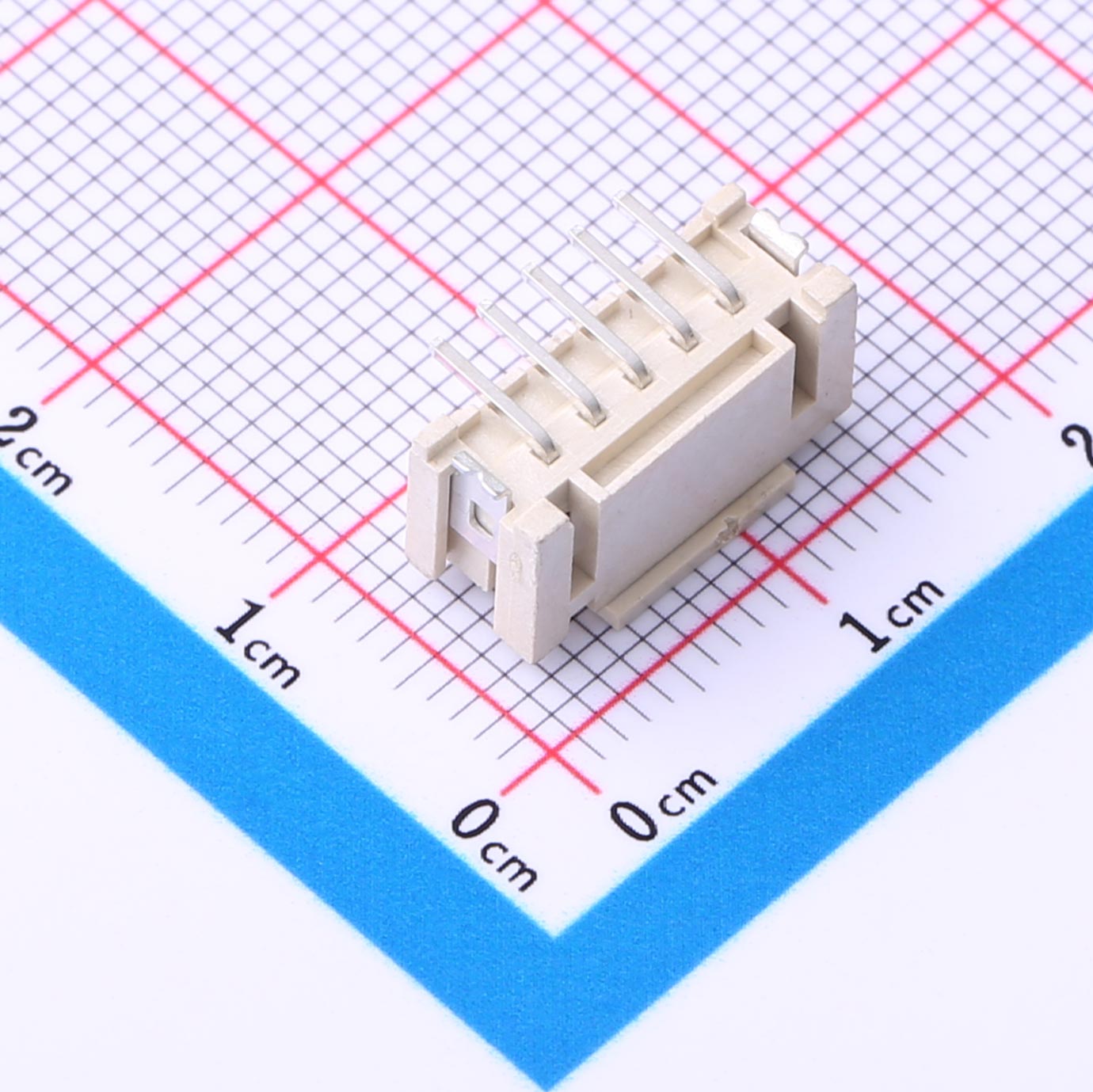

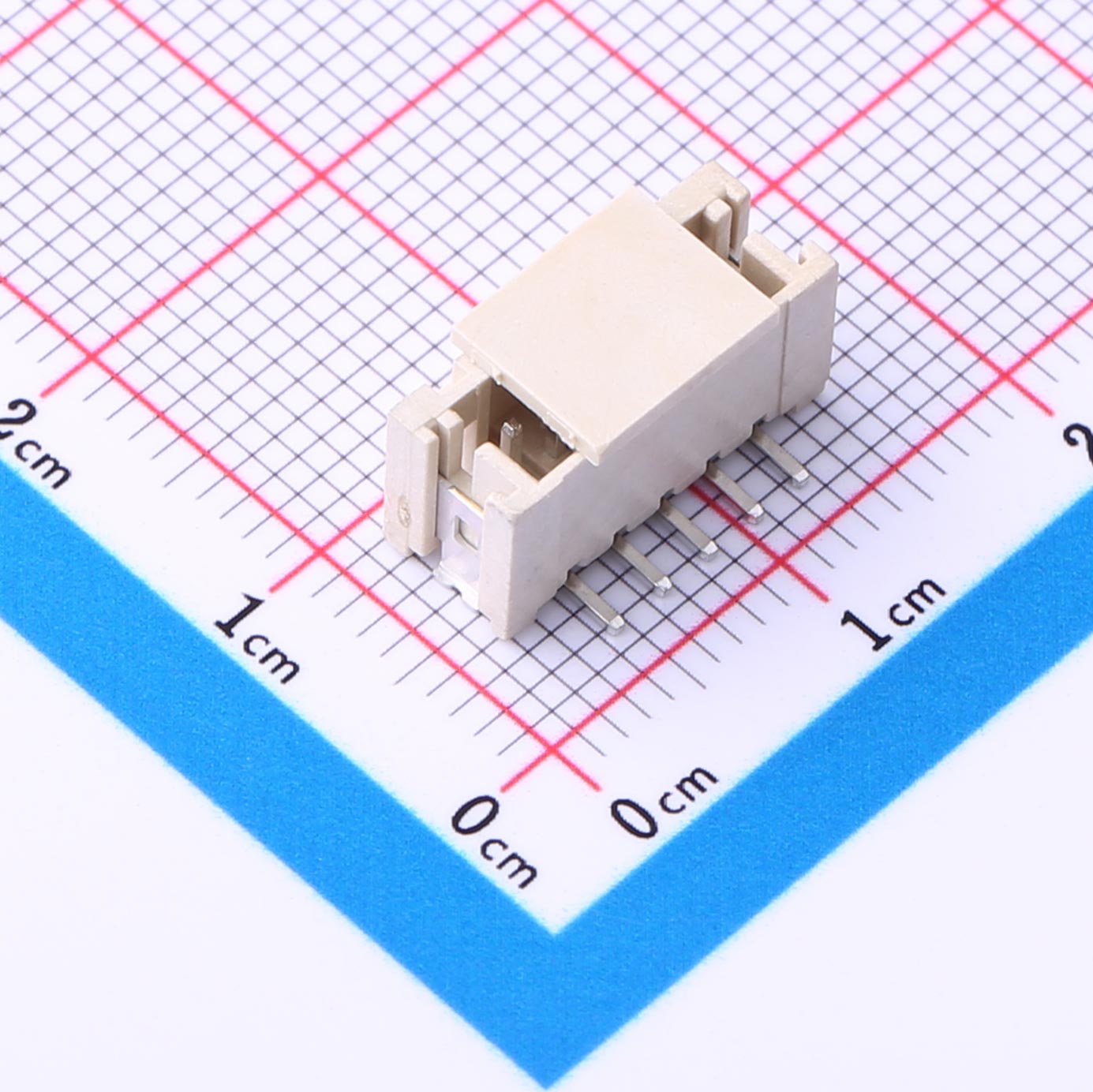

Wire-to-Board Connector, 2mm Pitch, 1x5P, Vertical SMT, KH-A2001LF-5A

Wire-to-Board Connector, 2mm Pitch, 1x5P, Vertical SMT, KH-A2001LF-5A

Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch for tight spacing
● 1x5P single-row pin layout
● Surface-mount technology (SMT)
● Vertical mounting for top-entry mating
● Voltage rating: 250V AC/DC
● Current rating: 2A
● Operating temperature: -25℃ to +85℃
● PH series compatible interface

Product Benefits
● Reduces PCB footprint with compact pitch
● Simplifies wiring with 5-pin configuration
● Ideal for automated SMT production lines
● Provides stable electrical connection
● Operates reliably in standard environments
● Easily pairs with widely used PH series cables

Product Applications
● Compact consumer devices
● LED drivers and light modules
● Small home appliances
● Communication terminals
● Industrial signal interface boards
● Electronic development kits
