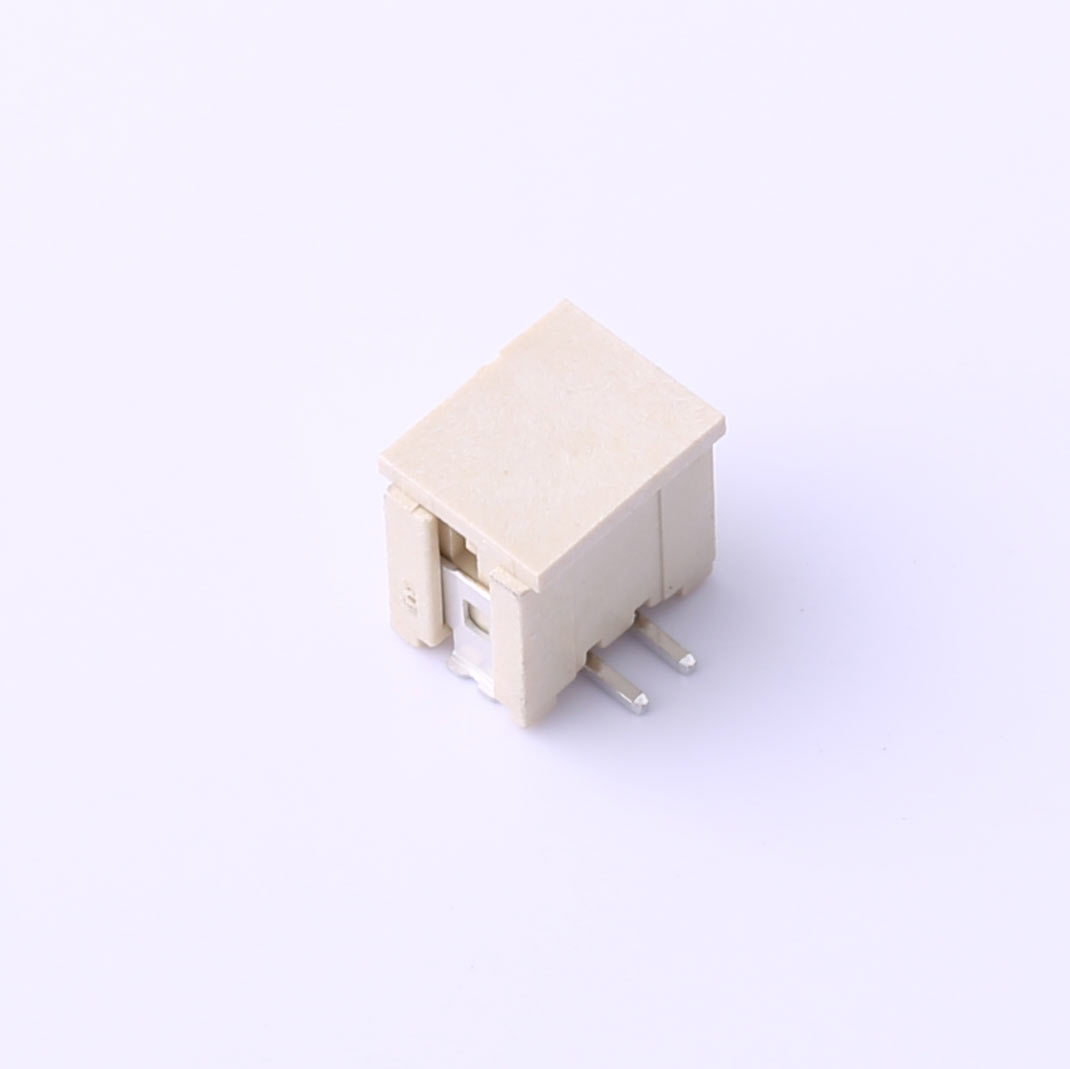

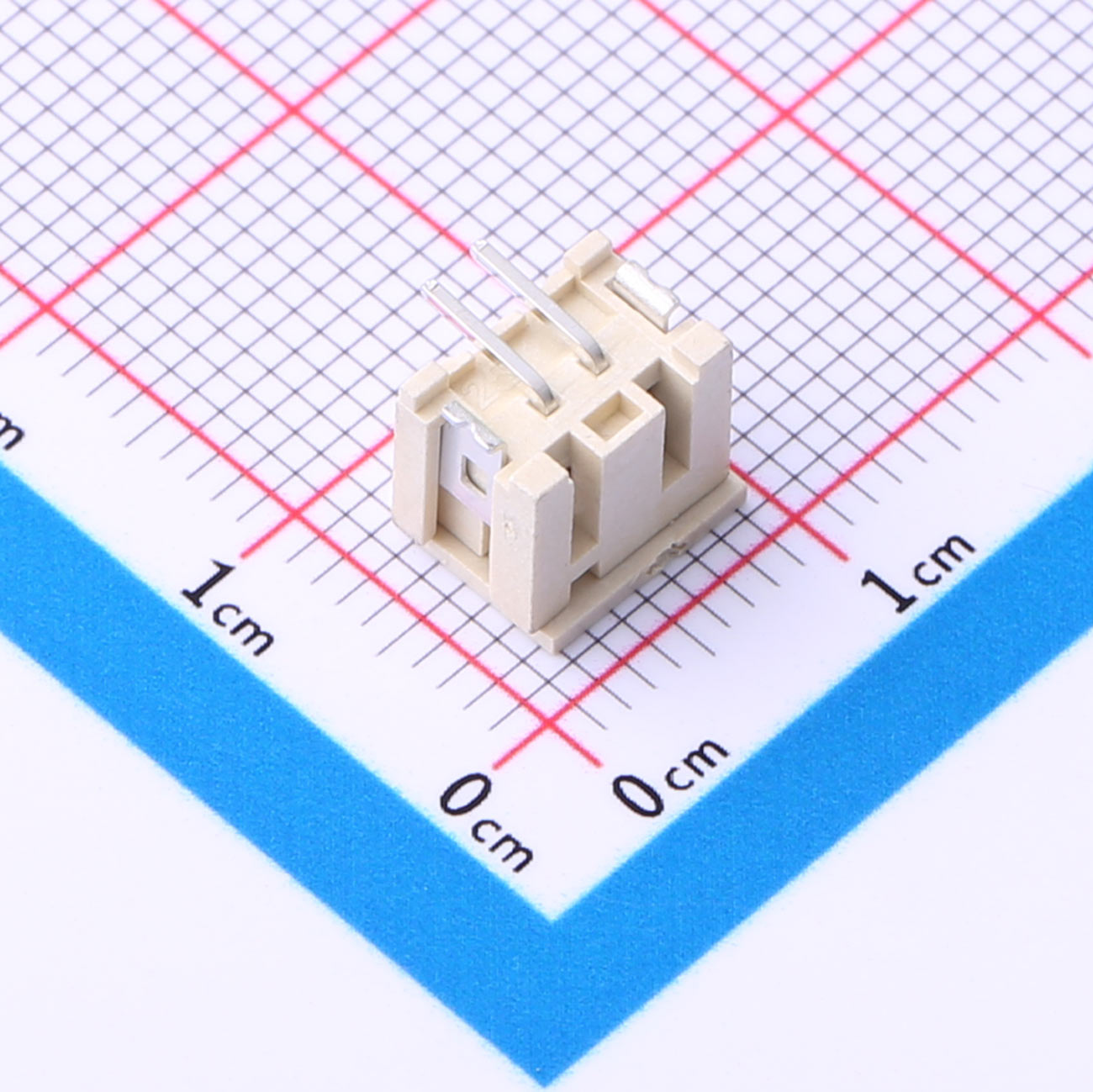

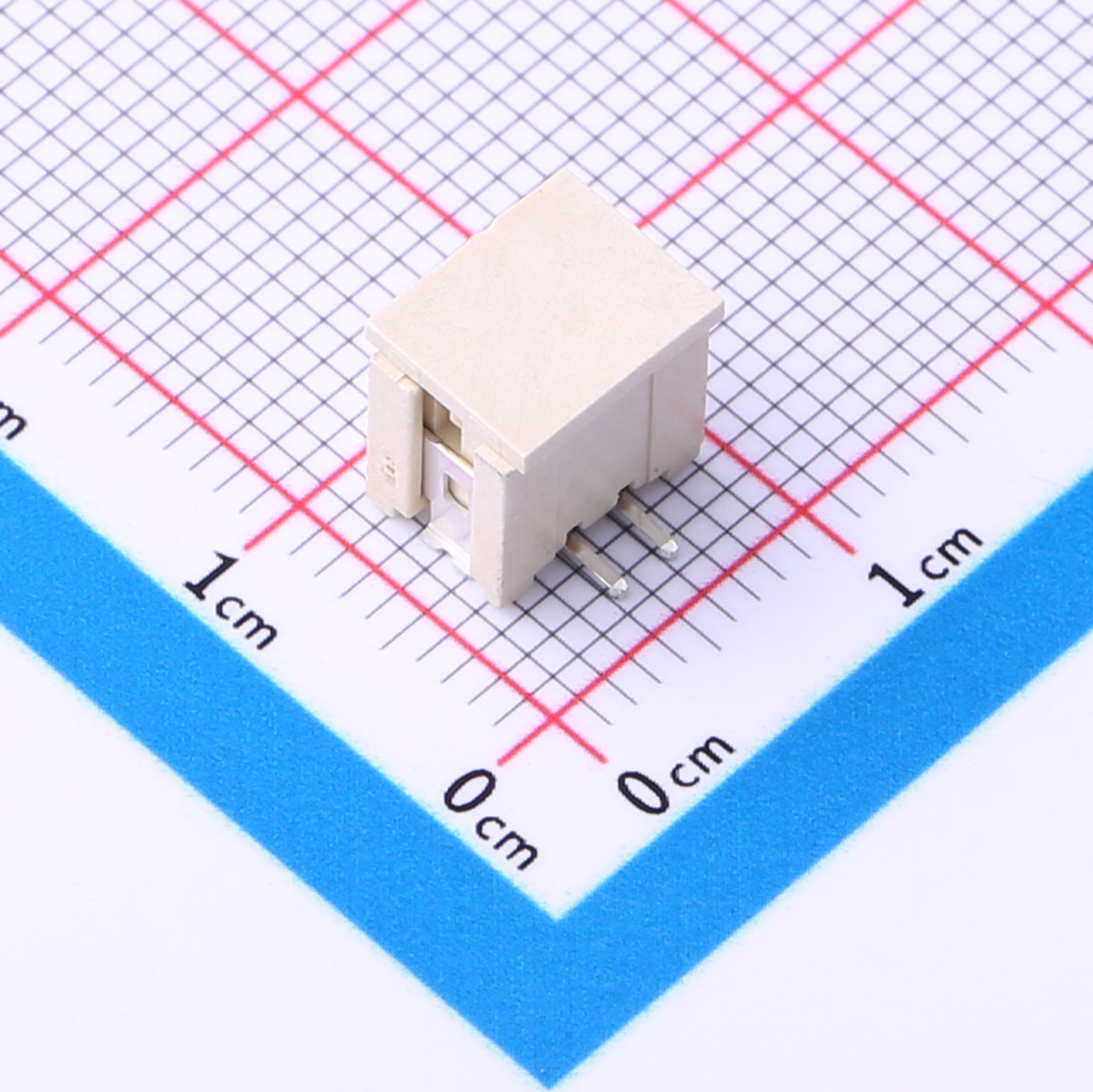

Wire-to-Board Connector, 2mm Pitch, 1x2P, Vertical SMT, KH-A2001LF-2A

Wire-to-Board Connector, 2mm Pitch, 1x2P, Vertical SMT, KH-A2001LF-2A

Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch for high-density layouts
● 1x2P single-row configuration
● Surface-mount type (SMT)
● Vertical mount for efficient cable connection
● Voltage rating: 250V AC/DC
● Current rating: 2A
● Operating temperature: -25℃ to +85℃
● PH series compatible interface

Product Benefits
● Ideal for limited-space PCB applications
● Basic 2-pin setup for simple power or signal lines
● Supports high-efficiency automated assembly
● Maintains secure electrical contact
● Functions reliably in standard conditions
● Compatible with standard PH connectors

Product Applications
● Battery connectors
● LED light modules
● Small electronic gadgets
● Signal transmission in compact circuits
● Embedded control systems
● Wearable or handheld devices
