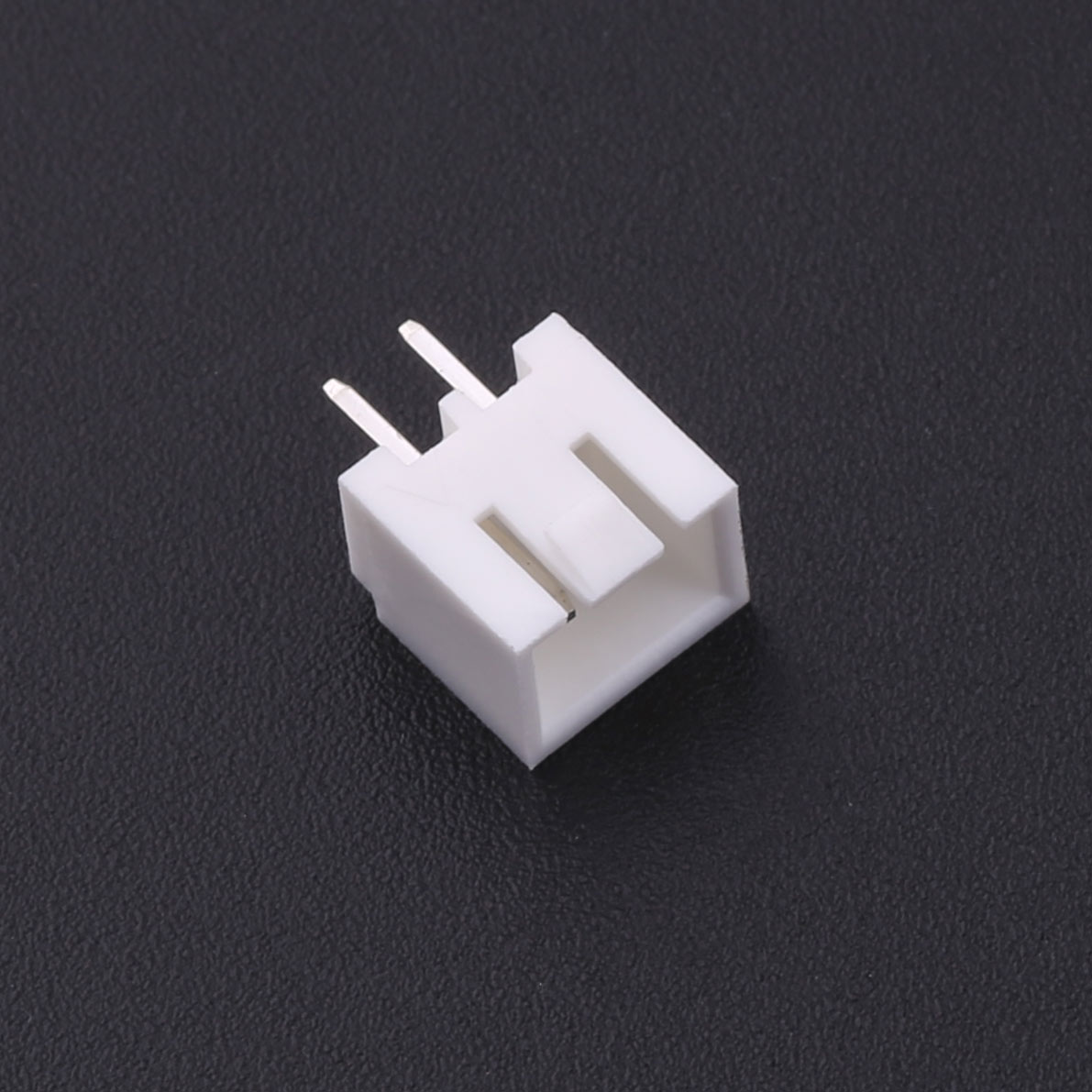

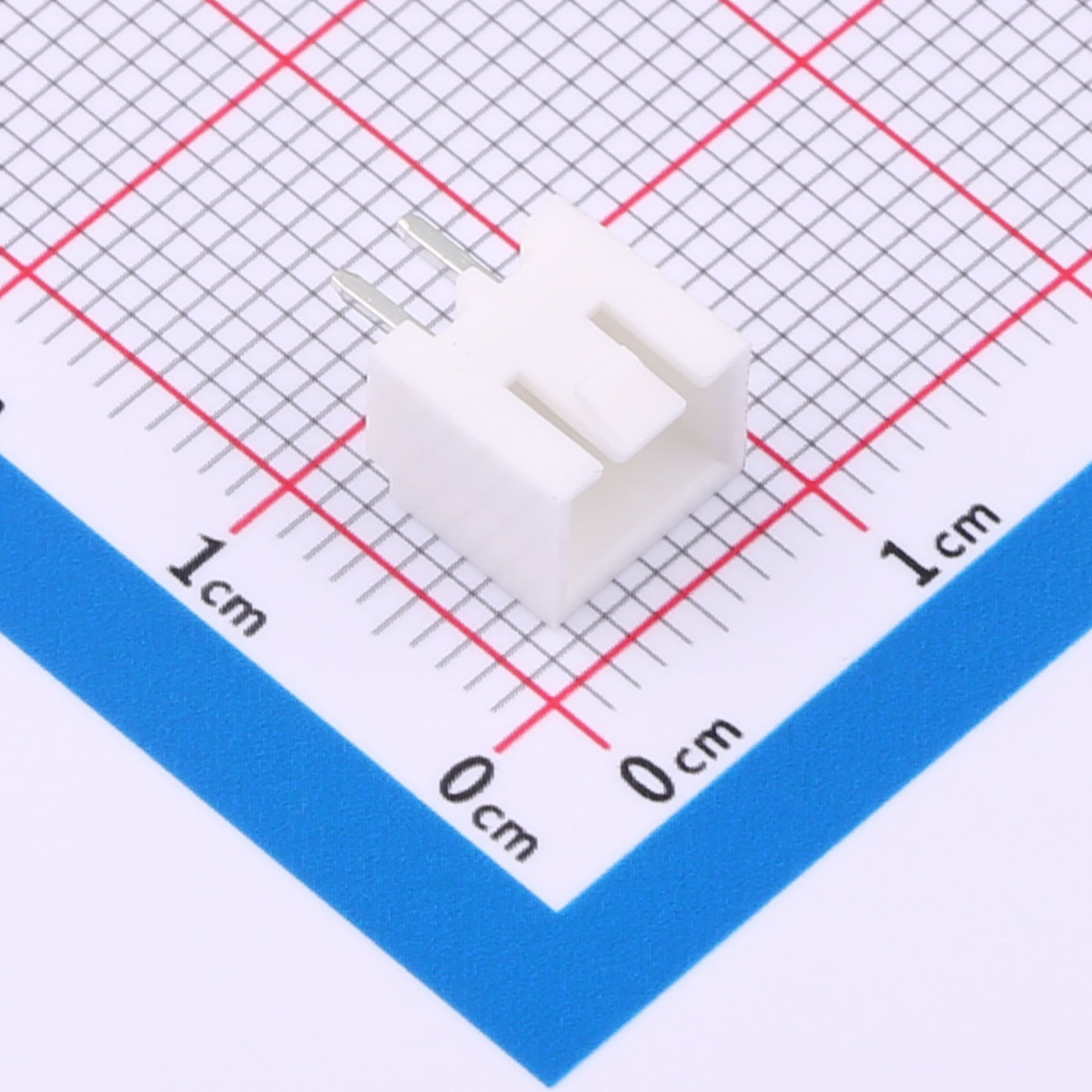

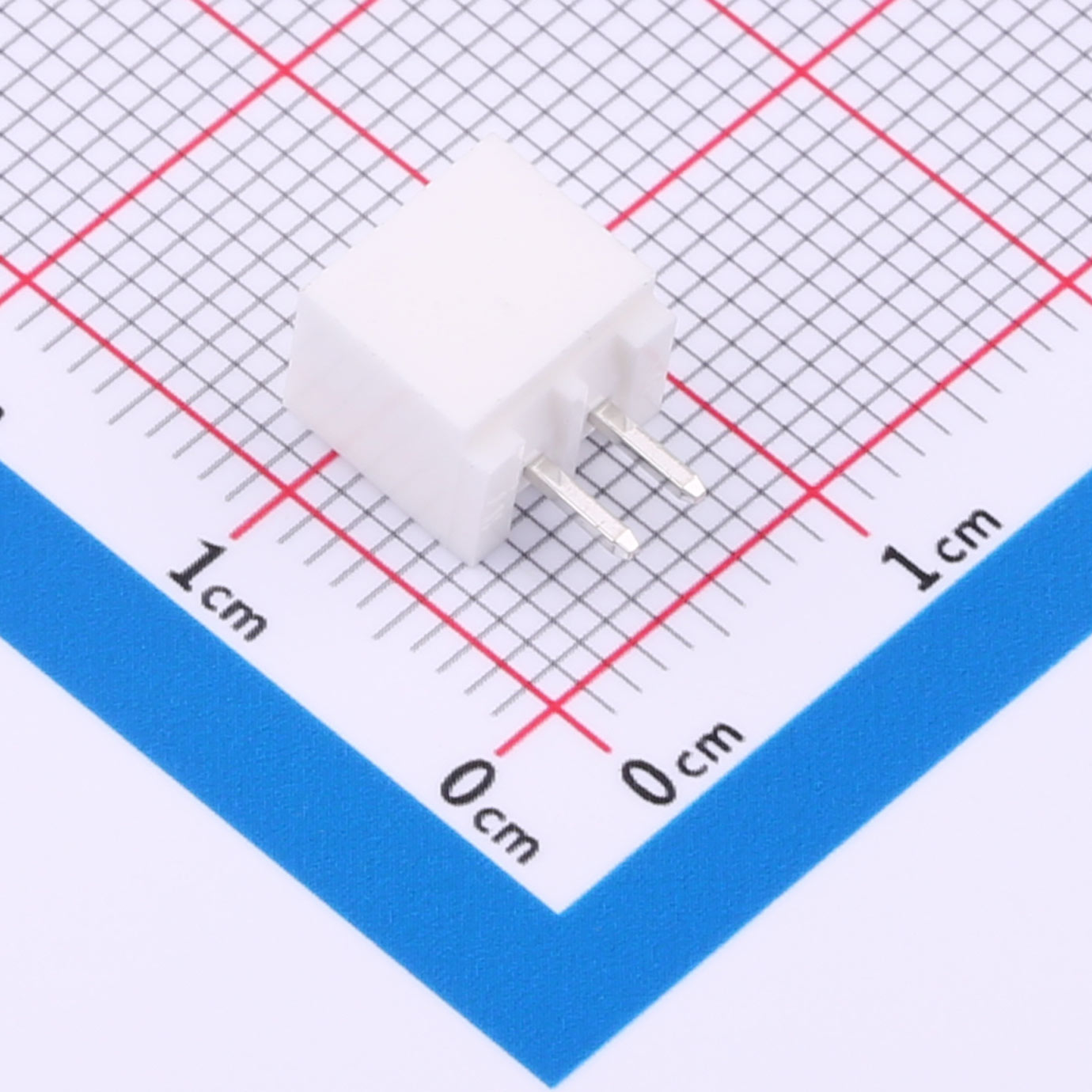

2.54mm Pitch Wire-to-Board Connector, 1x2P, KH-A2504-02A

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Product Details

Product Features
● 2.54mm pitch single-row board-to-board connector
● 2 pins configuration
● White plastic housing
● HA straight pins with locking mechanism

Product Benefits
● Compact design for minimal space usage
● Reliable connections with locking feature for security
● Ideal for low-current signal transmission
● Suitable for small-scale and portable devices

Product Applications
● Telecommunications and networking systems
● Consumer electronics
● Industrial modules
● Automotive sensor interfaces
