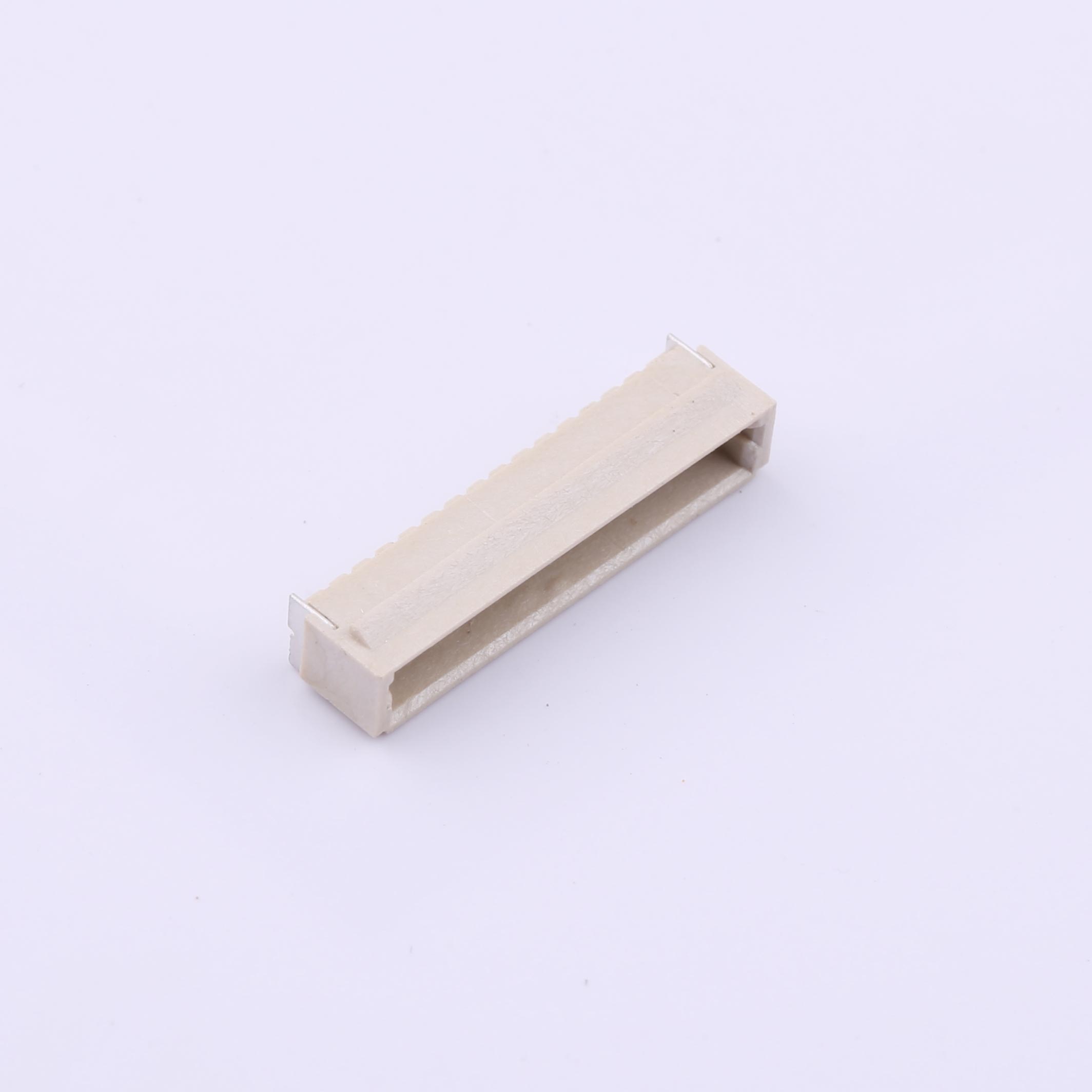

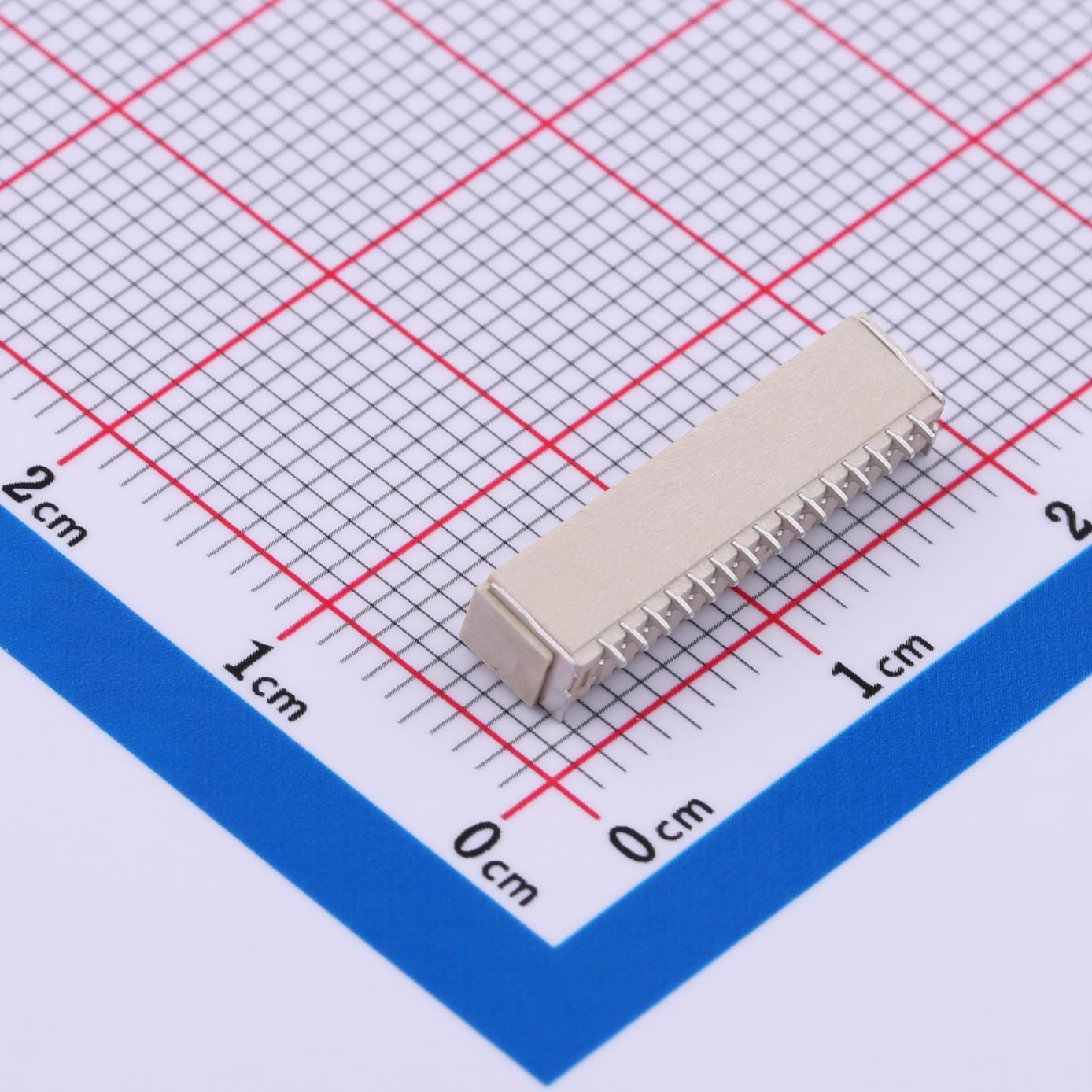

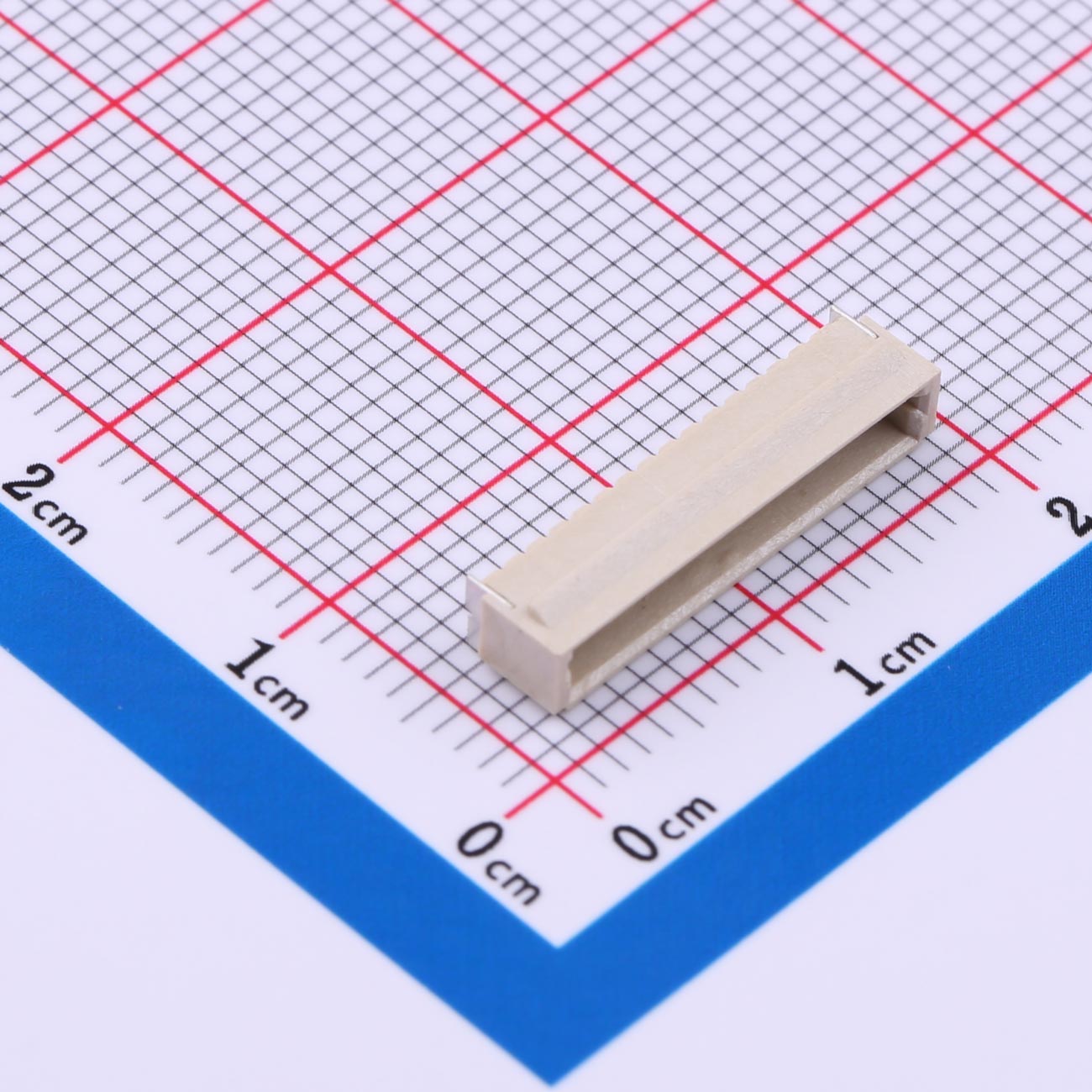

Wire-to-Board Connector, 1mm Pitch, 1x15P, SMD, KH-A1000RSL-15P

Wire-to-Board Connector, 1mm Pitch, 1x15P, SMD, KH-A1000RSL-15P

Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ

Inquiry Datasheet

Product Details

Product Features
● 1.00mm pitch, 1x15 positions
● Horizontal mount (right-angle) SMD type
● Low-profile and compact design
● Rated current: 1A AC/DC
● Rated voltage: 50V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS compliant

Product Benefits
● Saves PCB space with horizontal layout
● Ideal for SMT assembly processes
● Ensures reliable signal and power transmission
● Secure mating with stable contact
● Durable performance in compact electronics
● Easy to align and solder
● Cost-effective connector solution

Product Applications
● Consumer electronics
● Wearable and handheld devices
● Communication modules
● Industrial control boards
● IoT and smart devices
● Portable medical instruments
● Low-voltage battery interfaces
