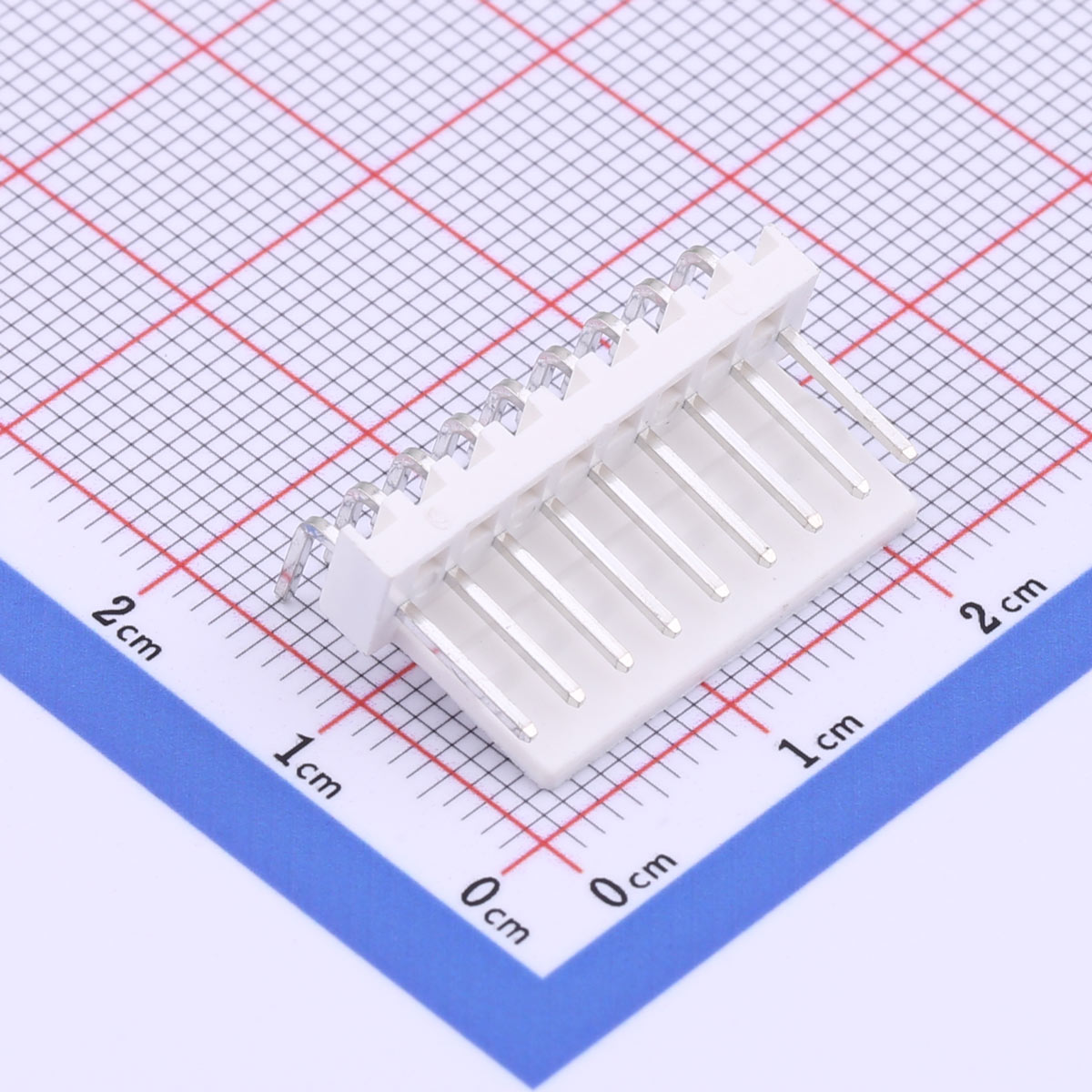

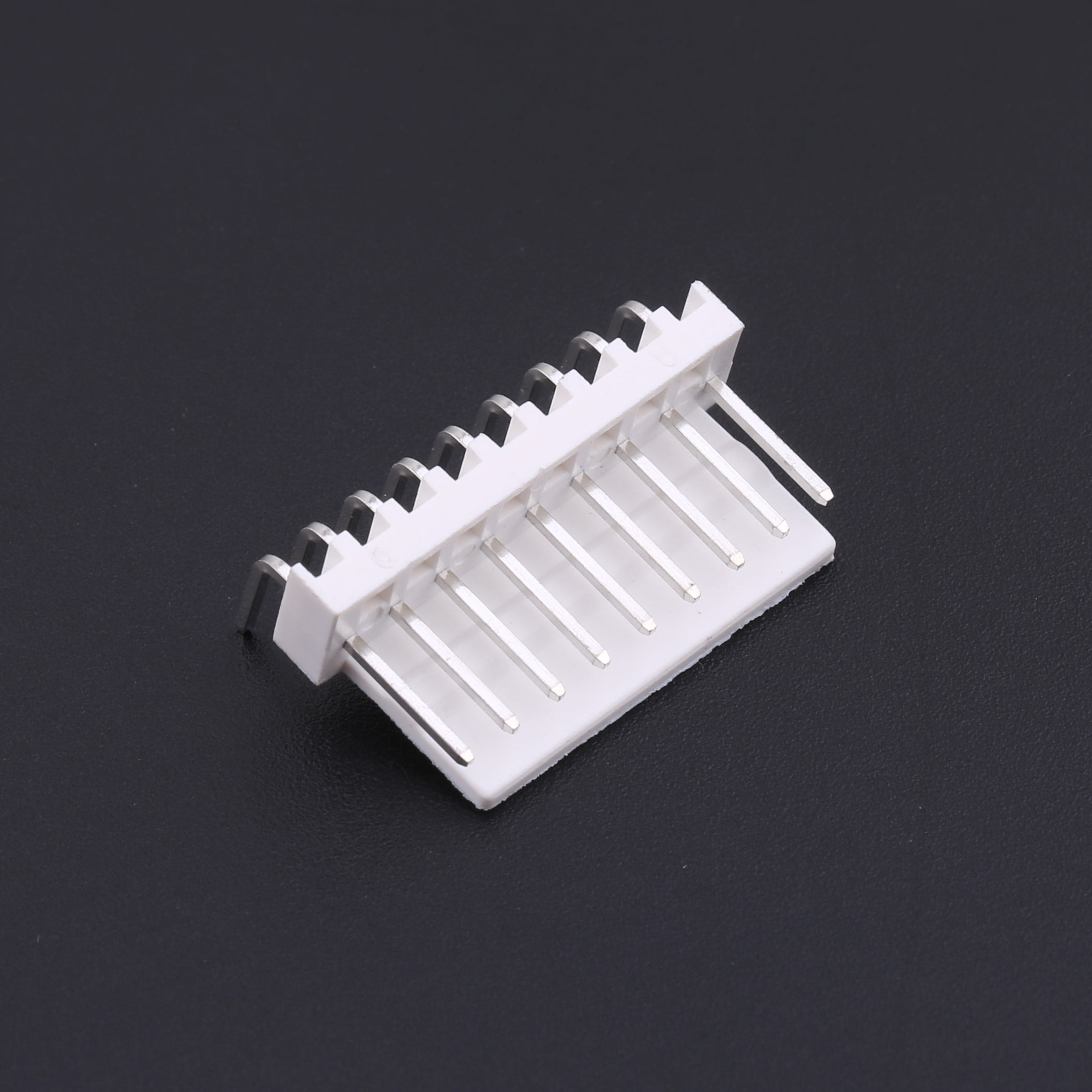

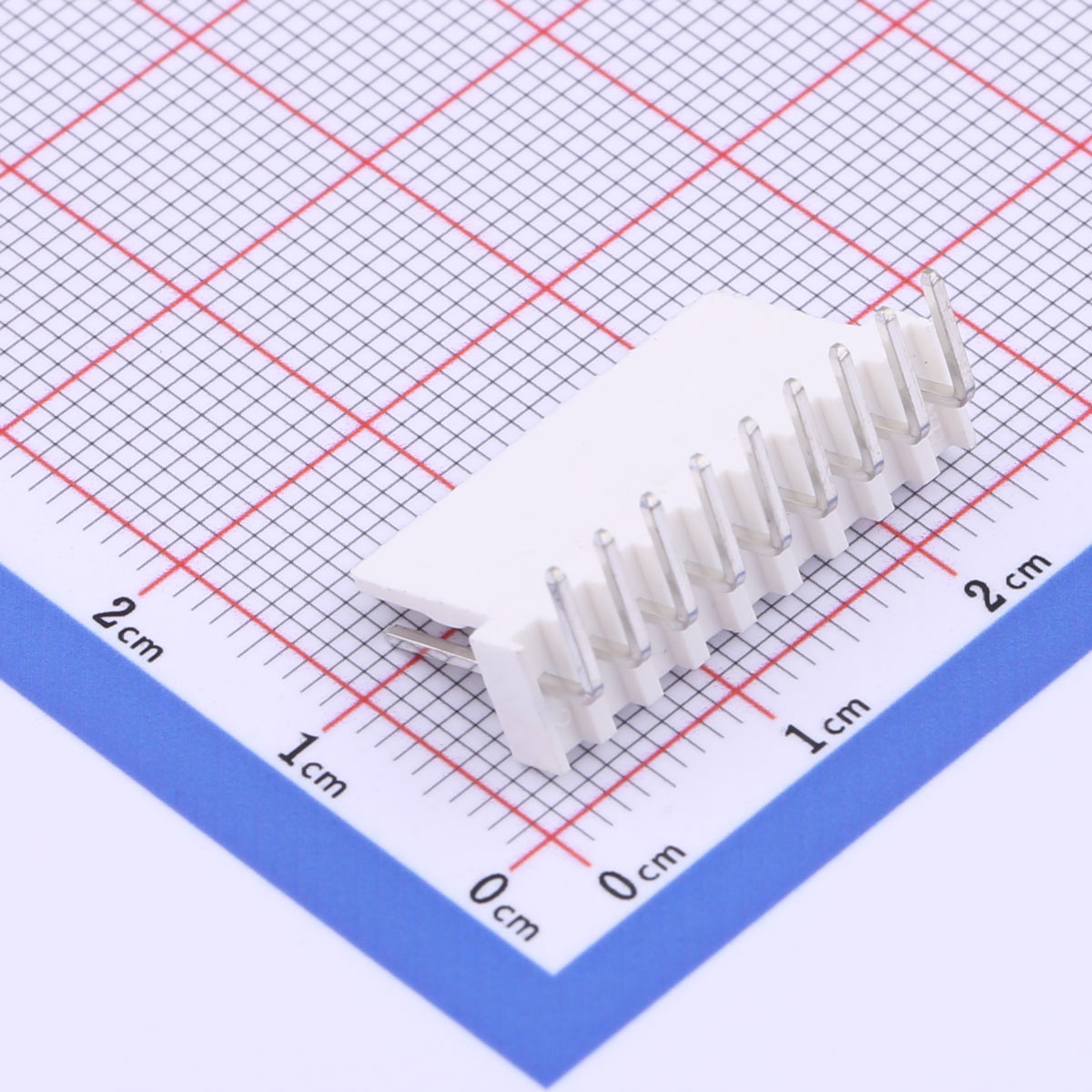

Wire-to-Board Connector, 2.54mm Pitch, 1x9P, KH-HX2.54-09GW

Wire-to-Board Connector, 2.54mm Pitch, 1x9P, KH-HX2.54-09GW

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

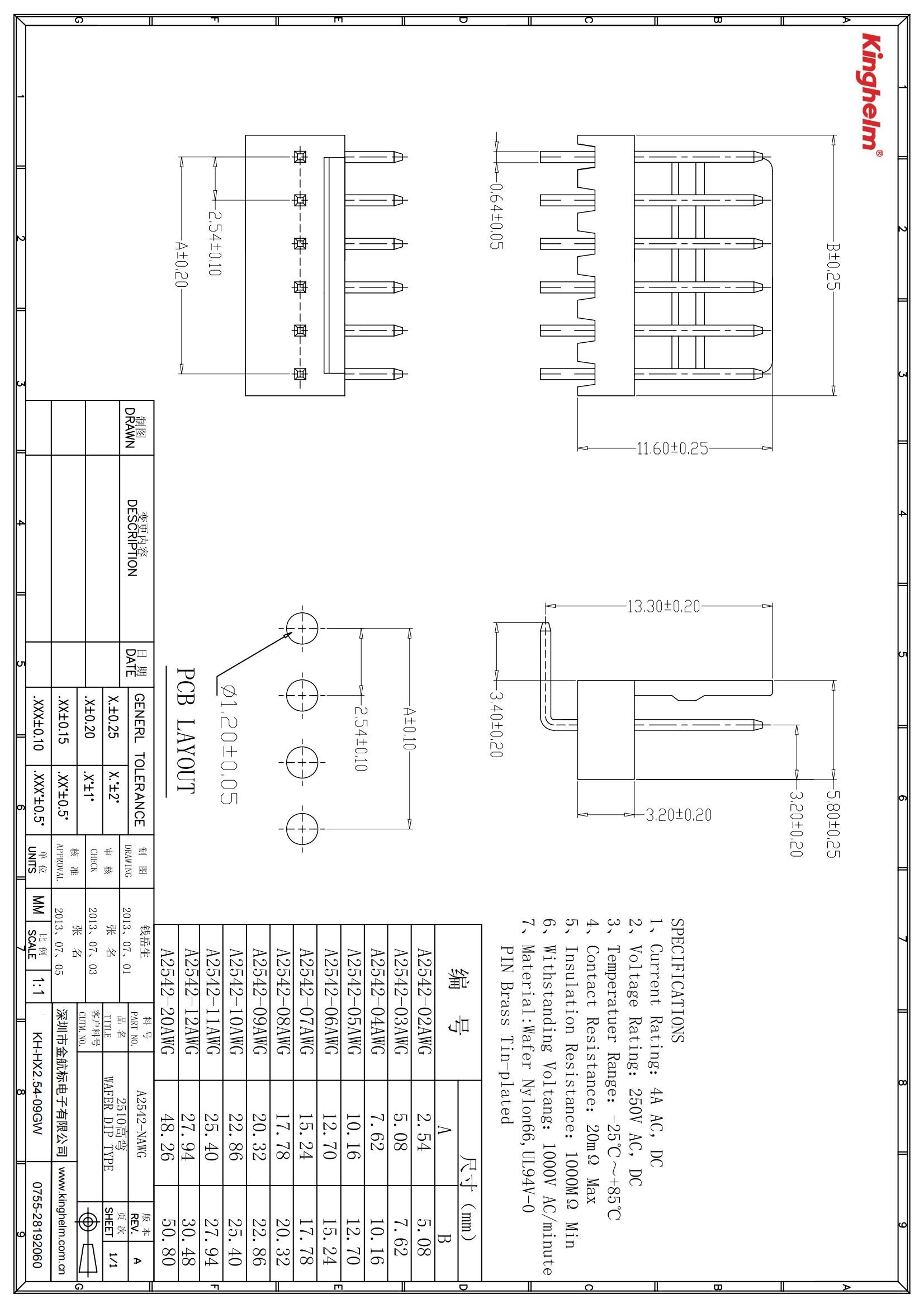

Inquiry Datasheet

Product Details

Product Features
● 9-pin, single-row connector
● 2.54mm pitch spacing
● Right-angle PCB mount type
● Rated for 4A current, 250V voltage
● Tin-plated contacts, RoHS compliant

Product Benefits
● Compact and efficient layout
● Stable connection for AC/DC signals
● Easy to solder on horizontal boards
● Durable for repeated mating cycles
● Enhanced conductivity and protection

Product Applications
● LED lighting fixtures
● Smart home devices
● Industrial control panels
● Communication hardware
● Consumer electronics
