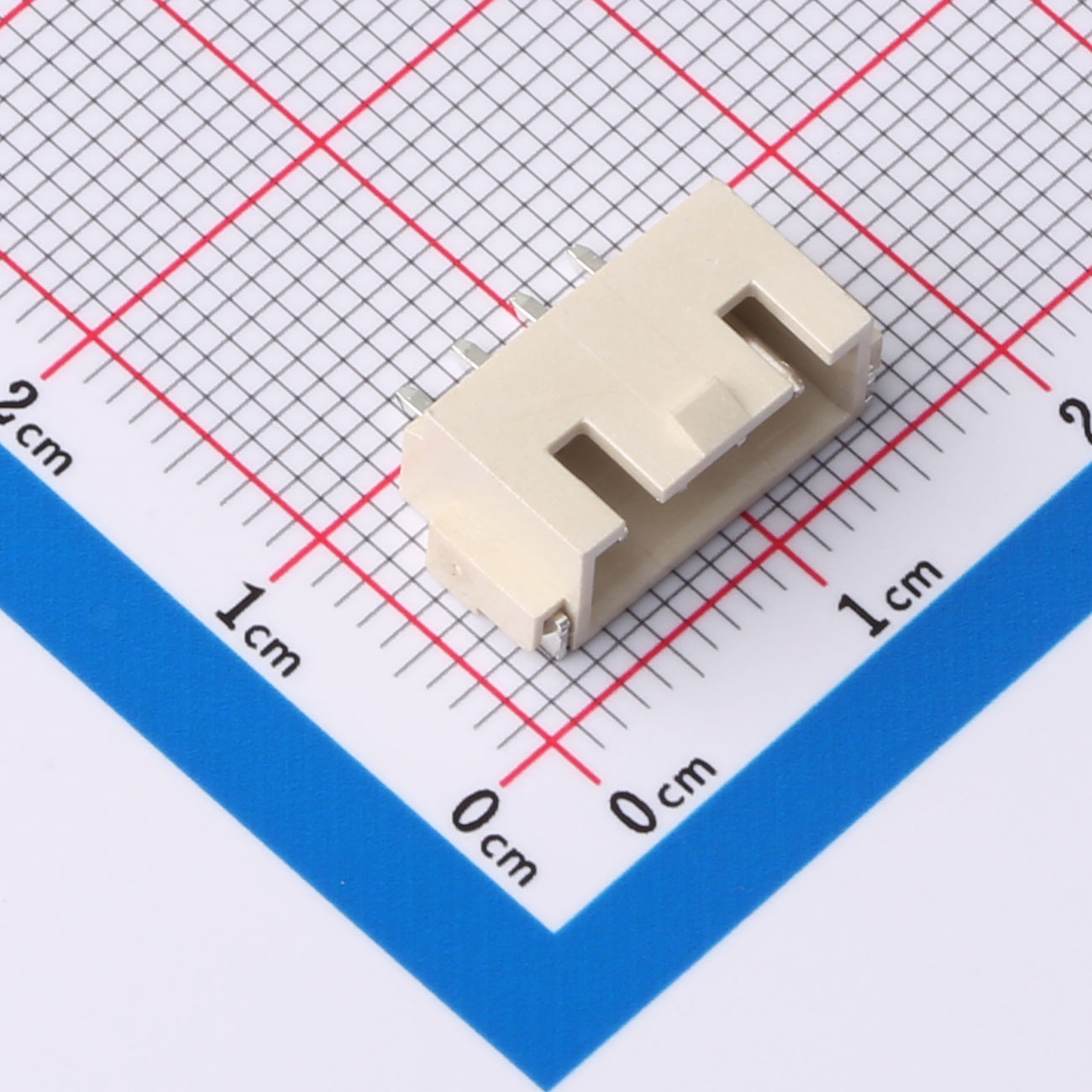

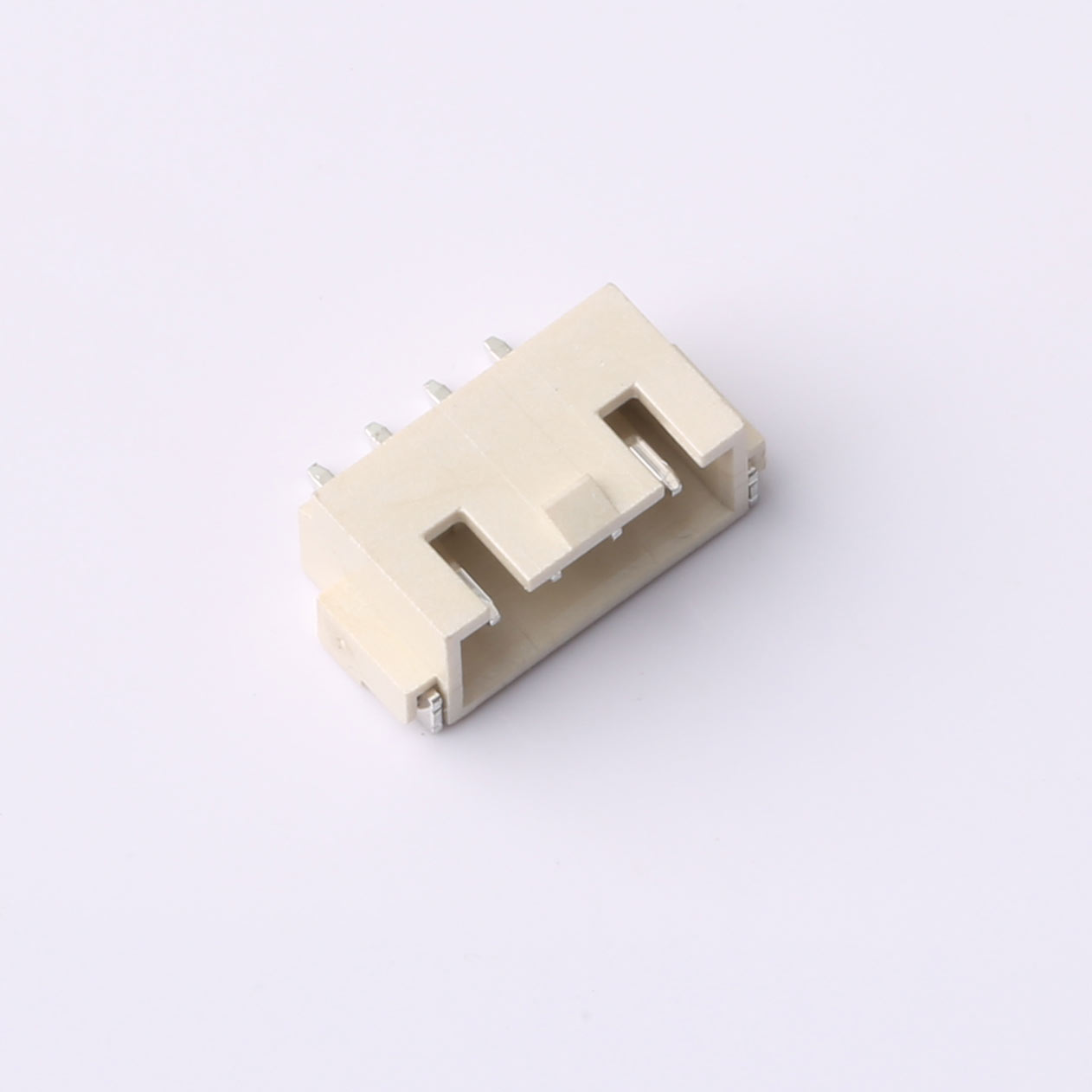

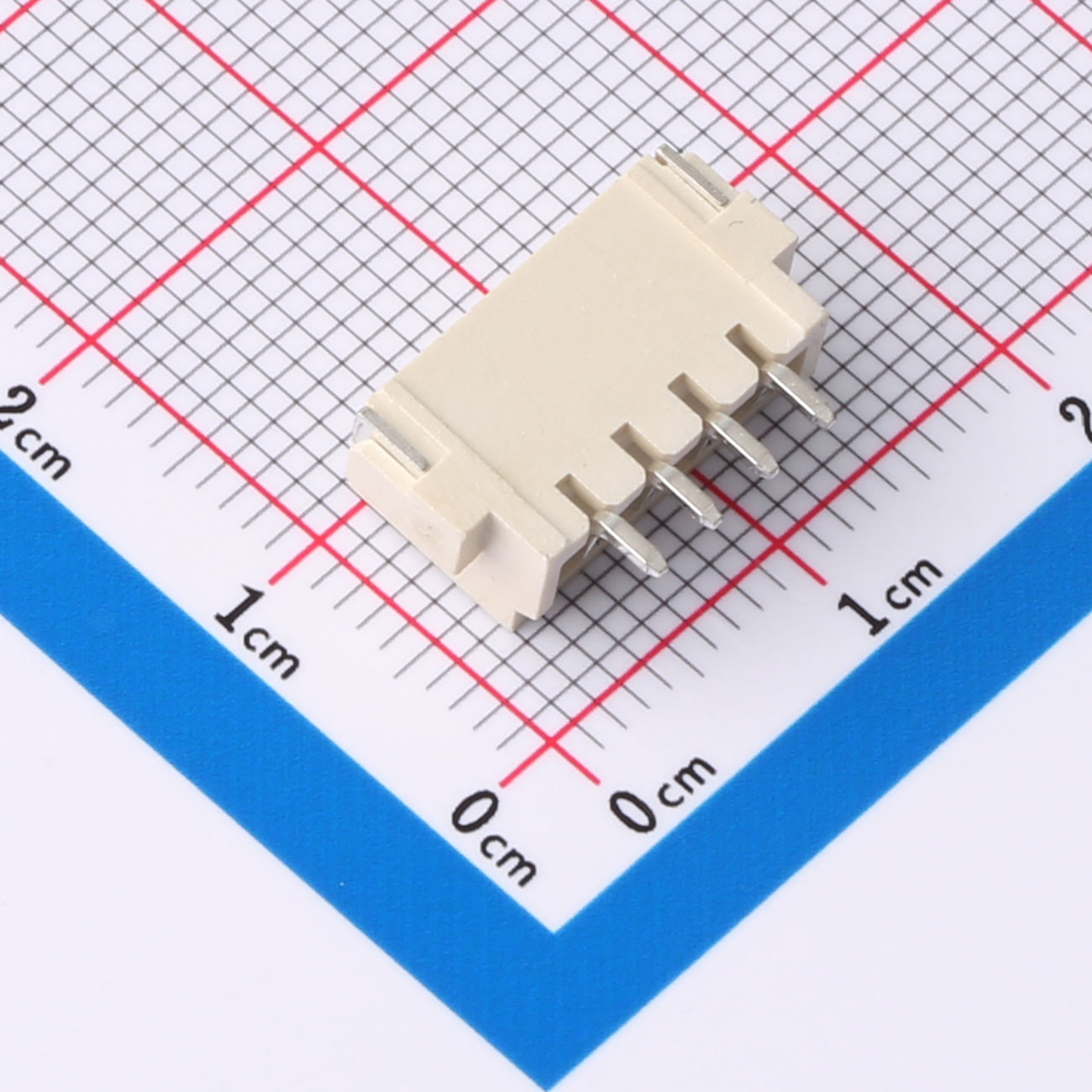

2.54mm Pitch Wire-to-Board Connector, 1x4P, SMD, KH-A2504-04AWB

2.54mm Pitch Wire-to-Board Connector, 1x4P, SMD, KH-A2504-04AWB

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm standard pitch
● 4-pin single-row layout
● Horizontal SMT type (flat-mounted on PCB)
● Rated for 3A current, 250V AC/DC
● Operating temperature: -25℃ to +85℃

Product Benefits
● Space-saving design for 4-pin connections
● Ideal for low-density and compact PCB layouts
● Stable and reliable contact performance
● Suitable for SMT production automation
● Low contact resistance for quality connections

Product Application
● Small power modules
● Embedded electronic systems
● Communication hardware
● Industrial control devices
● Consumer electronics
