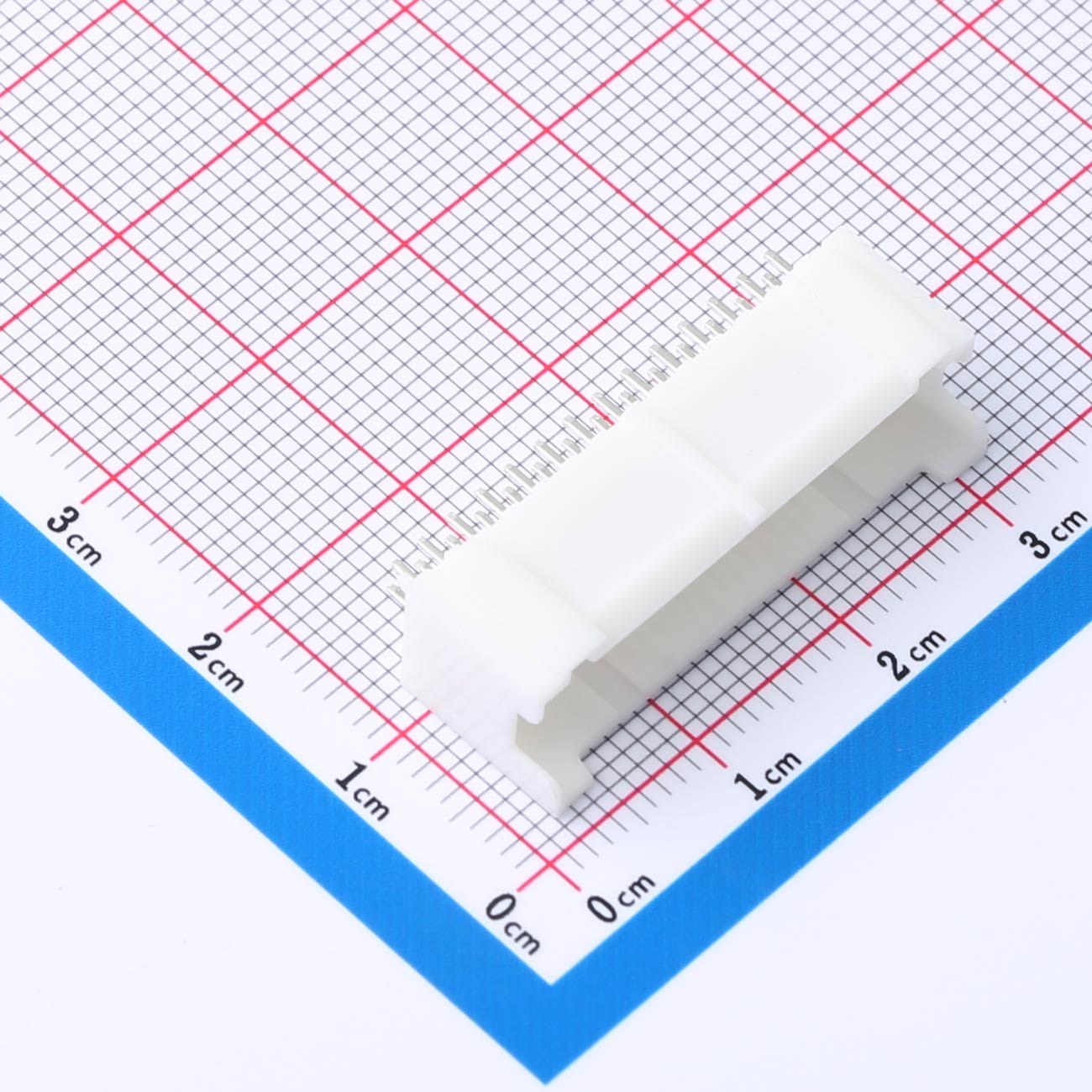

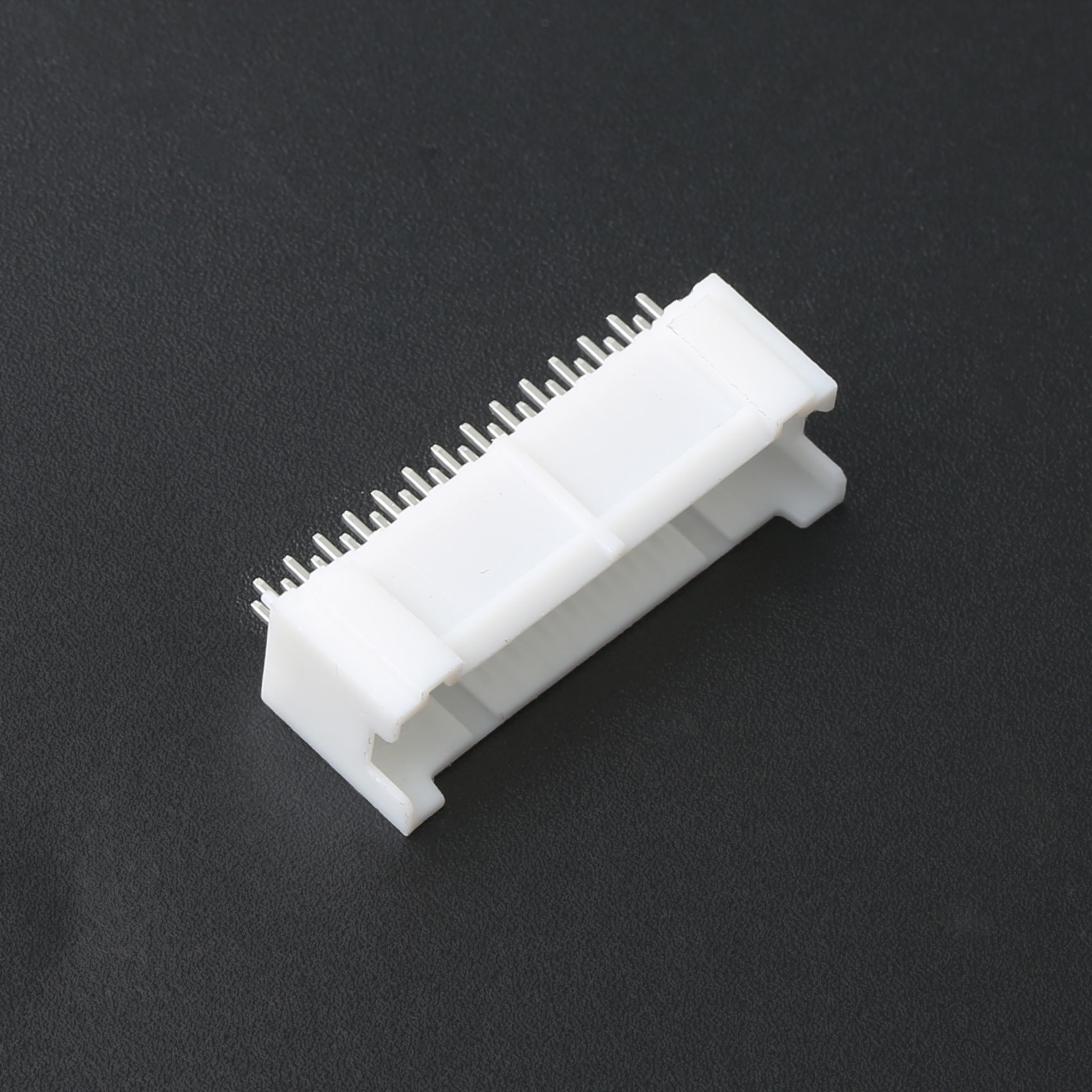

2mm Pitch Wire-to-Board Connector, 14-Pin 2-Row Straight Pin, KH-A2015-2X14A

2mm Pitch Wire-to-Board Connector, 14-Pin 2-Row Straight Pin, KH-A2015-2X14A

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ

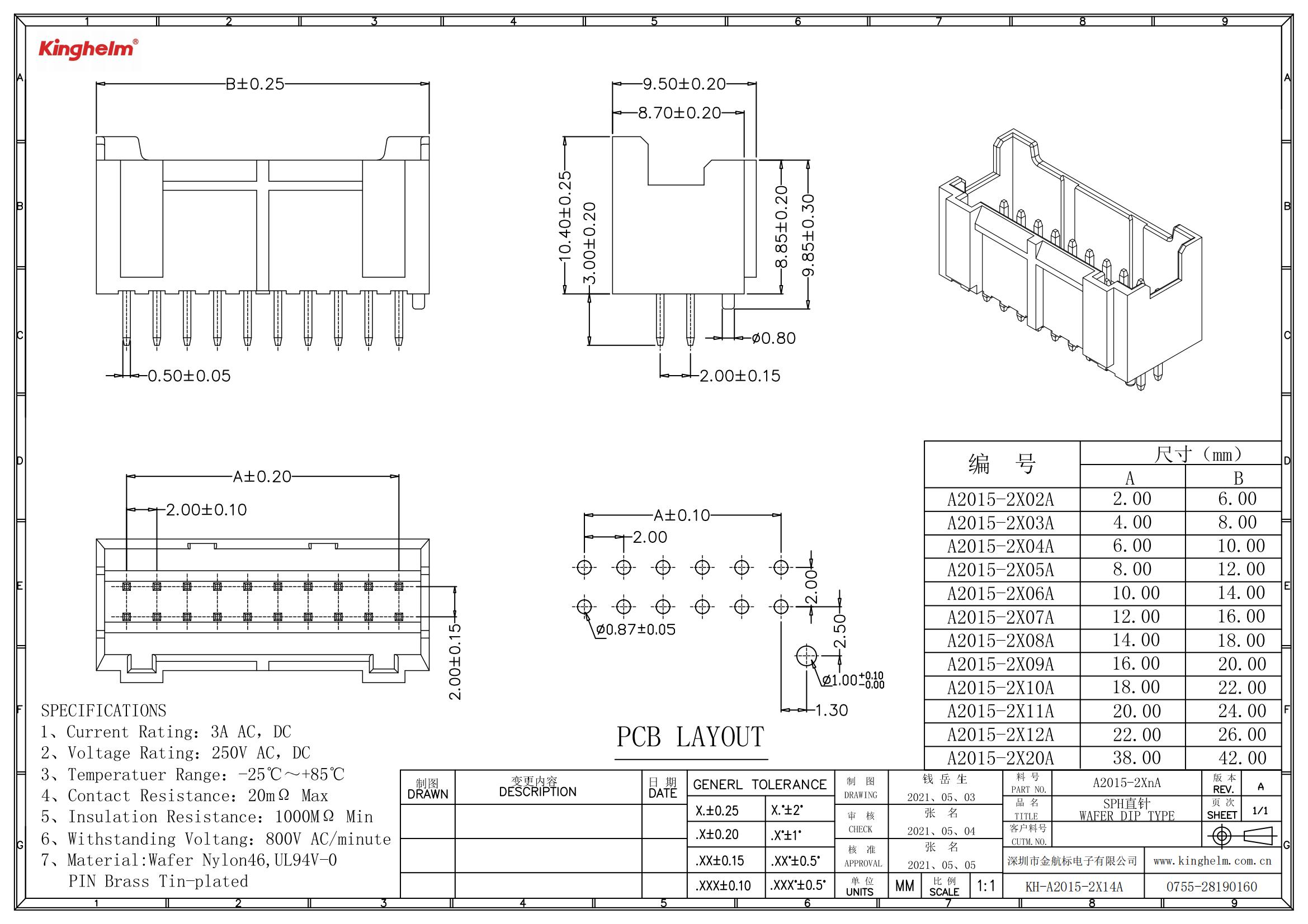

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch, 2x14P configuration (28 pins)
● Straight dual-row header for board connection
● Through-hole mounting ensures secure positioning
● Brass contacts with tin-plated surface
● Housing made from UL94V-0 Nylon 46

Product Benefits
● Suitable for medium-density PCB layouts
● High thermal and mechanical stability
● Excellent electrical conductivity
● Firm mounting reduces vibration failures
● Ideal for mixed signal/power applications

Product Applications
● Robotics interface boards
● LED driver modules
● Consumer-grade circuit assemblies
● Test and measurement equipment
● Microcontroller expansion boards
