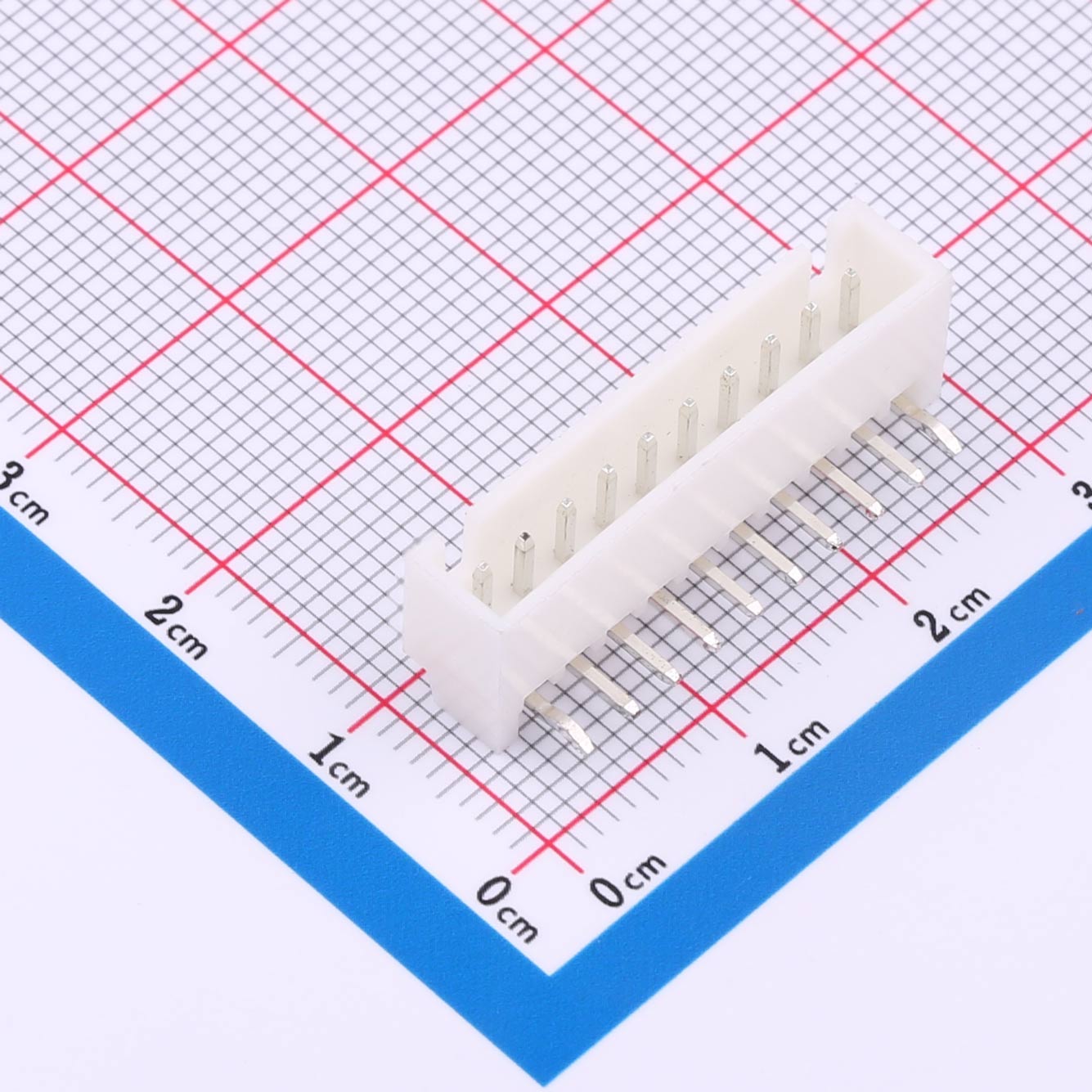

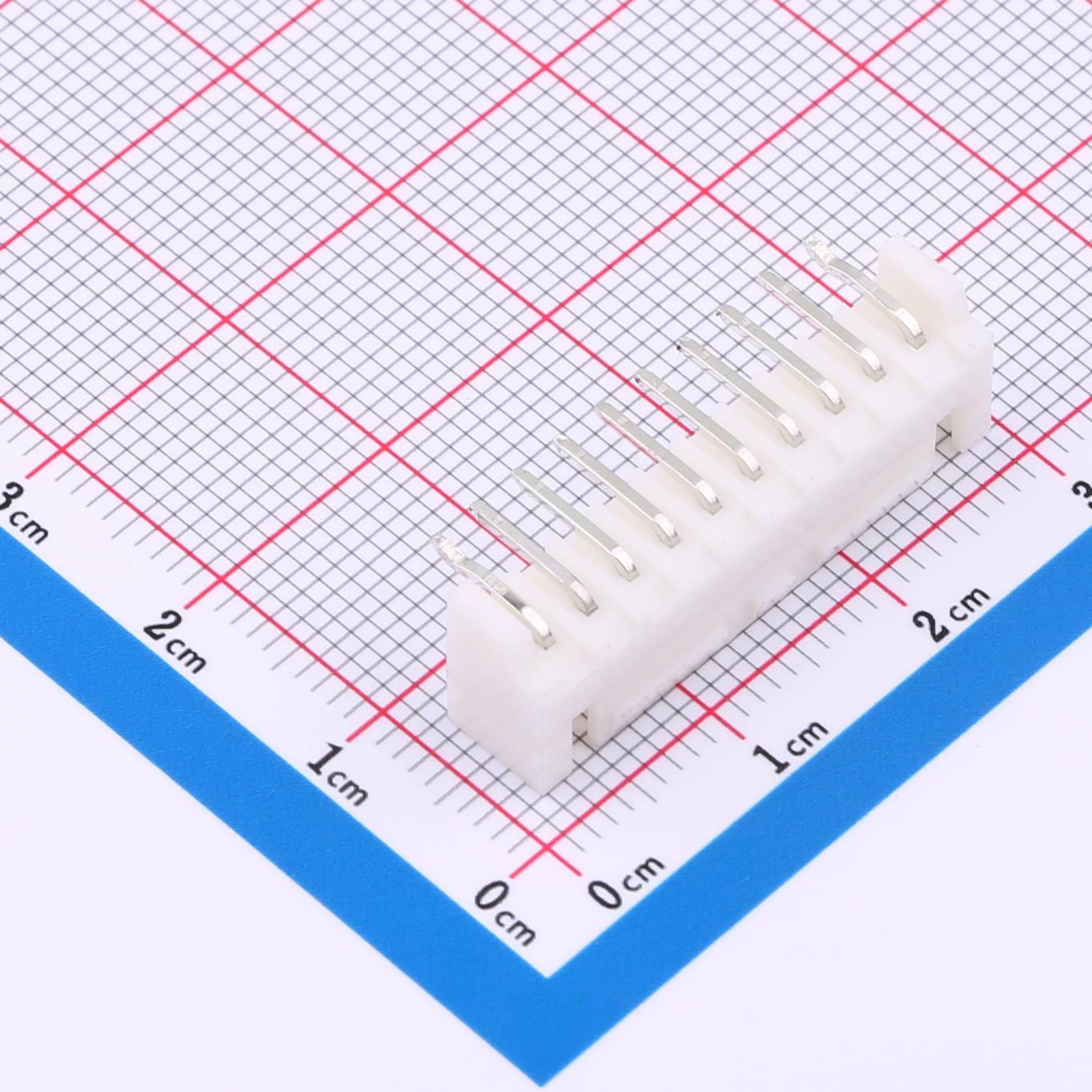

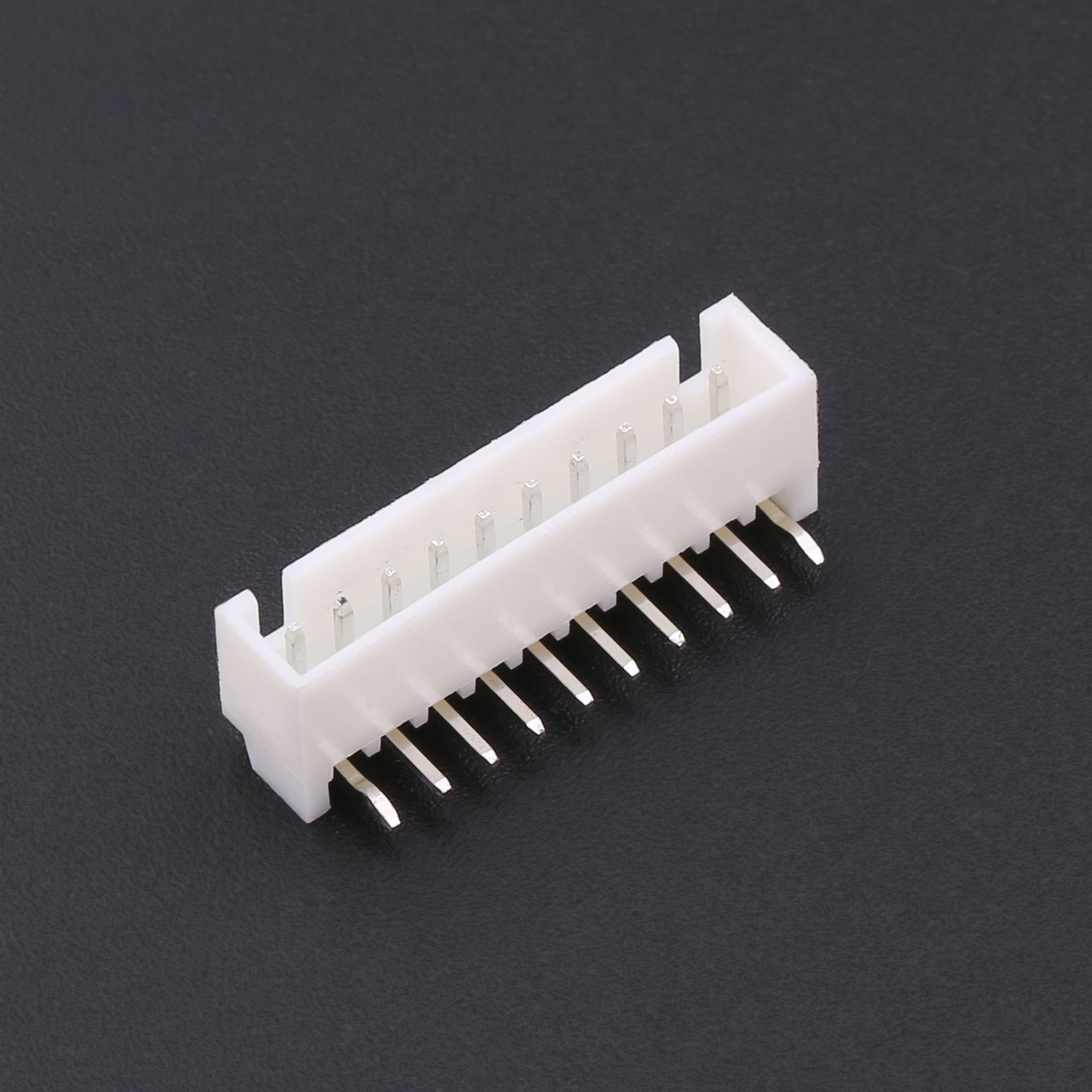

2.54mm Pitch Wire-to-Board Connector, 1x10P, Locating Angled Pin, KH-A2504-R-10AWD

2.54mm Pitch Wire-to-Board Connector, 1x10P, Locating Angled Pin, KH-A2504-R-10AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch for consistent wire-to-board connectivity
● 1x10P configuration for optimized space utilization
● Angled locating pin design for secure, precise alignment
● DIP type for efficient PCB integration
● 3A AC/DC current rating for versatile applications
● 250V AC/DC voltage rating for wide compatibility
● Temperature range from -25℃ to +85℃ for reliable performance
● 20mΩ Max contact resistance for improved conductivity
● 1000MΩ Min insulation resistance for enhanced safety

Product Benefits
● Stable and dependable connection in various conditions
● Compact design maximizes board space
● Supports high current and voltage requirements
● Operates across a wide temperature range
● Low contact resistance ensures high efficiency
● Superior insulation resistance for secure operation

Product Applications
● Consumer electronic devices
● Automotive control systems
● Industrial automation
● Power distribution networks
● Home appliance connections
● Medical device assemblies
