With the rapid development of modern wireless communication and automotive electronics, the performance stability and durability of RF connectors as core transmission components have become increasingly important. Kinghelm’s KH-2FK1-Z-RM-101 sky blue FAKRA board-end antenna socket is a professional product integrating high performance, strong adaptability, and durability. Featuring a universal Z-type design and a 90° male structure, it is widely applied in automotive navigation, antenna systems, remote information processing, and various RF communication scenarios. Its excellent physical design and RF performance make it the preferred connection solution for many device manufacturers.

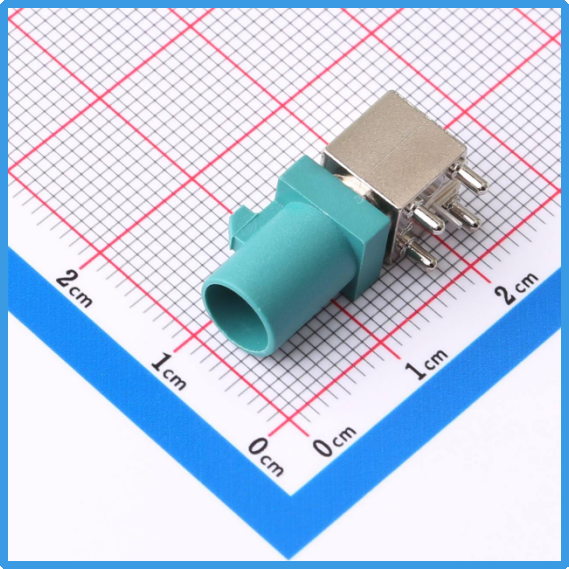

Kinghelm KH-2FK1-Z-RM-101 Product Image

This product belongs to the RF coaxial connector category and is specifically designed for board-end applications. It adopts a right-angle plug-in structure, facilitating stable installation in compact spaces. With a standard impedance of 50Ω and support for frequencies from 0 to 6 GHz, it meets the high-frequency signal transmission needs of most modern communication devices. Its excellent frequency response means it is suitable not only for automotive systems such as GPS, LTE, and DAB antenna connections but also for industrial control, security, and IoT devices requiring stringent RF signal performance.

In terms of materials, Kinghelm KH-2FK1-Z-RM-101 FAKRA connector uses high-performance LCP (Liquid Crystal Polymer) as the insulator, offering outstanding electrical properties and heat resistance. It maintains stable insulation characteristics over a long operating temperature range from -40℃ to +105℃, ensuring signal transmission is unaffected by external environmental interference. Moreover, the connector’s precise structural design supports at least 25 mating cycles, providing durable connection reliability during long-term device operation.

Notably, this product’s sky blue housing fully complies with FAKRA coding standards, enabling quick identification and accurate mating to prevent faults caused by misconnection. In complex wiring environments, color recognition greatly enhances assembly efficiency. The universal Z-type structure also offers strong compatibility, flexibly adapting to different device port angle requirements, especially suitable for space-constrained scenarios with high directional demands on connectors.

As a professional RF and connector manufacturer in China, Kinghelm has long been dedicated to automotive, security, Beidou navigation, and industrial communication fields. Its products are widely used by leading automotive OEMs, electronics manufacturers, and smart terminal producers. KH-2FK1-Z-RM-101 FAKRA connector embodies Kinghelm’s technical expertise and manufacturing precision. The product uses tray packaging, facilitating automated assembly line usage while reducing wear caused by collisions during transport.

Kinghelm KH-2FK1-Z-RM-101 Specification

For users seeking stable connections, flexible installation, and superior performance, Kinghelm KH-2FK1-Z-RM-101 board-end FAKRA male connector is not merely a basic component but a key guarantee to enhance overall system reliability and performance. If you are looking for a reliable, high-performance, and internationally standard-compliant board-end RF connector, this product is definitely worth adding to your procurement list.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
