In the modern electronics manufacturing sector, FFC (Flexible Flat Cable) connectors have emerged as efficient and reliable solutions for electrical connections, widely used in various precision electronic devices. The Kinghelm KH-FFC-V0.5-30P-200MM FFC connector introduced by Kinghelm has become a top choice for many electronics manufacturers due to its precise design and outstanding performance.

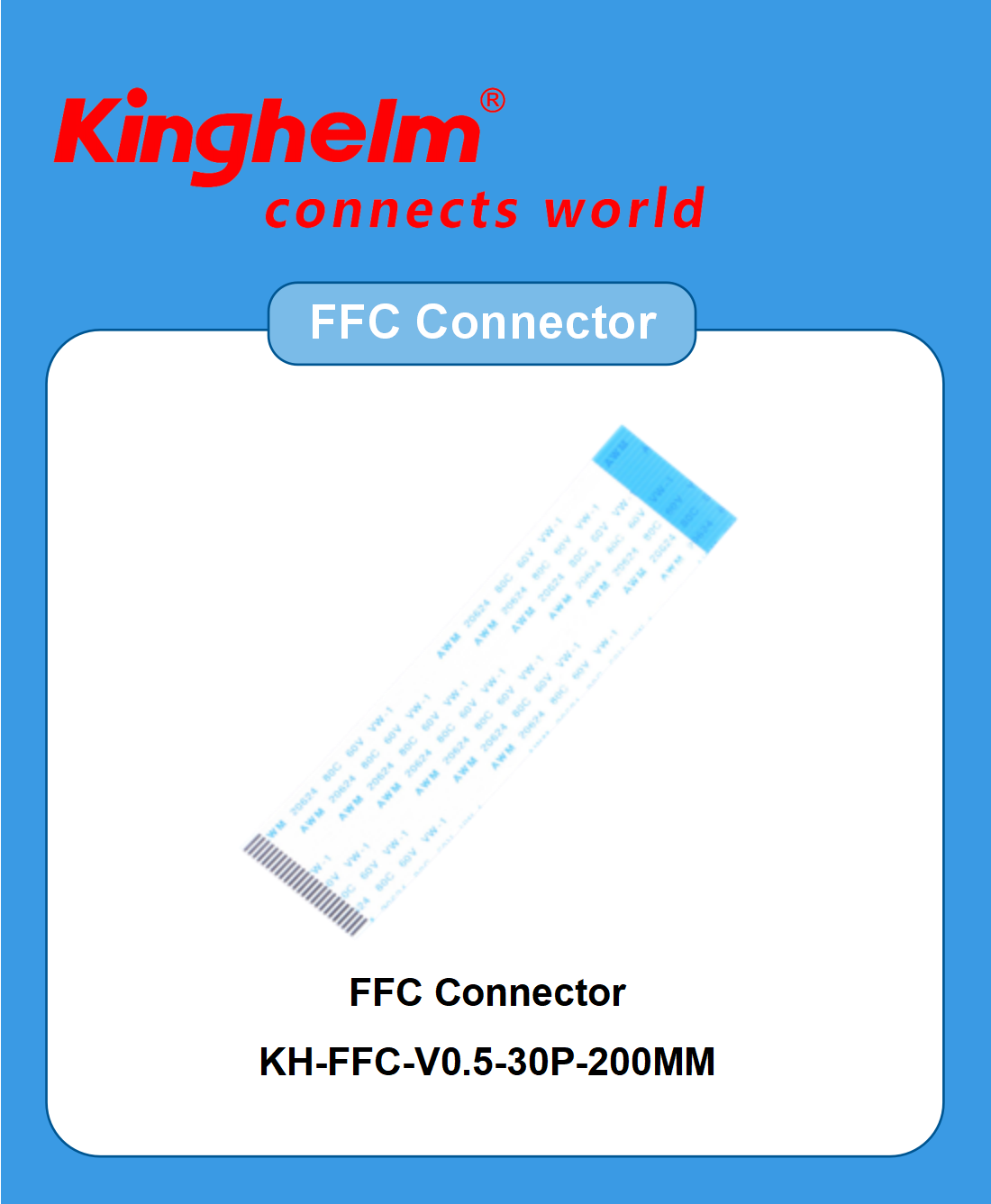

Kinghelm KH-FFC-V0.5-30P-200MM Product Image

Precision Design for High-Density Connections

One of the key highlights of the Kinghelm KH-FFC-V0.5-30P-200MM FFC connector is its precision design. Specifically tailored for high-density connection requirements, it features 30 pins (PIN) with a pin pitch of 0.5mm and a total length of 200mm. This design not only ensures efficient and stable electrical connections within limited space but also significantly enhances the flexibility and adaptability of the cable. The 0.5mm pitch and 30P configuration meet the high-density connection needs of modern electronic devices while maintaining connection stability and reliability.

High-Performance Materials for Long-Term Stable Operation

The KH-FFC-V0.5-30P-200MM FFC connector is manufactured using high-quality materials. The main body is made of PET insulating material, which offers excellent insulation and high-temperature resistance, and can withstand physical damage and chemical corrosion to a certain extent. The pins are made of ultra-thin tin-plated (or gold-plated) flat copper wires, ensuring smooth current transmission and reducing energy loss. This combination of materials not only improves the cable's conductivity but also enhances its durability and reliability. The connector can maintain stable performance under a working temperature range of -40℃ to +105℃, making it suitable for various harsh working environments.

Advanced Manufacturing Process for High Quality

Produced using high-tech automated equipment, the KH-FFC-V0.5-30P-200MM FFC connector is manufactured through a pressing process. This advanced manufacturing process not only increases production efficiency but also ensures the high quality and consistency of the product. The automated equipment can precisely control every step of the production process, thereby ensuring the dimensional accuracy and performance stability of the connector. The application of this manufacturing process has brought the quality of the KH-FFC-V0.5-30P-200MM FFC connector to an industry-leading level, providing a reliable guarantee for the long-term stable operation of electronic devices.

Wide Applications to Meet Diverse Needs

Thanks to its precise design and outstanding performance, the KH-FFC-V0.5-30P-200MM FFC connector has found wide applications in multiple fields. In the consumer electronics sector, such as in smartphones, tablets, and wearable devices, its precise pitch and high-density connection capability meet the stringent space requirements of products while ensuring stable connections between components. In the industrial automation field, complex machinery requires a large number of reliable electrical connections, and this connector, with its stability and durability, has become an essential part for ensuring the normal operation of equipment. In the automotive electronics field, where the reliability and temperature resistance of components are extremely high, the KH-FFC-V0.5-30P-200MM FFC connector can operate stably in the harsh environment inside a car, providing support for the normal operation of the automotive electronic system.

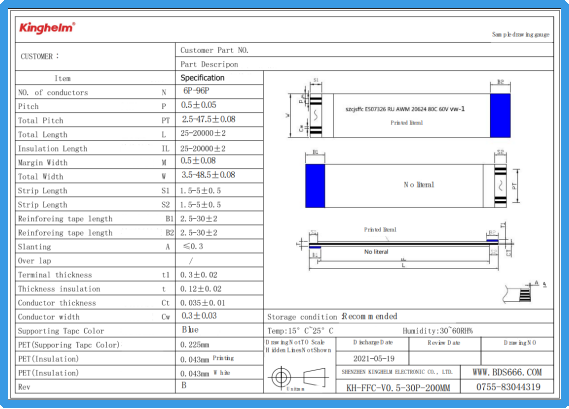

Kinghelm KH-FFC-V0.5-30P-200MM Specification

The Kinghelm KH-FFC-V0.5-30P-200MM FFC connector from Kinghelm, with its precise design, high-quality material selection, and advanced manufacturing process, has become a standout product in the FFC connector category. In today's rapidly evolving electronics industry, it continues to play a vital role in enhancing the performance and stable operation of various electronic products. Whether electronic engineers are designing new products or maintenance personnel are servicing old devices, the KH-FFC-V0.5-30P-200MM connector is a trustworthy option. It not only meets the current demands of electronic devices for connectors but also provides strong support for the future development of electronic technology, setting a new benchmark in the connector field.
