In the design of modern electronic devices, as functionality increases and complexity rises, higher demands are placed on the pin count and connection stability of connectors. The Kinghelm KH-CL1.0-H2.5-24PS FFC/FPC Connector is designed to meet these needs. It combines a pin pitch of 1.0mm with a high pin count of 24 pins, while maintaining a moderate height of 2.5mm. This design not only meets the demand for space efficiency but also ensures the stability and reliability of data transmission.

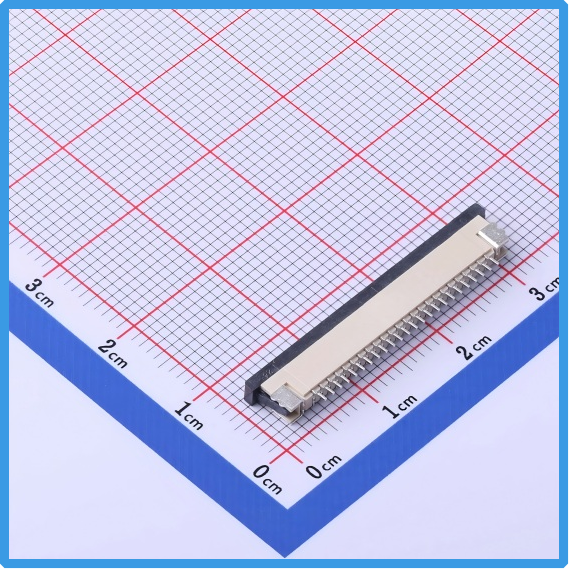

Kinghelm KH-CL1.0-H2.5-24PS Product Image

High Pin Count and Moderate Pitch for Complex Connections

The standout feature of the Kinghelm KH-CL1.0-H2.5-24PS FFC/FPC Connector is its high pin count and moderate pin pitch. With 24 pins, it supports more signal transmission channels, meeting the high-density connection needs of complex electronic devices. At the same time, the 1.0mm pin pitch ensures connection stability while optimizing space utilization, allowing the connector to achieve efficient connections in limited space.

Moderate Height for Space and Performance Balance

The connector has a height of 2.5mm, which not only allows it to fit into compact spaces but also ensures connection strength and stability. This height means that the connector does not occupy too much vertical space when installed on a circuit board, providing more flexibility for the layout of other components. This height design makes the Kinghelm KH-CL1.0-H2.5-24PS FFC/FPC Connector an ideal choice for many electronic device manufacturers when designing compact devices.

High-Quality Materials and Precision Manufacturing for Long-Term Stable Use

The Kinghelm KH-CL1.0-H2.5-24PS FFC/FPC Connector compromises nothing in material selection and manufacturing processes. Its main body is made of high-quality plastic, which has good insulation and high-temperature resistance properties, ensuring stability in various working environments. The contact points of the connector are specially treated to ensure low contact resistance and high conductivity. Even with frequent plugging and unplugging operations, signal transmission stability and reliability are maintained. This high-quality material and precision manufacturing make the KH-CL1.0-H2.5-24PS FFC/FPC Connector a trusted choice for many electronic device manufacturers.

Lying-Down Packaging for Optimized Space Layout

The connector uses a lying-down packaging method, which further optimizes the space layout. In compact electronic devices, this packaging can effectively reduce the height of the connector, minimize space occupation, and maintain good electrical performance. This packaging method is not only suitable for ultra-thin devices but also enhances the overall design's aesthetics and reliability.

Wide Range of Applications to Boost Device Upgrades

Thanks to its high pin count, moderate pitch, moderate height, high-quality materials, and precision manufacturing, the Kinghelm KH-CL1.0-H2.5-24PS FFC/FPC Connector has been widely used in various fields. In the consumer electronics field, such as smartphones, tablets, and smart wearable devices, it meets the dual demands of miniaturization and high performance, providing users with a smoother experience. In the industrial automation field, complex control systems require a large number of reliable connections. This connector, with its stability and durability, becomes an important part of ensuring the normal operation of equipment. In the automotive electronics field, where the reliability and temperature resistance of components are extremely high, the connector can work stably in the harsh environment inside a car, providing support for the normal operation of the automotive electronic system.

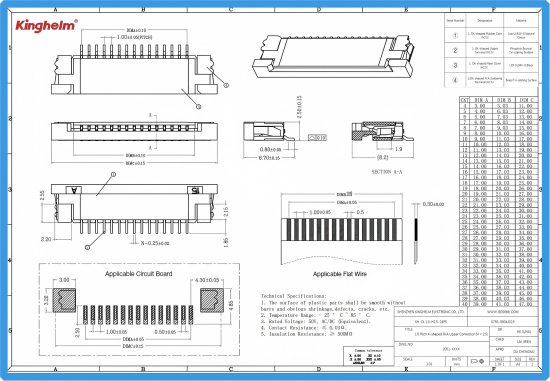

Kinghelm KH-CL1.0-H2.5-24PS Specification

The Kinghelm KH-CL1.0-H2.5-24PS FFC/FPC Connector, with its high pin count, moderate pin pitch, moderate height, high-quality materials, and precision manufacturing processes, has become a trusted choice for many electronic device manufacturers. In today's world of continuously developing and innovating electronic devices, it will continue to play an important role in enhancing the performance and stable operation of various electronic products. Whether it is for electronic engineers designing new products or maintenance personnel repairing old devices, the Kinghelm KH-CL1.0-H2.5-24PS FFC/FPC Connector is a reliable choice. It not only meets the current demands of electronic devices for connectors but also provides strong support for the future development of electronic technology, setting a new benchmark in the connector field.
