With the rapid development of wireless communication and RF transmission technologies, the demand for high-performance RF connectors continues to grow. As a leading domestic manufacturer of RF connectors, Kinghelm leverages outstanding R&D capabilities and strict quality management to introduce the innovative half-thread right-angle SMA female pin board-mount connector — KH-SMA-K513-G48. With its unique design, superior performance, and excellent corrosion resistance, this product stands out in the RF connection field.

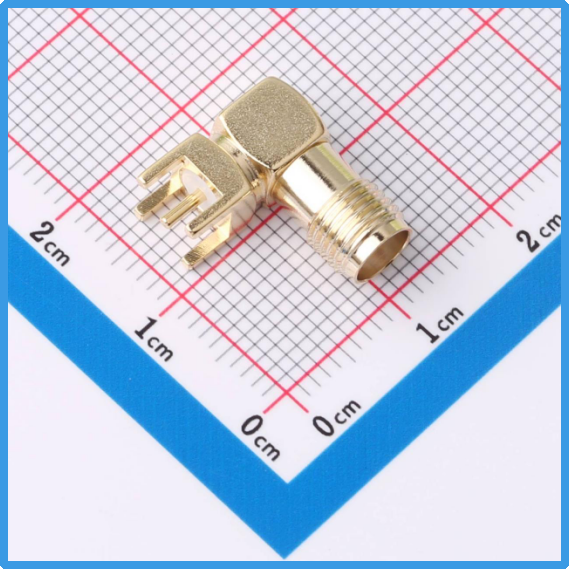

Kinghelm KH-SMA-K513-G48 Product Image

1. Innovative Design — Half-Thread Right-Angle for Enhanced Application Flexibility

The Kinghelm KH-SMA-K513-G48 features a half-thread right-angle design, offering greater flexibility and spatial adaptability compared to traditional straight SMA connectors. This shape facilitates PCB layout by reducing space occupancy and effectively avoiding interference with nearby components, improving installation convenience and safety. It is especially suitable for dense board-end connection applications.

Additionally, the female pin is manufactured with high precision, ensuring stable signal transmission with low loss. Precise pin dimension control guarantees perfect mating with the male pin, enhancing both mechanical and electrical connection performance.

2. Outstanding Corrosion Resistance — 48-Hour Salt Spray Test Ensures Durability

Kinghelm invests heavily in materials selection and surface treatment R&D. The KH-SMA-K513-G48 passes a rigorous 48-hour salt spray test, meeting industry-leading corrosion resistance standards. Whether in marine environments, humid and salty industrial sites, or extreme weather conditions, it guarantees long-term stable operation, minimizing signal degradation and contact failure caused by environmental factors.

This durability is especially critical for outdoor wireless equipment, communication base stations, and various high-end industrial devices, significantly improving reliability and reducing maintenance costs.

3. Premium Materials and Manufacturing Process for Exceptional Performance

The KH-SMA-K513-G48 SMA connector uses high-strength brass and high-purity gold plating, ensuring excellent mechanical strength and superior electrical conductivity. The gold plating reduces contact resistance and prevents oxidation, securing stable and high-quality signal transmission.

Its precision right-angle plug-in design withstands insertion forces effectively, maintaining a firm interface and preventing loosening or poor contact caused by vibration or repeated mating cycles. Weighing approximately 3.4846 grams, it balances robustness with lightweight construction to meet modern electronic device design requirements.

4. Application Cases and Industry Solutions

Kinghelm’s KH-SMA-K513-G48 half-thread right-angle SMA female pin board-mount connector, with its outstanding performance and environmental resilience, is widely applied across key industries, meeting the high standards required for RF connectors in diverse fields.

l5G Communication Base Station RF Modules
In 5G base station RF front-end modules, high-frequency transmission and stable connection are critical. The KH-SMA-K513-G48 offers low insertion loss and excellent interference resistance, ensuring signal quality and enhancing overall communication efficiency. The half-thread right-angle design also helps save valuable space for integrating complex RF modules.

lSatellite Communication Systems
Satellite communication equipment operates in complex and variable environments requiring long-term stability. The KH-SMA-K513-G48’s 48-hour salt spray certification ensures exceptional corrosion resistance, suitable for high-salinity, high-humidity conditions, guaranteeing reliable operation of satellite ground stations and mobile communication devices, while reducing maintenance frequency and costs.

lIndustrial Automation and Test Equipment
Industrial automation devices and RF test instruments demand connectors with high mechanical strength and durability to maintain good contact even under frequent mating cycles. The KH-SMA-K513-G48’s precision manufacturing ensures long mechanical life and stable electrical performance, adapting to harsh industrial conditions and improving overall equipment reliability and user experience.

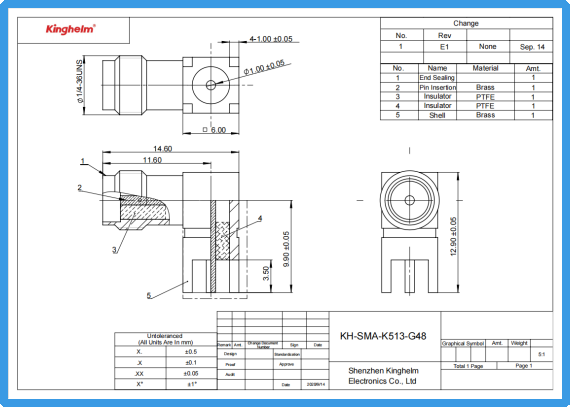

Kinghelm KH-SMA-K513-G48 Specification

Conclusion

Kinghelm’s KH-SMA-K513-G48 half-thread right-angle SMA female pin board-mount connector combines innovative design, outstanding performance, and rich application experience to become an indispensable key product in the RF connector industry. It greatly enhances installation flexibility and signal stability, providing trusted RF connection solutions for communications, satellite, industrial, and other sectors.

With advanced material technology and rigorous quality control, the Kinghelm KH-SMA-K513-G48 guarantees top standards for every batch, helping customers build high-performance and highly reliable electronic devices. Choosing Kinghelm KH-SMA-K513-G48 means selecting industry-leading quality assurance and technical support, empowering your product performance and expanding your market future.
