In the vast world of electronic components, pin headers serve as fundamental and indispensable connectors. Widely used in various electronic devices, they ensure stable electrical connections between circuit boards and modules. Among many pin header products, the KH-2PH90-1X18P-L10.5 pin header from the Kinghelm brand stands out with its unique design and excellent performance, making it an ideal choice for connection solutions in compact spaces.

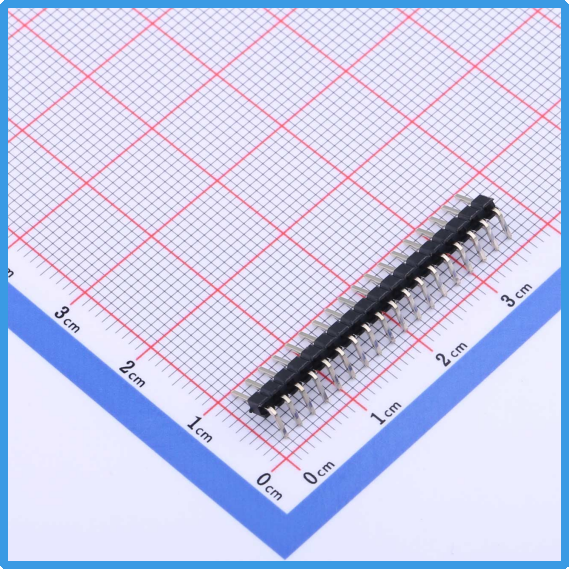

Kinghelm KH-2PH90-1X18P-L10.5  Product Image

Unique Design for Compact Spaces

One of the key highlights of the Kinghelm KH-2PH90-1X18P-L10.5 pin header is its design specifically tailored for tight spaces. As electronic devices pursue miniaturization and slim form factors, internal space becomes extremely limited. This pin header adopts a 2mm standard pitch, which significantly reduces the occupied area compared to some traditional headers. Additionally, the 1x18P single-row pin configuration maintains sufficient connection points while optimizing space usage. Its right-angle design is particularly ingenious, allowing it to adapt to the complex layout of circuit boards and achieve flexible installation within limited space. This provides strong support for compact product designs.

Stable and Reliable Electrical Connections

The core function of any pin header is to provide reliable electrical connections, and the KH-2PH90-1X18P-L10.5 performs exceptionally well in this regard. Its pin length of 10.5mm is carefully designed to ensure the pins can be fully inserted into the board, forming a secure and stable connection. Combined with a 4mm mating length, it ensures a tight fit, effectively preventing loose connections that could lead to electrical failures. Moreover, this pin header uses square pins instead of round ones, offering a larger contact area with the circuit board and thereby enhancing both connection stability and conductivity.

High-Quality Materials for Long-Term Use

A great pin header not only relies on thoughtful design but also on high-quality materials. The KH-2PH90-1X18P-L10.5 is manufactured with strict material standards. Its housing uses premium plastic that provides excellent insulation and heat resistance, with a plastic height of 2mm that helps resist physical damage and chemical corrosion. The pins are made from highly conductive metals to ensure smooth current transmission and reduce power loss. Even in harsh environments with operating temperatures ranging from -40℃ to +105℃, it maintains stable performance, guaranteeing the long-term reliable operation of electronic devices.

Single-Row Design for Easier Installation and Maintenance

The KH-2PH90-1X18P-L10.5 pin header features a single-row design that offers several advantages. During assembly, single-row headers are easier to handle, allowing engineers to quickly and accurately insert or remove them, thereby improving production efficiency. Additionally, this design simplifies maintenance and repairs: if a fault occurs, it’s easier to identify and replace or repair individual pin headers, reducing downtime and costs.

Wide Application Across Industries

Thanks to its unique design and outstanding performance, the KH-2PH90-1X18P-L10.5 pin header finds applications in many fields. In consumer electronics, such as smartphones and tablets, its compact size helps meet strict space requirements while ensuring stable internal connections. In industrial automation, complex machinery demands numerous reliable electrical connections, and this header’s stability and durability play a key role in keeping equipment running smoothly. In automotive electronics, where reliability and temperature resistance are critical, this pin header can operate steadily even in challenging automotive environments, supporting the reliable operation of electronic systems.

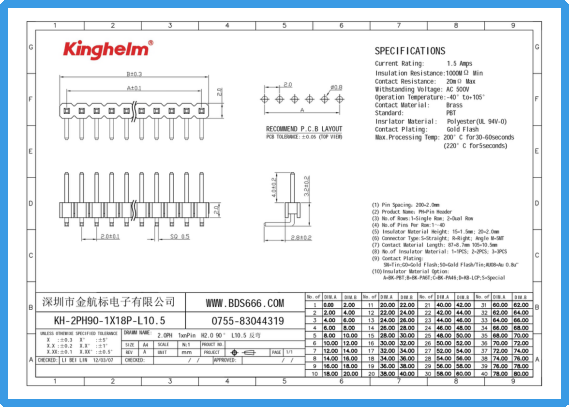

Kinghelm KH-2PH90-1X18P-L10.5 Specification

With its space-efficient design, stable electrical performance, high-quality materials, user-friendly single-row layout, and broad application range, the Kinghelm KH-2PH90-1X18P-L10.5 pin header stands out as a top choice among pin header products. As electronic devices continue to evolve and innovate, this component will keep playing an essential role, enhancing product performance and ensuring stable operation. Whether it’s engineers designing new products or technicians maintaining existing equipment, the KH-2PH90-1X18P-L10.5 pin header from Kinghelm is a reliable choice. It not only meets the current demands of electronic devices but also supports the future development of electronic technology, setting a new benchmark in the pin header field.
