Release date：2025-05-22Author source：KinghelmViews：25
In today’s rapidly evolving digital and intelligent age, network connectivity has become a vital component across industrial automation, smart homes, communication infrastructure, and various electronic devices. As a well-established brand in the connector industry, Kinghelm continues to deliver high-performance products backed by strong R&D capabilities and rigorous quality standards. The KH-RCH56-8P8C-1X4-D RJ45 connector is a prime example of Kinghelm’s response to increasing market demand for multi-port, stable network communication solutions.

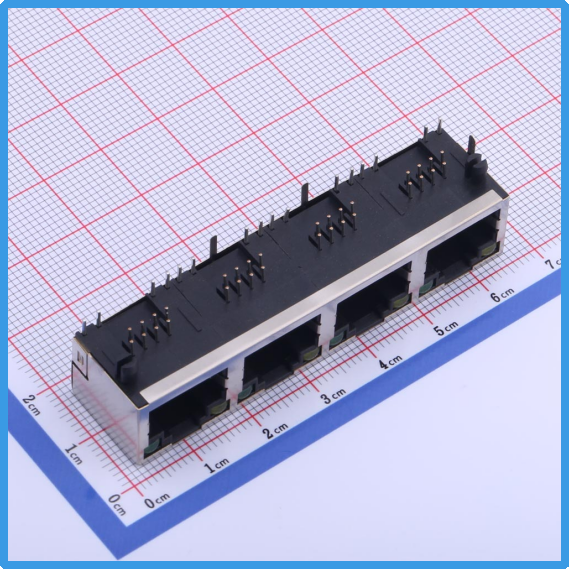

Kinghelm KH-RCH56-8P8C-1X4-D Product Image
This model features a standard RJ45 interface with a 90-degree horizontal (right-angle) mount, ensuring compatibility with diverse motherboard and PCB layouts. Designed with DIP (through-hole) packaging and supplied in tray packaging, it streamlines bulk production and shipping, effectively reducing manufacturing costs and improving assembly efficiency. With a 4-port configuration, each supporting 8P8C (8-position, 8-contact), the KH-RCH56-8P8C-1X4-D enables simultaneous multi-channel network signal transmission, greatly expanding the device’s connectivity capabilities. It is particularly suitable for communication equipment, routers, switches, and embedded systems requiring multiple Ethernet ports.
An integrated LED indicator on each port provides real-time visibility into network link and data transmission status, enhancing device maintenance and simplifying troubleshooting. This significantly improves system monitoring and visual diagnostics. Additionally, the connector performs reliably within a wide operating temperature range of -40°C to +70°C, making it well-suited for both low-temperature industrial environments and high-heat telecom equipment rooms.
Although this model does not feature built-in EMI shielding, its high-density layout and optimized PCB integration help maintain signal integrity in electrically noisy environments. For applications with strict EMC (electromagnetic compatibility) requirements, external shielding or system-level design enhancements can be employed to further mitigate interference.
Looking ahead, with the continued growth of 5G communications, IoT, and smart manufacturing, the demand for high-speed, stable, multi-port network connectors will only increase. The KH-RCH56-8P8C-1X4-D RJ45 connector is designed precisely to meet these evolving needs. Its compact form factor, ease of maintenance, and high connection density offer OEM manufacturers greater design flexibility and system reliability, helping maximize internal space efficiency in complex devices.
As a leading Chinese connector brand, Kinghelm is intensifying its investments in advanced networking interfaces. Its products are widely adopted across State Grid Corporation of China, industrial automation systems, medical electronics, and intelligent transportation networks, earning a strong reputation for performance and reliability. The launch of the KH-RCH56-8P8C-1X4-D RJ45 connector further consolidates Kinghelm’s technical leadership in the domestic connector market and offers a robust alternative to imported components.

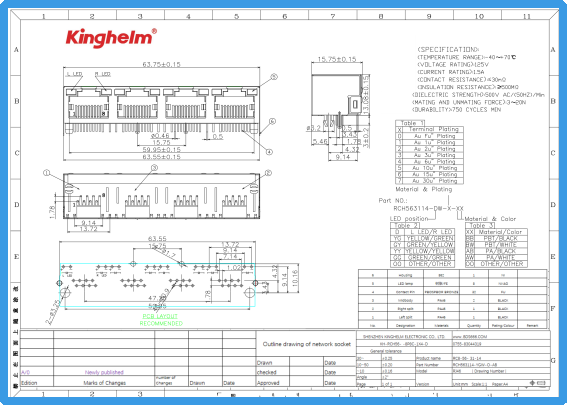

Kinghelm KH-RCH56-8P8C-1X4-D Specification
In conclusion, the Kinghelm KH-RCH56-8P8C-1X4-D RJ45 connector stands out as a cost-effective, reliable solution for modern networking devices, thanks to its 4-port compact design, LED indication, broad environmental adaptability, and versatile application range. As the industrial internet and smart device sectors continue to grow, this connector is set to play an increasingly vital role in the future of network communication hardware.
