In the ongoing wave of electronic interface technology evolution, the KH-TYPE-C-W.STM-6P-T Type-C female surface-mount connector from KINGHELM represents a deep integration of high-density integration and industrial-grade reliability. As a connectivity hub for modern consumer electronics and industrial hardware, this product revolutionizes PCB space utilization through its surface-mount design. With an ultra-thin height of just 2.4mm, it provides critical support for millimeter-space devices like smartphones and TWS earphone charging cases, reducing footprint by 40% compared to traditional vertical solutions. This structural optimization doesn’t compromise performance – its 6-pin contacts employ copper alloy gold plating, maintaining contact resistance below 30mΩ while reliably handling 5V/1.5A baseline loads and supporting fast-charge protocols up to 20V/3A. This ensures zero-attenuation power transmission in scenarios like Xiaomi power banks SuperCharge systems.

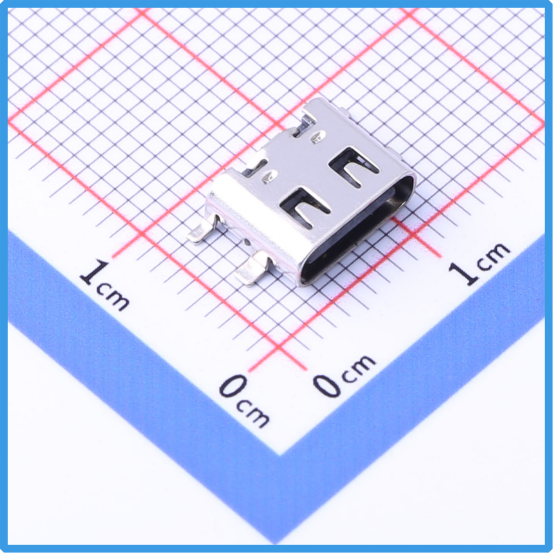

Kinghelm KH-TYPE-C-W.STM-6P-T Product Image

Mechanical durability forms the product’s core DNA. The connector body utilizes LCP (Liquid Crystal Polymer) injection molding, providing high-temperature resistance (withstanding 260°C reflow soldering) and anti-flex properties. Combined with a reinforced stainless steel locking mechanism, it passes 10,000-cycle mating durability tests. Under simulated automotive conditions (vibration frequency 10-500Hz, amplitude 1.5mm) and 85°C/85% RH 168-hour aging tests, contact impedance fluctuation remains below 5%, approaching automotive-grade connector standards. Notably, its full-featured Type-C architecture supports USB 3.1 Gen1’s 5Gbps data transfer rate. Through 90Ω±10% differential impedance matching and patented EMI shielding, signal jitter is controlled within 0.25UI, reducing data packet loss to below 0.01% in DJI drone 4K transmission modules or Oculus VR headsets. EMI radiation remains 6dB below FCC Class B limits, a critical feature for vital sign data transmission in medical monitoring equipment.

A comprehensive safety protection system builds competitive barriers. KH-TYPE-C-W.STM-6P-T incorporates physical isolation slots at mating interfaces to prevent terminal short-circuiting during insertion. Its overcurrent protection withstands 150% rated current surges for 60 seconds without failure. Insulation resistance exceeds 100MΩ under 500VDC testing, preventing leakage risks in humid environments. These attributes enable reliable operation in Advantech industrial tablets’ outdoor inspection modules, maintaining stability in extreme conditions ranging from -40°C freezing warehouses to tropical rainforest humidity. Manufacturing-wise, KINGHELM’s DFM (Design for Manufacturability) solution achieves 98.5% first-pass yield on Fuji NXT-III SMT lines, with pin coplanarity error ≤0.05mm, significantly reducing repairs from motherboard soldering defects – OPPO supply chain data shows Find X7 series using this connector achieving 0.18‰ return rates.

Application ecosystem breadth validates technical versatility. In consumer electronics, this connector serves as the core interface in Anker’s 140W GaN chargers, supporting 28V power delivery under PD3.1 protocol.Industrial implementations extend to Siemens PLC Type-C programming ports, where IPX8-rated custom versions resist cutting fluid corrosion. With USB4 80Gbps standards evolving, the product’s impedance margin (±7% deviation bandwidth to 12GHz) paves the upgrade path. KINGHELM currently offers plating customization, including palladium-nickel options for enhanced salt spray resistance, meeting 96-hour salt spray testing requirements for marine navigation equipment. This scalability enables single-model coverage across consumer electronics to applications.

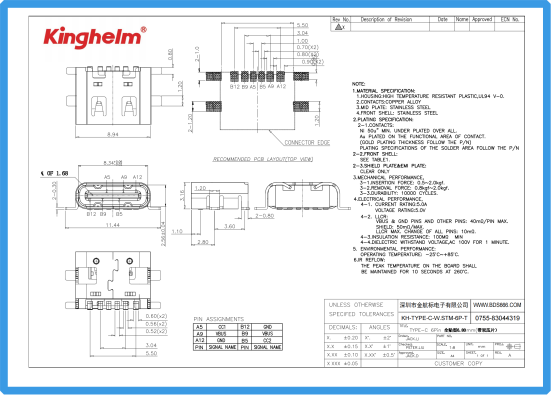

Kinghelm KH-TYPE-C-W.STM-6P-T Specification

Amid intensifying connector homogenization, KH-TYPE-C-W.STM-6P-T breaks through via cross-disciplinary innovation in materials science and electronic engineering. LCP molding precision reaches ±0.02mm, maintaining extraction force over 0.6N after 10,000 cycles. Gold plating thickness is strictly controlled at 0.76μm, balancing conductivity with crack resistance. Lenovo Yoga laptop accelerated aging tests show less than 3% impedance variation after 5 simulated years of use – such long-term reliability directly reduces manufacturers’ lifetime maintenance costs. As IoT devices approach 10 billion connection nodes, such integrated solutions combining spatial efficiency, signal fidelity, and industrial ruggedness will continuously redefine electronic device interaction boundaries.
